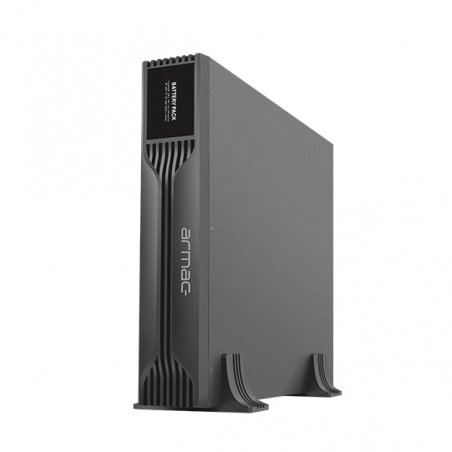

Product description: Battery Pack Rack 19'' for Armac UPS - 6 x 12V/9Ah - 72V
BatteryPack designed forArmac's rackmountPSWseriesuninterruptible power supplies. The product contains 6 x12 V / 9 Ahbatteries with a total voltage of72 V DC. The device can be mounted in19"serverracks. The purpose of theBattery Packis to extend the operation of the power supply, which may prove necessary in the case of uninterruptible power supplies used in server rooms or in IT facilities with large current demands. This type of protection helps avoid unexpected power outages and gives you extra time to save files or projects you have been working on before the computer shuts down.
Key features
- Compatible with PSW Rack UPS's
- Multiple Battery Packs can be connected together
- Quick connection using the Battery Packs connector*
*NOTE: Take care not to connect the two battery pack connectors with one connection cable, as this will lead to a short circuit. Additionally, when connecting the Battery Pack, make sure that the total battery voltage of the UPS and the Battery Pack module is the same.
Battery Pack with 4 12 V / 9 Ah batteries.
Easy installation
The Battery Pack can be mountedin a rackusing the special mountingears. A stand is also included forverticallypositioning the Battery Pack. All mounting elements have been manufactured with great attention to detail, ensuring that the unit remainssecurelyin place once installed.
Technical Specifications
- Size: 19"
- Battery parameters: 6 x 12 V / 9 Ah
- Total voltage: 72 V DC
- Battery charging time: 4 to 6 hours to 90% capacity
- Back-up time: depending on the connected load
- Wire height: 2 U
- Number of screws required: 6
- Compatible with:
- UPS: R/2000I/ONL R/3000I/ONL
- Mounting rails: R/0019
- Dimensions: 440 x 440 x 88 mm
- Weight: 20.5 kg
