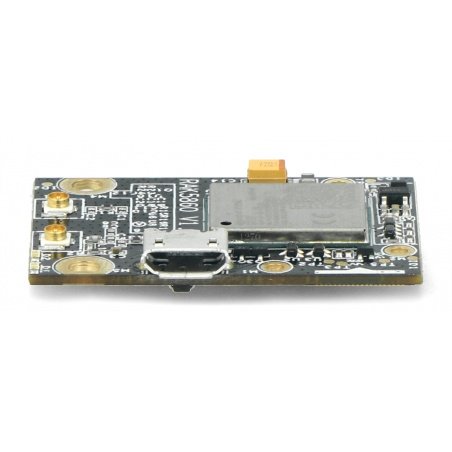

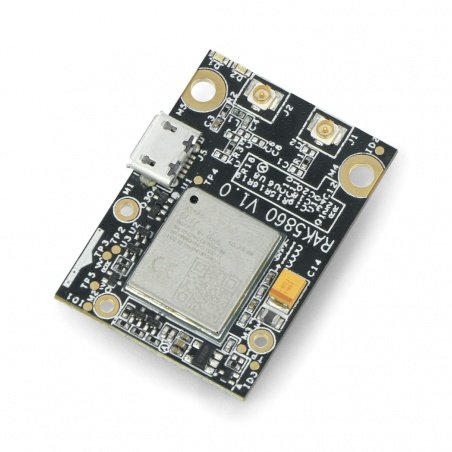

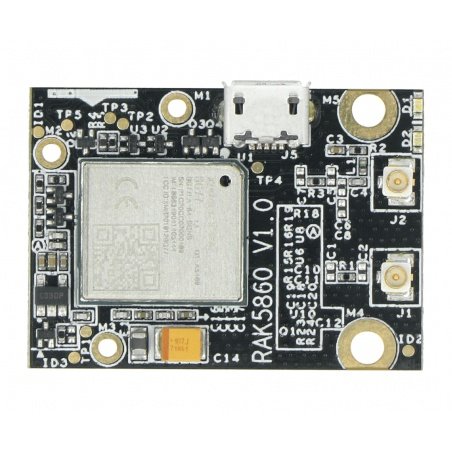

Product description: Wireless NB-IoT module - WisBlock IO extension - Rak Wireless RAK5860
The RAK5860 extension is a module designed to work with the WisBlock Base Board RAK5005-O. It provides LTE Cat M1 and LTE Cat NB2 wireless communication for the assembled system. The IO module supports LTE-FDD network and can operate in Half-Duplex mode on LTE network. It also provides optional GNSS functionality. It is equipped with a microUSB connector for debugging and sending AT commands and data transfer. The extension needs connection to WisBlock Base Board and WisBlock Core development modules for proper operation.
On manufacturer website there is a user guide, which makes it much easier to start working with the module.
WisBlock series modules produced by Rak Wireless. They allow to make extended IoT projects, which can be used in advanced scenarios and in basic projects. WisBlock system includes: WisBlock Base Board, WisBlock Core developer module, WisBlock Sensors and WisBlock IO expansion modules. They are used for rapid deployment of engineering prototypes, and are also designed for development of massive applications ready for industrial deployment.
WisBlock IO Extensions
WisBlock IO modules allow to extend projects and scenarios with additional interfaces, sensors and communication extensions. They also enable connection of modules from outside the WisBlock series. They are assembled according to the scheme shown in the photo opposite. Before commissioning, make sure that the module is properly attached. For proper operation they require connection with WisBlock Core development module and WisBlock Base Board.
Technical specification of the module
- Compatible with WisBlock series
- Quectel BG77 with LTE Cat M1, LTE cat NB2 and GNSS
- Programmed with Quectel AT command set
- IPEX connectors for LTE and GPS external antenna
- MicroUSB connector
- Nano SIM and ESIM options
- Built-in LEDs for operation status indication
- Power supply: 2.6 V to 4.2 V
- typical: 3,3 V
- Module dimensions: 25 x 35 mm
- RAK5860 module
- GPS antenna
- LTE antenna
