Cell holder for 4x 18650 battery without wires

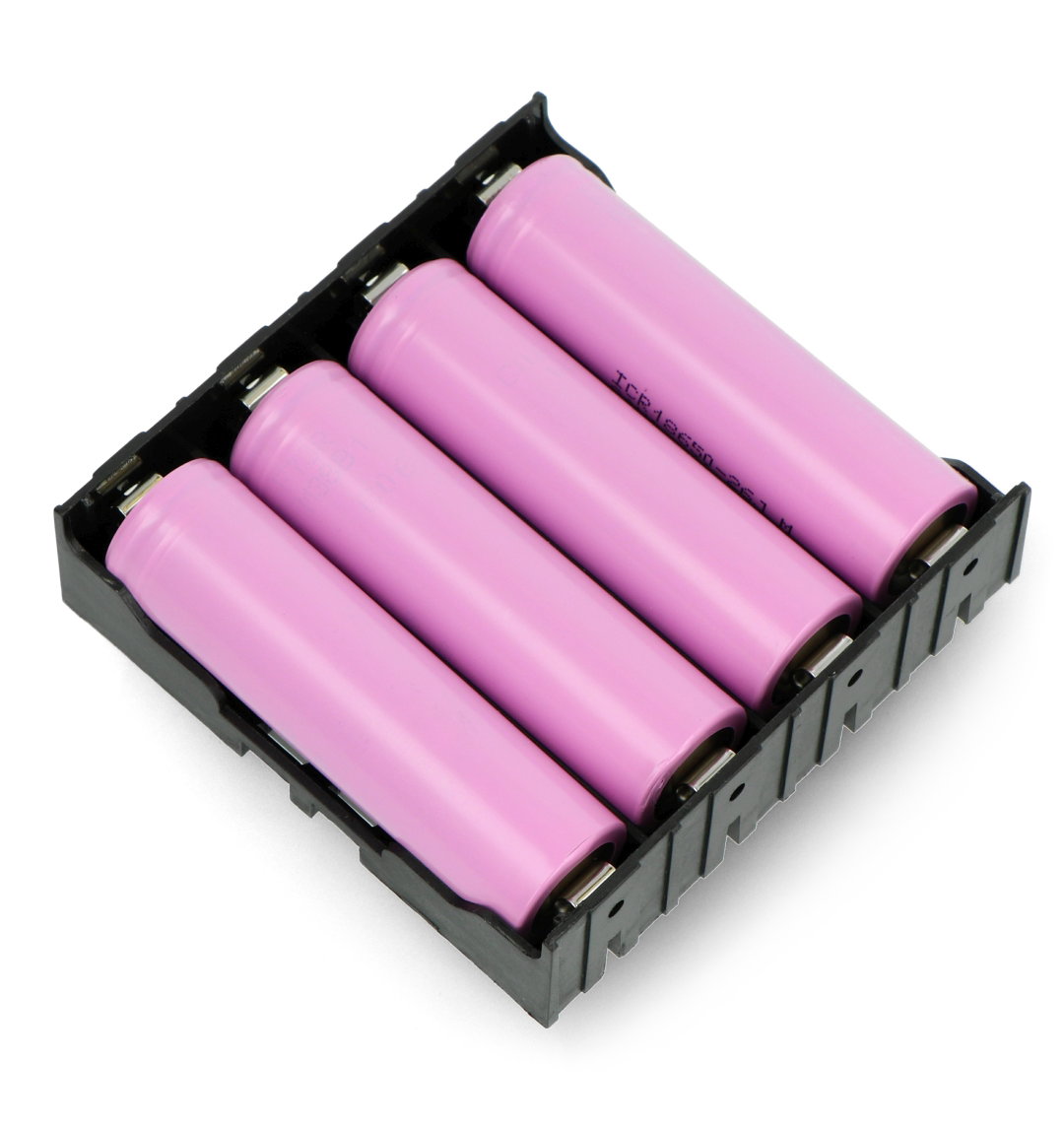

Plastic basket in black, accommodates up to four 18650 type cells and has no leads. The cells are easy to assemble and disassemble thanks to the use of spring-loaded plates. The cage allows for trouble-free power consumption from the batteries. The dimensions of the cage are 77 x 80 x 20 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Basket for 4 type 18650 batteries without wires
Plastic basket inblack, accommodates up to four18650 typecells. Nowires. Cell assembly and disassembly is easy thanks to the use of spring-loaded plates. The cage allows for trouble-free electricity consumption from the cells. The dimensions of the cage are77 x 80 x 20 mm. The battery cage is designed forindependent connection in various projects.The batteries are not connected to each other in any way. Care must be taken to connect the cells in series or parallel in an appropriate way.
Basket for 4 rechargeable batteries type 18650 without wires.
Attention! We offer baskets withserialandparallelconnection. Incorrectly connected cells may cause fire. |
The basket has no connections between the batteries.
The basketdoesnot have connections between individual batteries. They should be made independently - depending on the need, in parallel or in series. Please refer to thistopic.
Battery basket specifications
- Colour: black
- Material: Plastic
- Number of cells: 4
- Connection between batteries: none
- Battery cage type 18650
- Dimensions: 77 x 80 x 20 mm
| Name | Value |
|---|---|
| Colour | black |
| Length | 77 mm |
| Width | 80 mm |
| Height | 20 mm |
| Cell - case | 18650 |
| Cell | 4 |
| Width | 8 cm |
| Height | 2.5 cm |
| Depth | 8 cm |
| Weight | 0.028 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.

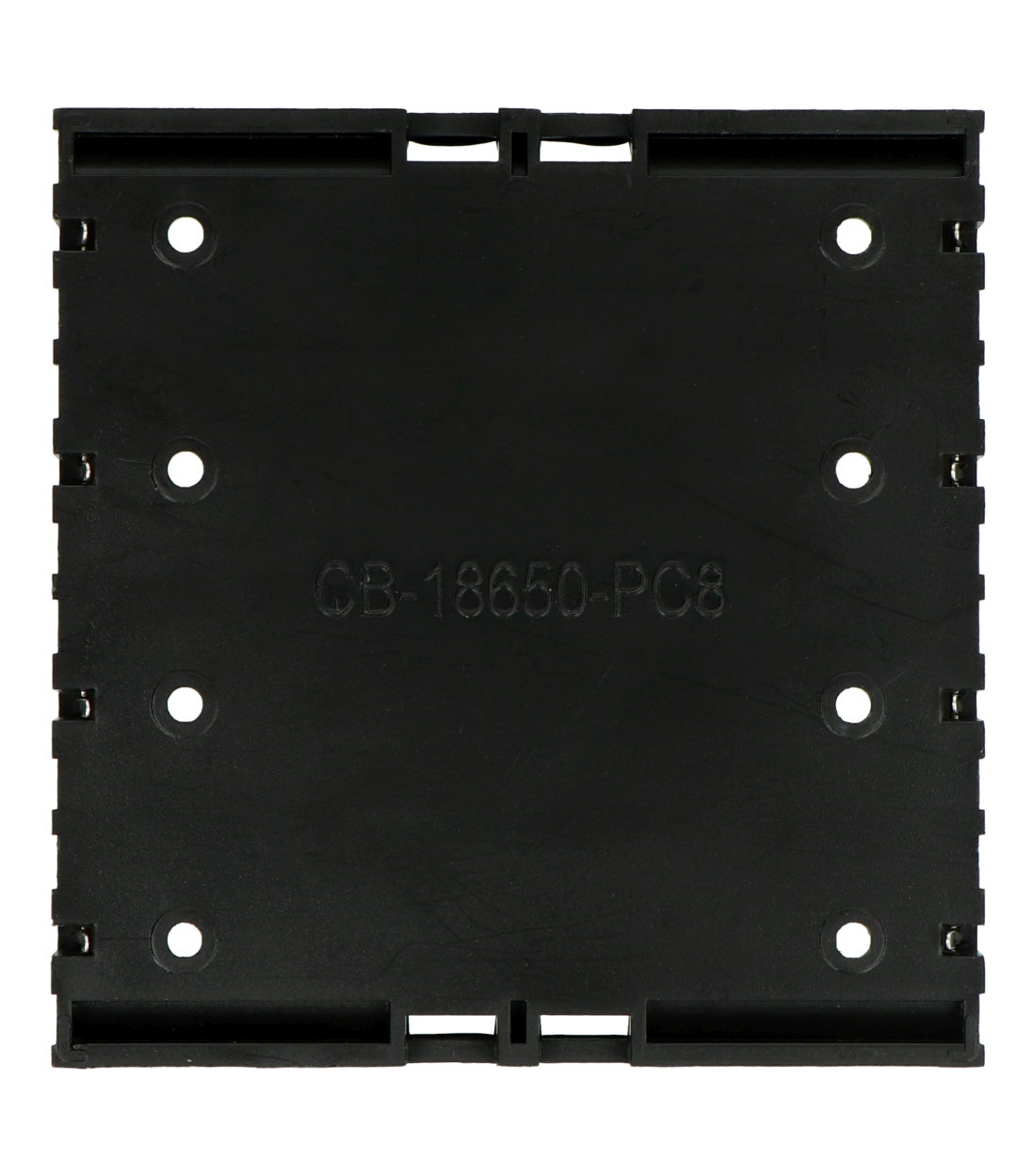

Question: Are there pins on the underside of the basket that I can solder into the board?
Instructions and documents
GPSR data
Product information
This product is a component intended for further assembly or prototyping. It is not a finished product within the meaning of the product safety regulations.
