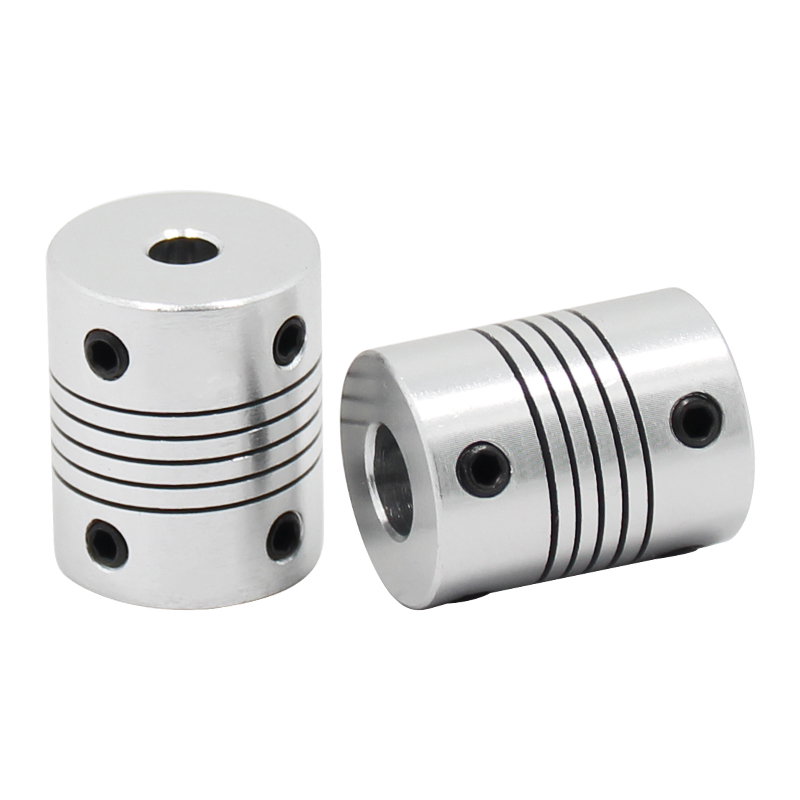

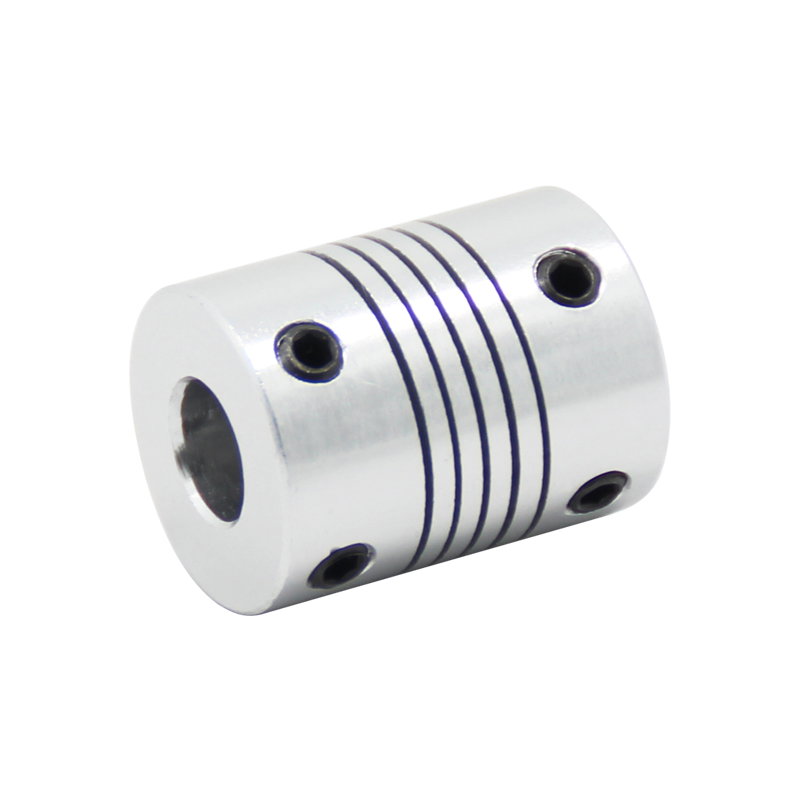

Product Description: 5 x 8 mm aluminium flexible coupling
Made ofaluminum alloyflexible coupling, mounted on the stepper motor shaft. It is a structural element commonly used in3D printers. The product is a single aluminium block. By removing part of the material through a characteristic notch in the shape of a spiral path, the coupling exhibits increased flexibility. This feature is used to dampen vibrations arising during the operation of the stepper motor. Thanks to the flexible coupling, they are not transferred between the motor shaft and the trapezoidal screw. The product has two mounting holes of5 mm and 8 mm diameter. Its total height is 25 mm.
Aluminium flexible coupling 5 x 8 mm.
The object of sale is oneflexible coupling.
Flexible coupling specification
- Material: aluminum.
- Dimensions of mounting hole for motor: 5 mm.
- Dimensions of mounting hole for screw: 8 mm
- Coupling height: 25 mm
- Clutch has holes with grub screws
