Description

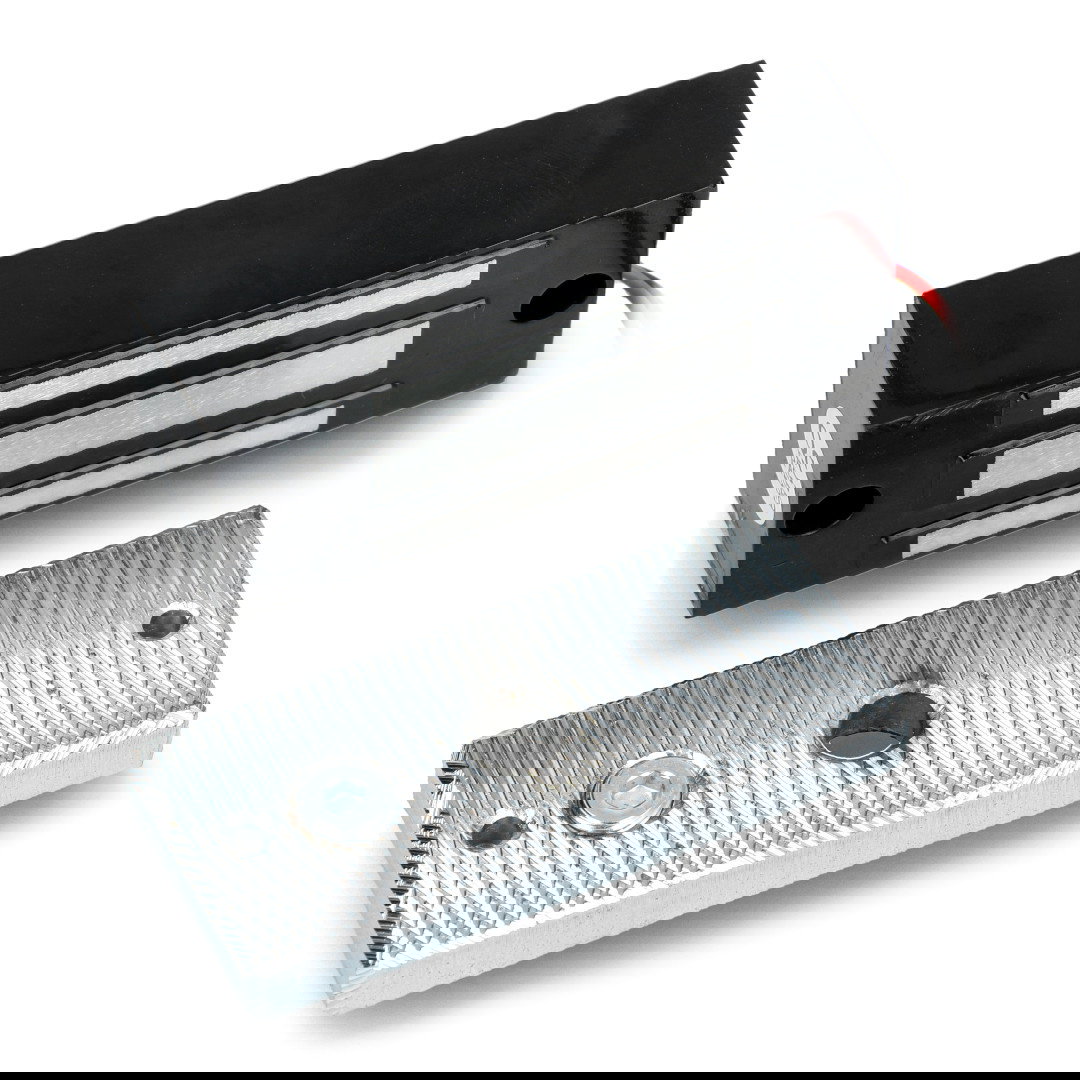

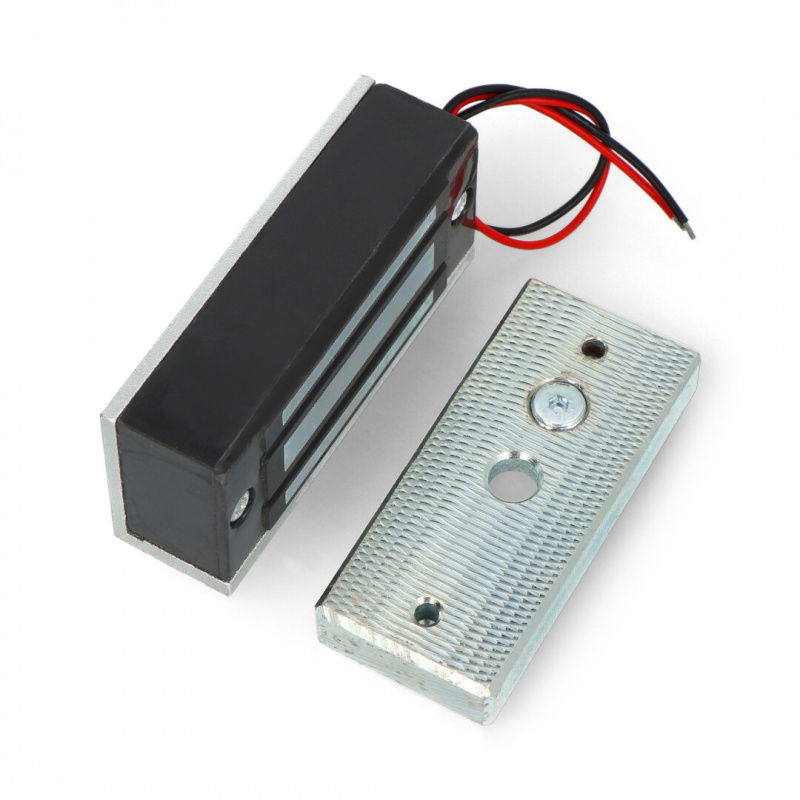

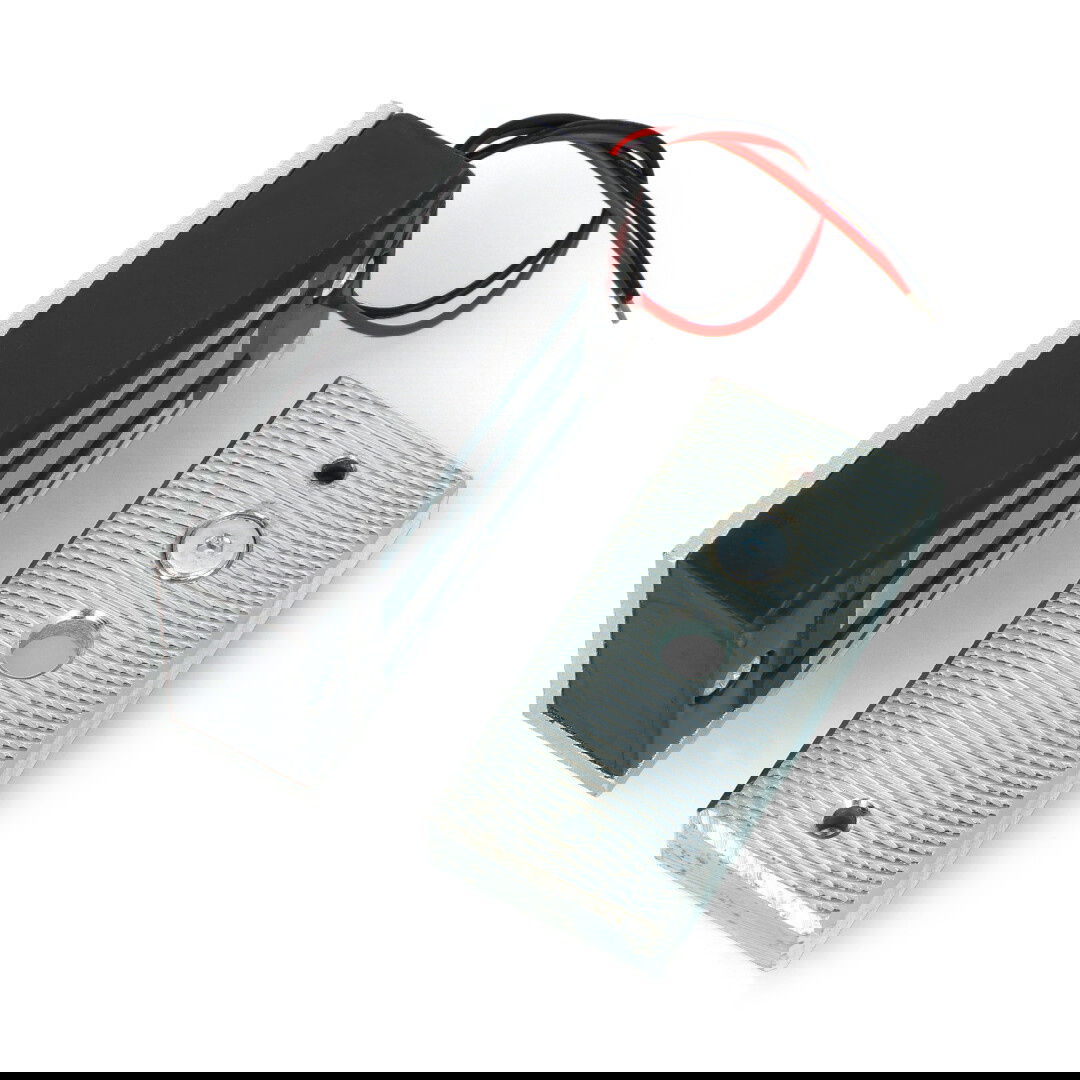

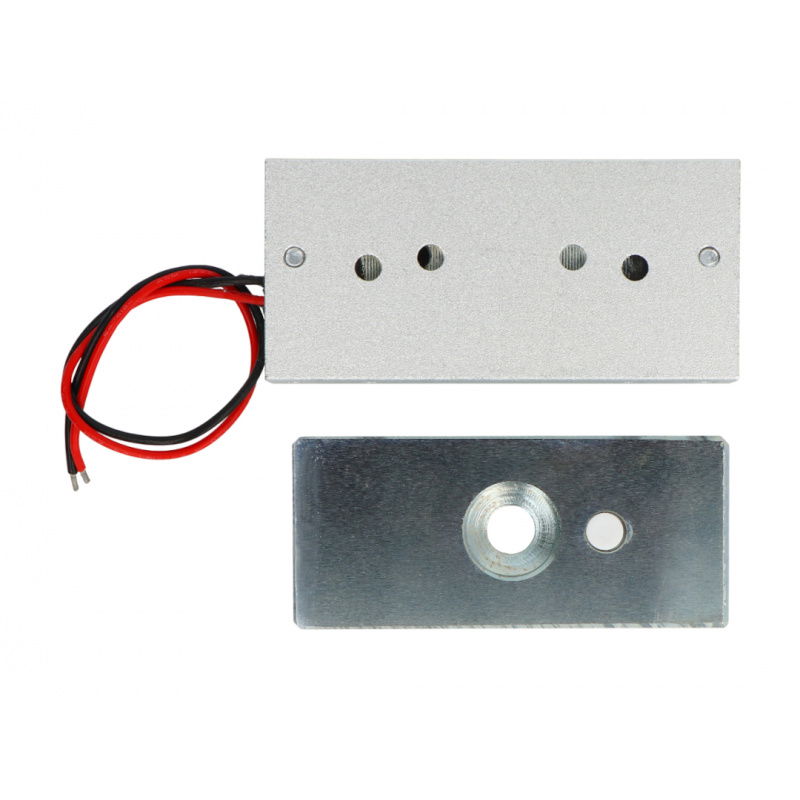

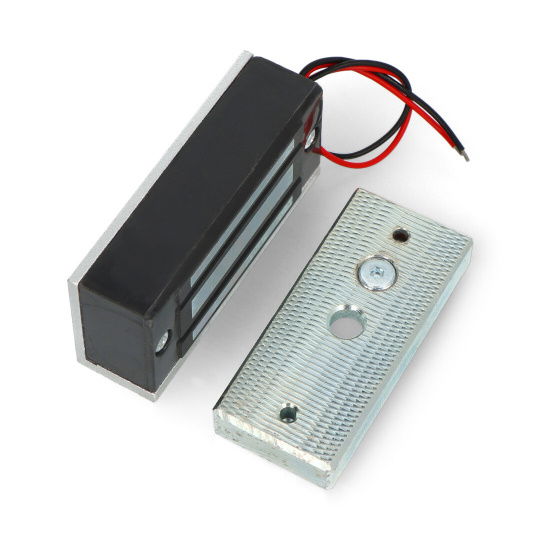

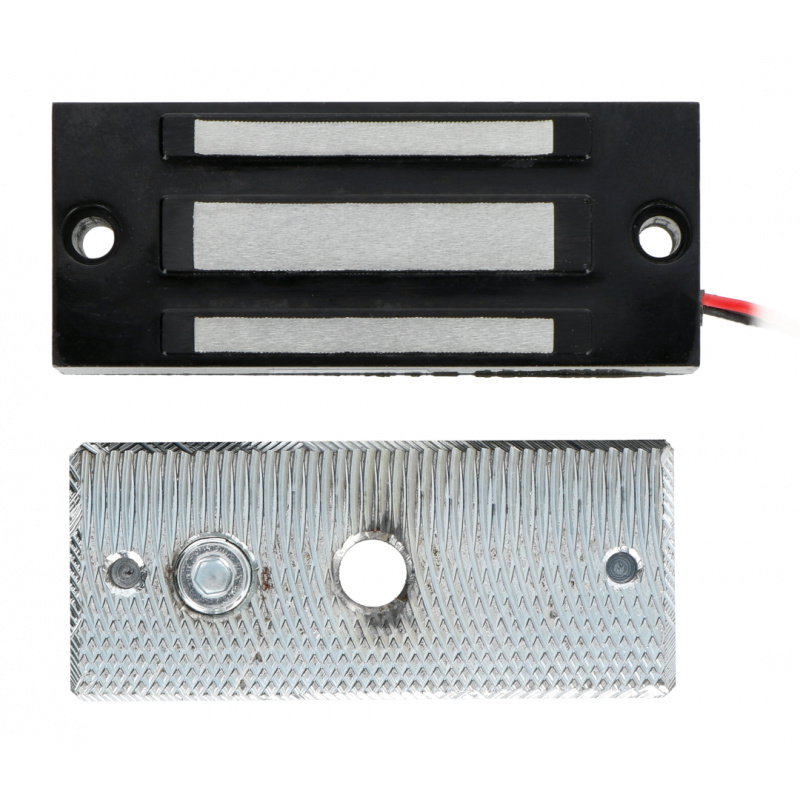

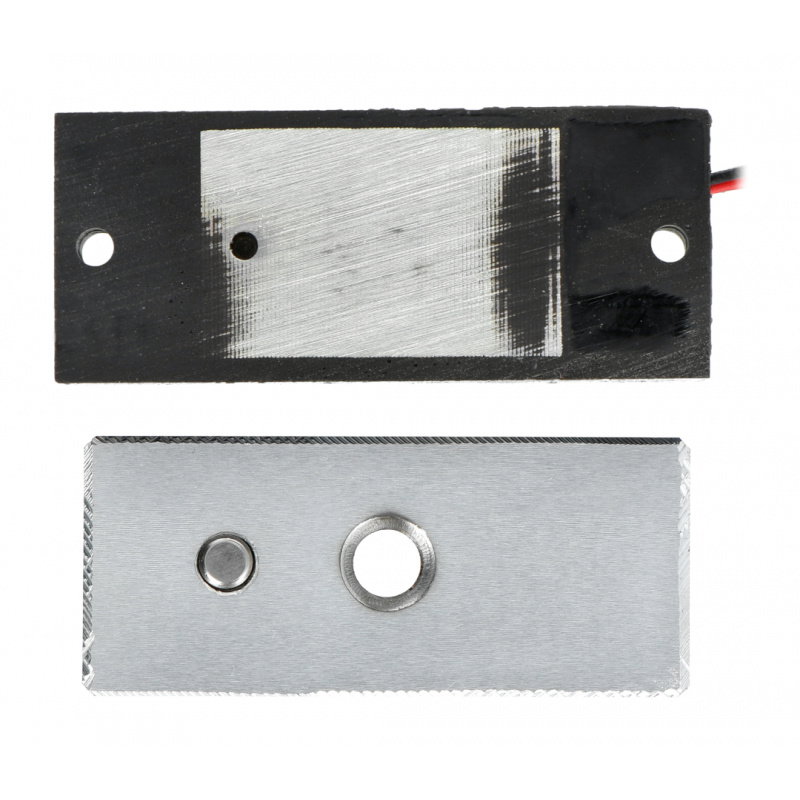

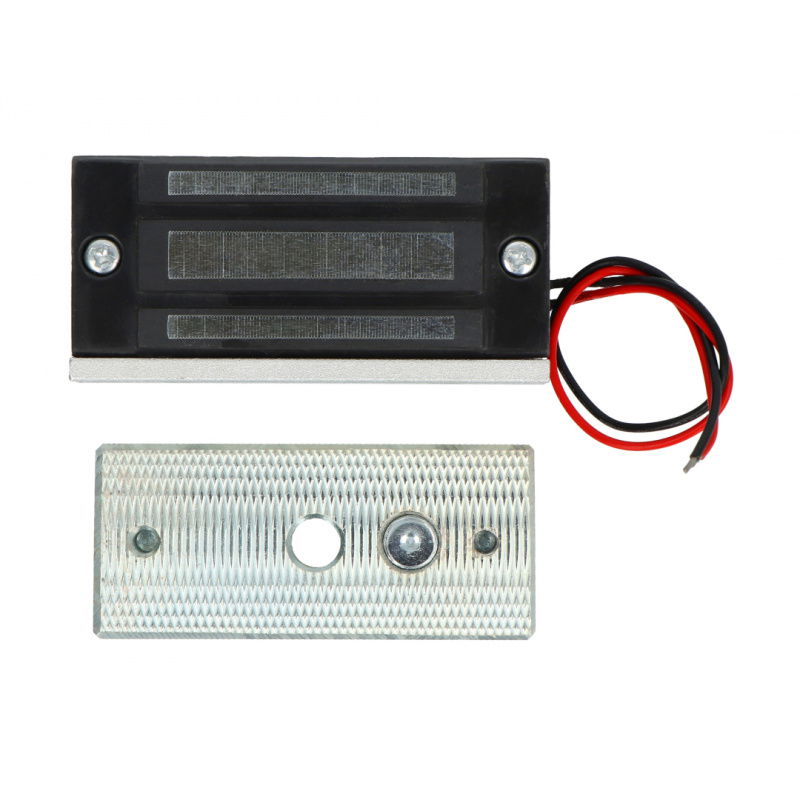

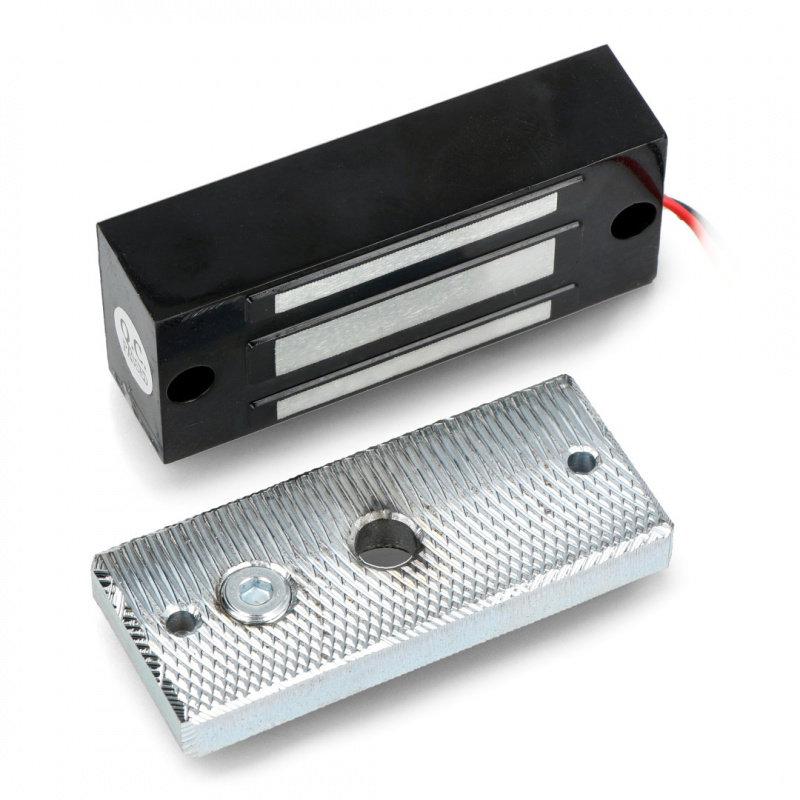

The holding electromagnet is powered with a voltage of 12 V. Keep the weight of 60 kg in standard earth acceleration 9.8 m/S2. The dimensions of the elctromagnet 38 x 80 x 23.6 mm. Set have a bundle of mounting screws.
The device can be used as an actuator controlled by any microcontroller, e.g.an Arduino. Please note that an electromagnet consumes too much power to be connect directly to the pin of the microcontroller. For this purpose, you can userelay,optical isolator ortransistor amplifier.
|
Attention! The manufacturer recommends maintaining a good heat dissipation from the housing because with the coil's temperature rise, the force that holds decreases. |
Specification
- Supply voltage: 12 V
- Current consumption: approx. 150 mA
- Load capacity: 60 kg (holding a weight of 60 kg for the gravitational acceleration 9.8 m/S2)
- The wires with insulation removed at the ends of a length of about. 12 cm
- Set has a bundle of installation screws
- Electromagnet dimensions: 80 x 37 x 23.6 mm
- The dimensions of the metal plate: 75 x 33 x 11 mm

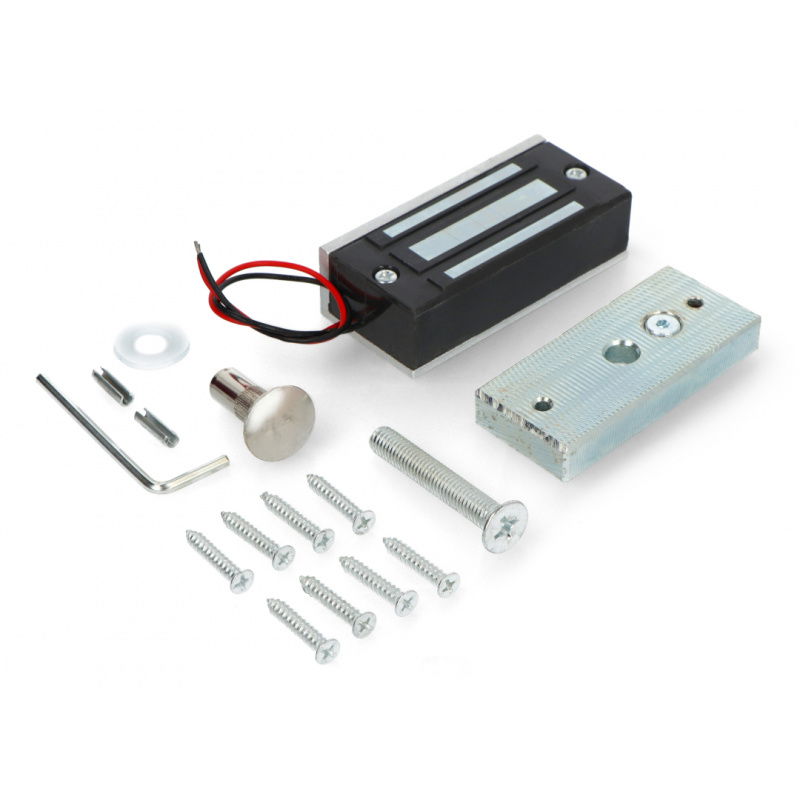

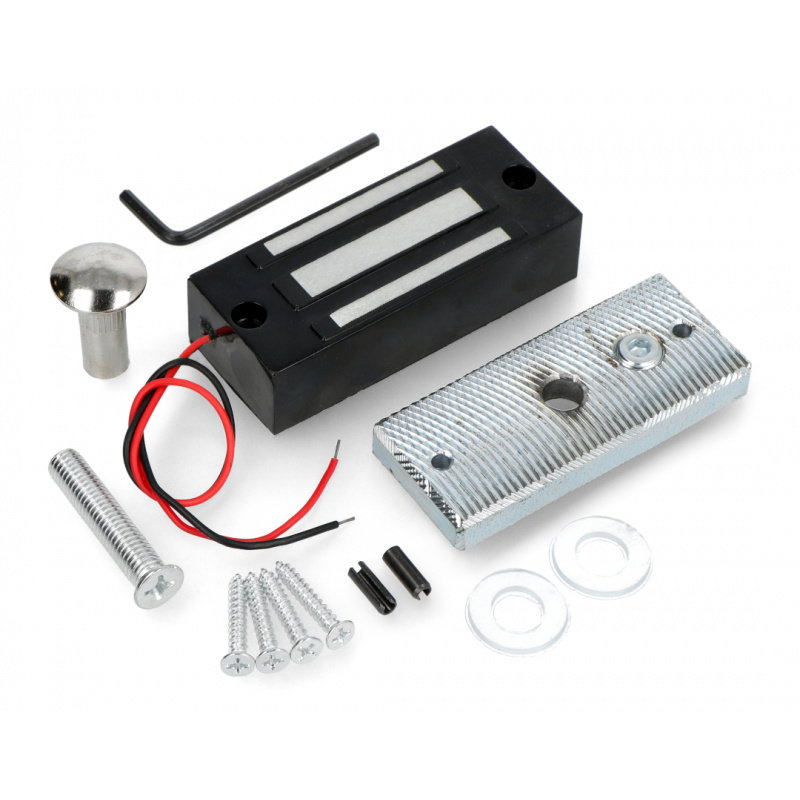

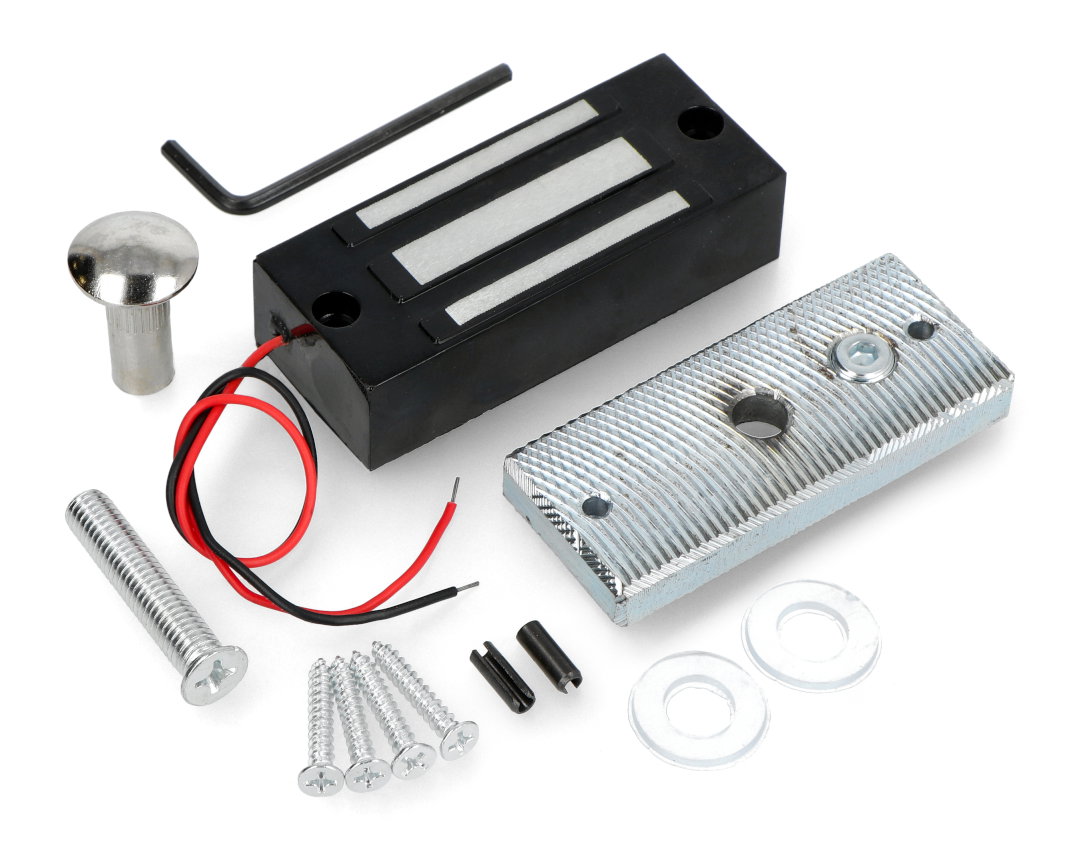

Included
- Electromagnet
- Tile metal board
- Set of installation screws
- Allen key
