RGB LED Strip WS2812B - digital, addressed - IP65 60 LED / m, 18W / m, 5V - 5m - black

Index: DNG-16608 EAN: 5904422326197

LED bar withRGB LEDswith WS2812Bchip, so that each diode can be individually addressed. Density of distribution on a 5 meter bar is 60 diodes / meter. Each diode can emit any color from a 24-bit color palette. The bar is powered by 5 V, with a total power of 90 W. One microcontroller pin is enough to control it. PCB in black colour.

RGB LED Strip WS2812B - digital, addressed - IP65 60 LED / m, 18W / m, 5V - 5m - black
€33.90
€27.56 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: BTF-LIGHTING

Product description: RGB LED Strip WS2812B - digital, addressed - IP65 60 LED / m, 18W / m, 5V - 5m - black

The LED bar hasRGBLEDswithWS2812Bchip,so that each diodecan be individually addressed. The density of the distribution on the 5 meter bar is 60 diodes / meter. Each diode canemit anycolor from the 24-bit color palette. The bar is powered by5 V, with a total power of 90 W. One microcontroller pin is enough to control it. PCB in black colour.

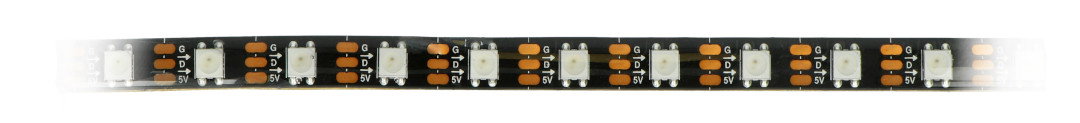

Pasek LED RGB WS2812B 60 LED czarnyLED strip RGB WS2812B - 60 LED - black.

The distance between the LEDs on the strip isabout 12 mm, which ensures high brightness. The strip is powered by 5 V and consumes 18 W of power per each meter. The chain can be freely shortened by cutting through each diode.

The LED strips can be connected in series. Another chain should be connected with the output connector. The 5V, GND and DOUT outputs must be connected to DIN. Please note that when using more than 500 diodes, the amount of RAM in Arduino Uno maybeinsufficient. Then use for example ArduinoMega orRaspberryPi.Connecting more diodes is also associated with higher power consumption, please pay attention to it when choosing the power supply.

How to connect the LED bar

The device has a 3-pin connector consisting of the following leads:

  • GND (white wire) -module ground.
  • 5 V (red wire) -supply voltage, for one strip, a source with a current capacity of at least 1.8 A per each meter should be connected.
  • DAT (green wire) - digitalcontrol signal from the microcontroller.

Schemat podłączenia paska

The diagram of thestrip connection.

Product compatible with Arduinoand RaspberryPi

Installation of the Adafruit library for Arduino:

  1. Download the library fromGtitHub by clickingthe ZIP Download button
  2. Unpack the ZIP file that was downloaded, the folder containing the files should appear: Adafruit_NeoPixel.cpp, Adafruit_NeoPixel.h and other subfolders
  3. Rename the root folder to: Adafruit_NeoPixel
  4. Move the whole folder to the directory with Arduino libraries, by default it should be under the path: /Documents/Arduino/Libraries
  5. Restart the Arduino environment, the library will appear in Menu: File ->Examples

First start - simple example

  • Run test program by selecting in Arduino environment:
    • File ->Examples ->Adafruit_Neopixel ->simple
  • Select the pin from which the LEDs will be controlled. The default is pin 6:
    • Line 11#define PIN 6
  • Select the number of pixels to be controlled. The default is 16:
    • Line 14#define NUMPIXELS 16
  • Upload the program to Arduino. The pixels should join one by one to the amount that is given in line 14.
  • If you want to change the light colour, enter other values in the function:
    • Line 40pixels.setPixelColor(i, pixels.Color(0,150,0))
      The RGB components are given in brackets, the maximum value of each is 255
  • Changing the ignition rate of individual pixels is possible by editing the values:
    • Line 21int delayval = 500;

Przykład podłączenia z Arduino

LED bar WS2812 in combination with ArduinoUno.

LED bar specification

  • Power supply voltage: 5 V
  • Power: 18 W/m
  • Power consumption: 3.6 A/m
  • LEDs used: RGB LED SMD5050 WS2812B
  • Addressable pixel: 1 RGB diode
  • Resistance to outdoor conditions: IP65 (silicone shielding)
  • PCB colour: black
  • Width: 10 mm
  • Chain length: 5 m

Cable length 5.0 m
Voltage to 5.0 V
Voltage from 5.0 V
Voltage nominal 5 V
Nominal power 18 W
Tightness class IP65
LED - color RGB
LED - type WS2812B
LED - digital yes
LED - LEDs 60 per meter
LED lens clear
LED wavelength RGB
Package width 18 cm
Package height 1.8 cm
Package depth 16.5 cm
Package weight 0.211 kg

Paweł

05/22/23

Question: Is it possible to cut the strip if necessary, and do you offer a power supply, suppose I need one that can pull the strip 5m and arduino nano
Answer: The chain can be shortened at will by cutting it after each diode.
To power both elements from a single source, you would need to use a voltage stabilizer - a power supply alone is unfortunately not enough, since the elements are powered by different voltages.
Pawel

11/14/22

Question: What kind of power supply for 15meters? ws2812b
Answer: Assuming that the strip consumes 18 watts per 1 m, then to power 15 m of the strip you will need a power supply of at least 270 watts. For this, the output voltage must be equal to 5 V.
Unfortunately, we do not have a power supply with such parameters in our offer.
Marek

09/27/22

Question: Does anyone know the exact width of this strip?
Answer: The declared width of the strip is 10 mm.

Product reviews

RGB LED Strip WS2812B - digital, addressed - IP65 60 LED / m, 18W / m, 5V - 5m - black

5/5

Average grade

12

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Adam 10.01.2024 Confirmed purchase Translated review
Works as it should.
Igor 18.09.2023 Confirmed purchase Translated review
Very well made element
Huh 29.08.2023 Confirmed purchase Translated review
Great belt
Piotr B. 30.05.2022 Confirmed purchase Translated review
The product meets my expectations. I had a bit of fun removing the adhesive tape cover (it's not 3M), but it worked, and so far it stays well.
Kamil C. 17.04.2021 Confirmed purchase Translated review
It's okay
Marek G. 03.02.2021 Confirmed purchase Translated review
The belt could be narrower, and the quality is flawless. A lot of such electronics passed through my fingers and I admit that BotLand never let me down.
