Product description: LED Sequins - LEDs - Rose Pink - 5 pcs - Adafruit 1792
The set includes 5 miniature Rose Pink LED modules, which you can use as creative light decorations, e.g. for clothes or everyday objects. Each diode requires connection to a power source with a voltage of 3.3 V to 6 V to the "+" pin and connecting ground to the "-" pin. The modules can also be powered by a Li-Pol battery or a CR2032 coin cell. To control the flickering and smooth dimming of the light, simply connect it to any microcontroller, e.g. the Gemma or Flora module from Adafruit. When powered by a voltage of 3.3 V, one diode consumes approximately 5 mA, so you can connect up to 4 or 5 diodes in parallel on one microcontroller contact. The modules are available on a strip from which they can be easily separated as needed.

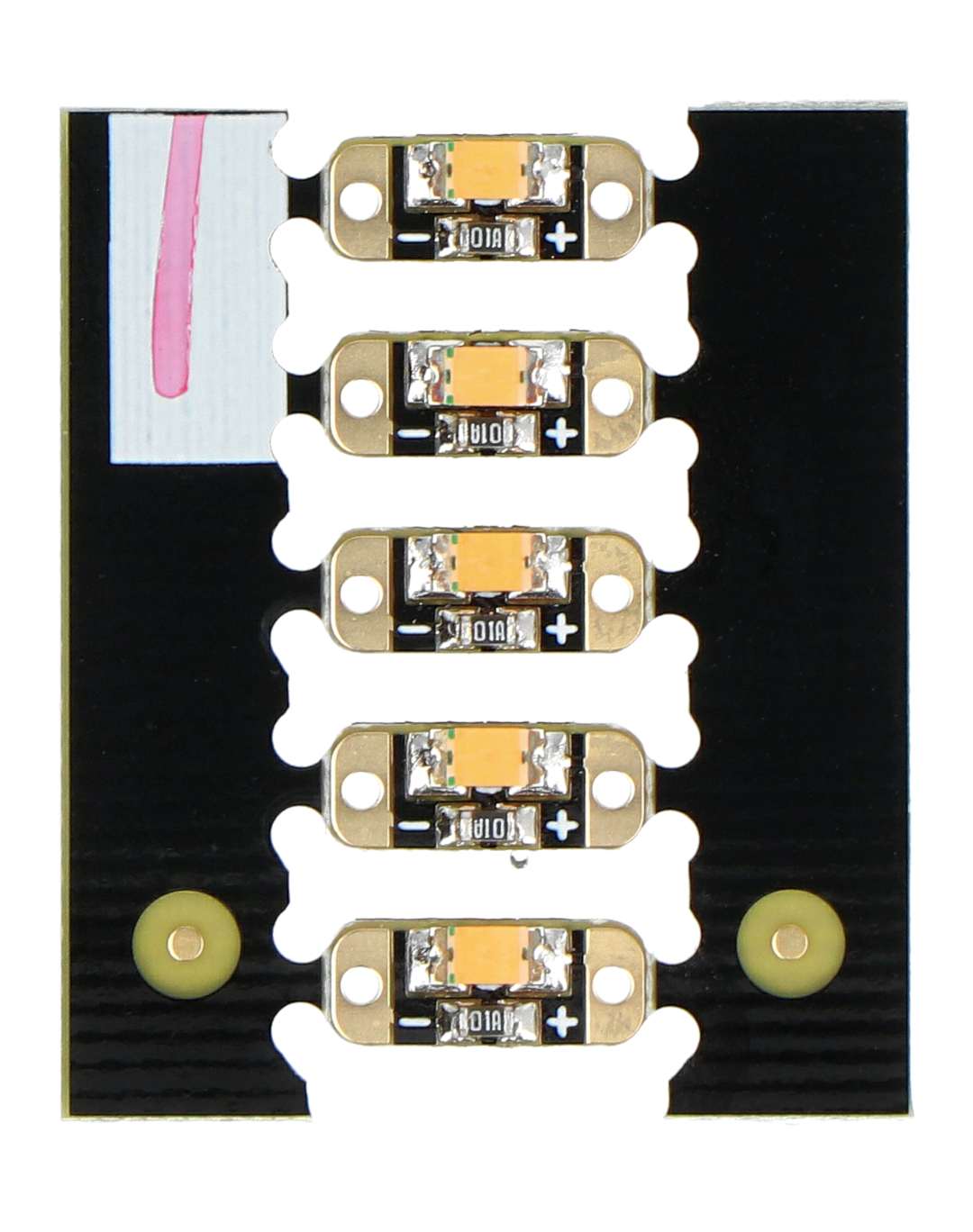

LED Sequins - LED diodes - Rose Pink - 5 pcs. - Adafruit 1792.

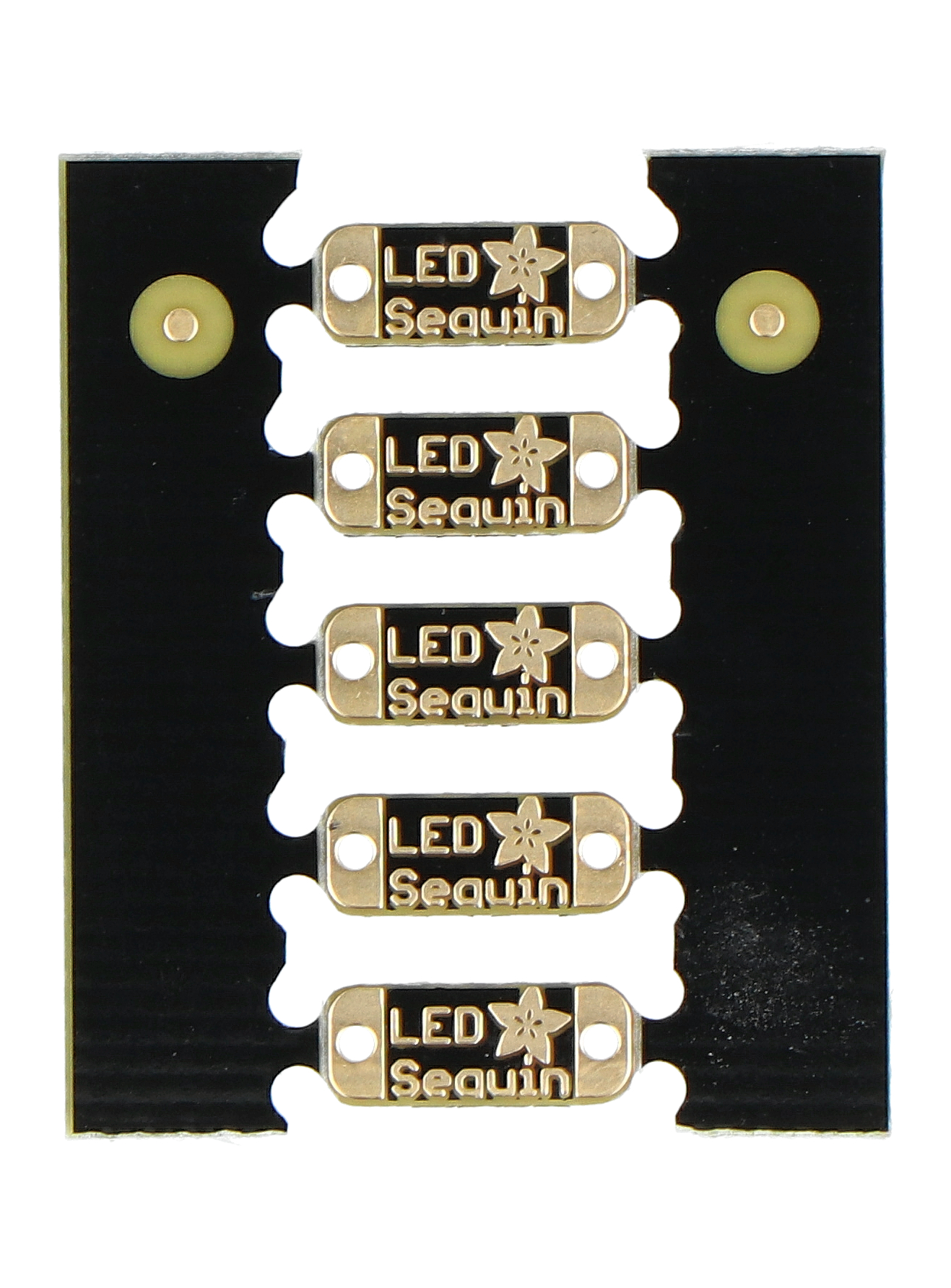

There are 5 LEDs on the strip.
LED Sequins technical specifications
- Producer: Adafruit
- Module type: LED
- Light color: Rose Pink
- Supply voltage: 3.3 V to 6 V DC
- Current consumption by one LED: approx. 5 mA
- Number of diodes in the set: 5 pieces
- Spacing of mounting holes: 7 mm
- Dimensions of a single diode: 4 x 9 x 2 mm
