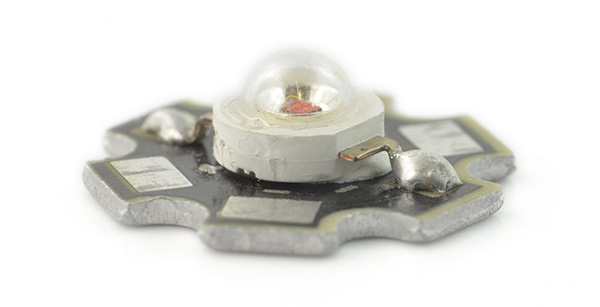

The connection Power Star 3W LED green with a heatsink
For proper operation of the LED you need to connect the resistor or the driver that limits the current. The pads on the PCB are described as follows:
- +positive pole
- -negative pole
Dimensions of Power LED
The following technical drawing allows to correctly design the layout of the Power LED.
Specification of Power LED Star 3W
- Power: 3 W
- Color: green
- Wavelength: 625 nm
- Brightness: approx. 80 LM - 110 LM
- Beam angle: 120 °
- Operating parameters:
- Voltage: 3.2 V - 3.6 V
- Current: max: 700 mA
