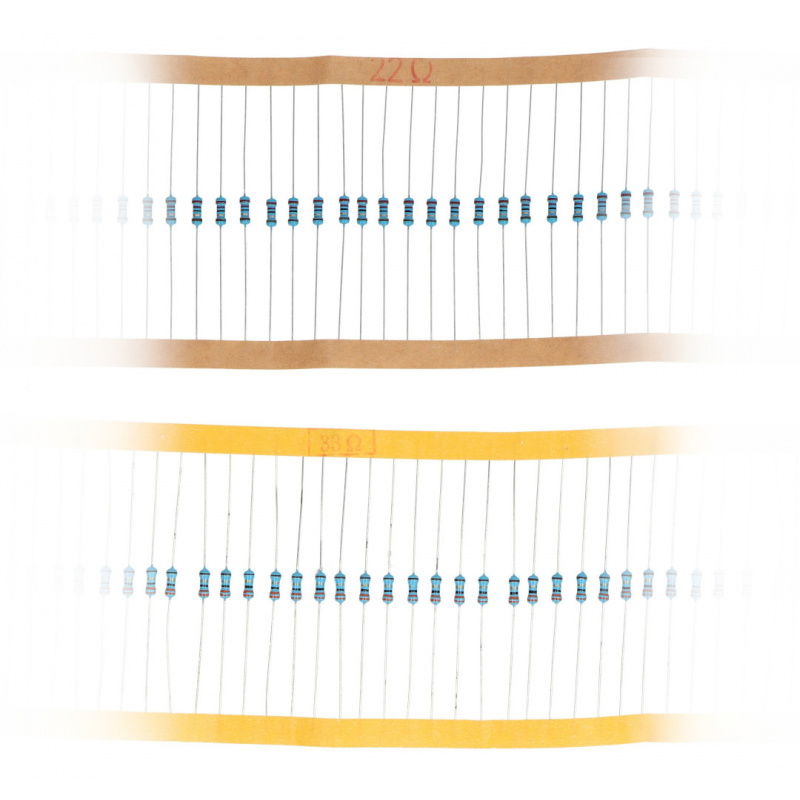

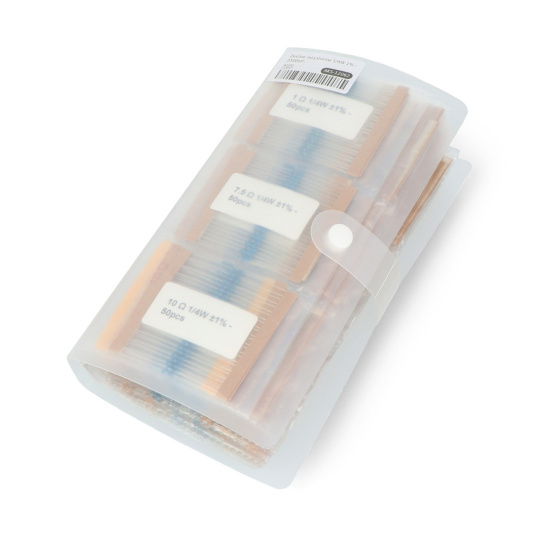

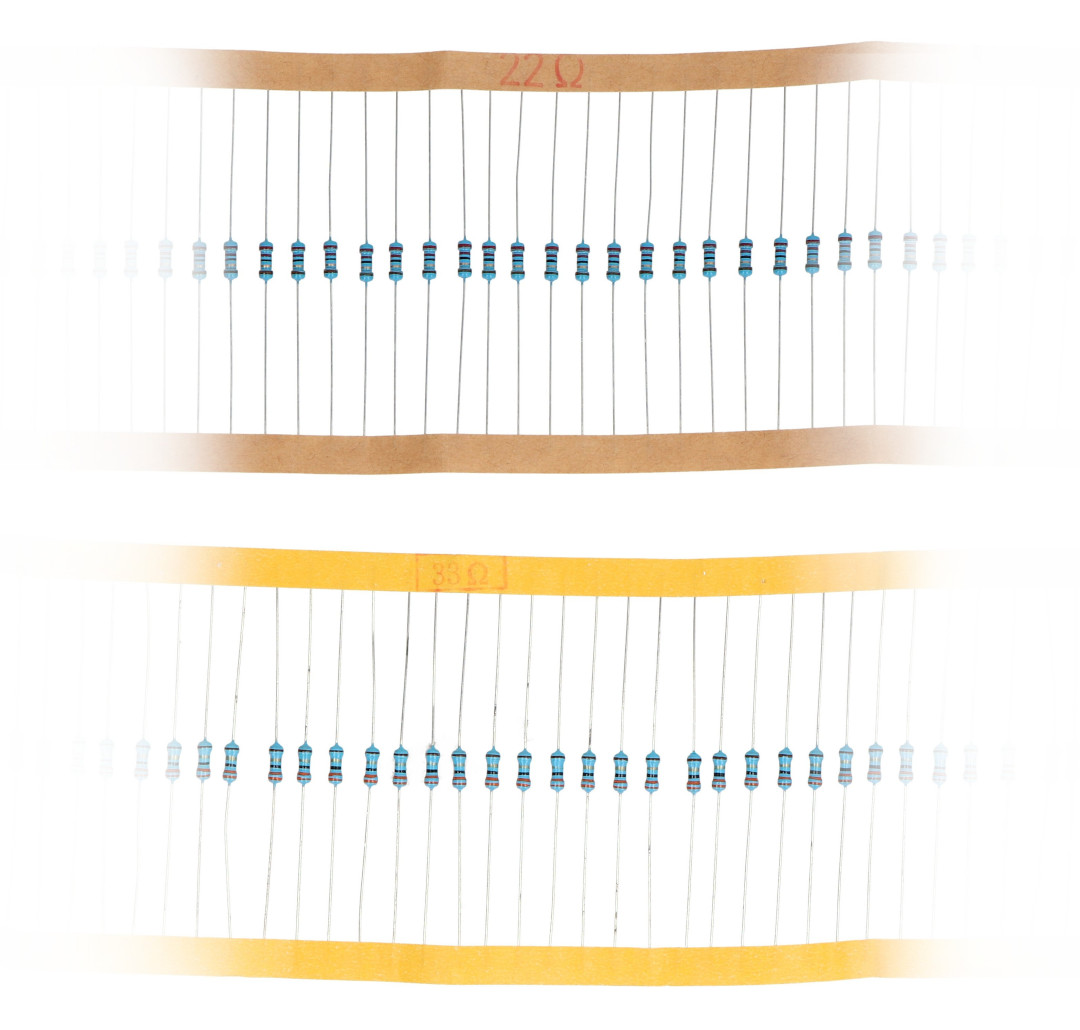

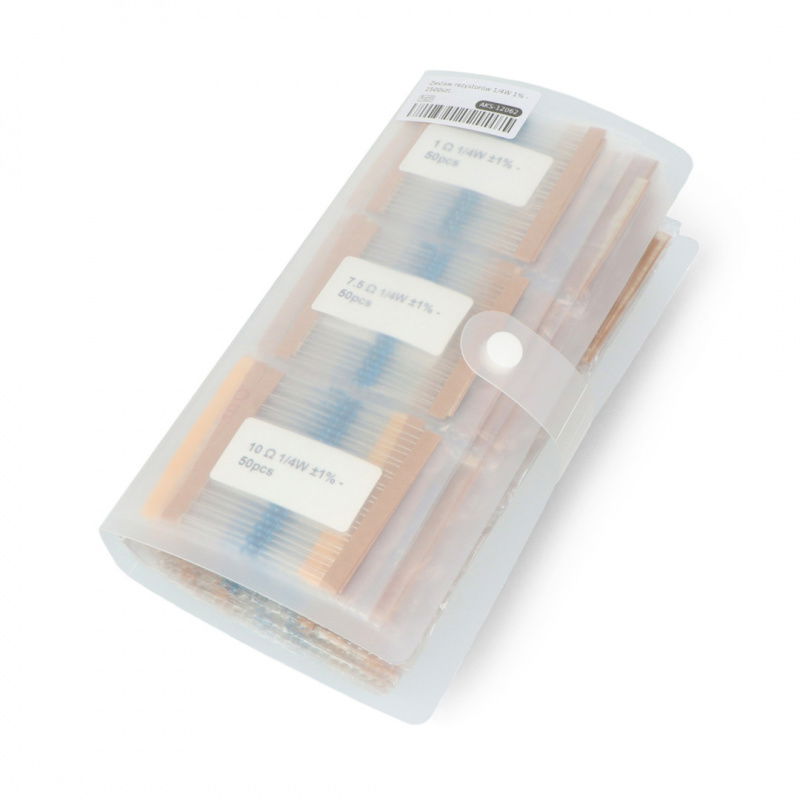

Product description: Resistor set 1/4W 1% - 2500 pcs.
A set of 50 values of 0.25W carbon film resistors with a 1% tolerance, 50 pieces each. The components are labeled, making it easy to find the correct value. The set includes the following values:
| Resistance | Tolerance | Quantity |
|---|---|---|
| 1Ω | 1% | 50 pieces |
| 7.5 ohms | 1% | 50 pieces |
| 10 ohms | 1% | 50 pieces |
| 20 ohms | 1% | 50 pieces |
| 22 ohms | 1% | 50 pieces |
| 33 ohms | 1% | 50 pieces |
| 47 ohms | 1% | 50 pieces |
| 68 ohms | 1% | 50 pieces |
| 75 Ohm | 1% | 50 pieces |
| 100 ohms | 1% | 50 pieces |
| 130 Ohm | 1% | 50 pieces |
| 150 Ohms | 1% | 50 pieces |
| 220 Ohm | 1% | 50 pieces |
| 360 Ohms | 1% | 50 pieces |
| 470 Ohm | 1% | 50 pieces |
| 680 Ohms | 1% | 50 pieces |
| 1 kΩ | 1% | 50 pieces |
| 1.2 kΩ | 1% | 50 pieces |
| 1.8 kΩ | 1% | 50 pieces |
| 2.2 kΩ | 1% | 50 pieces |
| 3 kΩ | 1% | 50 pieces |
| 3.6 kΩ | 1% | 50 pieces |
| 3.9 kΩ | 1% | 50 pieces |
| 4.7 kΩ | 1% | 50 pieces |
| 5.6 kΩ | 1% | 50 pieces |
| 6.8 kΩ | 1% | 50 pieces |
| 8.2 kΩ | 1% | 50 pieces |
| 10 kΩ | 1% | 50 pieces |
| 12 kΩ | 1% | 50 pieces |
| 22 kΩ | 1% | 50 pieces |
| 33 kΩ | 1% | 50 pieces |
| 39 kΩ | 1% | 50 pieces |
| 47 kΩ | 1% | 50 pieces |
| 56 kΩ | 1% | 50 pieces |
| 68 kΩ | 1% | 50 pieces |
| 100 kΩ | 1% | 50 pieces |
| 130 kΩ | 1% | 50 pieces |
| 150 kΩ | 1% | 50 pieces |
| 180 kΩ | 1% | 50 pieces |
| 220 kΩ | 1% | 50 pieces |
| 270 kΩ | 1% | 50 pieces |
| 330 kΩ | 1% | 50 pieces |
| 390 kΩ | 1% | 50 pieces |
| 470 kΩ | 1% | 50 pieces |
| 560 kΩ | 1% | 50 pieces |
| 680 kΩ | 1% | 50 pieces |
| 2.7 MΩ | 1% | 50 pieces |
| 3.3 MΩ | 1% | 50 pieces |
| 4.7 MΩ | 1% | 50 pieces |
| 10 MΩ | 1% | 50 pieces |
1/4W 1% resistor set.
A great set for any DIY enthusiast!
If you are a very active electronics enthusiast and often engage in prototyping , you are certainly quickly running out of electronic components necessary to build your projects.
By choosing a set with 50 resistor values, 50 pieces each, you have the components at hand to build almost any project you can imagine! We also recommend sets of capacitors and other electronic components available from Botland.
Metal film resistors
The offered set includes metal film resistors that are made with a tolerance of ±1%, making them ideal for applications where, due to strict requirements regarding the accuracy of electronic circuit design, classic carbon resistors made with a tolerance of ±5% cannot be used.
The main applications in which metal film resistors perform very well include amplifiers, electroacoustic effects, and measuring equipment.
