Universal double sided board 80x120mm

Index: DNG-20270 EAN: 5904422380540

This double-sided, universal PCB allows you to create any electronic circuit by soldering individual components into the ready-made holes on the board. It has 1260 holes arranged in 42 x 30 pattern for mounting THT elements and 2 x 27 silver plated flat pads. The board measures 80 x 120 mm with holes of 2,54 mm spacing. Soldermask of the board is made in green color and all soldering holes are silver plated.

Universal double sided board 80x120mm
€1.90
€1.54 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product description: Universal printed circuit board double sided 90 x 150 mm

Double-sided, universal PCB allows you to create any electronic circuit by soldering individual components into the ready openings on the board. It has 1260 holes arranged in 42 x 30 pattern for mounting THT elements and 2 x 27 silver plated flat pads. The board measures 80 x 120 mm with holes of 2,54 mm spacing. Soldermask of the board was made in green color and all soldering holes are silver plated. The holes on each side are numbered with letters of the alphabet.

What are printed circuit boards?

PCB(Printed Circuit Board), are designed for creating electronic projects. Boards are made of laminate (usually glass-epoxy) and copper, which is used to conduct signals.

There are three main methods of mounting components on a PCB: through-hole assembly (THT), surface mount assembly (SMD), and mixed-mode assembly.

Płytka drukowana uniwersalna dwustronna 90x150mm o grubości 1,6mm

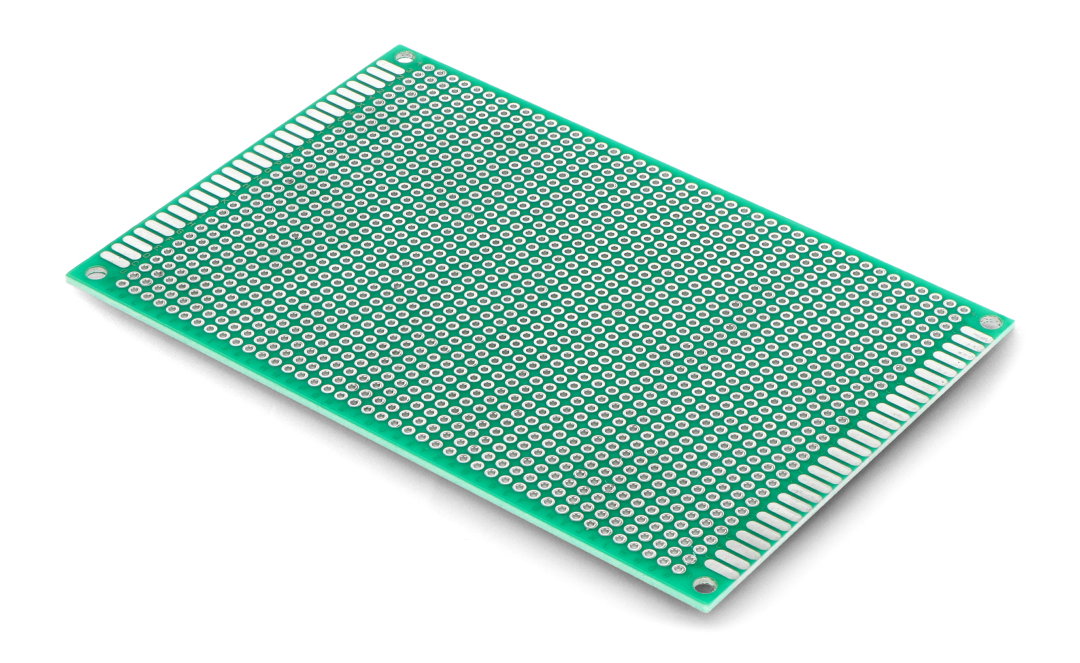

Double-sided universal PCB 80 x 120 x 1.6 mm.

Płytka drukowana uniwersalna dwustronna 90x150mm o grubości 1,6mm

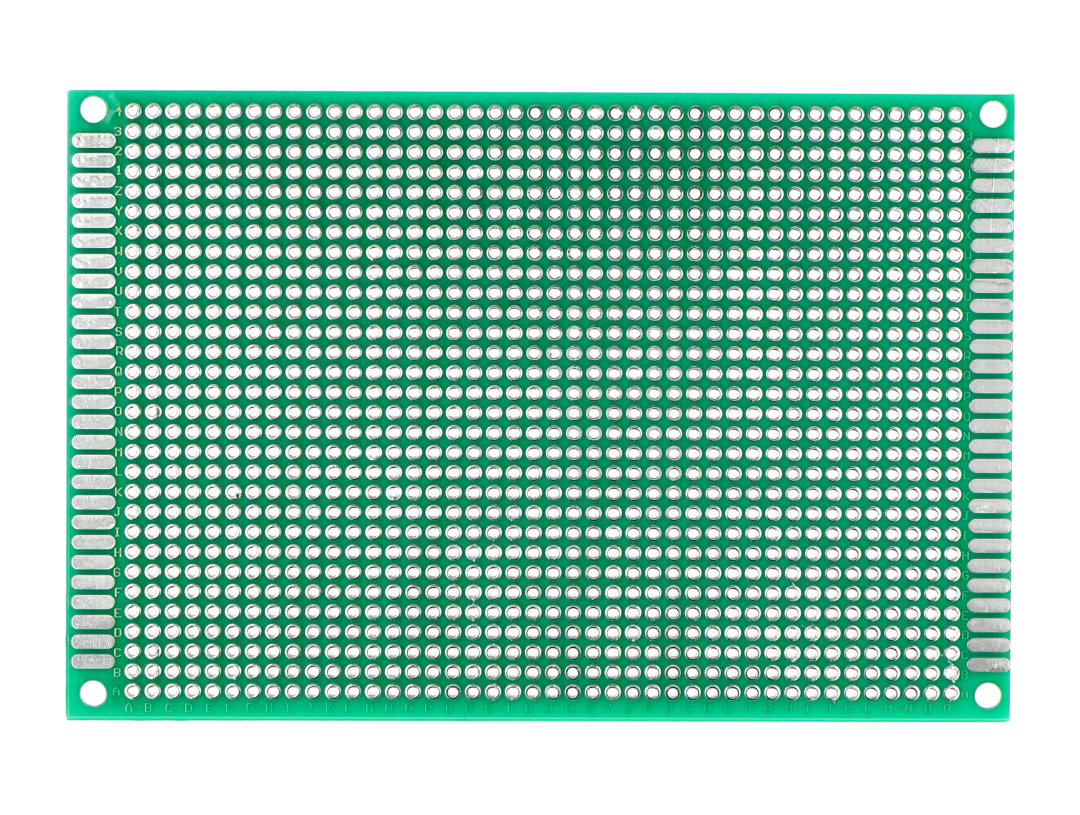

Universal PCB, double-sided, green.

PCB specification

  • Soldermask color: green
  • Mounting: THT through-hole
  • Array of holes: 2.54 mm
  • Four mounting holes with 3 mm diameter
  • Number of holes for through-hole mounting: 1260
  • Number of surface mount holes: 54
  • PCB dimensions: 80 x 120 x 1.6 mm

Package width 10 cm
Package height 15 cm
Package depth 0.1 cm
Package weight 0.029 kg
