Description: Qwiic adapter - Grove - 10cm - SparkFun PRT-15109
Qwiic to Groveadapter cable with100mmlength. Enables connection betweenSparkFunQwiic Connect system andGroveboards based onSeeedStudioI2Cinterface. The cable can be used to introduce sensors, Qwiic input and output to your Grove system.
Note that your Grove system has many different signal systems that use the same connector. This cable only works with the I2C variety.

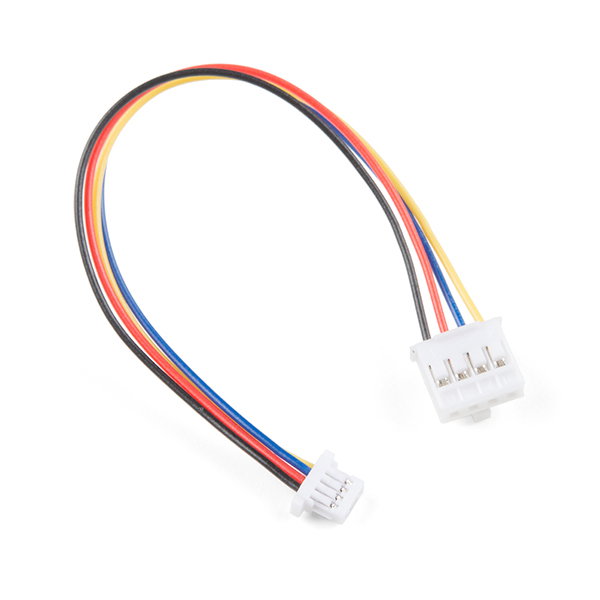

Qwiic cable - Grove Adapter (100mm) - SparkFun PRT-15109.

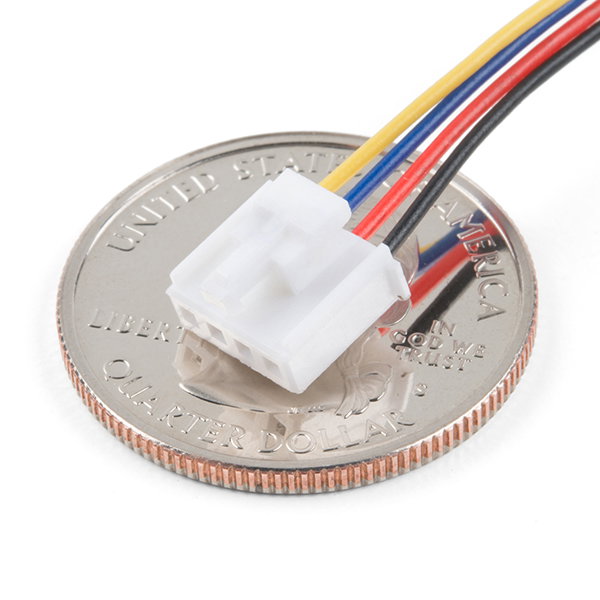

Qwiic cable terminated on one side with Grove connector.
SparkFun Qwiic connection system
SparkFun Qwiic system allows for simple and fast connection ofsensors, actuators, overlays and I2C cables. Qwiic connectors are not very susceptible to errors occurring during connection. Modules equipped with Qwiic connector have4-pinJSTconnector with1 mmpitch. Thanks to such solution connector doesn't take much space on board and prevents from reverse connection of plug, minimizing the risk of error when connecting wires.
Technical specification of Qwiic - Grove adapter cable
- Four core color coded wires:
- Black: ground - GND
- Red: Supply voltage 3.3 V
- Blue: I2C bus data line - SDA
- Yellow: I2C bus clock line - SCL
- Cable length: 100 mm
