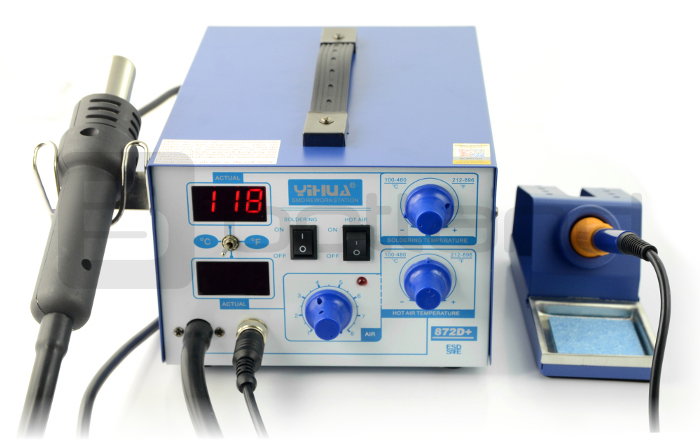

Soldering station hotair and tip-based 2in1 Yihua 872D+ - 700W

Index: LUT-09599 EAN: 5908272000214

Soldering iron tip-based and hot air in one. The total capacity of the station is 700 watts. The device has an adjustable temperature and a standby mode. Pressurization is accomplished using the compressor.

€97.63
€79.37 tax excl.
Waiting for confirmation of delivery date
Temporarily unavailable
30-day returns
PayPal payment
Manufacturer: Yihua

Description

Soldering iron Yihua 872D total capacity of 700 watts with adjustable temperature and built-in PID-regulator. The device has a soldering iron with heating power 50 W. Temperature of soldering iron and hotair iron is set by using the knobs.

The station is used on the electronic repair services for safe soldering of QFP, BGA, SMD,PLCC, and othertemperature-sensitive elements.



Check out our offer of additional tips!

Specification

  • Supply voltage: 230 V / 50 Hz (network)
  • Power: 700 W
  • Station is controlled through the microcontroller for PID control, which ensures high stability
  • Two LED displays the value of the tip and hotair, every few seconds displays the current temperature



Hotair Soldering Iron

  • Adjustable temperature hot air from 100 °C to 480 °C
  • Temperature stability: +/- 1 °C
  • Temperature setting with knob
  • Air consumption: max. up to 24 l/min
  • Display: LCD



Tip-based Soldering Iron

  • Adjustment of the soldering tip temperature: 100 °C-480 °C
  • Temperature stability: +/- 2 °C
  • Potential between tip and ground: < 2mV
  • The resistance between tip and ground: < 2 Ohm
  • Iron: 907 F
  • Soldering iron power: 50 - 100 W
  • Display: LCD


Includes:

  • Soldering station Yihua 872D+
  • Set of nozzle:
    • round nozzle with a diameter of 2 mm
    • round nozzle with a diameter of 4.4 mm
    • round nozzle with a diameter of 6 mm
    • round nozzle with a diameter of 9 mm
  • Standfor the soldering iron along with a cleaning sponge
  • A gripper for lifting circuis
  • Soldering iron 907 F with tip I





First run

  • You should not run the device immediately after delivery.
  • Equipment must remain for about 12 hours at room temperature before switching on.
  • All complaints caused by running of the equipment too soon will be denied.
  • You must completely remove the screw/screws from the bottom of the station if the compressor is the source of air supply. These screws are marked in red (1 or 3 screws depending on model).



Note

Heating elements (heaters) and tips are not subject to warranty, you should purchase new ones.



Our range of accessories for soldering:
Voltage to 220 V AC
Voltage from 240 V AC
Voltage nominal 230 V AC
Nominal power 700 W
Temperature 100 - 480 °C
Solder - Fan no
Solder - real temperature reading yes
Solder - Hotair yes
Solder - Type A/C digital
