Product description: Coolseer WiFi Breaker - 230 V relay - WiFi switch
A module that allows you to control 230 V devices up to 2400 WviaWiFi network through an applicationformobile devices from anywhere in the world or using voice commands through a voice assistant such as AmazonAlexa orGoogle Home.The device hasscrew connectors formounting cables.

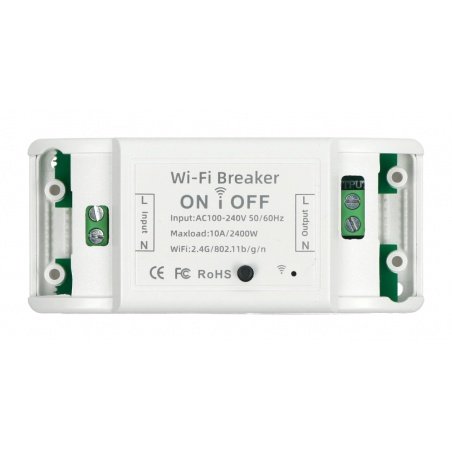

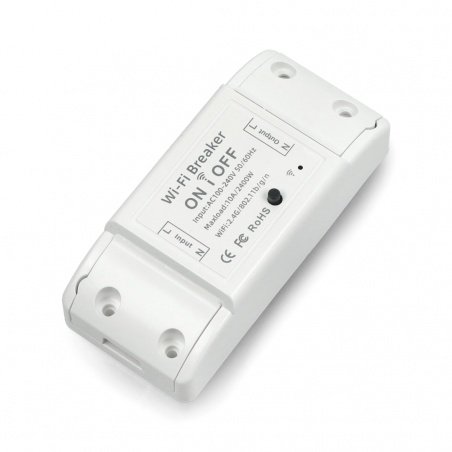

230 V WiFi relay.
Connection of relay module
The module has four inputs in the form of screw connectors, to which you can connect the wires with a screwdriver:
- IN: two AC power connectors from 100 V to 240 V
- OUT: two connectors to connect a controlled device 230 V / 10 A
Specification of the 230V relay
- Supply voltage: 100 V to 240 V AC (mains)
- Number of outputs: 1
- Type of control outputs: relay
- Load current consumption: up to 10 A
- Load capacity: up to 2400 W
- Number of entrances: 1
- Communication: 2.4 GHz WiFi / 802.11b/g/n
- Housing material: fire resistant PC + ABS
- Dimensions: 88 x 40 x 23 mm
