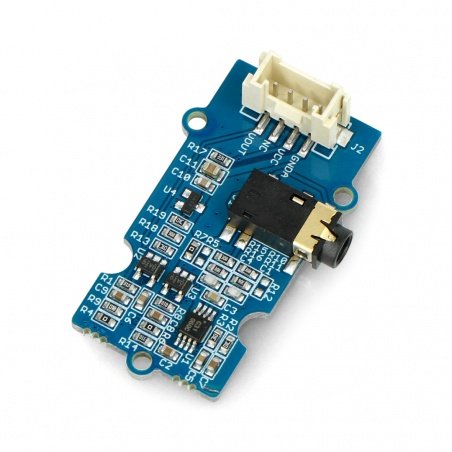

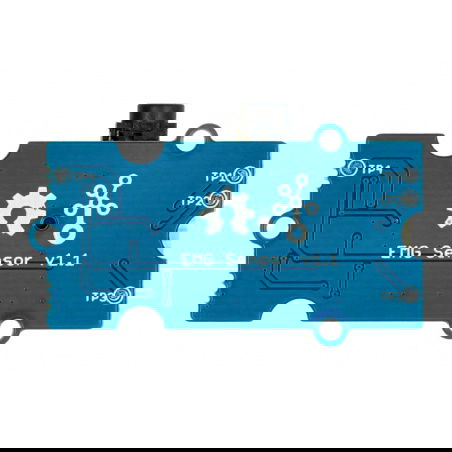

Description
Electromyography sensor (EMG) which measures the activity of muscles and, in a proportional way, changing this value to a voltage ranging from 1.5 V at the rest mode up to maximally 3.3 V. It allows you to control devices without the use of buttons and switches. The module is supplied with the voltage of 3.3 V or 5 V. The kit includes a cable adapted to the Seeedstudio Base Shield v2.0.
|
The product is compatible with Arduino The manufacturer offers a user guide and sample code for Arduino. |

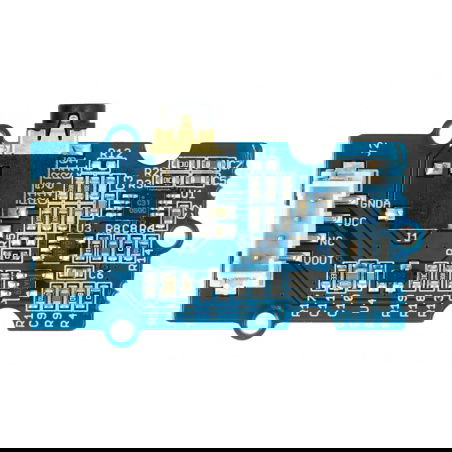

Connection
The sensor communicates with a microcontroller via an analog signal. It is equipped with the Grove interface that facilitates its connection to the Arduino along with Base Shield v2.0.
| Pin | Description |
|---|---|
| GNDA | The ground of the system. |
| VCC | Supply voltage from 3.3 V to 5 V. |
| NC | Not connected. |
| VOUT | Output voltage from 1.5 V to 3.3 V. |
|
Grove is a series of modules and sensors that are compatible with Base Shields working with Arduino and STM32 Nucleo. |
Specification
- Supply voltage: 3.3 V or 5 V
- Output voltage:
- standby mode: 1.5 V
- maximum output voltage: 3.3 V
- Dimensions: 140 x 100 x 30 mm
- Weight: 45 g

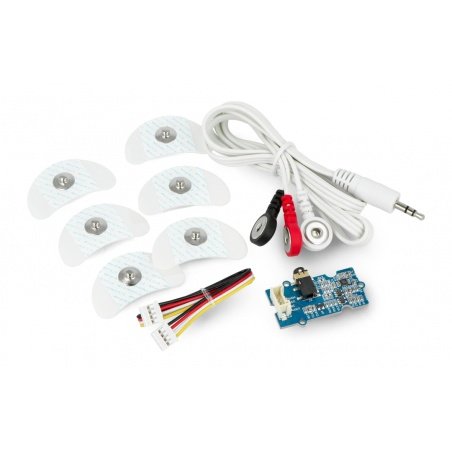

Set includes
- sensor EMG
- Grove connecting cable
- cable for connecting electrodes
- 6 biomedical electrodes
