Arduino Opta Lite - mikroPLC driver - AFX00003
Arduino Opta is a microPLC controller that supports industrial IoT standards. It was created in cooperation with Finder, a company that creates industrial and building automation devices. The heart of the controller is the dual-core STM32H747XI ARM Cortex M7 + M4 chip, allowing real-time control and monitoring, as well as implementing preventive maintenance applications. Arduino Opta Lite is equipped with an Ethernet connector and a USB type C port for programming the PLC module.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Arduino Opta Lite - microPLC controller - AFX00003
Arduino Opta is a microPLC controller that supports industrial IoT standards. It was created in cooperation with Finder, a company that creates industrial and building automation devices. The heart of the controller is the dual-core STM32H747XI ARM Cortex M7 + M4 chip, allowing real-time control and monitoring, as well as implementing preventive maintenance applications. Supports OTA firmware updates. The built-in security element and compliance with the X.509 standard ensure secure data transfer from hardware to the cloud. All while maintaining Arduino Pro's signature ease of deployment in production with a wide range of readily available Arduino software libraries and sketches. Arduino Opta Lite is equipped with an Ethernet connector and a USB type C port for programming the PLC module.

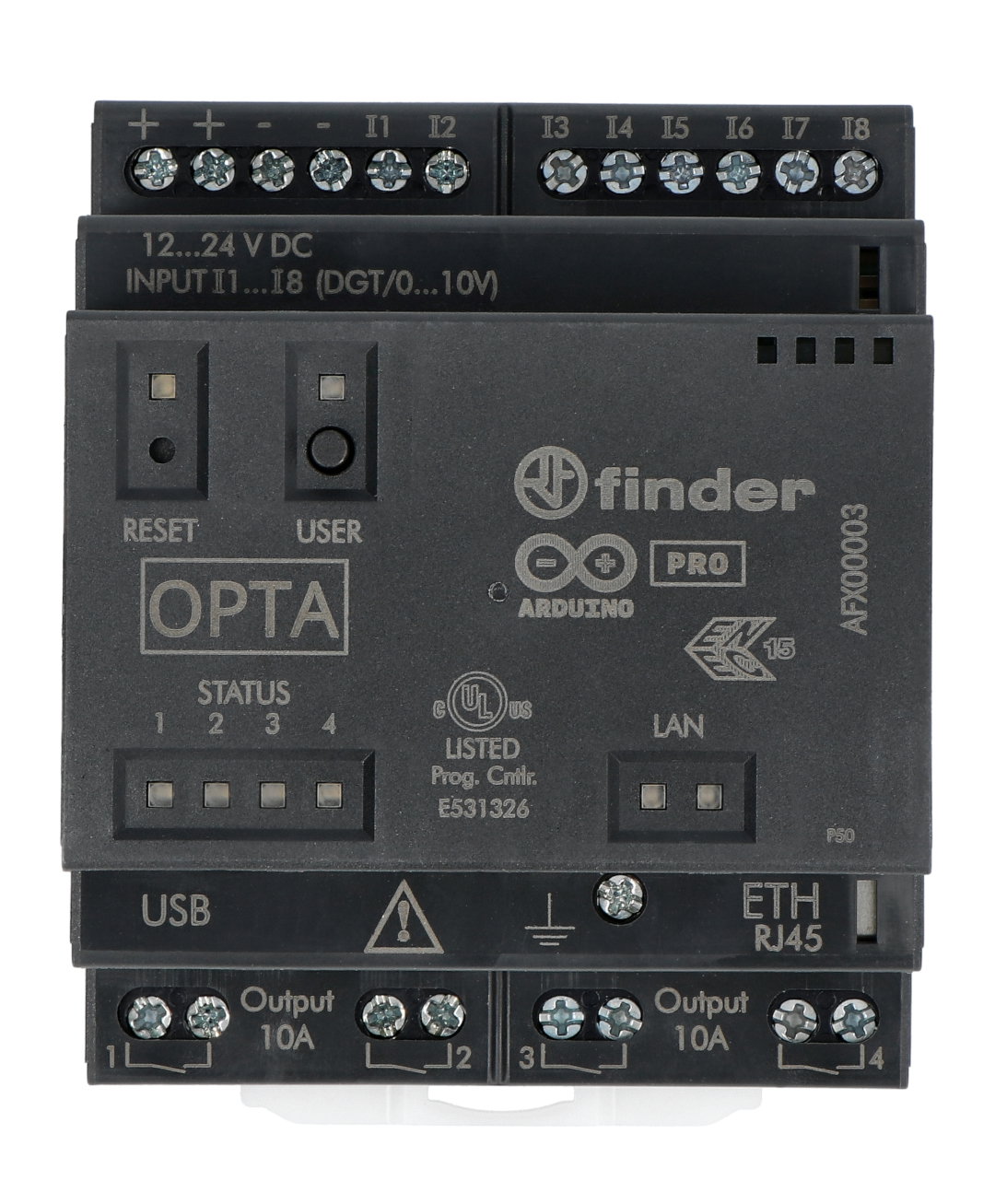

MicroPLC controller - Arduino Opta Lite.
Botland is an official distributor of the Arduino development platform in Poland. We offer a wide choice of boards, modules and accessories from this popular brand, along with tutorials and a knowledge base for users. All Arduino products presented here are original.

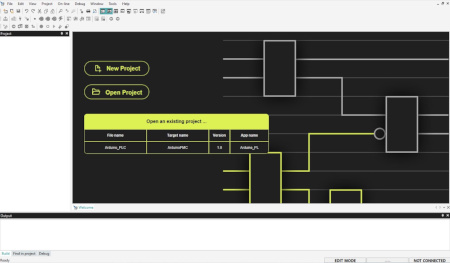

Arduino PLC IDE.
Programming in Arduino PLC IDE
Arduino PLC IDE was created to facilitate PLC programming. It allows you to choose one of the 5 programming languages defined in the IEC 61131-3 standard (Ladder, Functional Block Diagram, Structured Text, Sequential Function Chart or Instruction List) and quickly code PLC applications or transfer existing ones to Arduino Opta or Portenta Machine Control .
Arduino Opta main features
- Easy and fast programming, starting with ready-made Arduino sketches, tutorials and libraries
- Optional support for standard IEC 61131-3 PLC languages
- Fieldbus integration over Modbus TCP (Ethernet) and Modbus RTU (RS485 serial)
- Seamless IoT connectivity (Ethernet / WiFi / Bluetooth Low Energy)
- Real-time remote monitoring via intuitive Arduino Cloud dashboards (or third-party services)
- Hardware-level security with built-in security and X.509 compliance
- Secure OTA firmware updates and cloud device management
- Switching high power relays (4x 2.3 kW)
- It has an industrial certificate
- Easy to install, DIN rail mounting
- It was created in cooperation with Finder

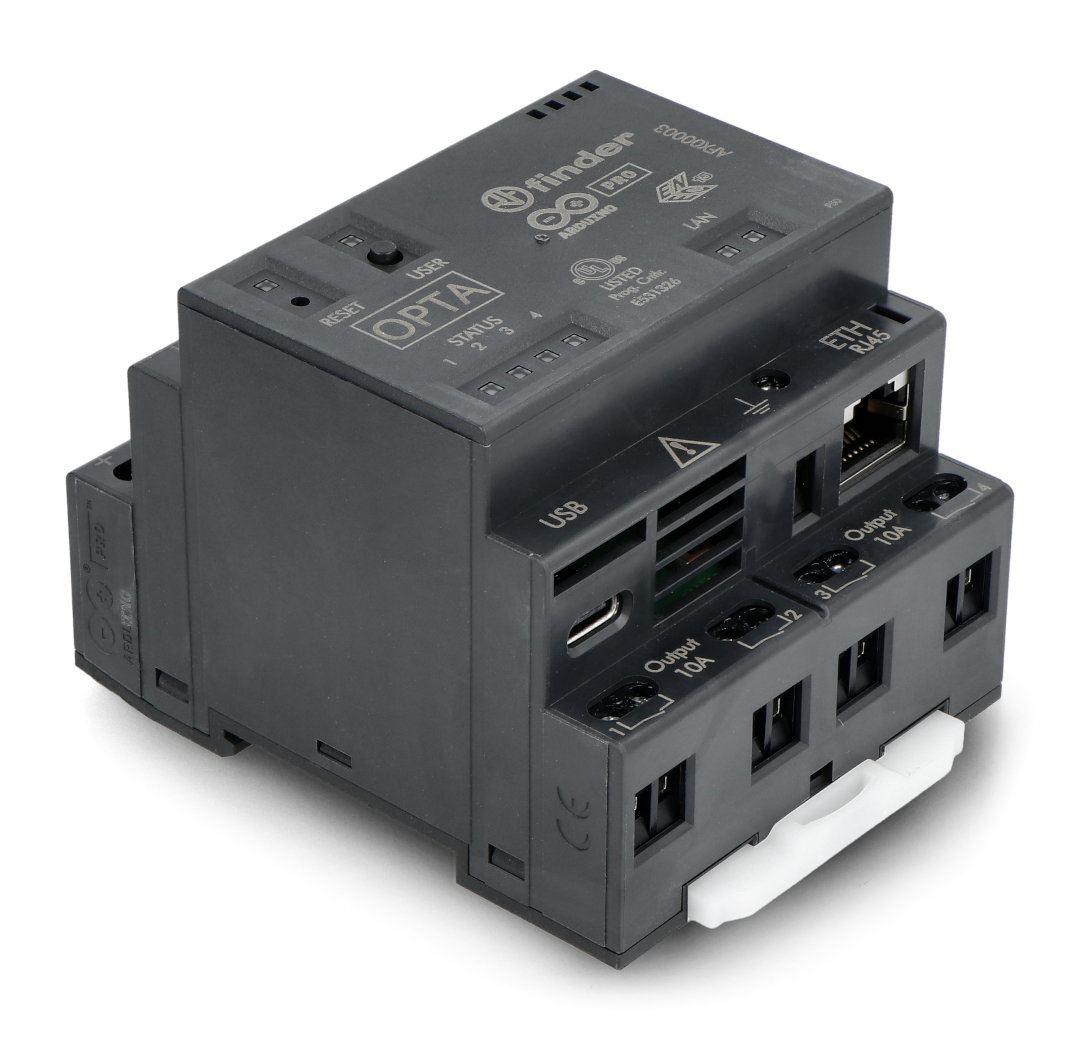

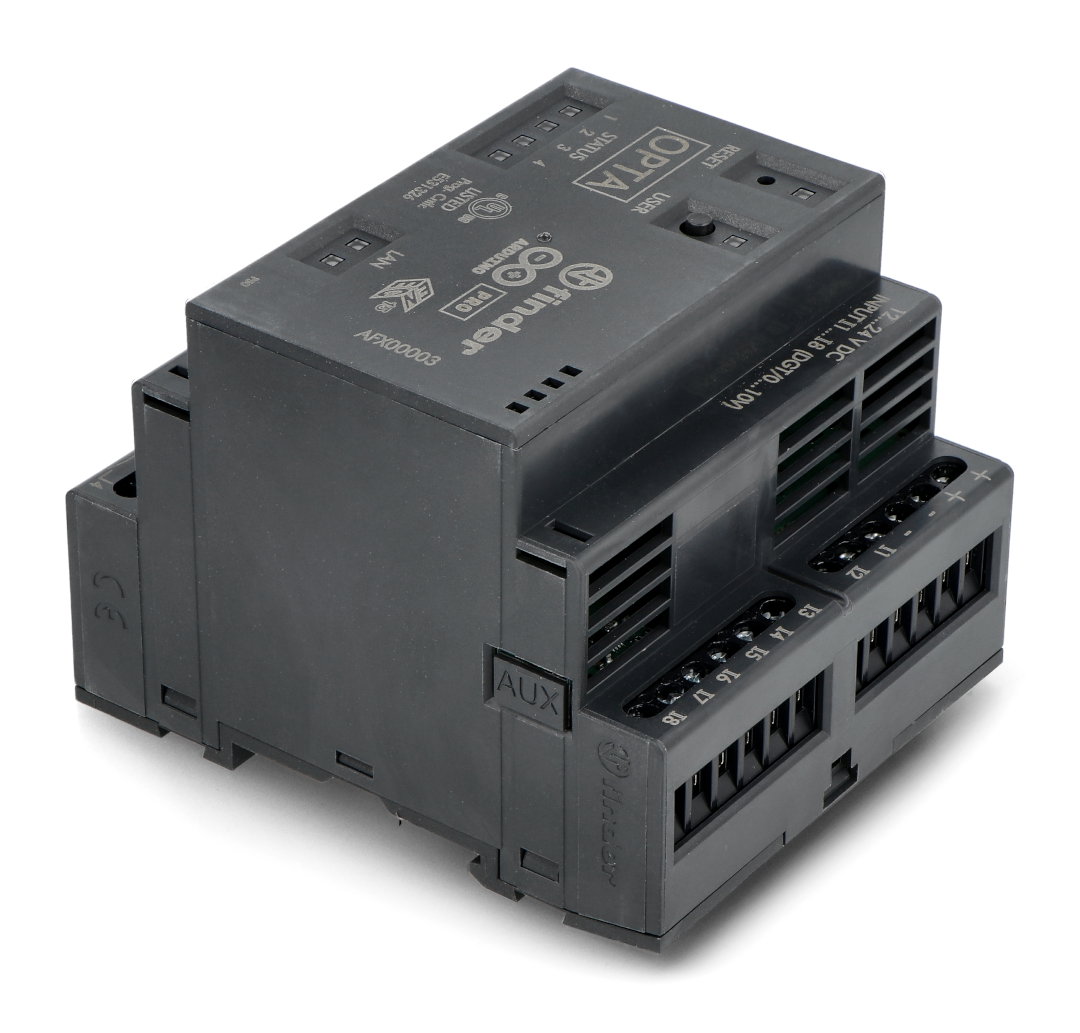

Arduino Opta Lite.

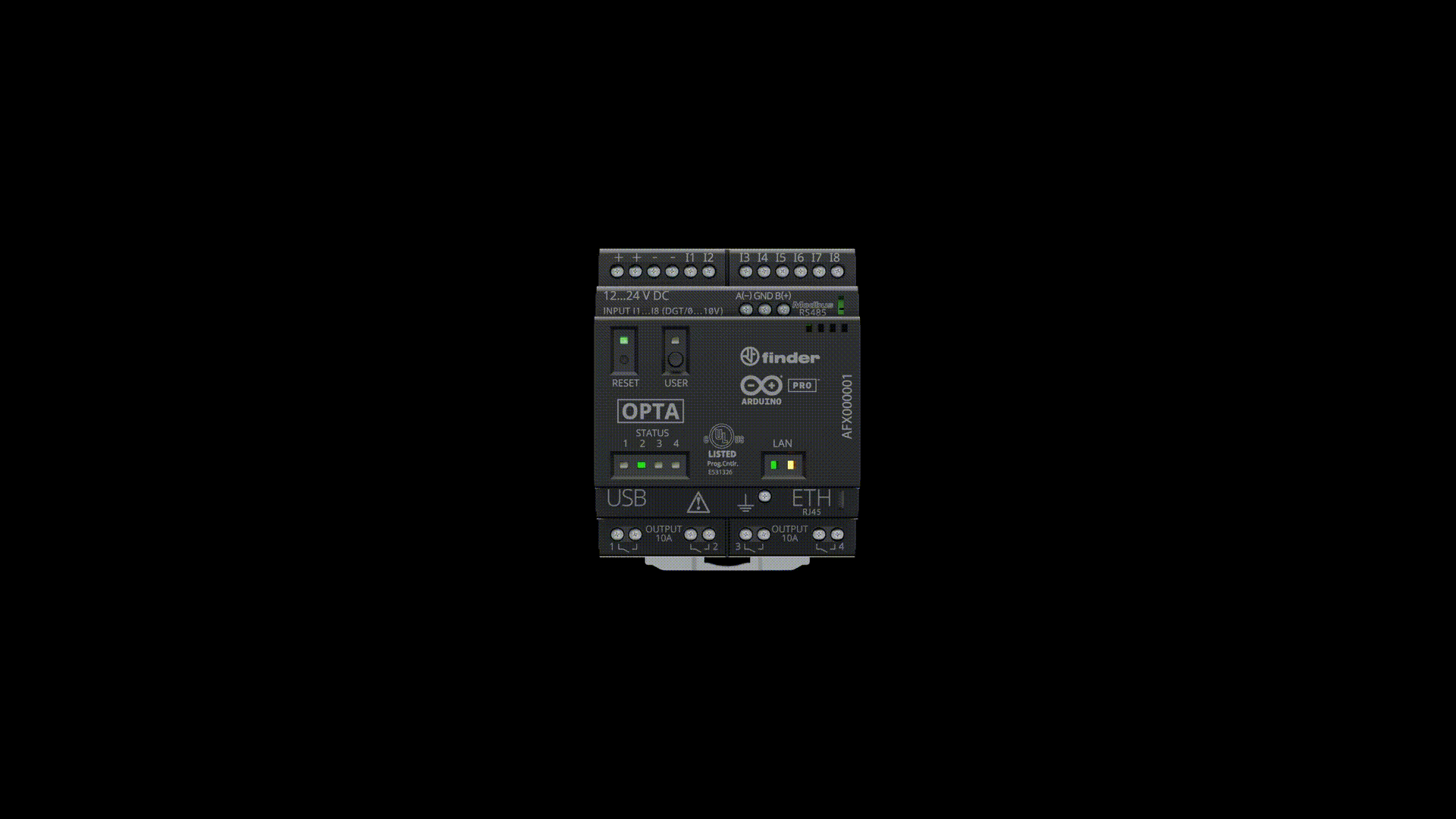

Arduino Opta was created in cooperation with Finder.
Why Arduino OPTA?
- Powerful and reliable processor for real-time operations and preventive maintenance
- Programming in Arduino PLC IDE in one of the five IEC 61131-3 languages
- Easy to use, flexible, with extensive Arduino software libraries
- Available in three versions: Lite, RS485 and WiFi
Choose the version that suits your needs!
Arduino Opta specification
| Microcontroller | STM32H747XI Dual Core |
|---|---|
| Cortex M7 clocking | up to 480MHz |
| Cortex M4 clocking | up to 240MHz |
| Configurable digital/analog input (0-10V) | 6 |
| Relays (250V AC / 10A) | 4 |
| programming port | USB-C |
| Ethernet | TCP/IP |
| Modbus TCP | |
| Bluetooth Low Energy communication | Arduino Opta WiFi |
| WiFi communication | Arduino Opta WiFi |
| RS485 protocol | Arduino Opta RS485 and Arduino Opta WiFi |
| Programmable serial ports | RS485 |
| input voltage | from 12 V to 24 V DC |
| Relay switching voltage | 230VAC |
| Maximum relay switching voltage | 400VAC |
| SDRAM memory | 1 MB |
| Flash memory | 2MB built-in + 16MB Flash QSPI |
| IP protection class | IP 20 |
| RTC | approx. 10 days, NTP synchronization via WiFi (AFX00002 only) or Ethernet |
| Security | ATECC608B |
| Arduino programming languages | via Arduino IDE, Arduino CLI, Arduino Web Editor |
| IEC-61131-3 programming | ladder diagram (LD), function block diagram (FBD), sequential function diagram (SFC), structured text (ST), instruction list (IL) |
| Dimensions | 69x80x90mm |
| Mass | 210g |
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | STM32H747XI |
| UC - Core | Cortex M7+M4 |
| UC - Flash | 2048 kB |
| UC - freq | 240 + 480 MHz |
| UC - Ethernet | yes |
| UC - USB | USB C |
| Width | 9.3 cm |
| Height | 8.2 cm |
| Depth | 7 cm |
| Weight | 0.22 kg |
