Product description: SenseCAP Card Tracker T1000-E for Meshtastic - portable locator - LoRa / Bluetooth / Thread / ZigBee - Seeedstudio 114993369
The SenseCAP Card Tracker T1000-E is a high-performance device designed for Meshtastic networks, enabling communication and location tracking in locations without internet access or cellular coverage. The built-in Mediatek AG3335 GPS chip ensures precise positioning, while LoRa technology (863 MHz to 928 MHz) enables communication over distances of 2 to 5 km (depending on the antenna and environment). The tracker supports Bluetooth 5.0, Thread, and ZigBee , offering flexibility in integration with various systems. With additional sensors for measuring temperature, light, and motion (a 3-axis accelerometer), it is versatile and ideal for outdoor applications such as asset tracking, communication within tourist groups, or monitoring environmental conditions.
The manufacturer has prepared a detailed user guide that will help you get started with the locator - check it out!
SenseCAP Card Tracker T1000-E for Meshtastic - portable locator - LoRa / Bluetooth / Thread / ZigBee - Seeedstudio 114993369.

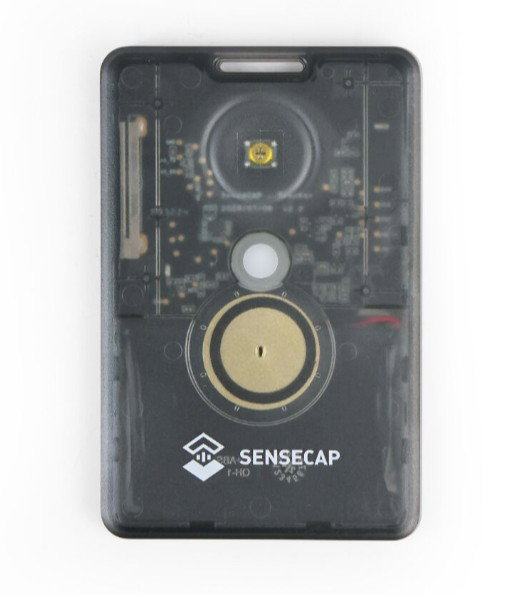

The SenseCAP Card Tracker T1000-E is designed for precise location tracking.
Key Features of the SenseCAP Card Tracker T1000-E
- LoRa and GPS communication : LoRa (863 MHz to 928 MHz) and GPS AG3335 for precise positioning
- Bluetooth 5.0 wireless communication : allows easy integration with other devices
- Low power consumption : ideal for long-term monitoring in harsh environments
- Compact size : only 6.5 mm thick, dimensions 85 x 55 mm
- Support for multiple protocols : LoRa, Bluetooth, Thread and ZigBee
- Sensors : built-in 3-axis accelerometer, temperature and light sensor
- High durability : IP65, dust and water resistance
Also check out other Seeedstudio products in our offer!
Communication in places without cellular network coverage
The SenseCAP T1000-E enables independent communication in challenging environments, where cellular or internet coverage is lacking. Thanks to LoRa technology and the Meshtastic app, devices can Connect to a mesh network, enabling real-time data exchange on location, temperature , and other parameters. With a built-in Mediatek AG3335 GPS chip, the Tracker T1000-E provides accurate location data , making it an indispensable tool for hiking, rescue operations, and field asset monitoring.
Works without a cellular signal or internet connection.

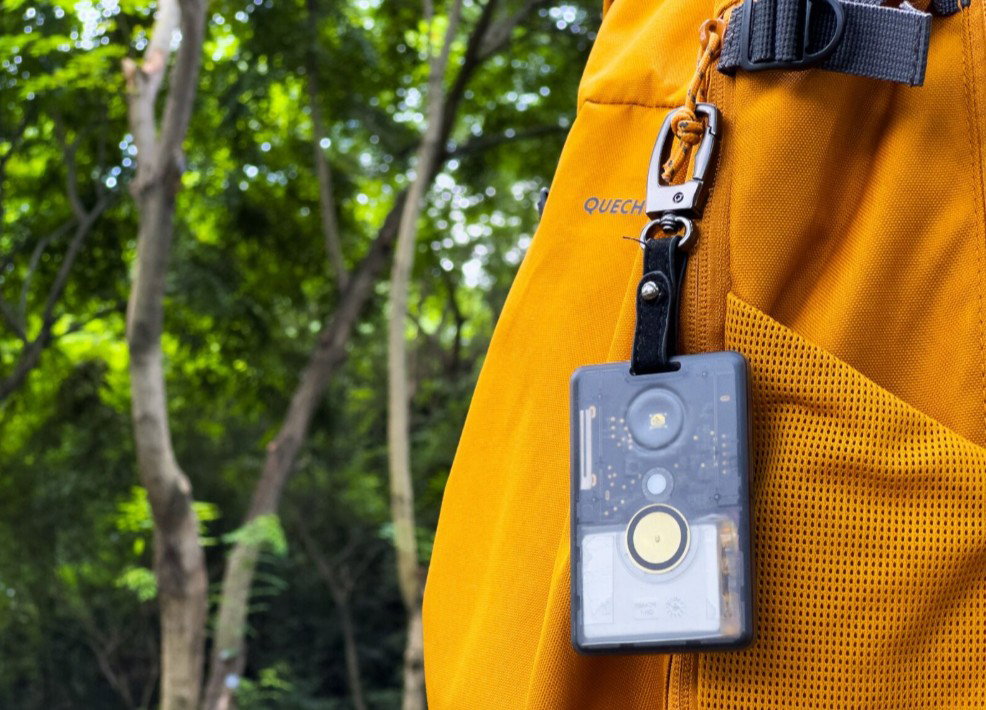

The hole on the locator allows you to attach it to a backpack or clothing.
Ease of use and integration
The T1000-E tracker supports Bluetooth 5.0 and a range of other protocols, such as Thread and ZigBee , enabling easy integration with other devices and systems. The tracker is compatible with the open-source Meshtastic software , allowing for full personalization and customization. Additionally, its low power consumption ensures long battery life on a single charge , making it an excellent choice for expeditions where energy conservation is essential.
Attention!
The locator belongs to the group of products compatible with MESHCORE software.

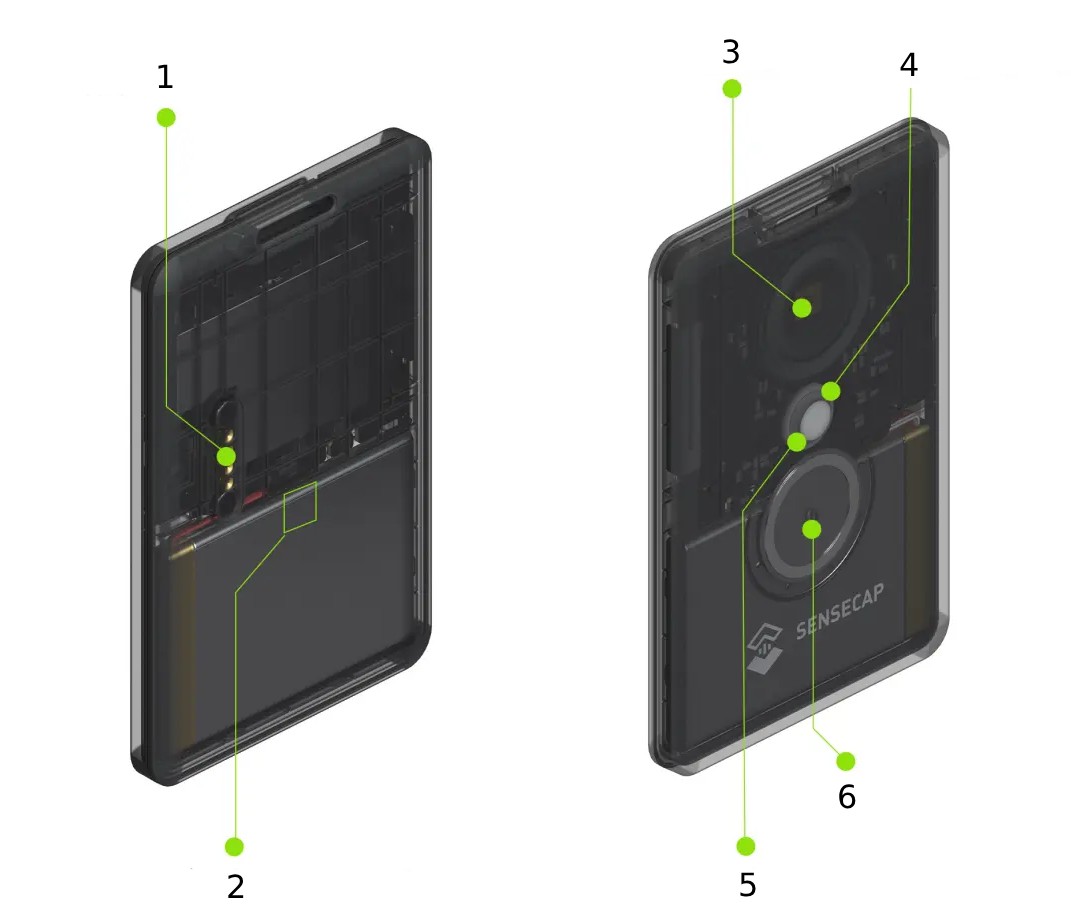

Arrangement of elements
- Magnetic charging and software update connector
- 3-axis accelerometer for motion detection
- Button to operate the device
- Temperature sensor
- Light sensor and LED
- Sound signal (buzzer)
Arrangement of elements.
The set includes a charging cable.
SenseCAP Card Tracker T1000-E Technical Specifications
- Network protocol: LoRa (863 MHz to 928 MHz), Bluetooth v5.1
- Built-in sensors: temperature, motion and light sensor
- Safety features: alarm button, buzzer
- Built-in LED to indicate the locator status
- Temperature measurement range: -20°C to 60°C / ± 1°C
- Light sensor: 0% to 100%
- Motion sensor: 3-axis accelerometer
- Antenna: Built-in (GNSS / LoRa / WiFi / BLE)
- Communication range: 2 to 5 km (depending on conditions)
- Battery capacity: 700 mAh
- Battery life: Variable, depending on use
- Charging port: magnetic USB
- Battery voltage: 4.7 V to 5.5 V DC
- Protection class: IP65
- Operating temperature range: -20°C to 60°C
- Operating humidity range: 5% to 95%, non-condensing
- Color: black
- Dimensions: 85 x 55 x 6.5 mm
- Weight: 32 g

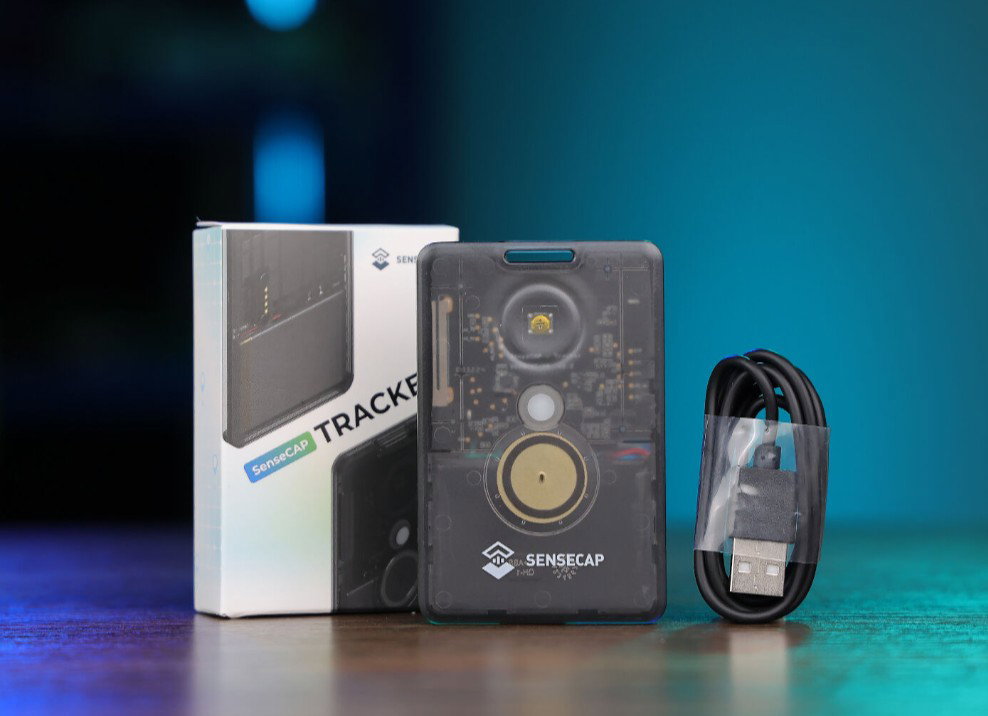

Contents of the set
- 1x SenseCAP Card Tracker T1000-E
- 1x USB cable
