SenseCAP S700-A 7-in-1 - sensor for building a weather station with radar rain measurement - Seeedstudio 101991050
Compact 7-in-1 weather station with radar rainfall measurement: the SenseCAP S700-A measures seven weather parameters in one housing and detects rainfall with a radar instead of a classic funnel rain gauge; it outputs data over RS485 and SDI-12.
- Rainfall from 0 mm/h to 300 mm/h with a resolution of 0.01 mm/h
- Wind measured with ultrasound, with no moving parts
- Operation from -40 °C to 85 °C, IP66 housing and a heater
We could not load the price.
The promotional price does not combine with quantity discounts.
Weather measured with no moving parts and no funnel
SenseCAP S700-A is a 7-in-1 weather station that measures temperature, humidity, pressure, wind speed and direction, light intensity and, using a radar, rainfall. The radar estimates rainfall from the scattering of electromagnetic waves, so the station has no funnel or tipping bucket, and the measurement range reaches 300 mm/h.
It sends data over a wire through RS485 with the Modbus-RTU protocol, a popular way of reading sensors in automation, or through SDI-12, a standard for connecting environmental sensors to data loggers. To send data over a LoRaWAN network, meaning a long-range, low-power radio network, you connect it to the SenseCAP S2100 logger, and for transmission over a 4G mobile network to the SenseCAP Sensor Hub 4G logger.

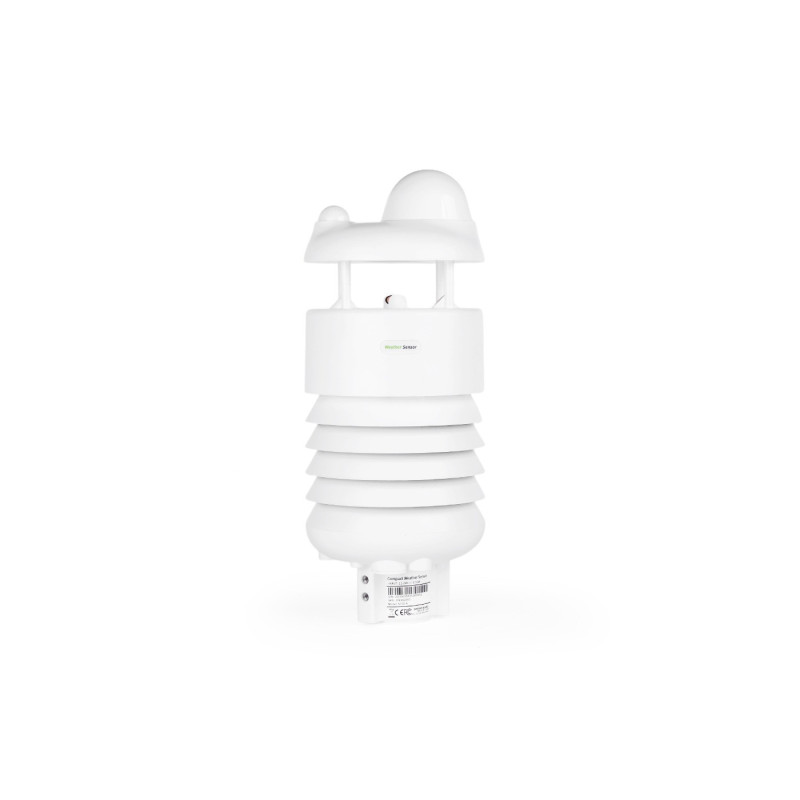

SenseCAP S700 - 7-in-1 weather sensor in a white housing
7 parameters
temperature, humidity, pressure, wind speed, wind direction, rainfall, light
RS485 + SDI-12
two wired outputs for data loggers
IP66
housing that is dust-tight and resistant to powerful water jets
12-24 V
station power supply (heater: separate 24 V supply)
What sets this model apart
Rainfall measured by radar up to 300 mm/h
The S700-A has the same set of sensors as the SenseCAP S700 V2, but it measures rainfall with a radar instead of an optical sensor, so it covers heavier downpours and gives the result with a higher resolution. Keep in mind that the S700-A measures light intensity, not solar radiation and sunshine duration: for those, choose the S700-B or S700-C.
0-300 mm/h
rainfall intensity measurement range (S700 V2 with optical sensor: 0-200 mm/h)
0.01 mm/h
rainfall measurement resolution (S700 V2: 0.2 mm)
0-200,000 lx
light intensity measurement range (the S700-B and S700-C measure solar radiation instead)

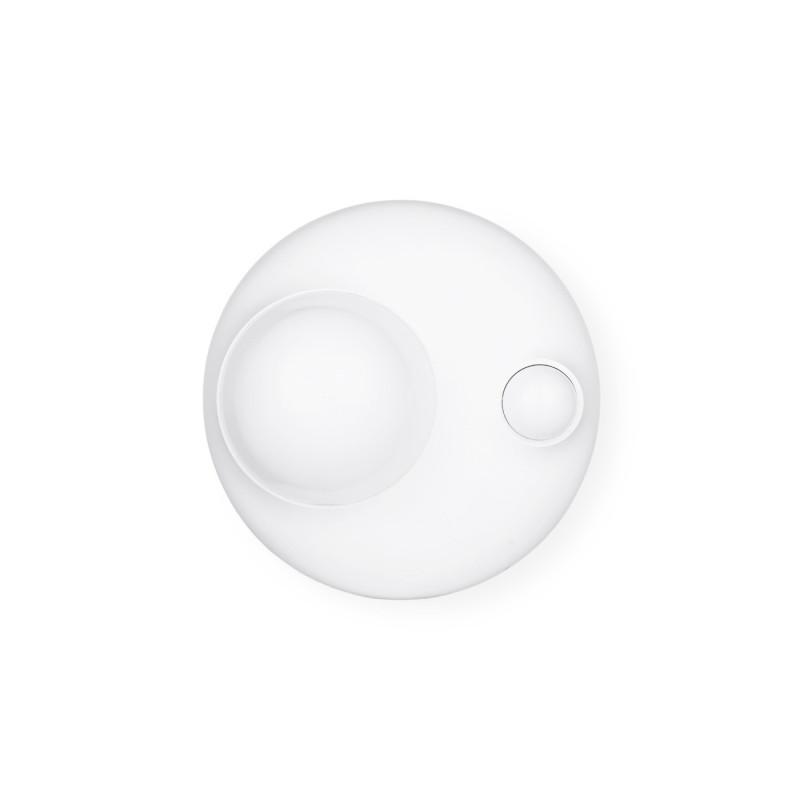

SenseCAP S700 - top view
Ultrasonic wind and a heater for frost

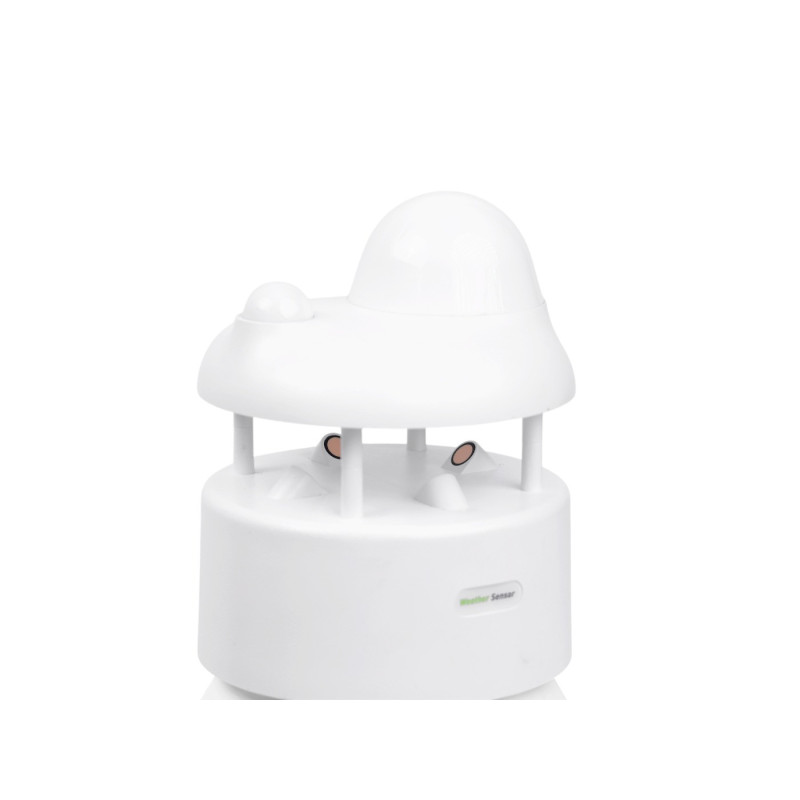

The station measures wind speed and direction with ultrasound, meaning from the transit time of sound waves between transducers, so it has no rotor or vane that could jam. The sensor measures wind up to 60 m/s in standard mode and up to 75 m/s in extended mode.
The heater with a thermostat runs from a separate 24 V supply and switches on when the temperature drops below 5 °C. You change the configuration, such as the Modbus address and baud rate, through the USB Type-C cable from the kit, and you mount the station on a mast or on a platform with the SenseCAP ONE mounting bracket.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if:
- you are building a weather station on an RS485 or SDI-12 logger and want all the sensors in one housing
- you measure heavy rainfall and do not want to clean a funnel of leaves and insects
- the station has to work in frost, because the heater protects the wind sensor from icing
Consider another option if:
- you need to measure solar radiation and sunshine duration: see the SenseCAP S700-B
- you want a ready-made station with LoRaWAN connectivity in one device: choose the SenseCAP S2120 8-in-1
Comparison of SenseCAP S700 stations
| SenseCAP S700-A | SenseCAP S700 V2 | SenseCAP S700-B | SenseCAP S700-C | |
|---|---|---|---|---|
| Rainfall measurement | radar | optical sensor | optical sensor | radar |
| Rainfall measurement range | 0-300 mm/h | 0-200 mm/h | 0-200 mm/h | 0-300 mm/h |
| Light intensity | yes | yes | no | no |
| Solar radiation and sunshine duration | no | no | yes | yes |
| Temperature, humidity, pressure, ultrasonic wind | yes | yes | yes | yes |
| Output | RS485 Modbus-RTU, SDI-12 | RS485 Modbus-RTU, SDI-12 | RS485 Modbus-RTU, SDI-12 | RS485 Modbus-RTU, SDI-12 |
| Default Modbus address | 20 | 20 | 60 | 60 |
| Manufacturer code | 101991050 | 101991022 | 101991102 | 101991141 |
| See | this page | SenseCAP S700 V2 | SenseCAP S700-B | SenseCAP S700-C |
Fun fact
Wind up to 288 km/h
The ultrasonic wind sensor in the S700-A measures up to 75 m/s in extended mode and withstands gusts of up to 80 m/s, meaning 288 km/h. The manufacturer states that SenseCAP ONE series sensors went through 6 reliability tests before launch, including wind calibration in a wind tunnel.
Source: Seeed Studio: SenseCAP S700-A
Frequently asked questions
What is the difference between the S700-A and the S700 V2?
The S700-A measures rainfall with a radar in the range from 0 mm/h to 300 mm/h with a resolution of 0.01 mm/h, while the S700 V2 uses an optical sensor in the range from 0 mm/h to 200 mm/h. The other sensors, outputs and power supply are the same.
How do I send data over LoRaWAN?
Connect the station with an M12 cable to the SenseCAP S2100 logger, which reads the data over RS485 and sends it over a LoRaWAN network. To receive the data you need a LoRaWAN gateway or access to a public LoRaWAN network.
How do I power the heater?
The heater needs a separate 24 V power supply, ideally 24 V / 1 A. Place the heater power supply no more than 3 m from the station, and if you extend the cable, the distance should not exceed 5 m.
What is the default Modbus address of the S700-A station?
The default Modbus address of the S700-A station is 20, and communication runs at 9600 bps in the 8N1 format. You can change the address and the speed in the configuration.
How do I configure the station?
Connect the station to a computer with the included USB Type-C cable. In the configuration program you check the readings and change the Modbus address, baud rate and other parameters.
Package contents
- 1 x SenseCAP S700-A weather station
- 1 x 3 m M12 8-pin cable
- 1 x USB Type-C cable for configuration
The mounting flange and the mast adapter are not included.
Technical specifications
| Parameter | Value |
|---|---|
| Type | compact 7-in-1 weather station (sensor for building a weather station) |
| Measured parameters | air temperature, relative humidity, atmospheric pressure, wind speed and direction, rainfall intensity (radar), light intensity |
| Air temperature | from -40 °C to 85 °C, accuracy ±0.1 °C, resolution 0.01 °C |
| Relative humidity | from 0% RH to 100% RH, accuracy ±1.5% RH, resolution 0.01% RH |
| Atmospheric pressure | from 300 hPa to 1250 hPa, accuracy ±50 Pa, resolution 10 Pa |
| Wind speed | from 0 m/s to 60 m/s (extended mode from 0 m/s to 75 m/s, survives up to 80 m/s), accuracy ±0.3 m/s up to 10 m/s, ±3% in the range from 10 m/s to 50 m/s, ±5% above 50 m/s, resolution 0.1 m/s |
| Wind direction | from 0° to 360°, accuracy ±3°, resolution 0.1° |
| Rainfall intensity | from 0 mm/h to 300 mm/h, accuracy ±10%, resolution 0.01 mm/h, radar measurement |
| Light intensity | from 0 lx to 200,000 lx, accuracy ±5% of reading, resolution 5 lx |
| Output | RS485 (Modbus-RTU), SDI-12 |
| Default Modbus settings | address 20, 9600 bps, 8N1 |
| Power supply | from 12 V DC to 24 V DC |
| Power consumption | 0.575 W at 12 V in RS485 mode |
| Heater | separate 24 V supply, up to 21 W, recommended power supply 24 V / 1 A |
| Cable | M12 8-pin, 3 m |
| Configuration port | USB Type-C |
| Operating conditions | from -40 °C to 85 °C, from 0% RH to 100% RH |
| Ingress protection rating | IP66 |

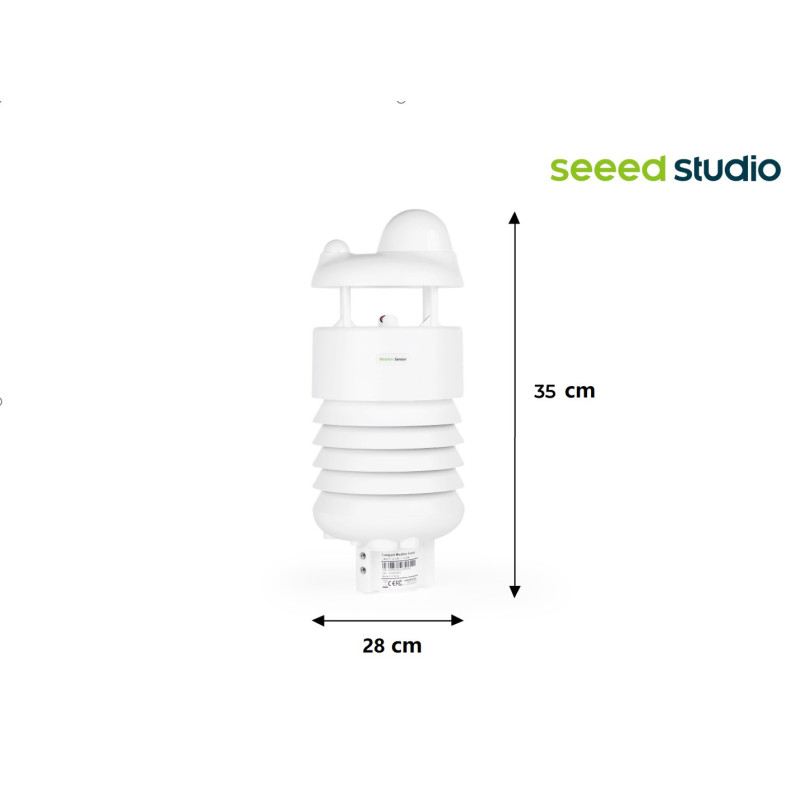

| Height | 350 mm |
| Weight | 2 kg |
| Mounting | mast with a sleeve or a platform with a flange |
| Manufacturer code | 101991050 |
| Manufacturer | Seeed Studio |
