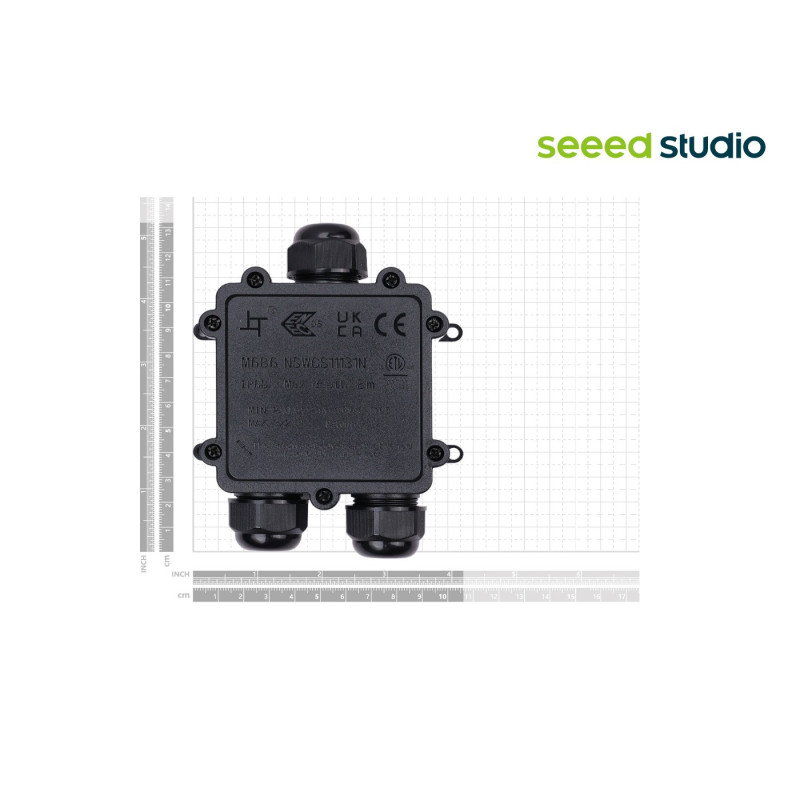

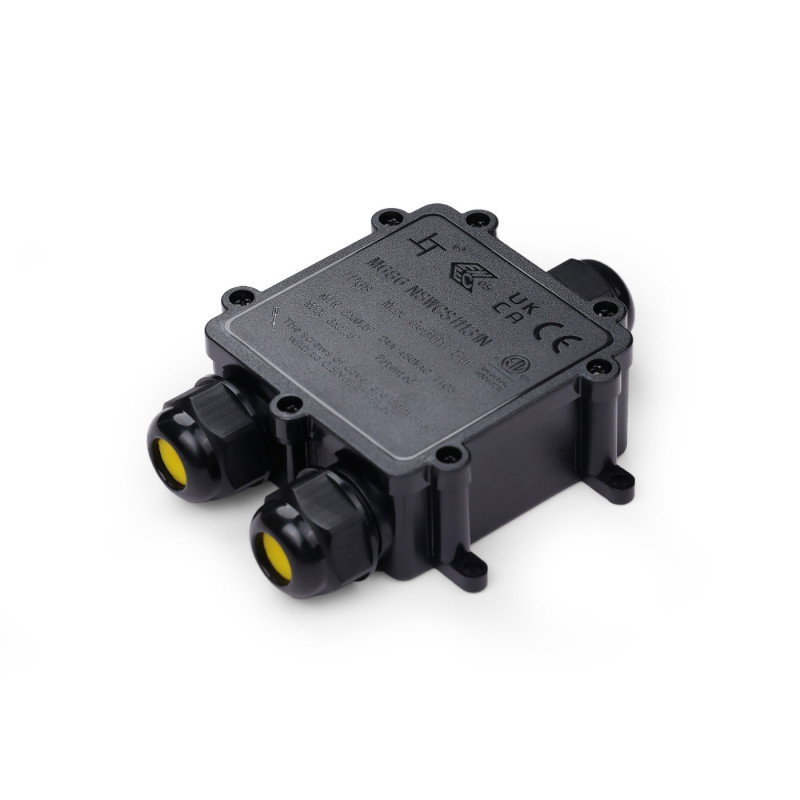

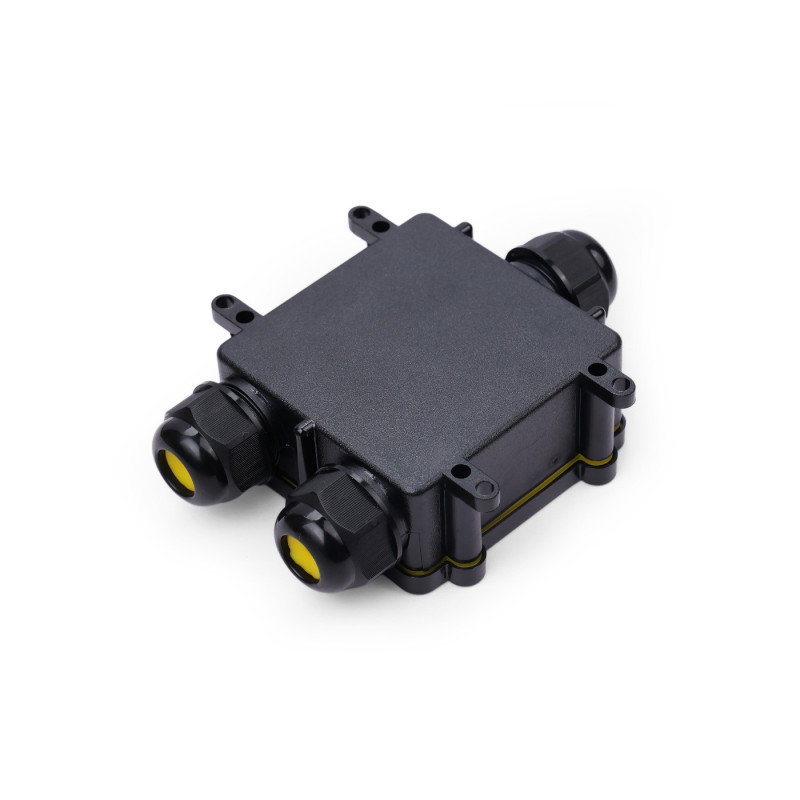

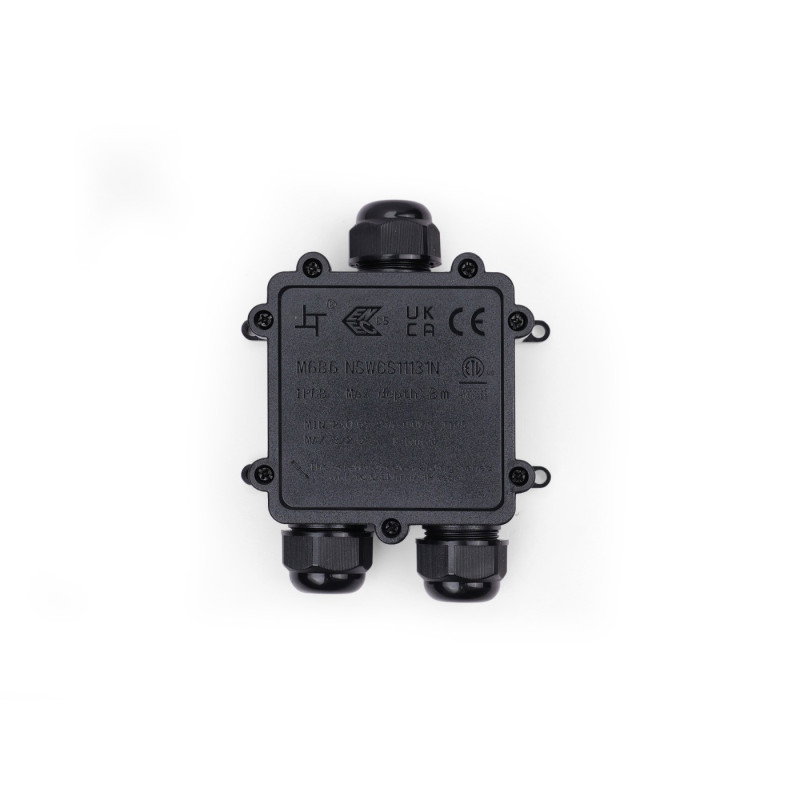

IP68 junction box for SenseCAP S2100 - 12 terminals, 4-8 mm cables - Seeedstudio 114992988
A sealed connection of the S2100 logger to a 12 V power supply: an IP68 box with terminals, a screwdriver and sealing tape.

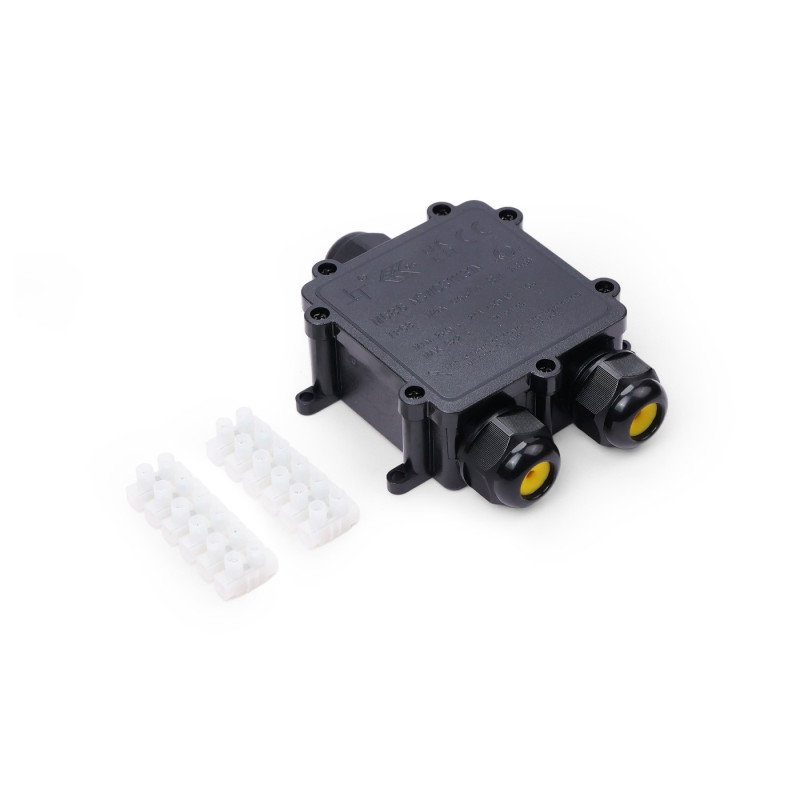

- Two strips of 6 terminals each
- Conductors from 0.5 mm² to 2.5 mm² and cables from 4 mm to 8 mm in diameter
- Horizontal or vertical mounting
We could not load the price.
The promotional price does not combine with quantity discounts.
A sealed power connection in the field
The SenseCAP IP68 junction box connects the SenseCAP S2100 logger to a 12 V power supply and a sensor cable in a sealed housing, with no need for soldering or cable cutting. IP68 means a dust-tight enclosure that withstands long-term immersion in water, and the manufacturer's watertightness test covers 150 hours at a depth of 10 m.

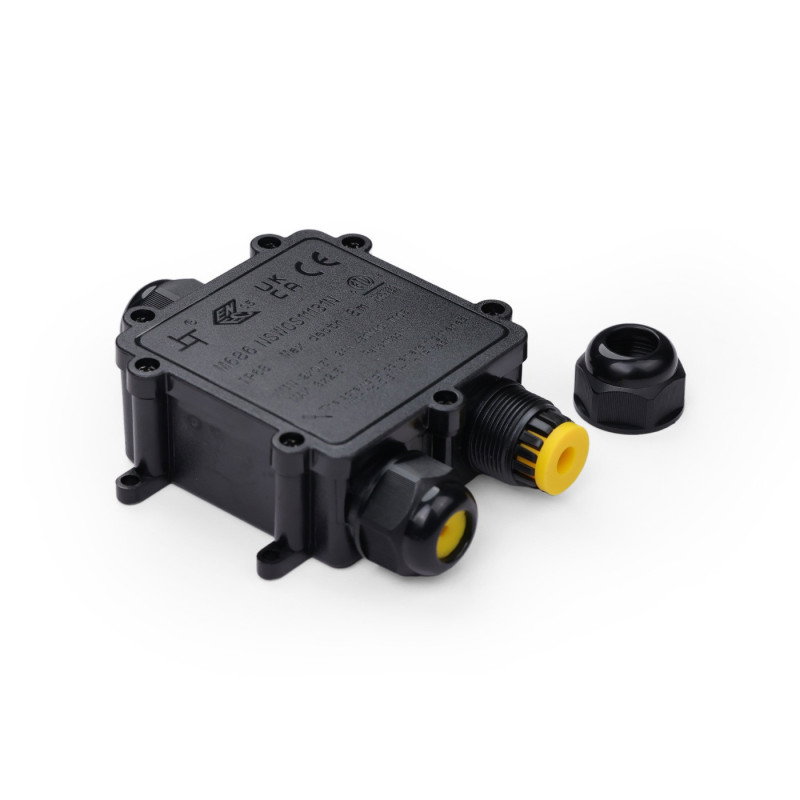

Sensors with an RS485 interface, meaning an industrial serial link, that require 12 V, for example the SenseCAP S700-A station, need an external power supply, because the logger battery alone will not power them. You mount the box horizontally or vertically, lead the cables in through cable glands, meaning sealed pass-throughs with a nut, and wrap thinner cables with the included tape. The box also works for other outdoor cable connections.
IP68 junction box with two cable glands
IP68
ingress protection, tested at a depth of 10 m for 150 hours
12 terminals
two strips of 6 terminals each
0.5-2.5 mm²
cross-section of connectable conductors
4-8 mm
cable diameter in the gland
Frequently asked questions
Does the box only fit the S2100?
No. The box fits any cable connection that has to be protected from water and dust, as long as the insulated cables are 4 mm to 8 mm in diameter.
What do I do with a thin cable?
Wrap the thinner cable with the included sealing tape, then tighten the gland nut so the connection stays watertight.
Package contents
- 1 x Junction box housing
- 1 x M12 cable
- 8 x Self-tapping screw
- 1 x Screwdriver
- 1 x Sealing tape
- 2 x Terminal block
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Technical specifications
| Parameter | Value |
|---|---|
| Type | waterproof junction box |
| Model | Junction-Box-Kit |
| Housing material | polycarbonate (PC) |
| Contact material | brass |
| Ingress protection rating | IP68 |
| Watertightness test | 10 m for 150 hours |
| Rated values | 24 A, 450 V AC |
| Conductor cross-section | 0.5-2.5 mm² |
| Cable diameter | 4-8 mm (rubber-insulated cable) |
| Number of terminals | 12 (2 strips of 6) |
| Temperature rating | T105 |
| Mounting | horizontal or vertical |
| Dimensions | 130.14 x 80.5 x 35.3 mm |
| Certifications | KEMA, ENEC, CE, UKCA, CB, SAA, RoHS |
| Compatibility | SenseCAP S2100 and RS485 sensors powered by 12 V |
| Manufacturer code | 114992988 |
| Manufacturer | Seeed Studio |
