Product description: Gravity - CO2 sensor - SCD41 - IR - I2C - 400 - 5000 ppm - DFRobot SEN0536
CO2 carbon dioxide sensor from DFRobot equipped with the SCD41 system from Sensirion . It is based on the photoacoustic NDIR detection principle and Sensirion's patented PAsens and CMOSens technologies. Signal compensation is implemented using the built-in temperature and humidity sensor, temperature and humidity data outputs are also available.
What is carbon dioxide?
CO2, or carbon dioxide, is a key factor affecting indoor air quality. Its high level threatens the cognitive abilities and well-being of a person. It should be monitored on an ongoing basis, and any deviations from the norm should be immediately signaled.

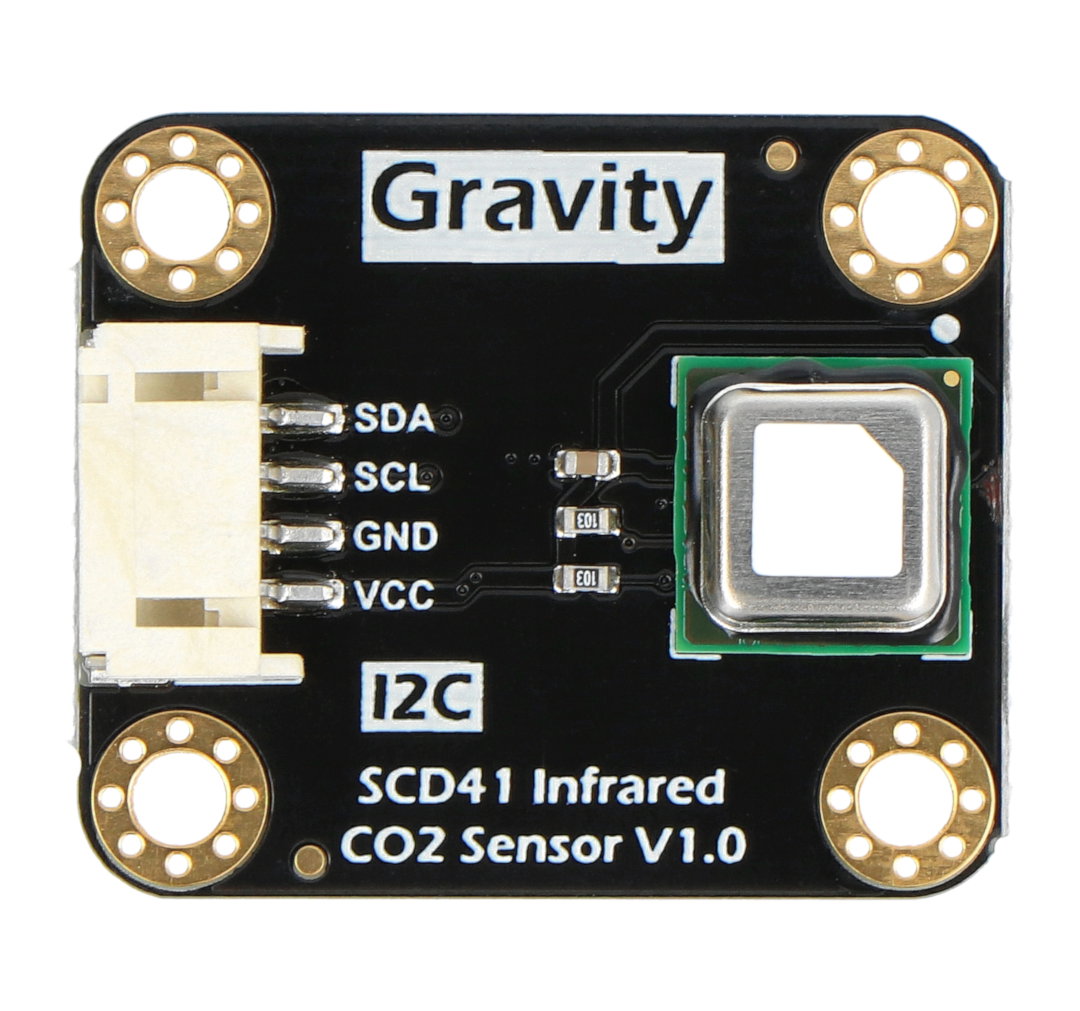

Gravity - carbon dioxide sensor CO2 - SCD41 - IR - I2C - 400 - 5000 ppm - DFRobot SEN0536.

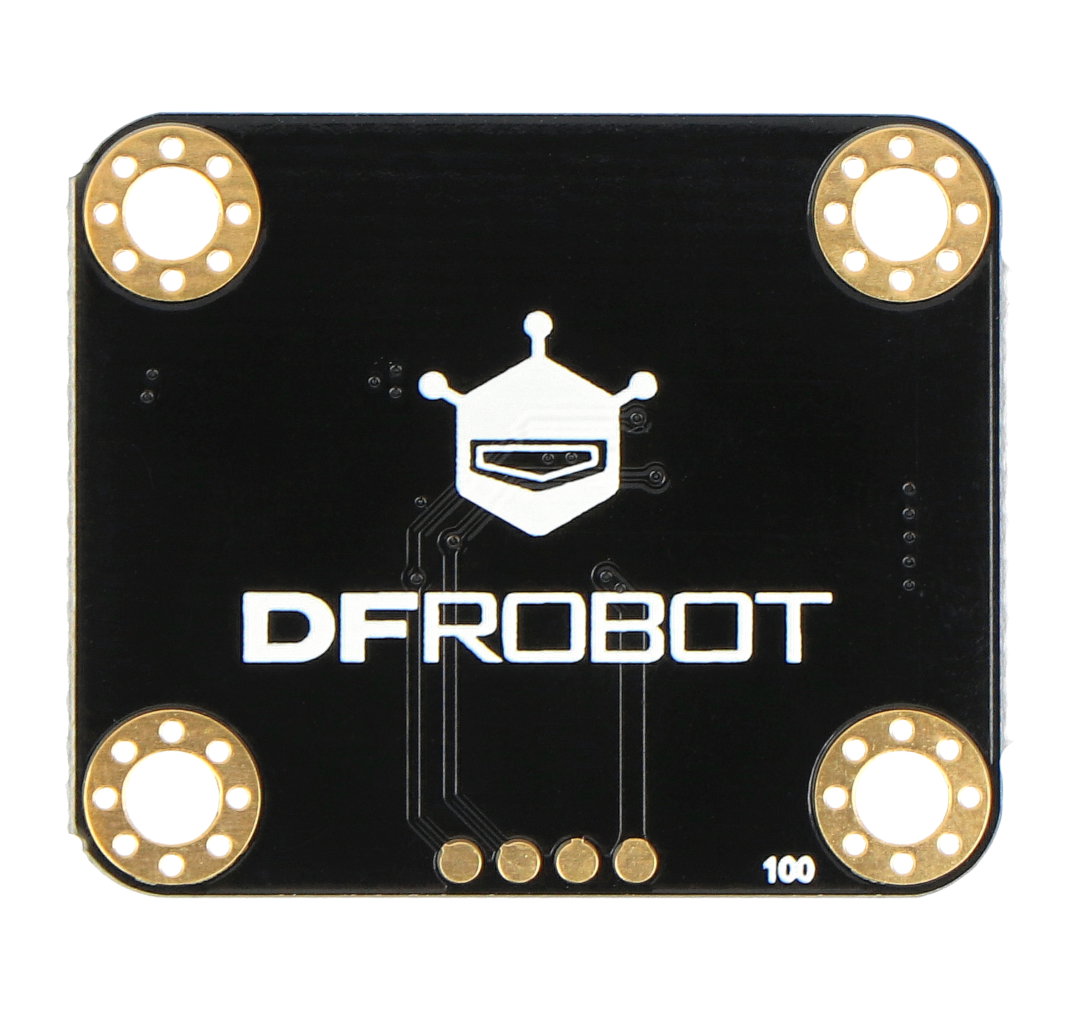

Gravity - carbon dioxide CO2 sensor - SCD41.
Special features of the module
- Measurement of three environmental values - CO2, temperature and humidity
- Compact dimensions, while maintaining high precision and stability of measurement
- Can be used in energy-saving projects due to low current consumption < 4 mA
Suggested use
- Monitoring of CO2 concentration in rooms
- Environmental monitoring in the greenhouse
- Intelligent ventilation systems
- IoT and Smart Home applications
Product compatible with Arduino and Raspberry Pi!
Also check the manufacturer's user guide .
Pin description
- VCC - power pin
- GND - system ground
- SCL - clock line of the I2C bus
- SDA - data line of the I2C bus
Kit contents
- Gravity - CO2 sensor - SCD41 - IR - I2C - 400 - 5000 ppm
- Connection cable with Gravity connector

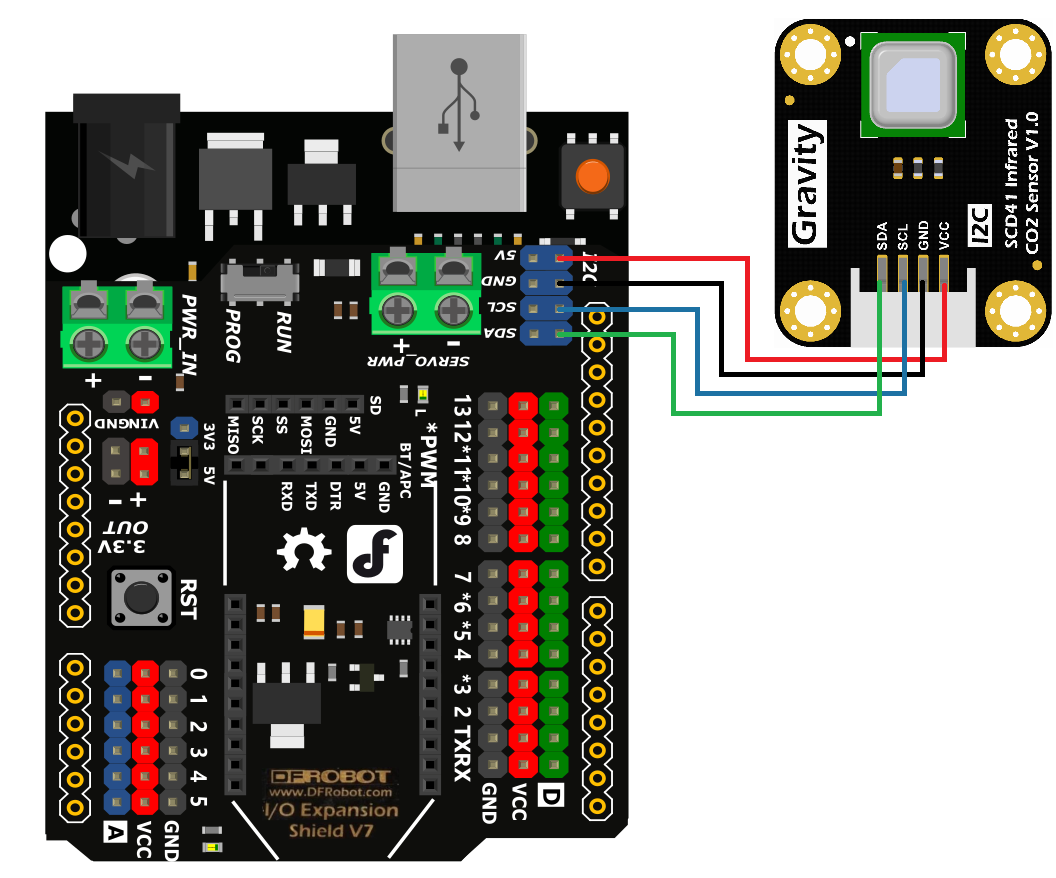

Example connection diagram. The DFRduino board must be purchased separately.

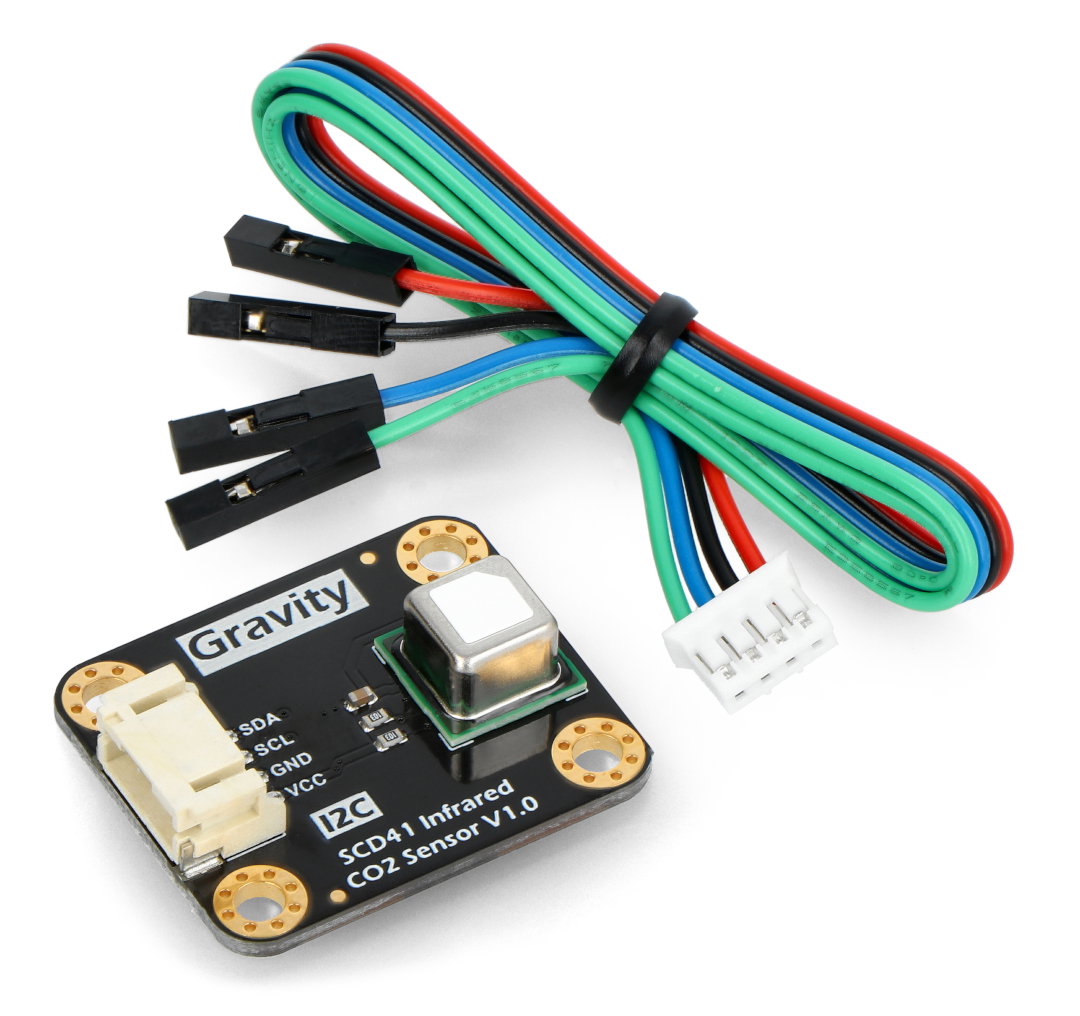

Kit contents.
Module technical specification
- Type: carbon dioxide sensor
- Additional measurements: humidity, temperature
- Measurement technology: IR
- Carbon dioxide CO2 measurement:
- Measuring range: 400 ppm to 5000 ppm
- Measurement accuracy: ± (40ppm + 5%MV)
- Response time: 60 seconds
- Temperature measurement:
- Temperature measurement range: -10°C to 60°C
- Typical measurement accuracy: 0.8°C
- Response time: 120s
- Moisture measurement:
- Relative humidity measurement range: 0% to 95% RH
- Typical measurement accuracy: 6% RH
- Response time 120 seconds
- Supply voltage: 3.3 V to 5 V
- Average current consumption: < 4 mA
- Communication interface: I2C bus
- Interface address: 0x62
- Board dimensions: 32 x 27 x 8 mm
