Product description: BleBox saunaBox Pro - WiFi sauna controller - Android / iOS application
BleBox saunaBox is the world's first sauna controller that allows you to remotely turn on / off and control the temperature of the sauna from anywhere in the world - without the use of additional peripherals. The control takes place using the free wBox application for mobile devices or via a web browser. The saunaBox controller is now available in the Pro version - with an external antenna to increase the range of the WiFi connection. The device also allows for manual control using touch buttons located on the top panel. The value of the set temperature is also displayed visually through the changing color of the device backlight . BleBox saunaBox can be powered with 230 V (single-phase) or 3x 230 V (three-phase), and its maximum load can be 3x 16 A.
Main features of the BleBox saunaBox Pro sauna controller
- Remote control of the sauna from anywhere in the world
- Setting or checking the temperature remotely (using a smartphone) or directly (using the touch buttons on the device panel)
- Visual information about the current temperature value
- External antenna improves WiFi coverage
- It has a time control function (schedule), thanks to which the sauna can be turned on with the last temperature, with the set temperature or turned off at times convenient for the user
- The self-diagnostic mechanism will inform the user about inconsistent settings and recognize the failure of the measuring probe
Posts in use

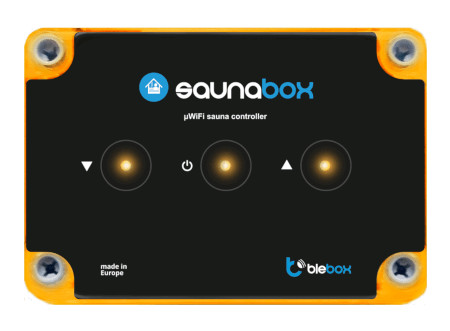

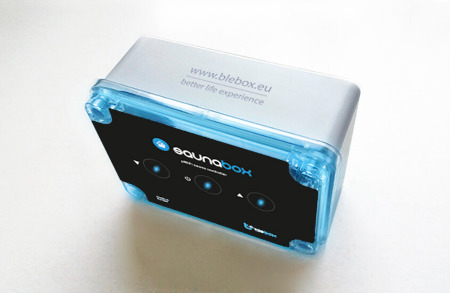

The saunaBox Pro controller is easy to use. The temperature value can be checked and set both in the mobile application and manually - using the touch buttons on the device panel. The device can also be controlled using uRemote remote controls and wireless buttons - inBox . BleBox saunaBox has a color-lit control panel (from blue, through light blue, white, yellow, orange to red), which provides additional, visual information about the current temperature value. The user can also set his own temperature range, e.g. from 60 ° C to 125 ° C, in the range of which the backlight color will change smoothly.
The diagram of connecting the sauna heater to the controller can be found in the user manual .

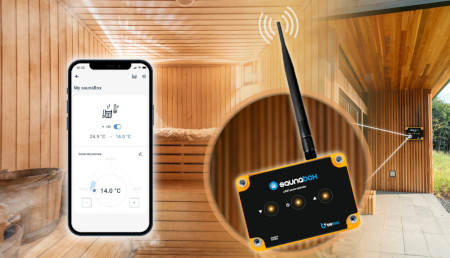

Version with antenna - BleBox saunaBox Pro
The saunaBox controller in the Pro version is equipped with an antenna connector and an external antenna, which increases the range of the WiFi connection. This type of controller will be perfect for outdoor, garden saunas, where a much greater range of WiFi is required. Thanks to the replaceable antenna, it is possible to connect a directional antenna with a very long range.
Our offer also includes the standard version of the BleBox saunaBox sauna controller - check it out!
Specification of the BleBox saunaBox Pro controller
- Supply voltage: 230 V (single-phase) or 3x 230 V (three-phase)
- Power consumption: less than 1W
- Type of outputs: relay
- Maximum load: 3x 16A
- Number of inputs: 1
- Input type: temperature probe
- Galvanic separation: no
- Housing: surface-mounted box, controller in a halogen-free polyurethane composition, self-extinguishing for thermal class B (130 ° C)
- IP class: IP44
- Transmission: two-way acknowledged, encrypted
- Transmission frequency: 2.4 GHz
- Transmission standard: μWiFi, compatible with WiFi
- Communication mode: direct connection (as an Access Point), WiFi connection via a standard router, connection with access from anywhere in the world (only Internet access required)
- Controllable from: Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices supporting HTML5
- Measuring range: -55 ° C to 125 ° C
- Measurement accuracy: ± 0.5 ° C in the range from -10 ° C to 85 ° C
- Probe type: wired, waterproof, cable length 5 m
- Encryption: WPA2-PSK and Digest Authentication (AEAD)
- Number of control outputs: 3
- Maximum power: 3680 VA (3680 W for resistive load, e.g. heater)
- Type of control inputs: temperature measurement probe
- Dimensions: 129 x 89 x 57 mm
- BleBox saunaBox Pro - WiFi sauna controller - Android / iOS application
- External WiFi antenna
- 5 m temperature probe
