Product description: BleBox inputSensorD - 2-channel WiFi input module, 5 - 24 V DC
The BleBox inputSensorD is an advanced, two-channel WiFi input module . It was designed to integrate third-party Smart Home products with BleBox automation . Users can expand their smart home system in an incredibly convenient and accessible way. The WiFi input module allows them to read status and tamper signals from various sensors used in homes, offices, and industry. This allows the inputSensorD to work with existing devices such as motion and presence sensors, liquid flow detectors, pressure sensors, parking space occupancy sensors, tank fill level sensors, and septic tank level sensors. Furthermore, the module allows for monitoring device operating time, window and door opening status, and integration with alarms and industrial systems. The controller's operating voltage range is 5 V to 24 V DC . The durable, self-extinguishing housing meets safety standards for thermal class B (130°C) and offers an IP20 protection rating. Its compact dimensions allow for installation in walls or flush-mounted boxes, as well as inside the housing of another device or sensor. The free wBox app allows you to read data from multiple modules simultaneously, from anywhere in the world.

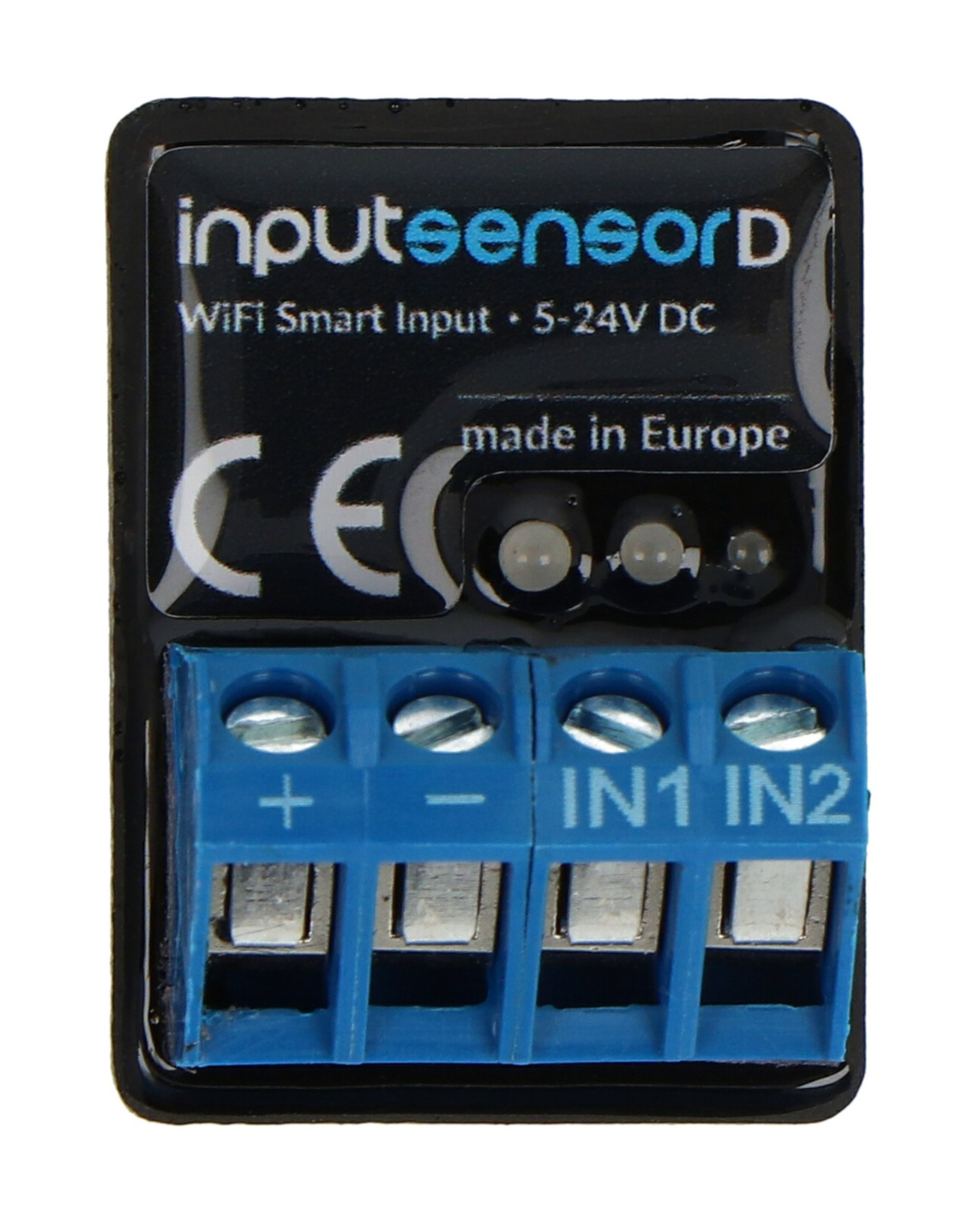

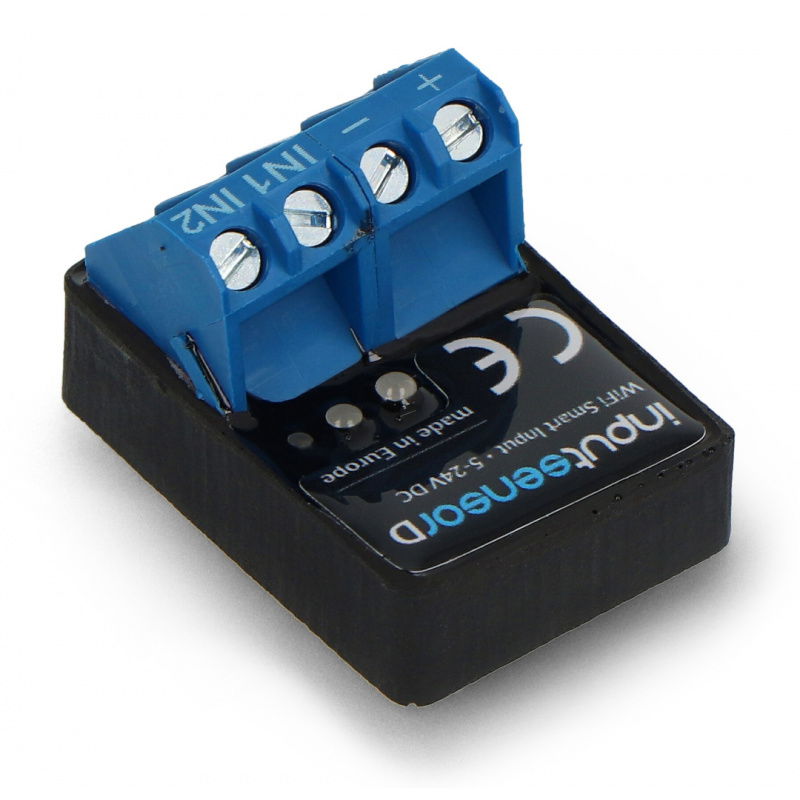

BleBox inputSensorD - 2-channel WiFi input module, 5 - 24 V DC.
The compact, yet very durable housing ensures efficient, safe operation of the module and versatile mounting options.Main features of the BleBox inputSensorD
- Expansion of the Smart Home system: designing a module to integrate products from other manufacturers with BleBox automation
- Dual-channel input: allows simultaneous monitoring of two independent digital signals
- Low power consumption: less than 1W for energy efficiency and long battery life

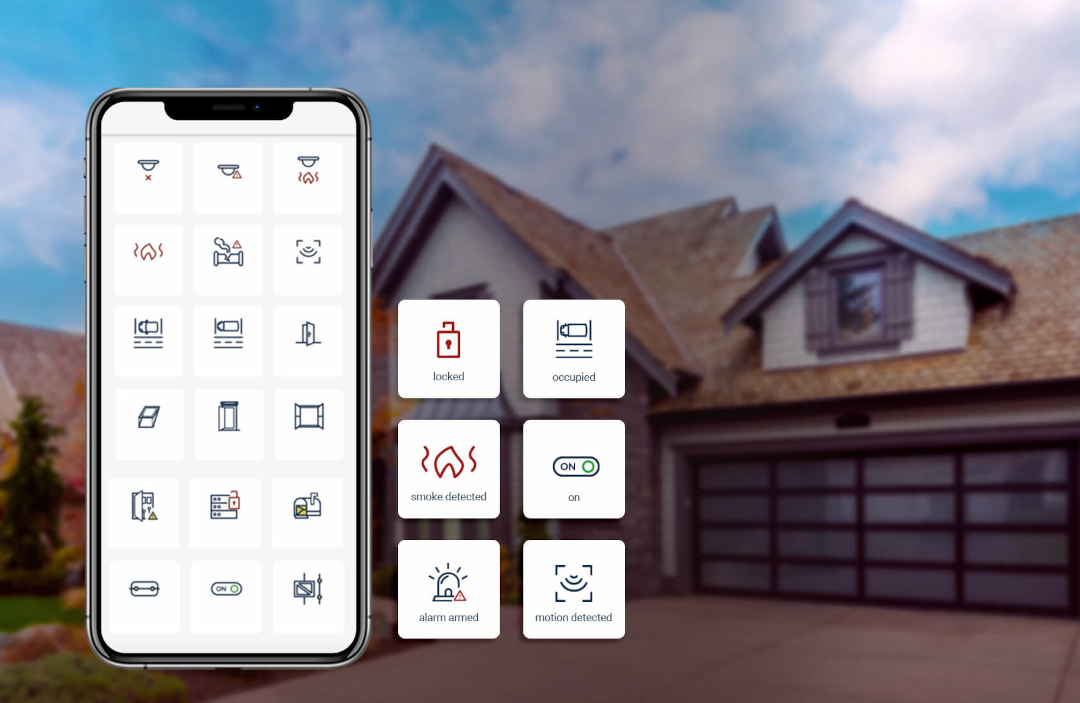

- Notifications and alerts: the ability to send push notifications and personalize their content depending on the user's needs and the type of connected device
- A compromise between size and quality: a small, yet durable and resistant housing ensuring efficient and safe operation of the device and versatile mounting options
- Data security: WPA2-PSK and AEAD encryption guarantee data transmission protection
- Open API: enabling integration with automation systems, IoT and Smart Home platforms
- Historical data: archived data available in the wBox application up to 12 months back, helping the user analyze changes over time
- Communication diversity: a combination of direct, local and remote control methods, ensuring reliability even in times of limited internet access
Home, farm and industrial applications
The versatility of the BleBox inputSensorD module allows for compatibility with a variety of existing devices. Examples of applications include: fire, smoke, and gas sensors, motion and presence sensors, as well as liquid flow and pressure detectors, and parking space occupancy sensors. and even the filling of the tank. The controller also allows you to read the status of reed switches and inductive sensors, which are factory-installed by window and door manufacturers. This allows you to monitor the opening status of windows, doors, gates, various types of cabinets and boxes, and even stalls in stables and other outbuildings.
Thanks to the read signals, it is possible to wirelessly control other BleBox devices.
Functional home automation scenarios
In addition to monitoring the status of devices and sensors, the BleBox inputSensorD smart sensor also allows you to create functional home automation scenarios.
Example automation scenarios:
- After reading the alarm arming signal, automatically close all the blinds in the house
- After reading the alarm arming signal, automatically turn off all the lights in the house
- After reading the smoke detection signal, automatically activate the alarm siren and smoke extraction system
- After reading the gas detection signal, automatically activate the alarm siren, ventilation and close the gas valve
- After reading the signal from the projector - automatically expand the screen when it is turned on and collapse it when it is turned off
- After reading the window opening signal - if the window is open for more than 5 minutes, turn off the air conditioner
- After reading the balcony door opening signal - send a command to deactivate the roller shutter schedule (so as not to be locked out of the terrace, for example)
Connecting the BleBox inputSensorD module

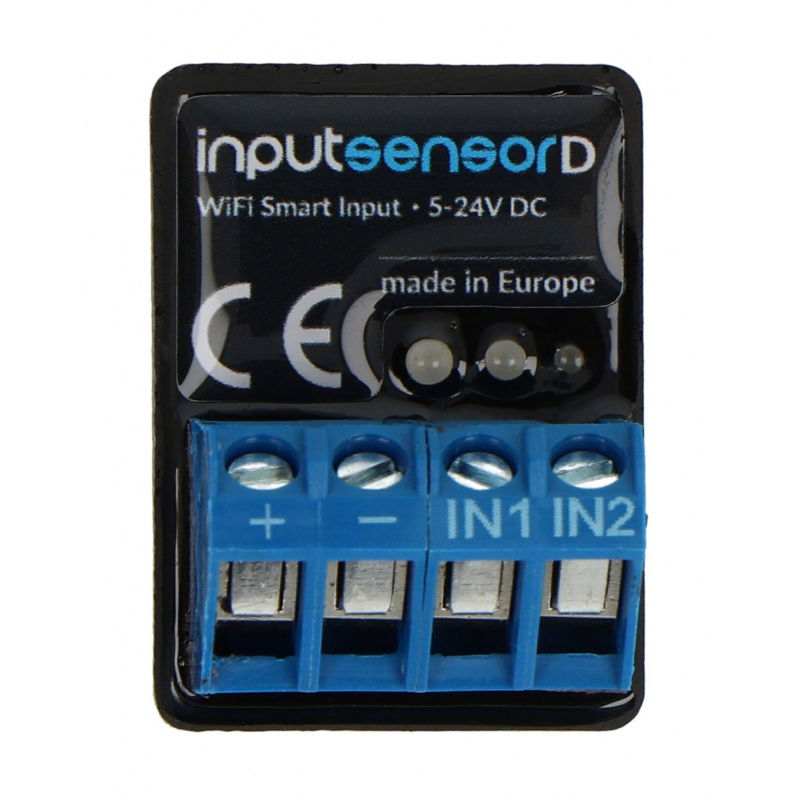

The controller should be mounted in a location protected from unauthorized access, either in a flush-mounted box, on a wall, or inside the housing of another device or sensor. The module is equipped with screw terminals and powered by a voltage of 5 V to 24 V DC. The controller's pins are:
- + - supply voltage from 5 V to 24 V DC
- - - power supply ground
- IN1 - sensor input
- IN2 - sensor input
Connection diagram of the BleBox inputSensorD module with a magnetic sensor.

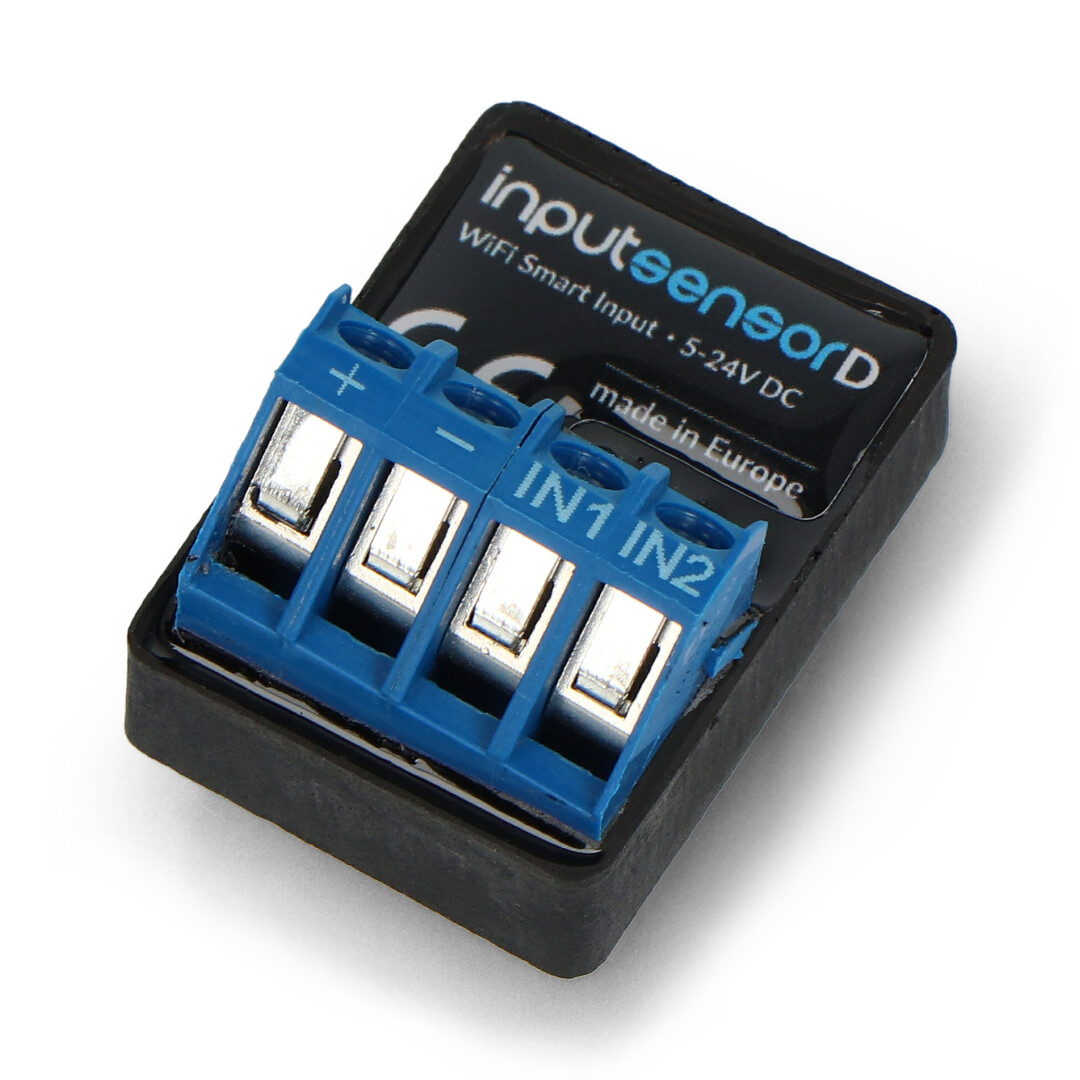

Small-sized BleBox inputSensorD module.BleBox tempSensorAC sensor specifications
- Supply voltage: 5 V to 24 V DC
- Power consumption: up to 1 W
- Number of inputs: 2
- Input type: low voltage, shorted to the supply negative
- Mounting method: in a box, in a wall, inside the housing of another device or sensor
- Case: made of a halogen-free polyurethane composition, self-extinguishing for thermal class B (130°C)
- Dimensions: 33 x 24 x 20 mm
- Degree of protection: IP20
- Controller operating temperature: -20°C to 50°C
- API: open https://technical.blebox.eu/
- Communication standard: μWiFi, compatible with WiFi, 802.11g
- Transmission frequency: 2.4 GHz
- Encryption: WPA2-PSK and Authenticated Encryption (AEAD)
- Operating mode: direct connection (as Access Point), WiFi connection via a standard router, connection with access from anywhere in the world (only Internet access required)
- Compatible devices and systems: iOS (e.g. iPhone, iPad), Android, macOS (ARM processors marked M1 or newer)
