Product description: Xiao nRF52840 + Wio-SX1262 Kit for Meshtastic - LoRa / Bluetooth - Seeedstudio 102010710

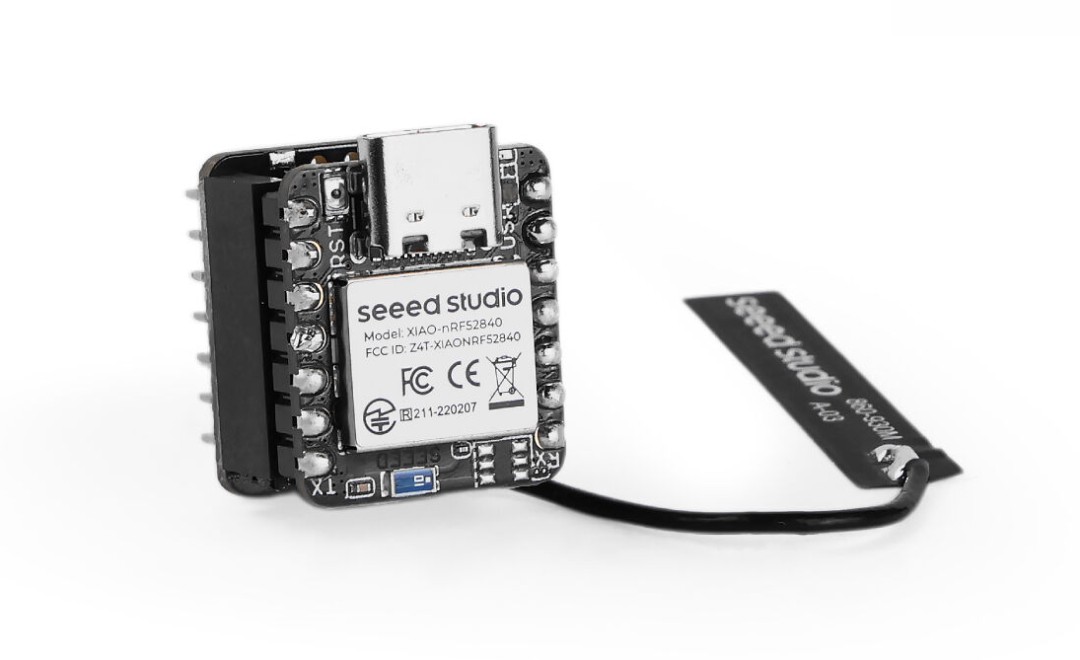

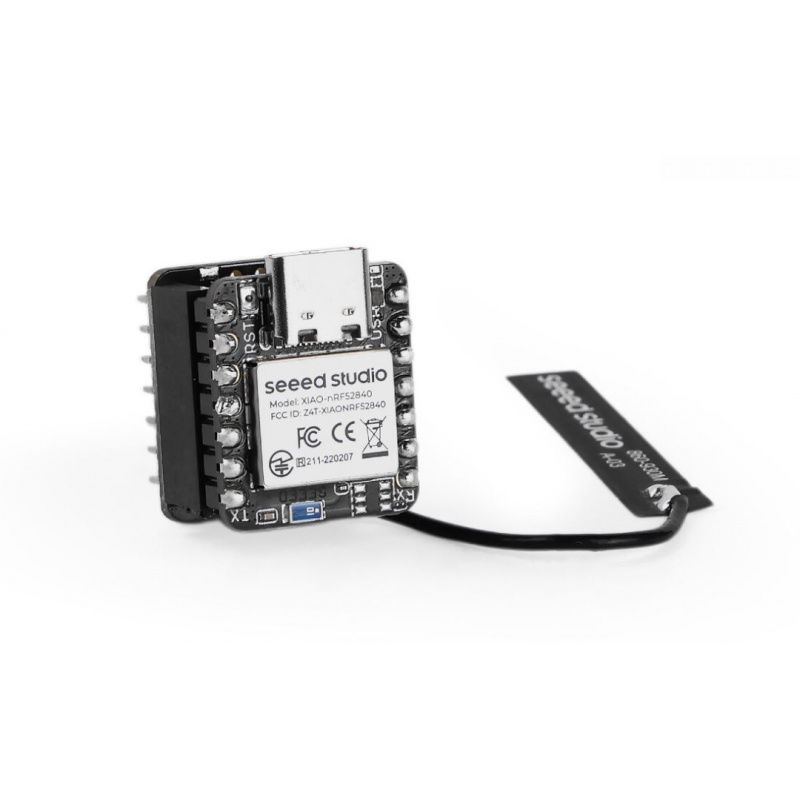

The Xiao nRF52840 + Wio-SX1262 Meshtastic Kit from Seeedstudio is a combination of the Nordic nRF52840 microcontroller with FPU and the SX1262 LoRa module. It supports Bluetooth 5.0, Thread, ZigBee and LoRa (frequencies from 862 MHz to 930 MHz). The compact design (21 x 17.8 mm) includes an integrated antenna and features very low power consumption - < 5 µA in standby mode. The kit is compatible with Arduino IDE, CircuitPython and MicroPython and ideal for work in distributed networks.

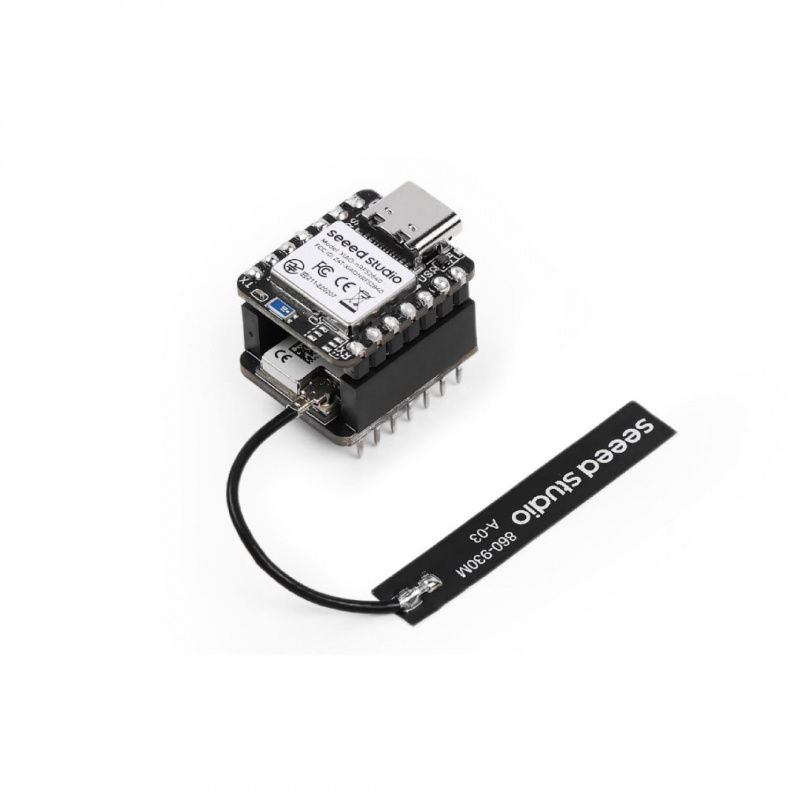

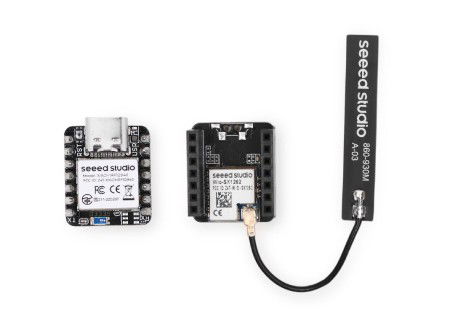

Xiao nRF52840 + Wio-SX1262 Kit for Meshtastic - LoRa / Bluetooth - Seeedstudio 102010710.
The module comes pre-loaded with Meshtastic software, allowing you to start working on mesh networks right away.
Main Features of Xiao nRF52840 + Wio-SX1262
- Advanced Nordic nRF52840 microcontroller: equipped with ARM Cortex M4 core with FPU unit, clocked up to 64 MHz - ensures high performance and precision of floating-point calculations
- Support for multiple communication protocols: full compatibility with Bluetooth 5.0, Thread, ZigBee and NFC - the perfect basis for communication applications
- Long-range LoRa SX1262 module: enables data transmission on frequencies from 862 MHz to 930 MHz, with a typical range of 2 km to 10 km (depending on conditions)
- Meshtastic Ready: The kit comes pre-loaded with Meshtastic firmware so you can get started without any additional programming
- Integrated antenna and compact size: 21 x 17.8 mm housing includes a built-in antenna, minimizing the need for additional components
- Low power consumption: standby mode consumes less than 5 µA, making the kit ideal for battery-powered projects
- Extensive interfaces: great versatility in connecting with other modules
- Easy Firmware Update: Supports DFU mode and Web Flasher programming - UF2 file installation by drag and drop
- User button: configurable - without connected GPS allows sending node information; with GPS restarts the location module

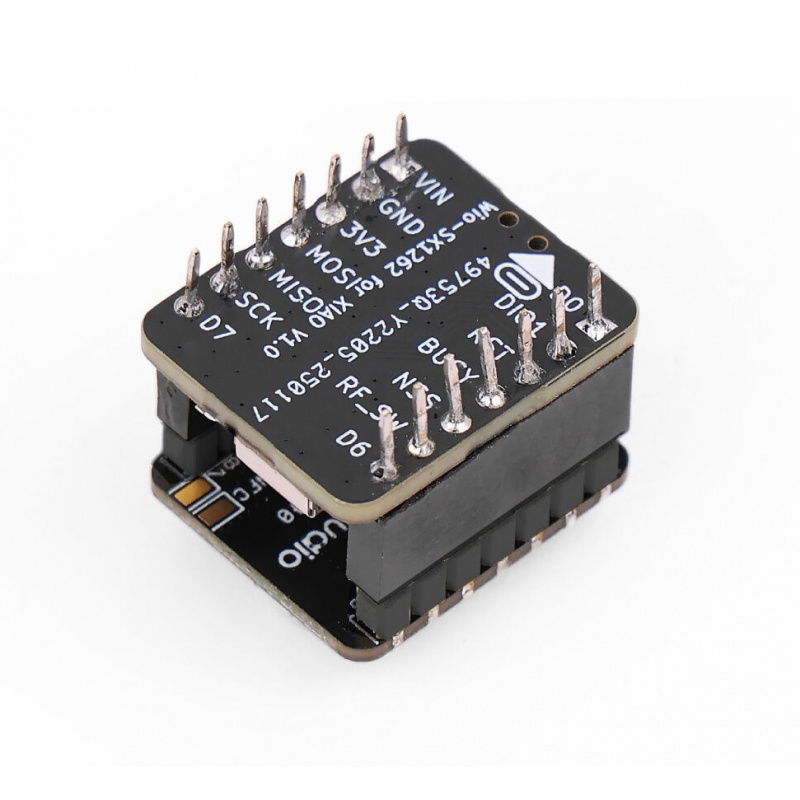

Pins and interfaces - extensive communication options

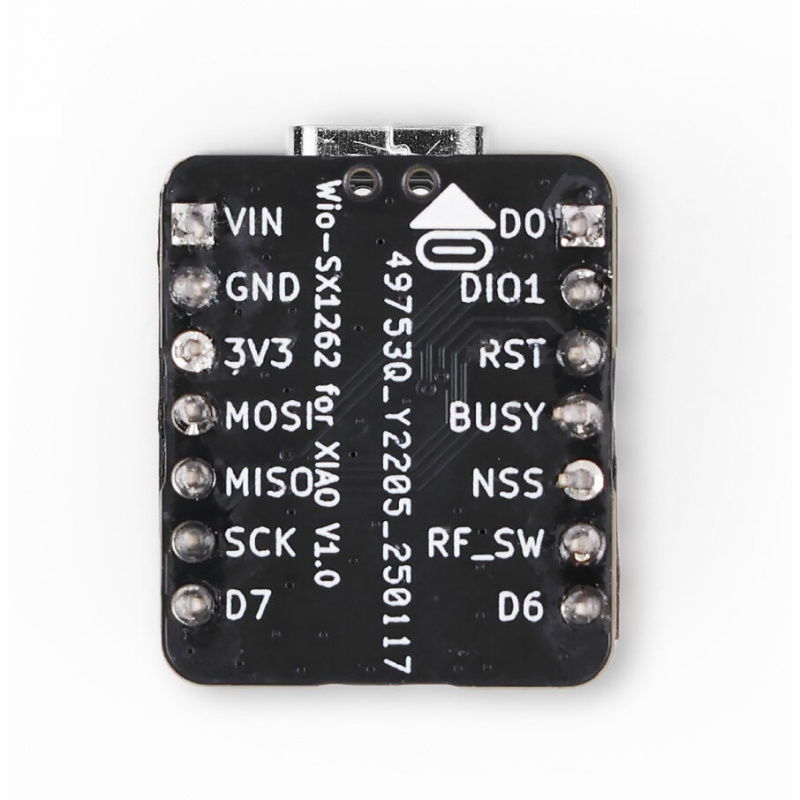

Xiao nRF52840 provides: 1x UART, 1x I2C, 1x SPI (to SX1262), 1x NFC, 1x SWD, 11x GPIO (PWM) and 6x ADC . Wio-SX1262 is equipped with SPI (to Xiao) and user button. When GPS is not connected, the button sends information about the node. When GPS is connected - the button restarts the GPS module.
Meshtastic Support
The kit comes with pre-installed Meshtastic firmware and DFU (Drag & Drop) support via Web Flasher. Once connected to a computer, simply click "Enter DFU Mode" and upload the UF2 file. The kit works as a LoRa mesh node or router , offering a range of up to 2 km in cities and over 10 km in open terrain. It is possible to integrate with a GPS module, e.g. L76K , to create GPS trackers.

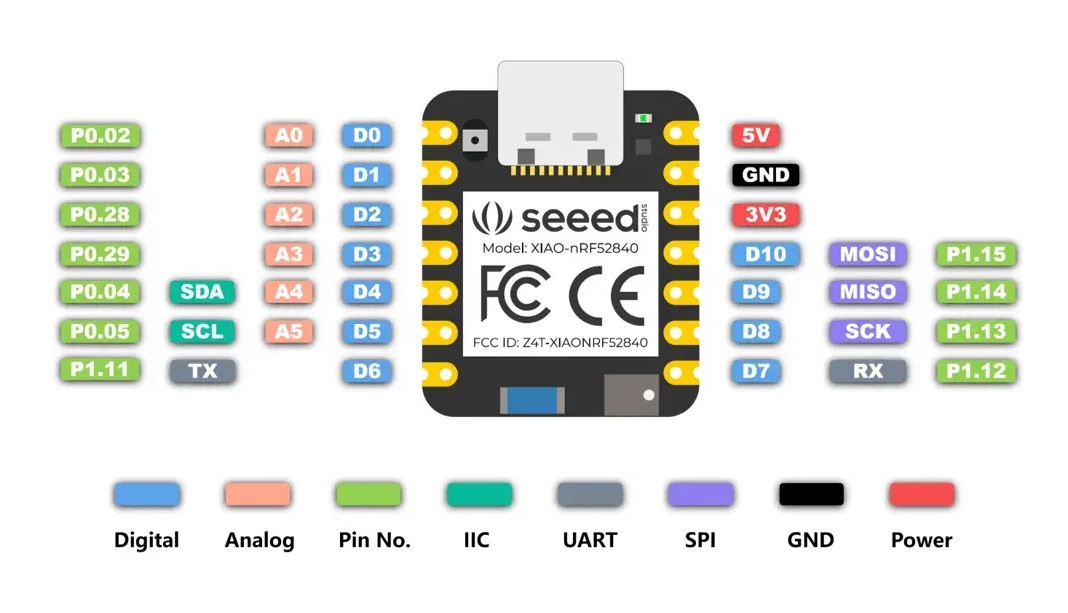

Xiao nRF52840 pinout diagram.

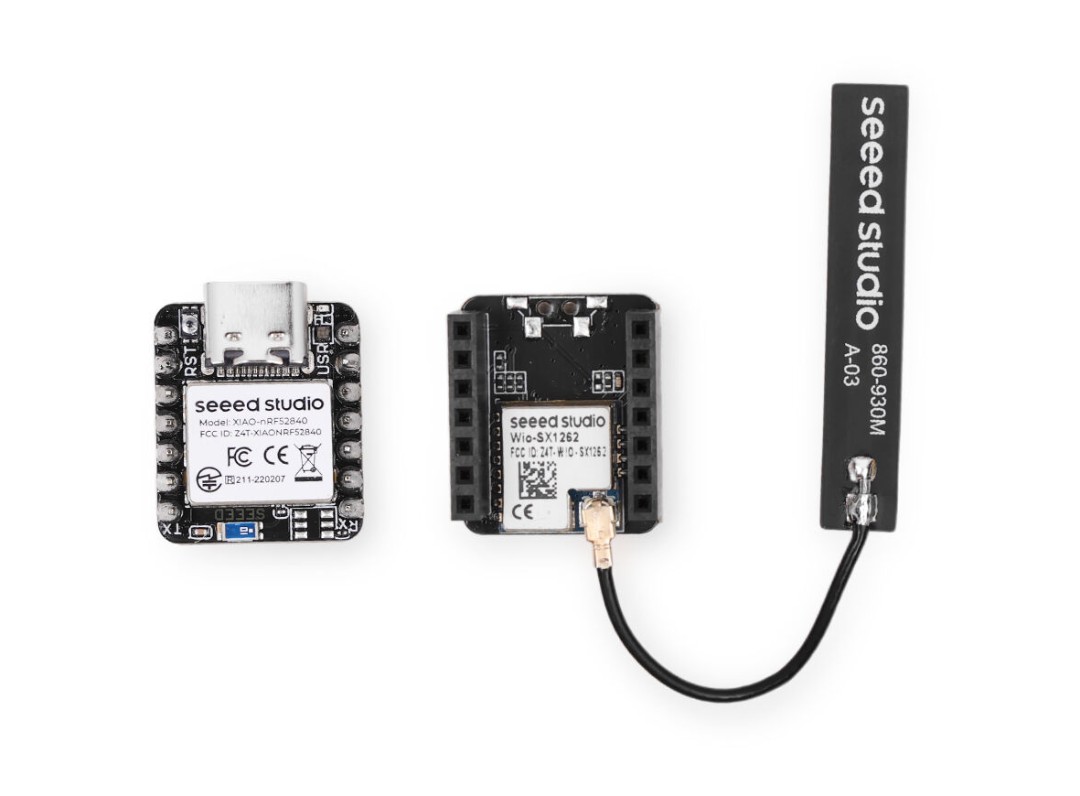

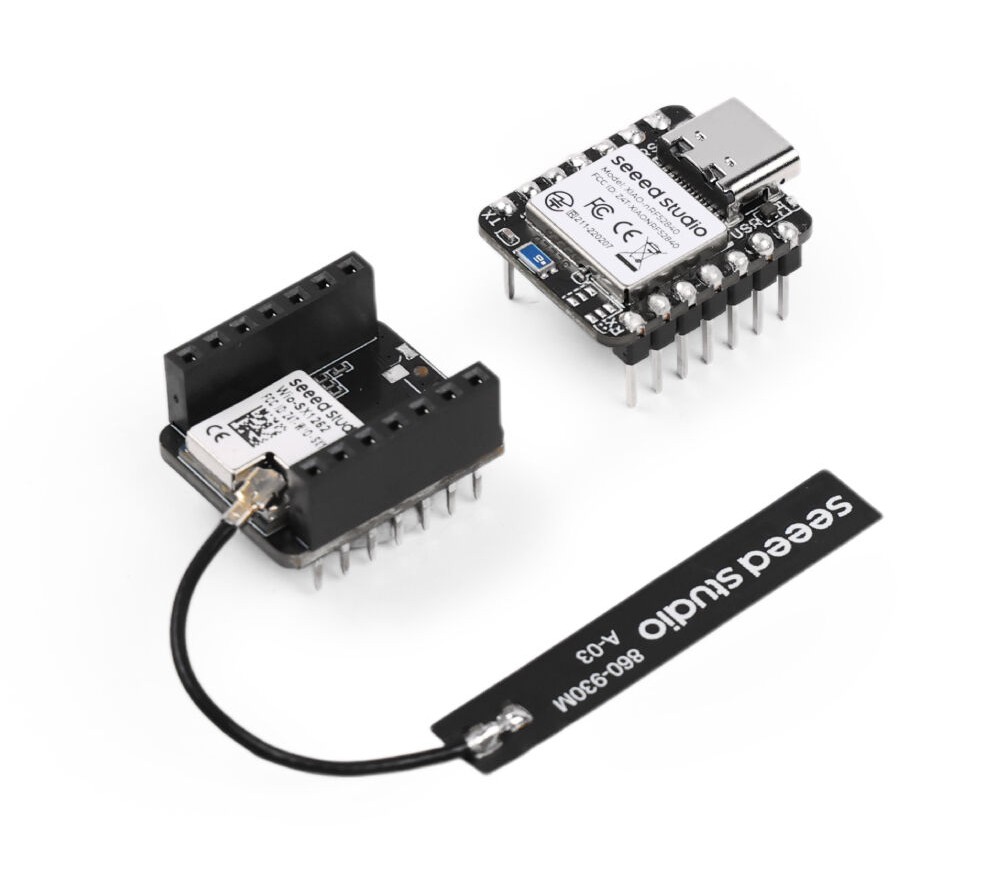

Items included in the set.
Technical specification of the set
- Microcontroller: Nordic nRF52840 (ARM Cortex M4, 64 MHz, FPU)
- LoRa Module: Semtech SX1262
- LoRa Frequency: 862 to 930 MHz
- Connectivity: Bluetooth 5.0, Thread, ZigBee, NFC
- Interfaces: UART, I2C, SPI, NFC, SWD, GPIO, ADC
- User button: programmable, different functions depending on GPS
- Power supply: USB Type-C (5V), battery (4.2V)
- Charging current: 50 mA or 100 mA
- Standby power consumption: less than 5 µA
- Operating temperature: -40°C to 65°C
- Dimensions: 21 x 17.8 mm

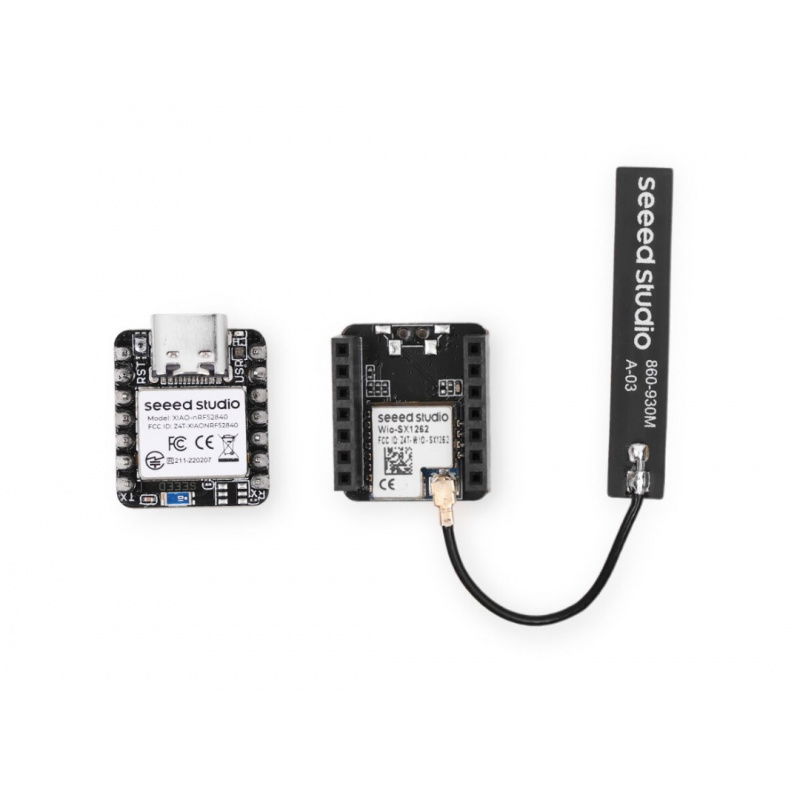

Kit Contents
- 1x Xiao nRF52840
- 1x Wi-SX1262
- 1x LoRa Antenna
