Wheel + DC Motor 65x26mm 5V with 48:1 Gear + wires

Index: ZES-16472 EAN: 5903351248136

A wheel with a tyre of 65 mm diameter and 26 mm width, together with a motor powered by 5 V, with a current consumption of about 180 mA. The motor has a gear ratio of 48:1, speed is about 80 rpm, torque is 0.5 kg*cm. Wires have been soldered to the motor leads.

Wheel + DC Motor 65x26mm 5V with 48:1 Gear + wires
€3.23
€2.63 tax excl.
Available, 24 hours shipping!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Botland

Product Description: Wheel + Motor 65 x 26 mm 5 V with 48:1 gearbox

Awheel with a 65 mm diameter and 26 mm widetyre together with a motor powered by 5 V, with a current consumption of about 180 mA. The motor has a 48:1 gear ratio, speed is about 80 rpm, torque is 0.5 kg*cm. Wires have been soldered to the motor leads.

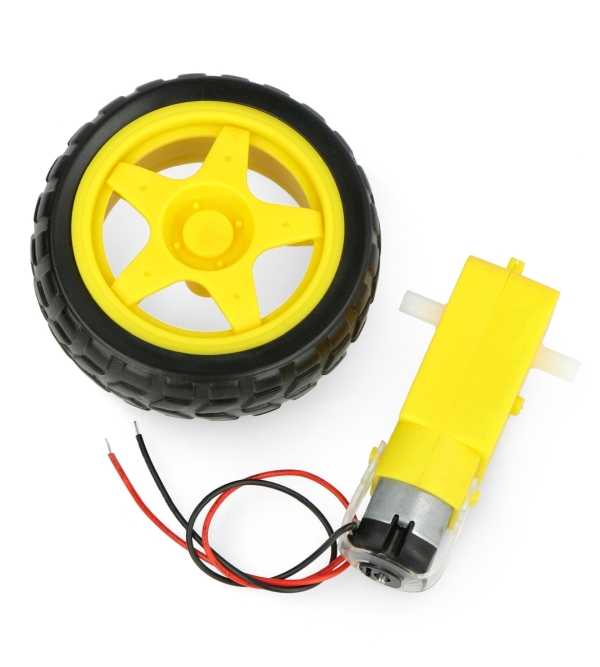

Koło z silnikiem

The set includes a motor with a compatible wheel.

Wheel tread depends on delivery and may vary.

Attention!

The wheel has a defect in the form of a figure-eight, but is suitable for the simplest projects.

Specifications of the wheel with motor

  • Motor specifications
    • Supply voltage: 5 V
    • Current consumption: approx. 180 mA
    • Integrated gearbox: 48:1
    • Double-sided shaft
    • Speed after gearbox: approx. 80 rpm
    • Torque after gearing: approx. 0.5 kg*cm (0.049 Nm)
    • Soldered-in cables
  • Wheel parameters
    • Tire diameter: 65 mm
    • Tire width: 26 mm
  • Set contents
    • 1 x wheel with tyre
    • 1 x motor with gear
Width 26 mm
Voltage to 5.0 V
Voltage from 5.0 V
Motor - current 180 mA
Motor - gear 48:1
Rotation speed 80 obr/min
Torque 0.5 kg*cm
