UART - RS485 converter TP8485E - 5V/12V - shield for Seeed Xiao and QT Py - Seeedstudio 113991354

Index: SEE-25989
Seeedstudio expansion module designed to work with Seeed Xiao and Adafruit QT Py boards , enabling conversion of UART stream to RS485 signal . Thanks to the TP8485E system used, the module provides stable communication at a distance of up to 1200 m , making it ideal for industrial, automation and IoT applications.
UART - RS485 converter TP8485E - 5V/12V - shield for Seeed Xiao and QT Py - Seeedstudio 113991354
€6.50
€5.28 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Seeedstudio

Product description: UART - RS485 Converter TP8485E - 5 V / 12 V - Shield for Seeed Xiao and QT Py - Seeedstudio 113991354

RS485 is a reliable serial communication standard that is widely used in industry and systems requiring long-distance data transmission. Seeedstudio expansion module designed to work with Seeed Xiao and Adafruit QT Py boards, enabling conversion of UART stream to RS485 signal . The module works as a half-duplex transceiver , which means that it supports unidirectional transmission at a given time. Thanks to 5V or 12V power supply and easy connection via 3-pin screw connectors , it is extremely versatile and easy to integrate. It also has a 120R switch , which allows termination of the RS485 bus, which is important for correct transmission in long-distance environments.

UART - RS485 Converter TP8485E - 5V / 12V - Shield for Seed Xiao and QT Py - Seeedstudio 113991354

UART - RS485 converter TP8485E - 5 V / 12 V - shield for Seeed Xiao and QT Py - Seeedstudio 113991354.

UART - RS485 Converter TP8485E - 5V / 12V - Shield for Seed Xiao and QT Py - Seeedstudio 113991354

The converter works with 5 V and 12 V power supplies.

Main features of the module

  • RS485 communication support : UART to RS485 conversion by TP8485E
  • Long transmission range : communication distance up to 1200 meters
  • Wide supply voltage range : can operate at 5 V or 12 V
  • Two screw terminals : separate terminals for RS485 signals and power supply
  • 120R Termination Switch : allows you to adjust the resistance at the ends of the bus
  • 5V Input/Output Mode : Selectable between input and output mode for power supply
  • Compact size : equivalent to the size of two Xiao boards, making it easy to integrate

Pins on the board

The module has several important pins and switches that allow it to be properly configured:

  • Power inputs:
    • 5V - standard voltage for most devices
    • 12V - optional power supply for more demanding applications
  • RS485 signal connectors:
    • RS485_A - first RS485 differential wire
    • RS485_B - second RS485 differential wire
    • GND - signal ground
  • Configuration switches:
    • 5V OUT/IN Switch - allows you to set the power supply as input or output
    • 120R Switch - allows you to add a 120 Ω terminating resistor
UART - RS485 Converter TP8485E - 5V / 12V - Shield for Seed Xiao and QT Py - Seeedstudio 113991354

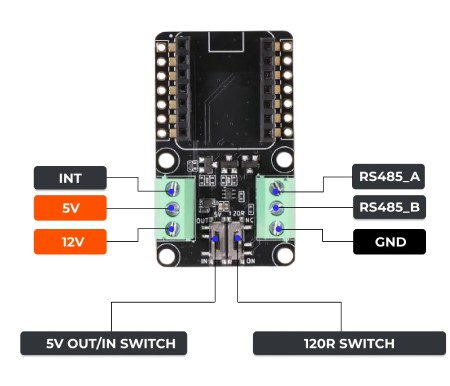

Pinout description.

UART - RS485 Converter TP8485E - 5V / 12V - Shield for Seed Xiao and QT Py - Seeedstudio 113991354

The converter allows you to transmit the signal at a distance of up to 1200 m.

Connection and programming

Connecting the module is intuitive - just connect the RS485_A and RS485_B signals to the RS485 bus and provide the appropriate power supply (5 V or 12 V). If the module is used on a long communication line, it is worth activating the 120R switch to ensure proper impedance matching of the bus. The module works with Arduino IDE and MicroPython , which allows for its easy configuration and programming. Thanks to this, the module can be easily used in applications such as industrial automation, monitoring systems and data acquisition.

Technical specifications of the converter

  • Communication interface: RS485
  • Communication system: TP8485E (half-duplex transceiver)
  • Screw connectors: 3-pin for RS485 signal, 3-pin for power supply
  • Transmission distance: up to 1200 m
  • Transmission speed: up to 250 kb/s
  • Supply voltage: 5 V or 12 V DC
  • Compatibility: Seeed Xiao, Adafruit QT Py
  • Dimensions: approx. 42 x 35 mm

Contents of the set

  • 1x Converter UART - RS485 TP8485E - 5V / 12V - Shield for Seeed Xiao and QT Py - Seeedstudio 113991354
UART - RS485 Converter TP8485E - 5V / 12V - Shield for Seed Xiao and QT Py - Seeedstudio 113991354

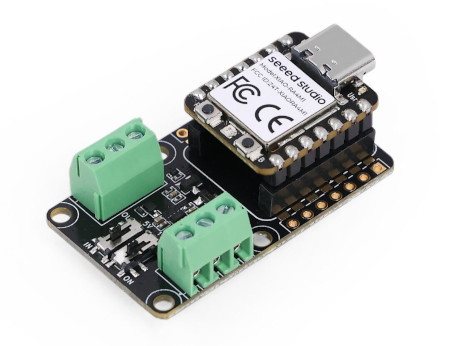

The board is fully compatible with Seeed Xiao and Adafruit QT Py.

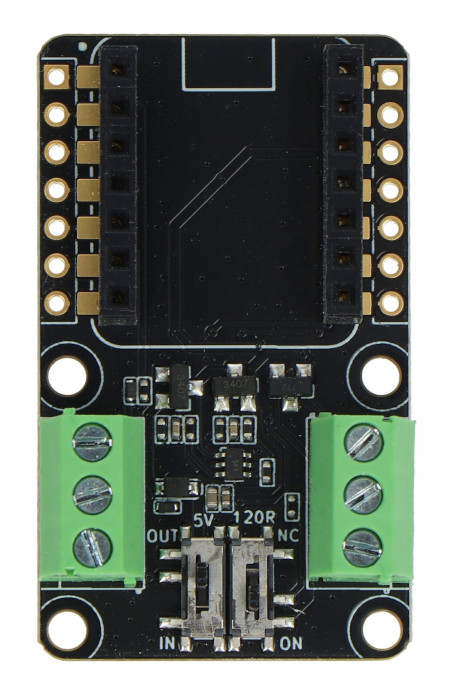

Converter - chip TP8485E
Converter - Socket ARK

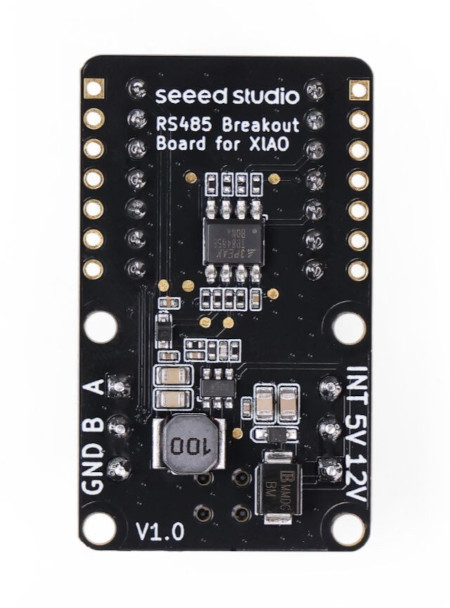

Converter - Interface UART - RS485
Package width 6 cm
Package height 10 cm
Package depth 1 cm
Package weight 0.009 kg

Be the first to ask a question about this product!

Product reviews

UART - RS485 converter TP8485E - 5V/12V - shield for Seeed Xiao and QT Py - Seeedstudio 113991354

4/5

Average grade

1

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Jan 24.04.2025 Confirmed purchase Translated review
The HW design looks good, but in the end it works as expected (tested on an external 5V power supply, 12V not tested). The advantage is the possibility of variant activation of the 120 Ohm termination resistor, so it can be used both at the ends of the line and in the middle. The manufacturer's documentation is a bit of a problem, it can be found, but you have to search a bit and it's a bit confusing. An even bigger problem is that the sample sketch listed on the manufacturer's Wiki site cannot be translated (Arduino IDE 2.3.6). In the end, it turned out that a relatively fundamental modification of the sketch is needed based on an understanding of which UART the converter is actually connected to (it is not the default one for Seeduino XIAO SAMD21 on pins A7, A6). The converter is connected to pins A5, A4, to which the SERCOM2 (HW Serial3) can be mapped. Despite the above, I can finally recommend the converter, but it requires a thorough understanding of its connection to the Seeeduino XIAO and behind the scenes of Arduino, how SERCOM units work in AT SAMD21 processors. It was a struggle, but beautiful 💪
