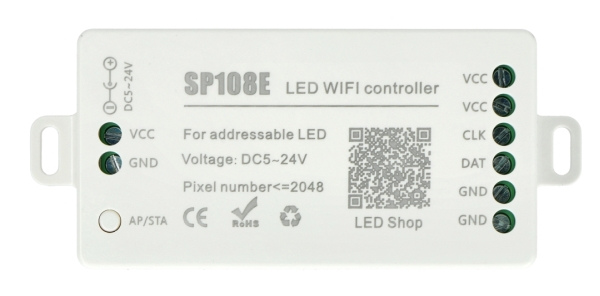

Product description: Controller for addressed WiFi LED strips and strips SP108E LED WiFi Controller LED Shop
WiFi controller with remote control of LEDs, addressedLEDbars. Remote control works up to 30 m. Power supply voltage ranges from5 Vto24 V. Control is done from a free application available for Andriod and iOS systems. The driver requires iOSversion 10.0 andlater and for Androidversion 4.4 andlater. The driver at the input has aDCsocket5.5 x 2.1 mm.

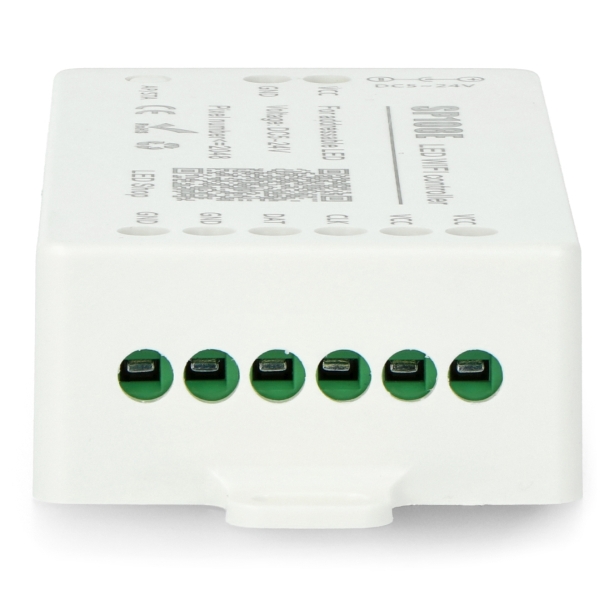

LED WiFi SP108E.
Pace mode and connection
- AP mode- the controller and phone connect directly, the controller acts as an access point
- STA mode- controller and phone use the same WiFi network and communicate with each other
Included
- SP108E LED WiFi Controller LED Shop
- Mini screwdriver
- 3-pin JST cable for LED strips
- Operating instructions
SP108E SP108E LED WiFi LED Controller Shop for addressed bands and strips.
Specification of the WiFi RGB driver for LED strips
- Colour: white
- Power supply voltage: DC from 5 V to 24 V
- Current intensity: from 20 mA to 90 mA
- Input: DC 5.5 x 2.1 mm
- Operating temperature: -20°C to 60°C
- Remote control distance: up to 30 m
- Systems supported: WS2811, WS2812, WS2813, WS2801, SK6812-RGB, SK6812-RGBW, SK6812-WWA, LPD6803, LPD8806, UCS1903, UCS9812, APA102, APA104, TM1803, TM1804, TM1804, TM1
- Product dimensions: 80 x 41 x 20 mm
- Weight: 40 g
