Product description: NeoPixel Driver BFF Add-On - LED driver - for QT Py and Xiao - Adafruit 5645
NeoPixel Driver BFF Add-On is a module manufactured by Adafruit . It has been equipped with a 74AHCT125 voltage level converter and allows you to control up to 30 NeoPixels LEDs (WS2812 / WS2811) with a total current consumption of up to 2 A. The NeoPixel Driver BFF Add-On board is compatible with the QT Py and Xiao series. The construction of the controller allows you to solder the board to QT Py or Xiao using the included goldpin connectors. In addition, the board also has a convenient connector for connecting the LED strip. The dimensions of the board are 20.9 x 17.9 x 7.2 mm .
The use of the NeoPixel Driver BFF Add-On module allows you to implement compact projects related to light data visualization. It is also an interesting solution for creating cosplay prototypes or IoT projects.
The manufacturer has prepared a detailed user's guide in which you will find sample Arduino and CircuitPython codes - check it out!

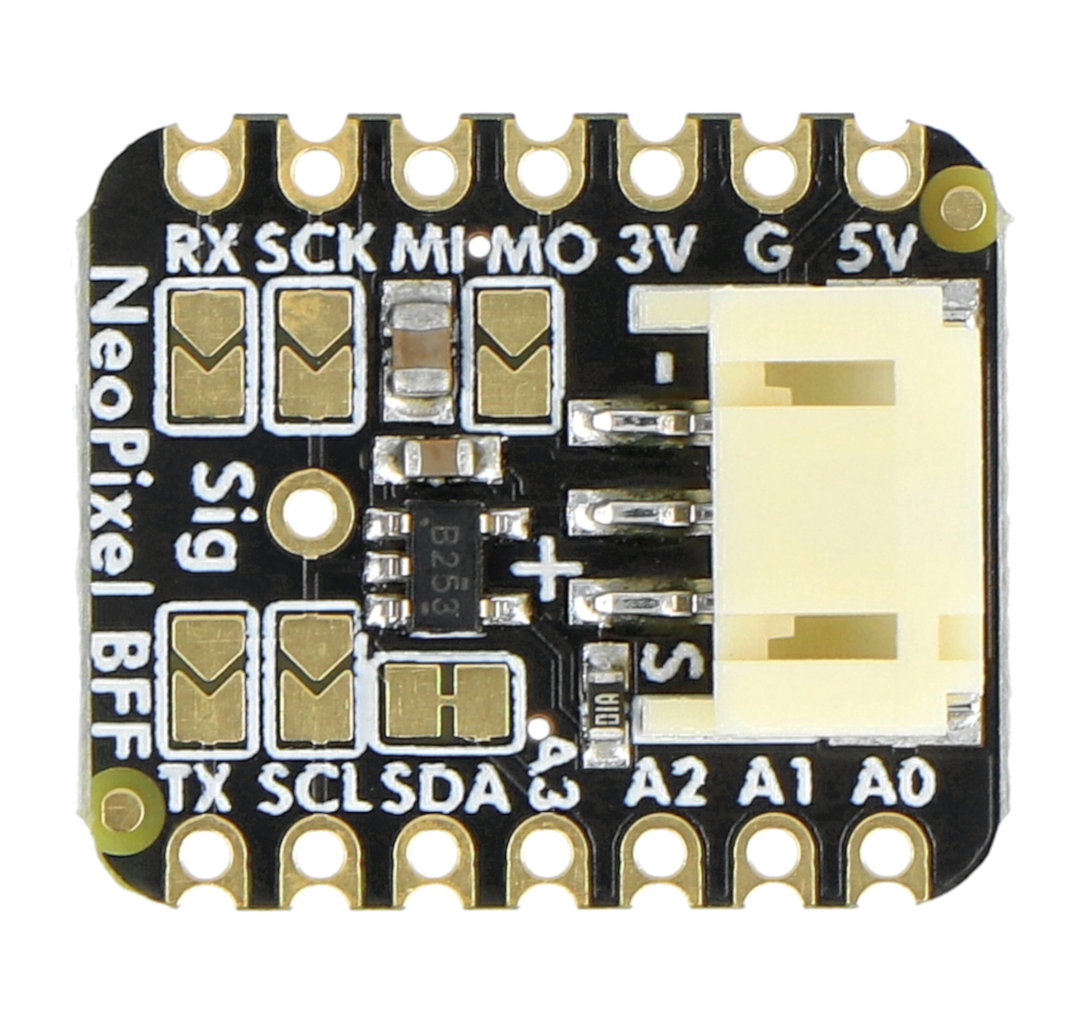

NeoPixel Driver BFF Add-On - LED driver - for QT Py and Xiao - Adafruit 5645.

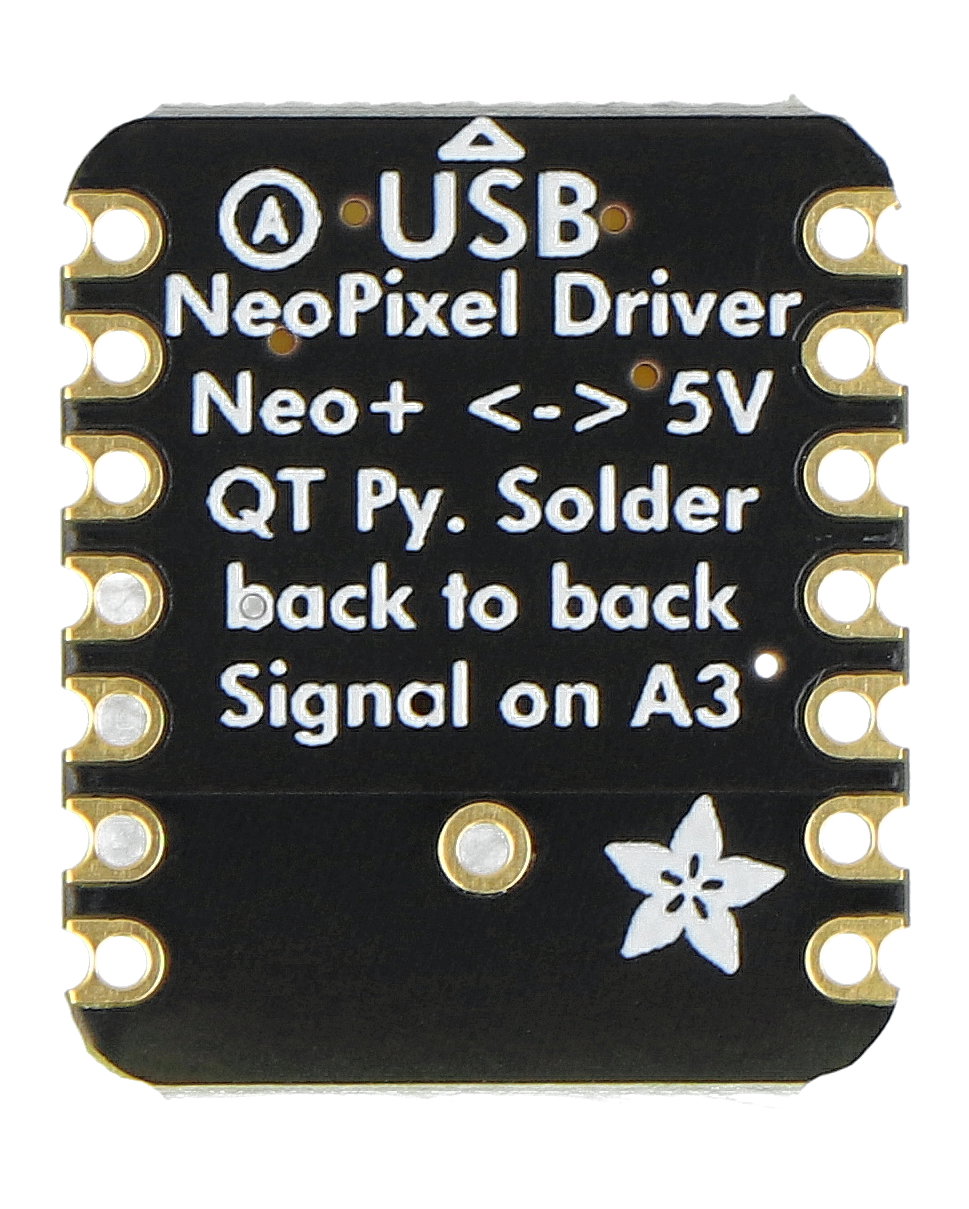

NeoPixel Driver BFF Add-On - An addition to the QT Py and Xiao series.
Technical specification of the Driver BFF Add-On module
- Compatible with: QT Py series and Xiao
- Module type: driver for LED strips and strips
- Supported LED standard: LED RGB WS2812 / WS2811 / NeoPixel
- Maximum number of supported diodes: 30 (with a total current consumption of up to 2 A)
- Leads: solder pads, JST-PH 2 mm connector
- Supply voltage: 5V
- Voltage level converter: 74AHCT125 3.3 V / 5 V
- Board dimensions: 20.9 x 17.9 x 7.2 mm
- Weight: 1.6g
In our offer you will also find a wide selection of LED strips and chains . We encourage you to familiarize yourself with the available assortment.
Kit contents
- NeoPixel Driver BFF Add-On - LED driver - for QT Py and Xiao - 1 piece
- Goldpin strip 1x16 pin - raster 2.54 mm - 1 piece

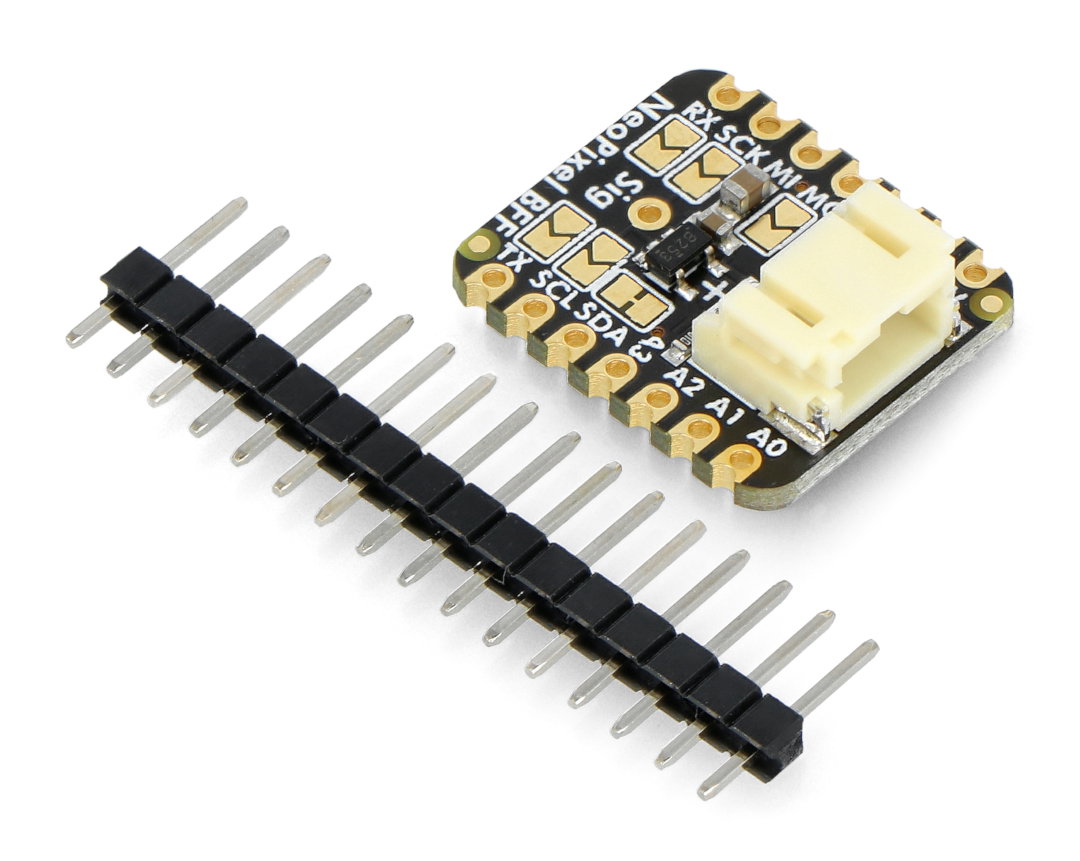

Components included in the set.
