Description

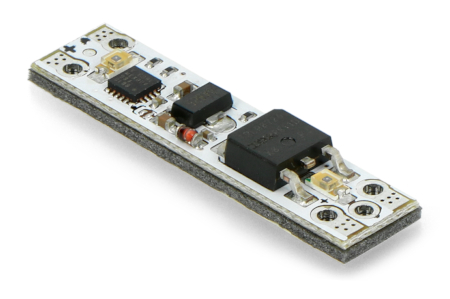

Mini twilight switch used with LED strips. Works with voltage from 12V to 24V and electric current up to 4A. It turns the light on at dusk and off when it gets bright. No configuration is required.
The module can be used for lighting the yard, driveway, garden, etc. The small size, 40 x 12mm, allowa you to place it in most of LED profiles.
Specification
- Supply voltage: 12 to 24V
- Maximum current: 4A
- Maximum power: 96
- Energy consumption: up to 0.1
- Optical sensor
- Automatic calibration
- Working temperature: from -10 °C to 40 °C
- Connection method: solder pad for wiring
- Installation: in an LED profile / heatshrink
- The module has a double-sided tape
- Dimensions: 40 x 12 mm
