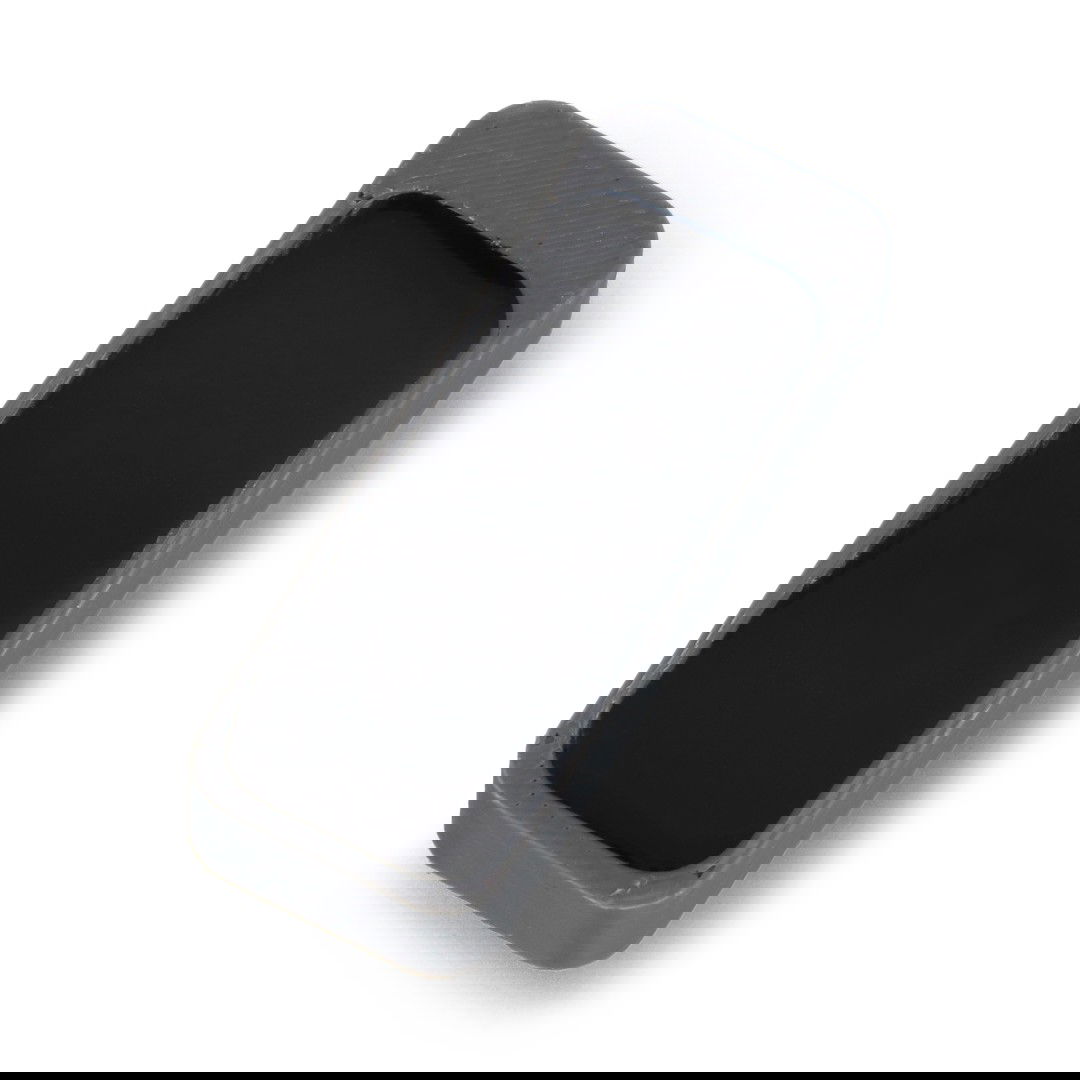

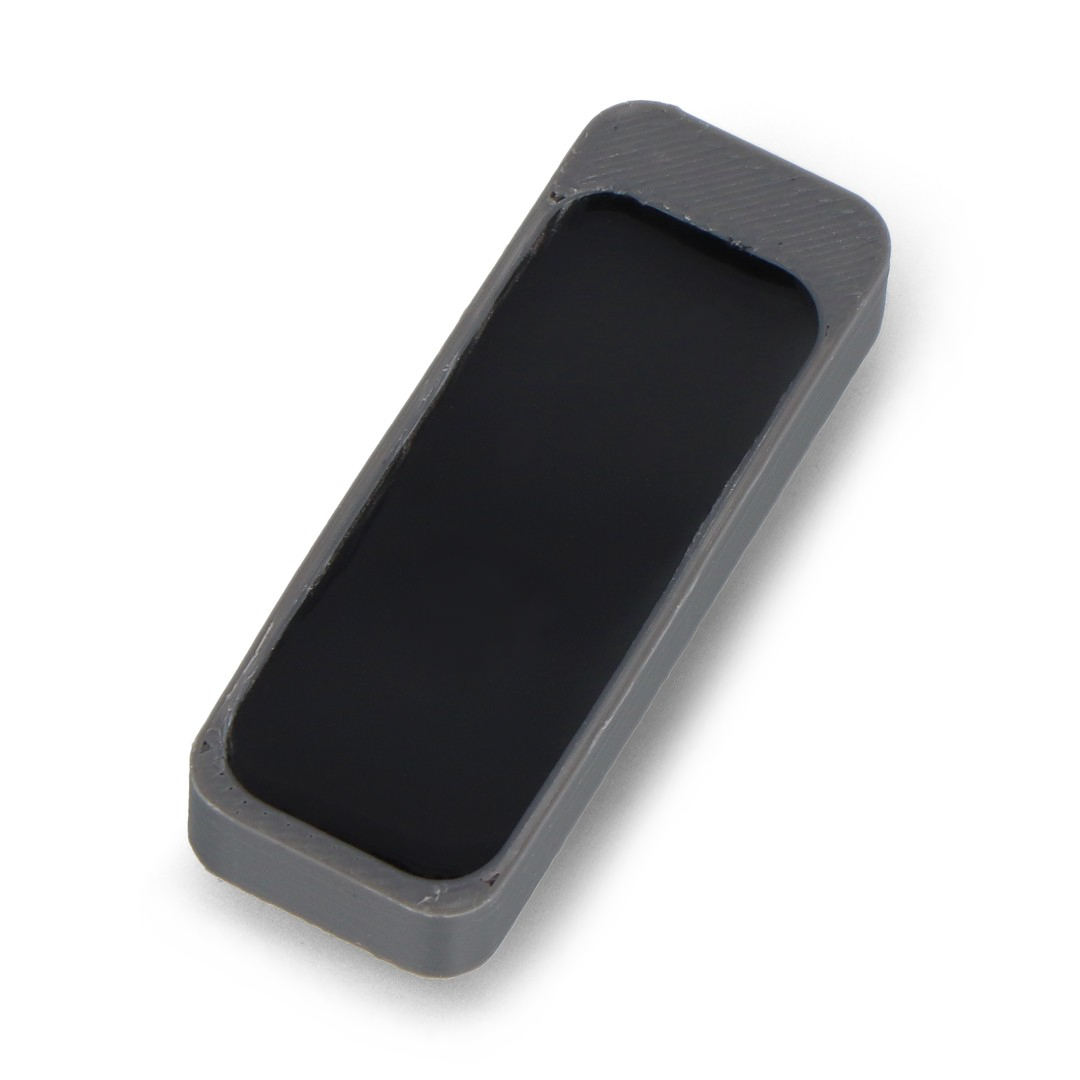

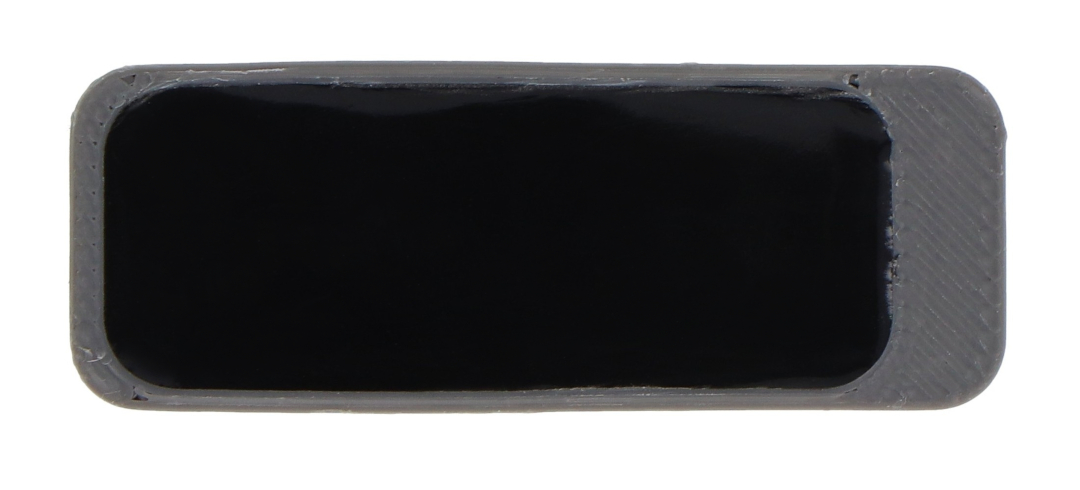

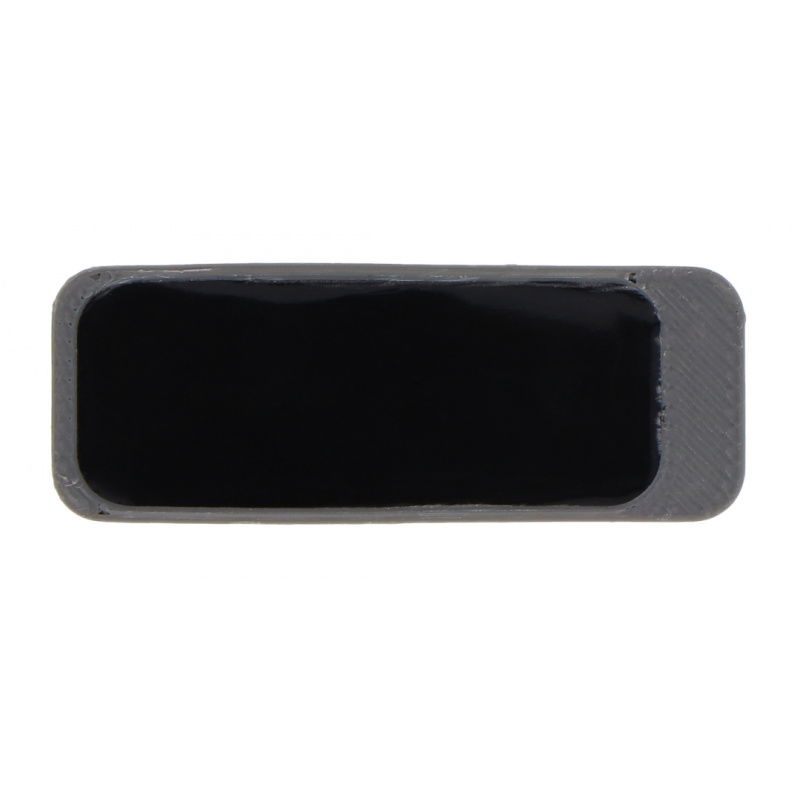

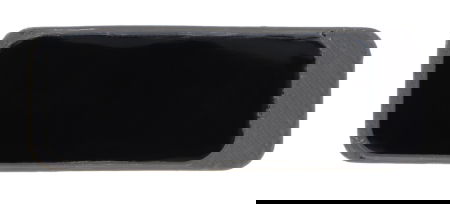

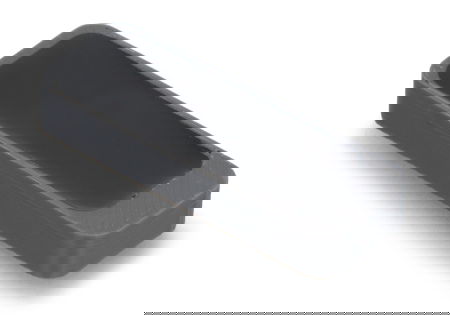

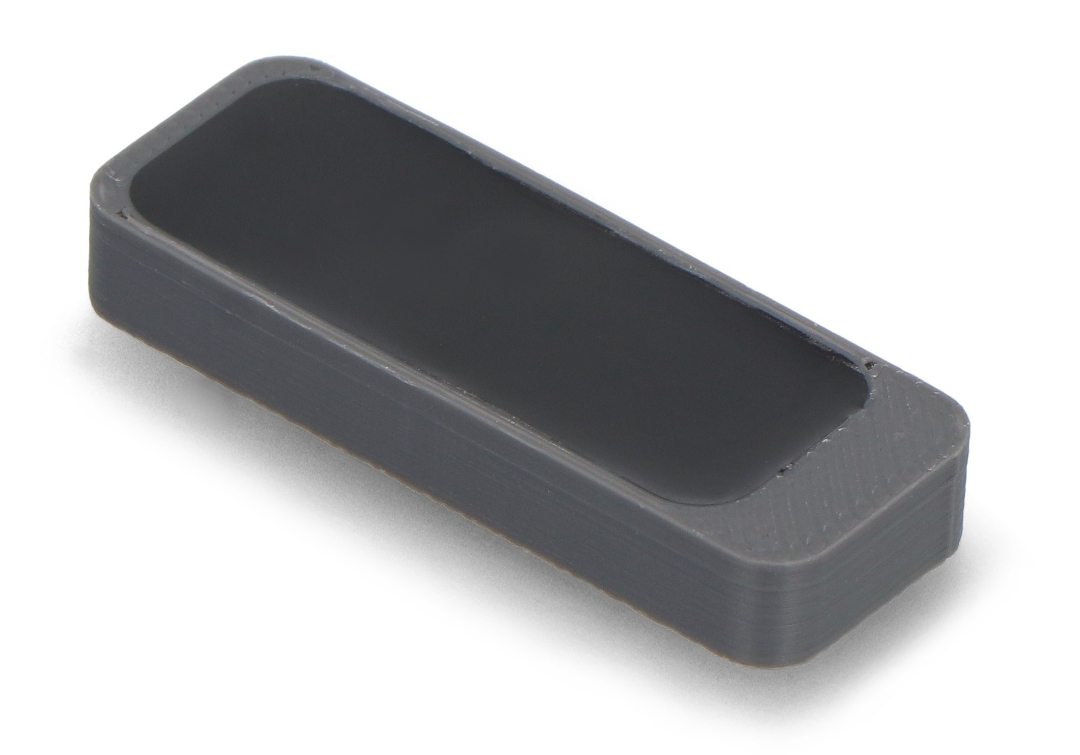

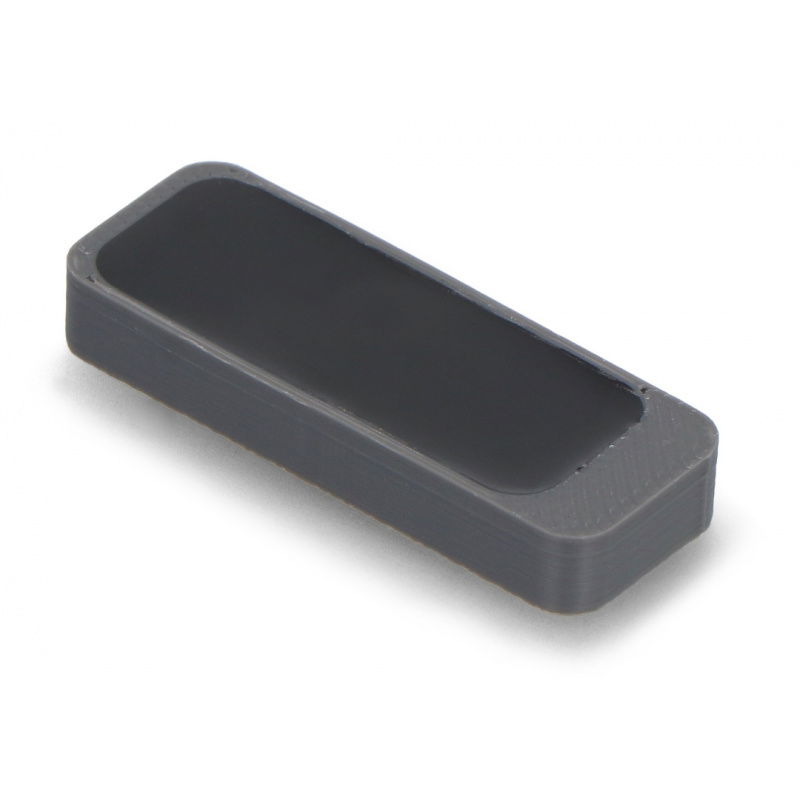

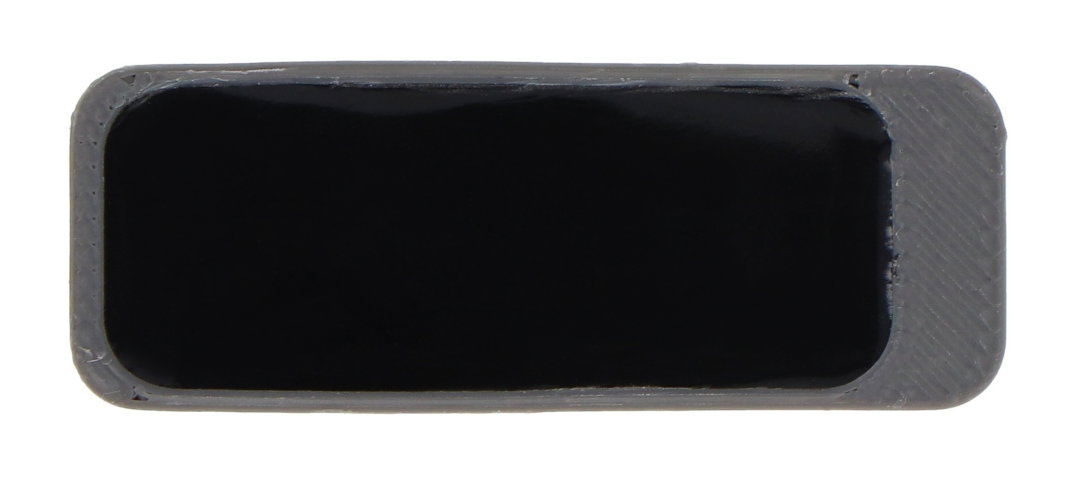

Product description: BleBox twinMagnet - magnetic accessory for the openSensor sensor - anthracite
The BleBox twinMagnet is a special magnetic accessory designed to work with the BleBox openSensor , expanding its detection capabilities. The use of two carefully positioned neodymium magnets allows for precise detection of the window or door sash position. This replaces the standard magnet included with the sensor and facilitates correct alignment with the device . This eliminates the need for the installer to manually adjust the magnet position, significantly speeding up installation and increasing operational reliability. The accessory allows for operation in two-state mode (open/closed) or three-state mode (open/tilt/closed). The three-state detection function is particularly useful for tilt windows, where it's important to distinguish the sash's opening position.
BleBox twinMagnet - magnetic accessory for the openSensor sensor - anthracite.
BleBox twinMagnet is a special magnetic accessory designed to work with the BleBox openSensor.Special features
- Accessory for the openSensor sensor: extends the capabilities of the BleBox sensor with more accurate detection of the opening position
- Two neodymium magnets: ensure stable and precise position detection
- 2 or 3 state detection: open/closed and open/tilt/closed modes supported
- Easy installation: factory double-sided tape allows for quick installation without drilling
- Weatherproof: IP65 housing allows for indoor and outdoor installation
- Compact dimensions: miniature design allows installation even in hard-to-reach places
- Aesthetic fit: available in four colors to match window and door joinery
Practical applications
The BleBox twinMagnet is designed to work with the openSensor sensor in smart home systems. It is most often used to monitor the status of windows, balcony doors, and entrance doors, where it's important to distinguish between full opening and tilting. The accessory is also suitable for building automation and security systems, enabling access control to gates, wickets, and technical cabinets. Thanks to its weather resistance, it can also be installed outdoors.
Technical specifications of BleBox twinMagnet
- Number of magnets: 2
- Type of magnets: neodymium
- Maximum detection distance: up to 13 mm (with openSensor)
- Installation method: double-sided tape, mounting on the surface of the window, door, gate or gate leaf
- Housing material: PLA material filled with polyurethane composition, self-extinguishing
- Thermal class: B (130°C)
- Protection class: IP65
- Operating temperature: -20°C to 50°C
- Housing colors: anthracite
- Dimensions: 41 x 15 x 6 mm
Contents of the set
- BleBox twinMagnet magnetic accessory
- Factory assembly tape
The accessory enables operation in 2-state mode (open / closed) or 3-state mode (open / tilted / closed). Useful links |
