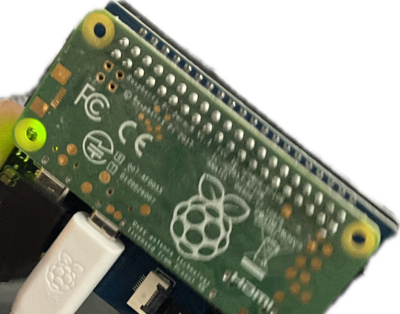

Raspberry Pi Zero WH 512MB RAM - WiFi + BT4.1 - with connectors
Minicomputer Raspberry Pi in miniature version. Equipped with a processor Broadcom BCM2835 with a clock frequency of 1 GHz and 512 MB of RAM, wi-fi, Bluetooth, port miniHDMI, microUSB OTG socket, 40 GPIO connectors for the microSD card, as well as four mounting holes. Blade dimensions: 65 x 30 x 5 mm. This version has a soldered male GPIO pin header ports.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Popular minicomputer Raspberry Pi, miniature version. This model has a processor Broadcom BCM2835 with a clock frequency of 1 GHz and 512 MB of RAM. The plate is equipped with: wi-fi, Bluetooth, port miniHDMI, microUSB OTG, 40 GPIO connector for the microSD card, as well as four mounting holes.
This version has soldered connectors male - raster 2.54 mm. |
Key features
Raspberry has the basic communication interfaces, which can be found in office computers of PC class:
Key features
- processor Broadcom BCM2835 ARM11: with clock frequency of 1 GHz,
- 512 MB RAM: - internal memory,
- wifi module 150Mbps 802.11 b/g/n: - allows you to wirelessly connect to the network
- system Bluetooth Low Energy BLE 4.1
- microSD slot: - just like in the previous versions, the operating system is onthe microSD card, which must be purchased separately
- the miniHDMI port: - the Raspberry Pi Zero has a connector miniHDMI 1.4, through which you can send both picture and sound. In our offer, you will also findthe adapter miniHDMI - HDMI.
- microUSB OTG: - for the connection of peripheral devices compatible with USB OTG. In our offer you will findan adapter microUSB - USB.
- 40 x GPIO: - outputs/inputs with general purpose that can be used to control the LEDs, buttons, controllers of engines. Among them are the contacts supporting interfaces: I2C, SPI and UART. In our offer there are alsogoldpin connectors for self-soldering.
- CSI camera connector: - allows you to connect a camera compatible with the version of the Raspberry Pi viaan additional adapter. Adapter is necesseary to connect the camera.
- Power: - as with previous versions, Raspberry Pi Zero is powered via microUSB (in our offer you will find alsospecial power supplies),
- Blade dimensions: 65 x 30 x 5 mm.
Botland is an official distributor of Raspberry Pi single-board computers in Poland. Buying from us guarantees an original computer together with high quality accessories. You also support the Raspberry Pi Foundation, which helps develop the next version of this popular board.
Specification and comparison of the Raspberry Pi 3, and Zero In
Basic informations
 |  | |
| Model | Raspberry Pi 3 B model | The Raspberry Pi Zero WH |
| Technical specification of | ||
| Chipset processor | Broadcom BCM2837 | Broadcom BCM2835 |
| Operating systems | Linux Raspbian Windows 10 flight | Linux Raspbian |
| Clock frequency | 1.2 GHz | 1.0 GHz |
| RAM | 1 GB LPDDR2 @ 900 MHz | 512 MB DDR @ 400 MHz |
| Memory | microSD memory card | microSD memory card |
| Connector GPIO | Connector 40-pin (2x20 pin) raster 2.54 mm | Connector 40-pin (2x20 pin) raster 2.54 mm for self-wlutowania |
| Power | 5 V via microUSB | 5 V via microUSB |
| Tile sizes | 85 x 56 x 17 mm | 65 x 30 x 5 mm |
| Interfaces | ||
| USB interface | 4x USB 2.0 - connector type a | microUSB OTG |
| Network interface | Ethernet port 10/100 Mbps | - |
| The Wi-Fi Interface | 802.11 b/g/n 150 Mbps | 802.11 b/g/n 150 Mbps |
| Bluetooth | Low Energy, BLE 4.1 | Low Energy, BLE 4.1 |
| Camera | the CSI connector | the CSI connector |
| Touchscreen display | connector for DSI | - |
| Video | HDMI | miniHDMI |
| Communication | UART, SPI, I2C, GPIO | UART, SPI, I2C, GPIO |
Useful links
- Project page of Raspberry Pi
- User manual for Raspberry Pi Zero / Zero W
- Installation and configuration of the operating system Raspbian
- Raspberry Pi Cookbook - Simon Monk
- How to set a static IP in Raspbian OS? - tutorial
- The website with applications for Raspberry Pi
- Raspberry Pi - installing the system
- Raspberry Pi quick start
- Raspberry Pi user guide
- Connecting to a computer via USB / setting the remote VNC desktop
| Name | Value |
|---|---|
| UC - RAM | 512 MB |
| UC - core | 1. Single Core |
| UC - Digital pins | 40 |
| UC - External memory | microSD card |
| UC - freq | 1.0 GHz |
| UC - WiFi | yes |
| UC - USB | 1x USB |
| UC - HDMI | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | 5V microUSB |
| UC - SPI interface | yes |
| UC - LCD interface | no |
| UC - Camera interface | yes |
| UC - Linux | yes |
| UC - Windows | no |
| Width | 7.5 cm |
| Height | 2 cm |
| Depth | 12 cm |
| Weight | 0.023 kg |
