Set Raspberry Pi Zero WH All in One

Index: RPI-16723 EAN: 5904422352929

Set consisting of a Raspberry minicomputer Pi Zero WH along with the official white and red enclosure. The power supply unit included in the set is designed to power the device. 5 V / 2 A. The All in One kit also includes miniHDMI - HDMI and microUSB - USB A adapters to connect devices commonly used with desktop or laptop computers to the minicomputer.

Set Raspberry Pi Zero WH All in One
€33.90
€27.56 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Raspberry Pi

Product description: Raspberry Pi Zero set WH All in One

Set consisting of aRaspberryminicomputerPi Zero WHalong with the official white and red enclosure.The device is powered by the included power supply unit with an output voltageof 5 Vand current capacity of2 A. TheAll in Oneset also includes miniHDMI - HDMI and microUSB - USB A adapters which enable connecting devices commonly used with desktops or laptops to the minicomputer.For proper operation of the device you also need amicroSDmemory card, which is not included in the kit. It should be purchased separately.

L.p. Photo Name
1 Raspberry Pi Zero WH. Raspberry Pi Zero WH- one of the smallest minicomputers available on the market. Pi Model Zero is equipped with 1 GHz Broadcom BCM2835 processor and 512 MB RAM. In the WH version, the GPIO connectors have been factory-produced using a 2.54 mm goldpin strip. The board of the minicomputer has been equipped with, among others..: WiFi, Bluetooth, miniHDMI port, microUSB OTG slot, 40 GPIO and microSD card slot.
2 Zasilacz do minikomputera Raspberry Pi 5 V / 2 A power supply terminated with a microUSB plug- used to power the minicomputer.
3 Biało-czerwona obudowa do Raspberry Pi Zero. The official enclosure for theRaspberry Pi Zero. Using the enclosure reduces the risk of mechanical damage. The official white and red enclosure allows easy access to all connectors of the device, depending on preferences.
4 Adapter miniHDMI - HDMI TheminiHDMIadapter- HDMI - allows you to connect your display or monitor to our raspberry using a standard HDMI cable.
5 Biało-czerwona obudowa do Raspberry Pi Zero. ThemicroUSBadapter- USB A - allows you to connect standard peripheral devices such as a mouse or keyboard.

Presentation of Raspberry Pi Zero minicomputer.

Raspberry Pi Zero WH

Raspberry Pi Zero is a miniature computer with1 GHzBroadcom BCM2835 single-core processor and 512 MB of RAM. Thanks to its dimensions, the board can be successfully used in projects where space is very limited.

Main features of the minicomputer

Raspberry Pi Zero, similarly to its larger counterparts, is equipped with most of the solutions commonly used in desktop computers:

  • Broadcom BCM2835 ARM11 processorworking at 1 GHz
  • 512 MB RAM ofbuilt-in memory
  • WiFi 150 Mbps 802.11 b/g/n module- allows for wireless connection of the minicomputer to the wireless WiFi network
  • Bluetooth Low Energy BLE 4.1
  • microSD slot- as in previous versions, the operating system is located ona microSD memory card, which must be purchased separately
  • miniHDMI port- connector in version 1.4 allowing to transfer video and sound from our raspberry
  • microUSB OTG connector- allows you to connect peripheral devices such as a mouse or keyboard
  • 40-pin GPIO- general purpose output/input connectors, the connector can be used to operate LEDs, buttons, motor controllers. They also allow access to the interfaces: I2C, SPI and UART interfaces
  • CSI camera connector- allows you to connect the camera to our minicomputer. To connect the camera you will need a specialadapter.
  • Power supply- Raspberry Pi is powered bya5 V / 2 Apower supply unitterminated with a microUSB plug, the appropriate power supply unit is included in the package
  • Dimensions of the board- total board dimensions are 65 x 30 x 5 mm

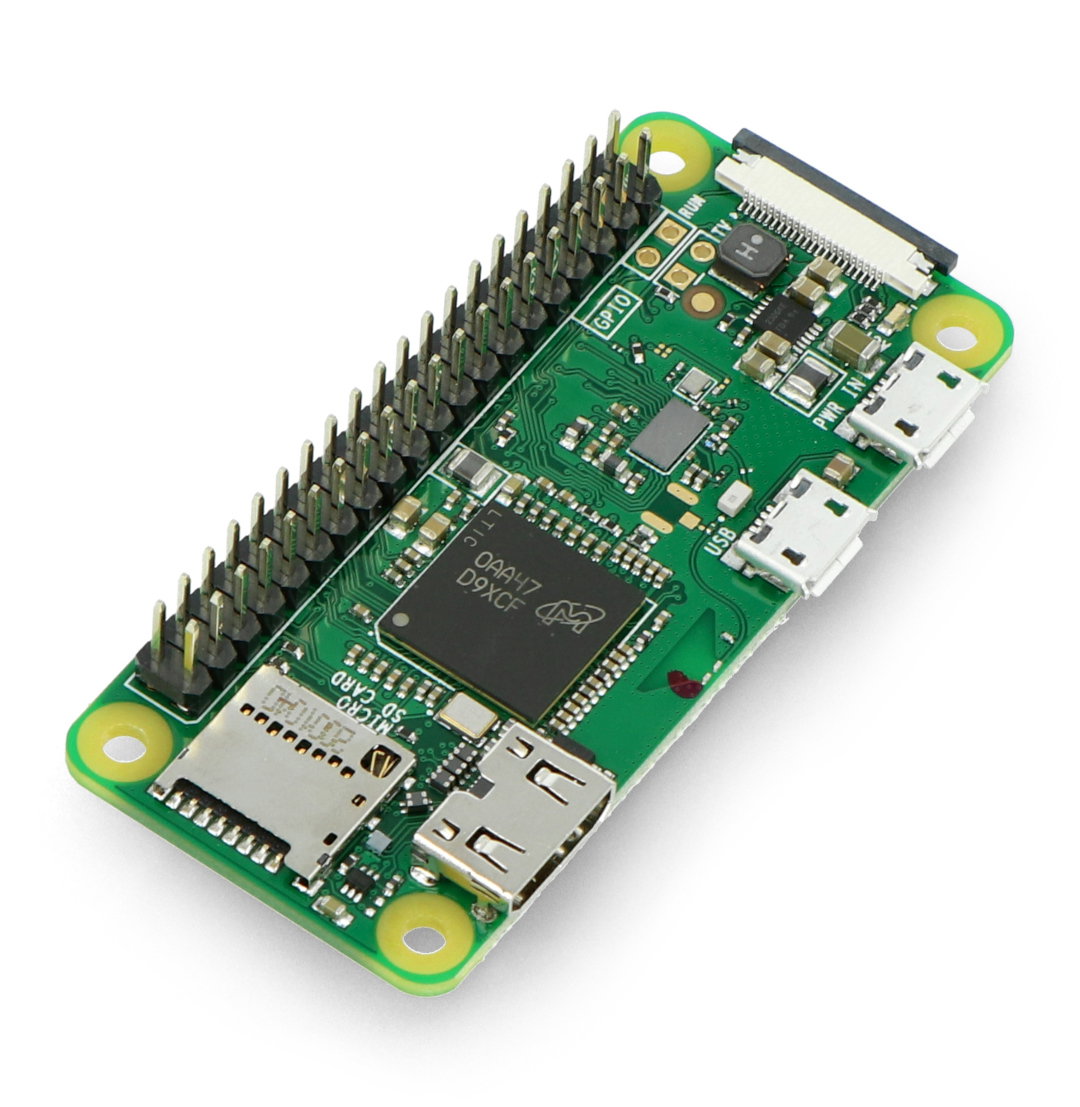

Płytka minikomputera Raspberry Pi Zero.

Raspberry Pi Zero minicomputer plate.

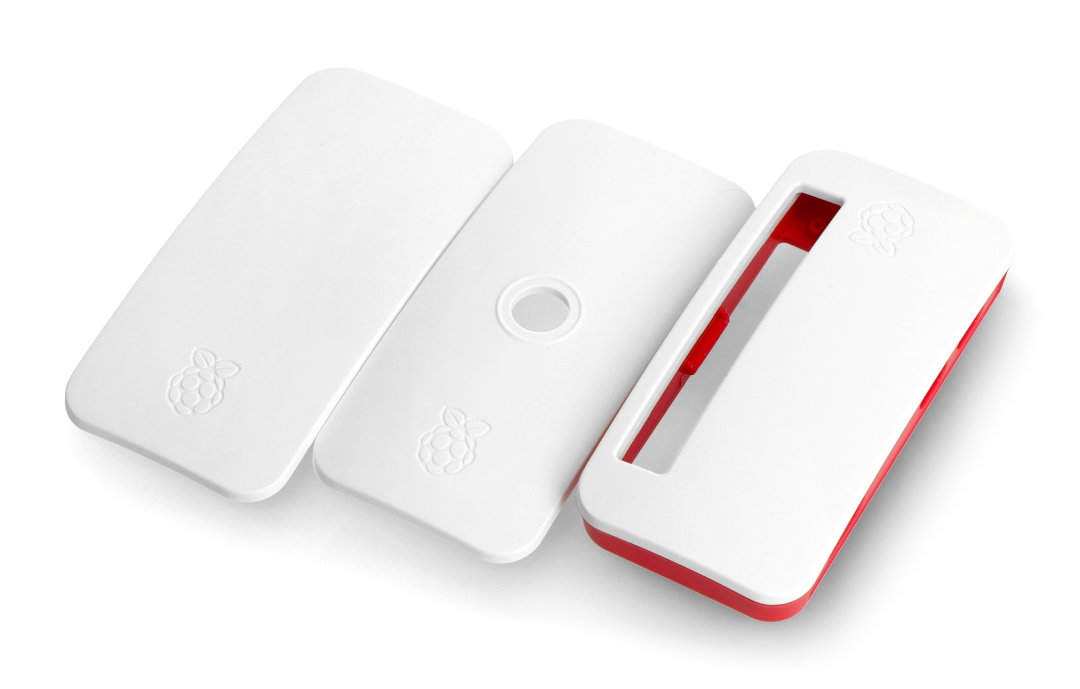

Oryginalna, biało-czerwona obudowa do Raspberry Pi Zero.

Original white and red case for the Raspberry Pi Zero.

Officially designed with interchangeable components for the Raspberry Pi Zero.

Dedicatedhousing for the Raspberry Pi Zero minicomputer.External dimensions are 78 x 37 x 15 mm. The housing has three replaceable flaps to adapt the housing to our needs, anti-slip feet and camera adapter are also included.

The enclosed housing allows to mount a mini-computer in various configurations. Thanks to the adapter it is also possible to connect the camera.

Power supply for Raspberry Pi Zero minicomputers

The Raspberry Pi Minicomputer is powered by a 5V / 2A power supply. Dedicated power supply included in the package ensures stable operation.

Operating system

The standard storage medium for Raspberry Pi computers ismicroSD cardon which we need to upload the operating system. A memory card withNOOBsinstalled allows you to choose one of the systems: Raspbian, Openelec, RaspBMC, OSMC Linux at first boot. You can find instructions how to installRaspbianinour tutorial. In our offer you will also find cards with NOOBs program already installed.

The kit does not include a memory card, however, you can add one of the quick and tested memory cards using the menu above the product description.

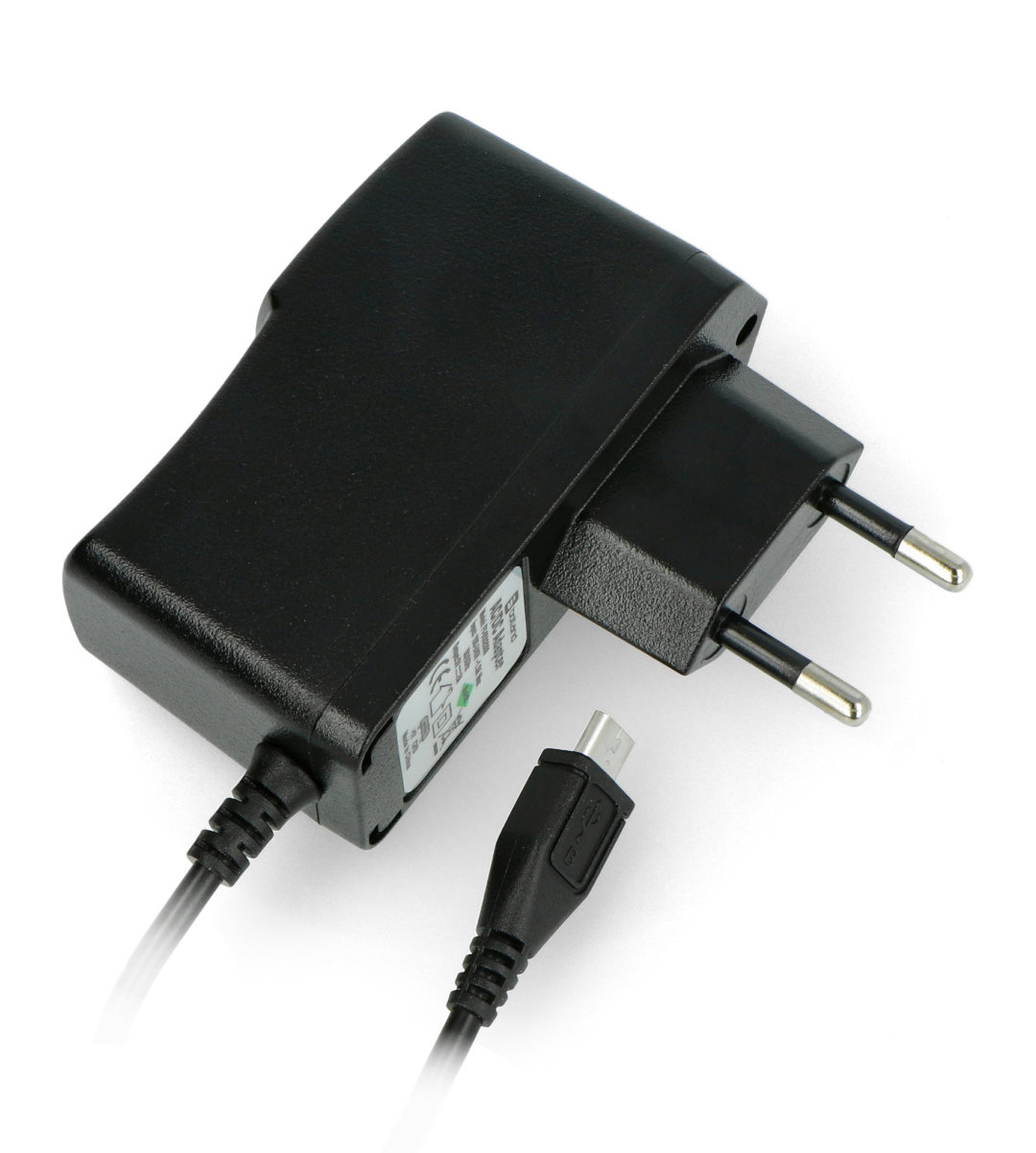

Dedykowany zasilacz 5 V / 2 A do Raspberry Pi Zero WH.

Dedicated 5V / 2A power supply for Raspberry Pi Zero WH.

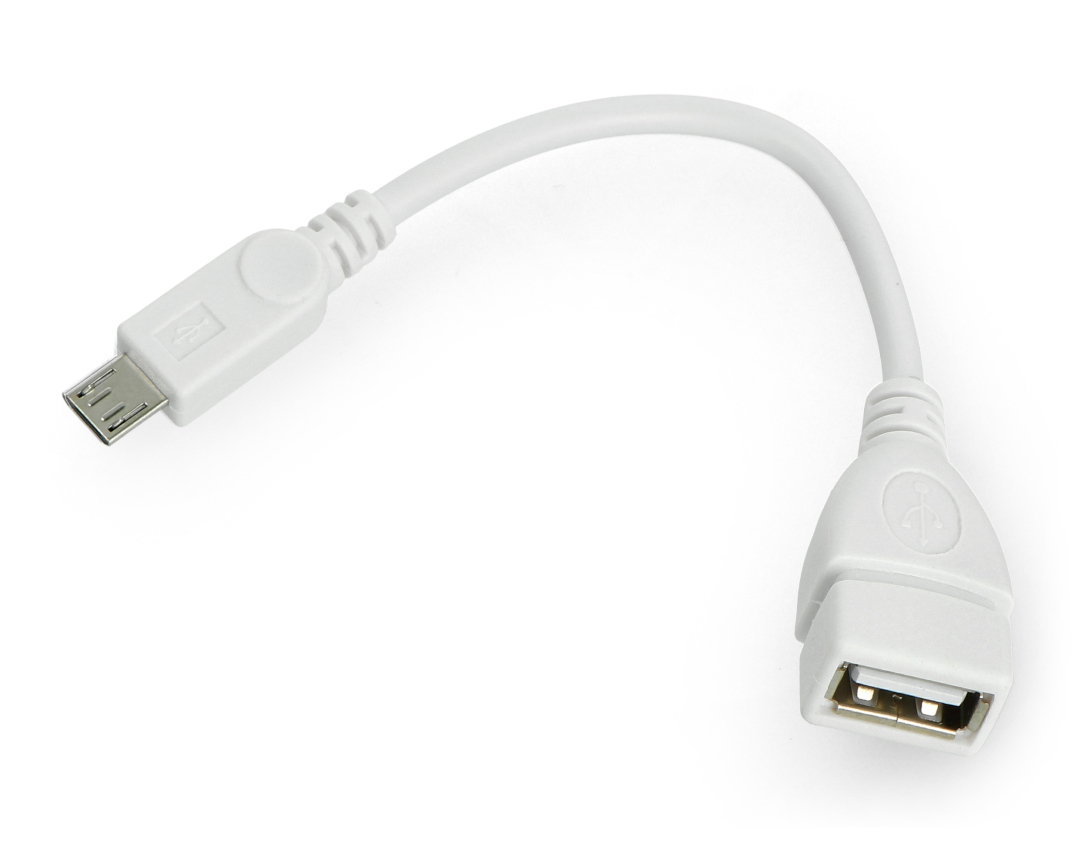

Adapter microUSB - USB A.

MicroUSB adapter - USB A.

Adapters

The miniature dimensions of the minicomputer are also reflected in the size of the connectors on the board, the standard HDMI connector has been replaced by a miniHDMI, and the familiar USB type A socket has been replaced by a microUSB socket. This does not mean that it is necessary to change the already existing HDMI cables or peripheral devices, in this situation we can use adapters allowing the use of standard size plugs.

Specification and comparison of Raspberry Pi 3 and Zero WH

Basic information
Raspberry Pi Zero WH.
Model Raspberry Pi 3 model B Raspberry Pi Zero WH
Technical Specification
Chipset processor Broadcom BCM2837 Broadcom BCM2835
Operating systems

Linux Raspbian

Windows 10 loT

Linux Raspbian

Clocking 1.2 GHz 1.0 GHz
Memory RAM 1 GB LPDDR2 @ 900 MHz 512 MB DDR @ 400 MHz
Memory microSD card microSD card
GPIO connector

40-pin connector (2x20 pin)

raster 2.54 mm

40-pin connector (2x20 pin)

raster 2.54 mm

Power supply

5 V

via microUSB

5 V

via microUSB

Dimensions of the tiles 85 x 56 x 17 mm 65 x 30 x 5 mm
Interfaces
USB interface 4x USB 2.0 - socket type A microUSB OTG
Network interface 10/100 Mbps Ethernet port -
WiFi interface 802.11 b/g/n 150 Mbps 802.11 b/g/n 150 Mbps
Bluetooth Low Energy, BLE 4.1 Low Energy, BLE 4.1
Camera CSI socket CSI socket
Touchscreen display DSI socket -
Video HDMI miniHDMI
Communication UART, SLEEPING, I2C, GPIO UART, SLEEPING, I2C, GPIO
StarterKit - module Raspberry Pi
UC - RAM 512 MB
UC - core 1. Single Core
UC - Digital pins 40
UC - External memory microSD card
UC - freq 1.0 GHz
UC - WiFi yes
UC - USB microUSB
UC - microSD yes
UC - Bluetooth yes
UC - HDMI yes
UC - I2C yes
UC - UART yes
UC - Connector 5V microUSB
UC - SPI interface yes
UC - LCD interface no
UC - Camera interface yes
UC - Linux yes
UC - Android no
UC - Windows no
Package width 20.5 cm
Package height 4.4 cm
Package depth 12.5 cm
Package weight 0.218 kg
