Product description: Case + HDMI USB Hub set for Raspberry Pi Zero / Zero W / Zero 2 W - Argon POD

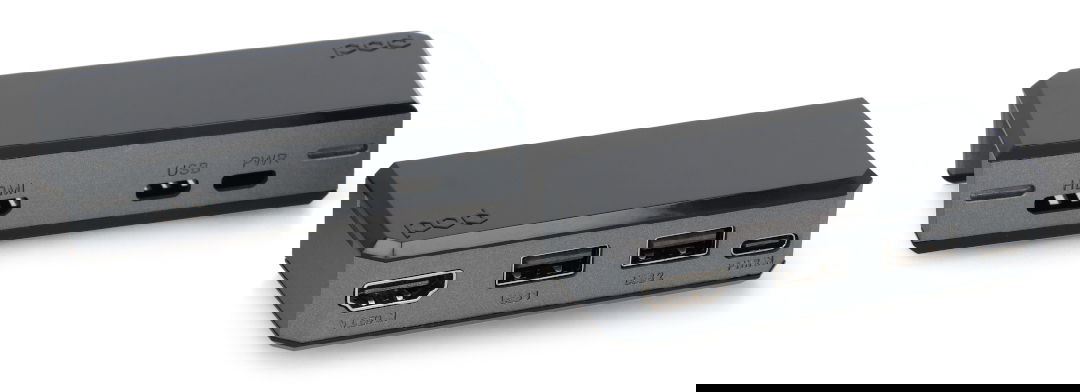

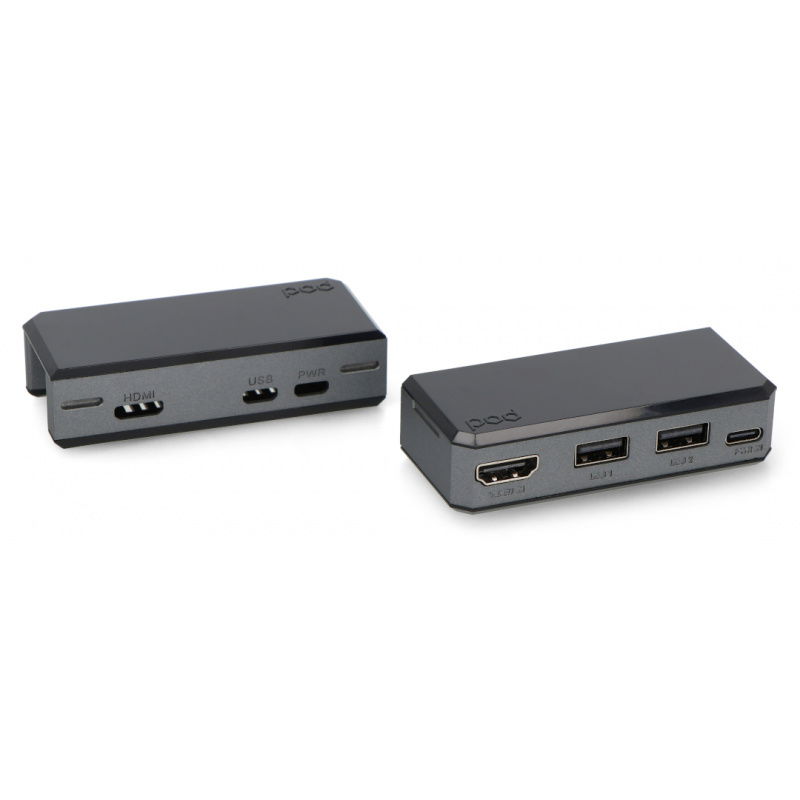

This kit consists of two components from the Argon POD series – a housing and an HDMI USB Hub module for the Raspberry Pi Zero 2W . The Argon POD housing is made of aluminum and ABS in shades of black and graphite. Its design also acts as a heatsink , effectively dissipating heat from the Raspberry Pi Zero 2W minicomputer. The housing also allows for the seamless connection of an HDMI USB Hub module. This module expands the minicomputer's ports with two additional USB Type-A connectors, an HDMI port, and a USB Type-C port.

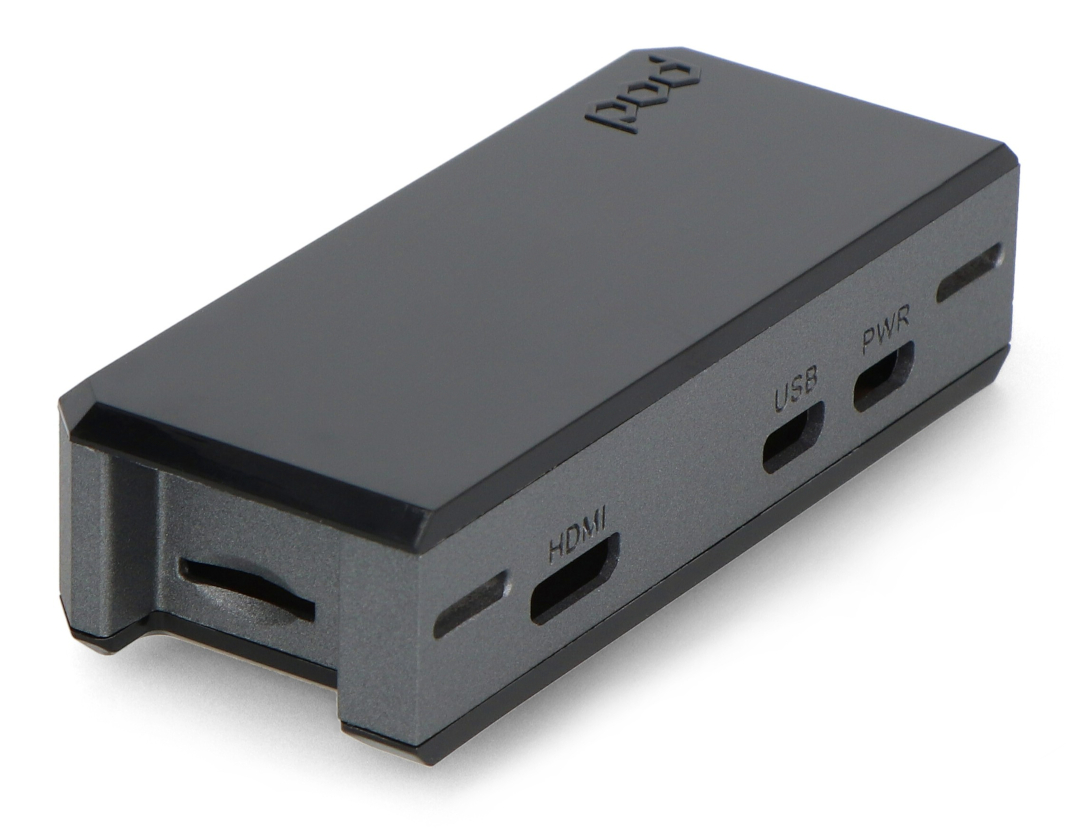

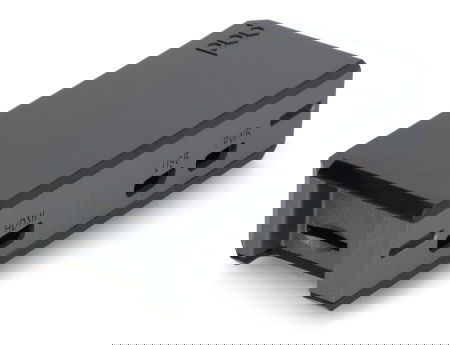

Main features of the Argon POD enclosure
- The case is compatible with the Raspberry Pi Zero / Zero W / Zero 2 W and provides access to all board ports.
- It provides passive cooling thanks to the aluminum housing acting as a heat sink.
- Compact dimensions and a durable body allow the housing to be used also in mobile projects.
- Equipped with a replaceable cover made of ABS plastic.
- The device is compatible with the HDMI-USB Hub module.

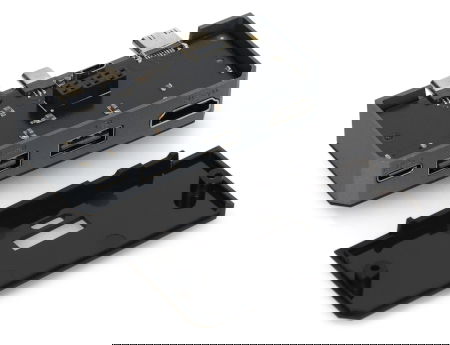

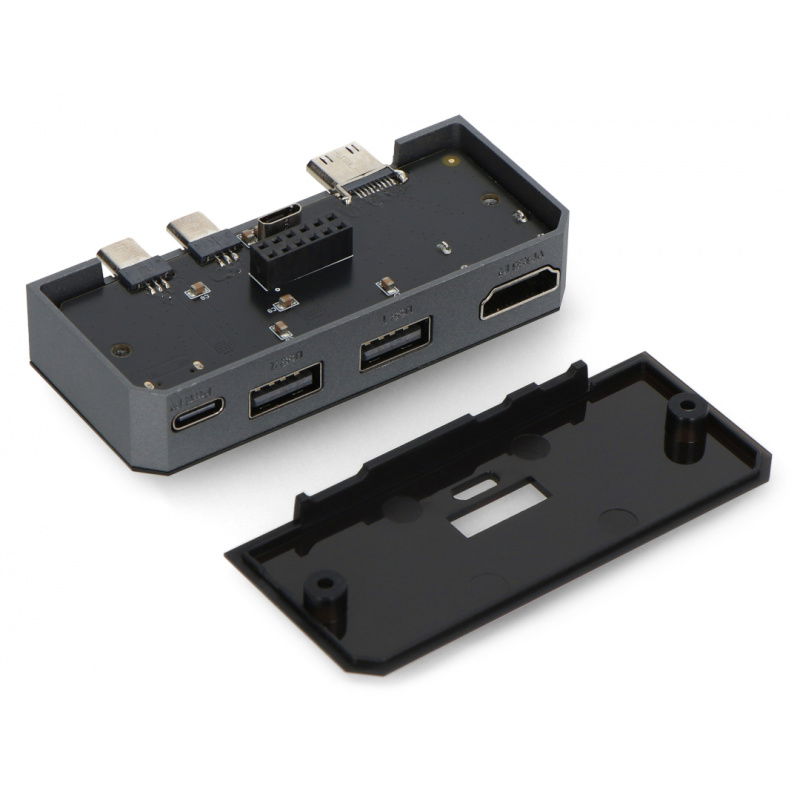

Main features of the HDMI USB Hub module
- Hub housing made of aluminum.
- The module is equipped with a microHDMI to HDMI adapter.
- Allows you to connect the Argon POD USB-LAN module via a 12-pin connector.
- The hub has interfaces such as: USB C, microUSB, miniHDMI, HDMI and USB type A.
The components are part of a 5-piece Argon POD kit. The remaining components can be purchased separately. The kit includes:
- Argon POD Housing
- USB-LAN module
- 2.8" display
- UPS module

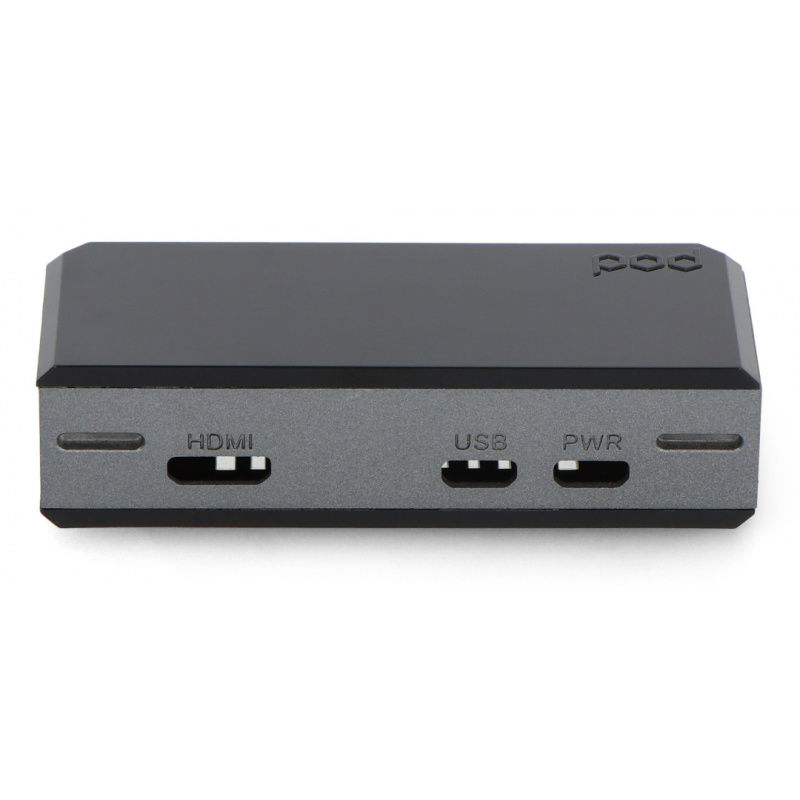

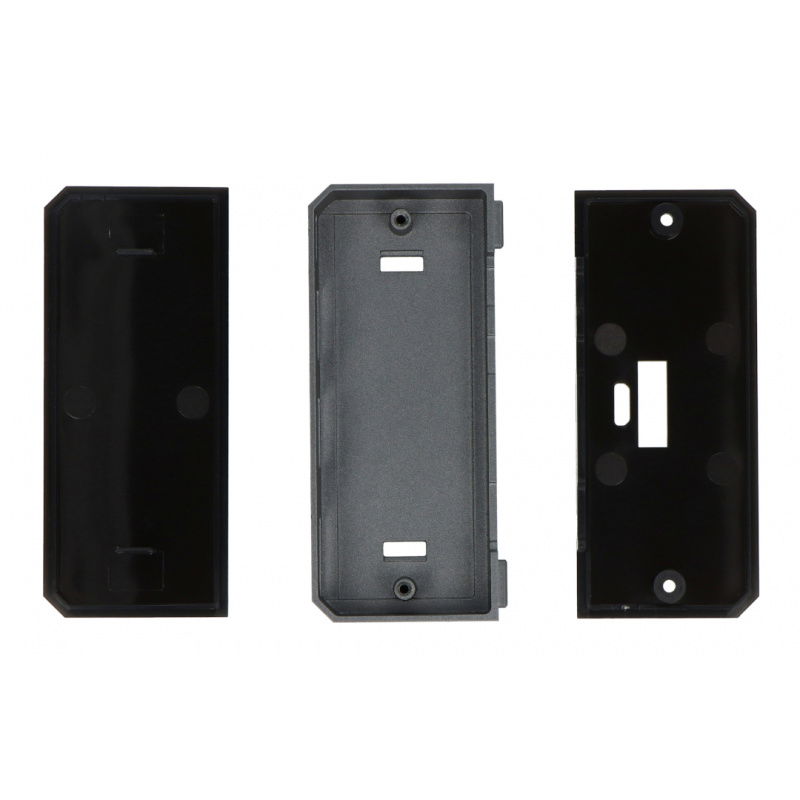

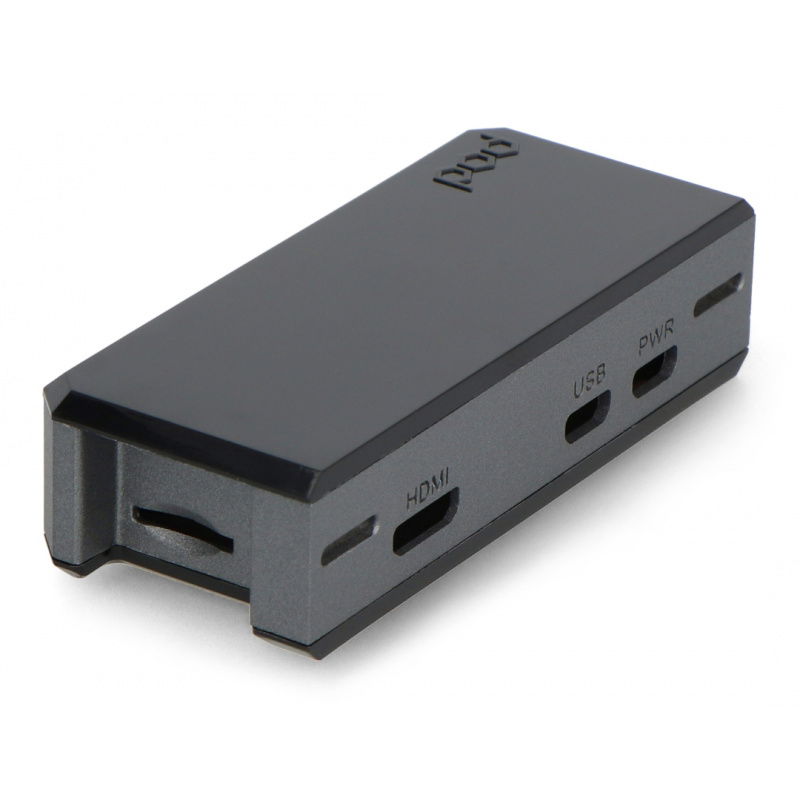

Argon POD enclosure specifications
- Product model: A22-002 AR-POD
- Holes for module pins:
- 1x GPIO port
- 1x camera tape
- 1x miniHDMI port
- 2x microUSB socket
- 1x microSD card slot
- Compatible with:
- Housing material:
- Aluminum
- ABS plastic
- Color: gray-black
- Dimensions: 80 x 34 x 20 mm

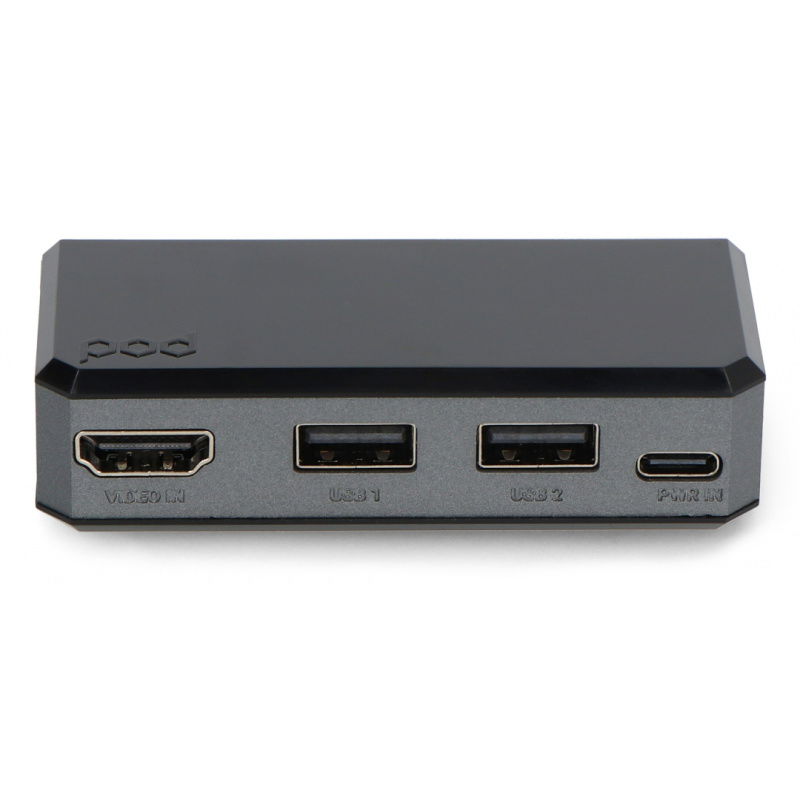

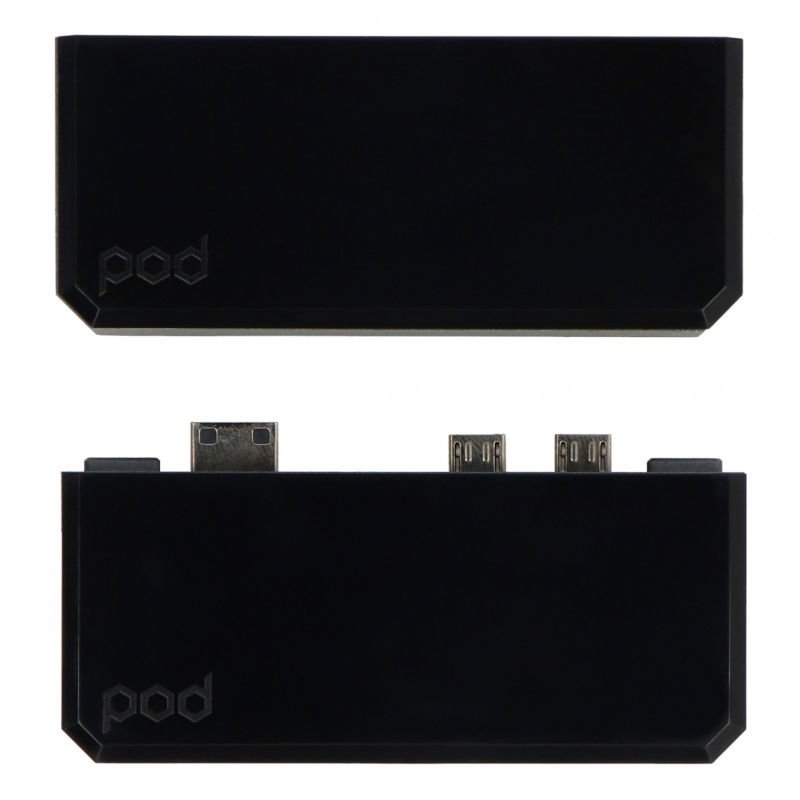

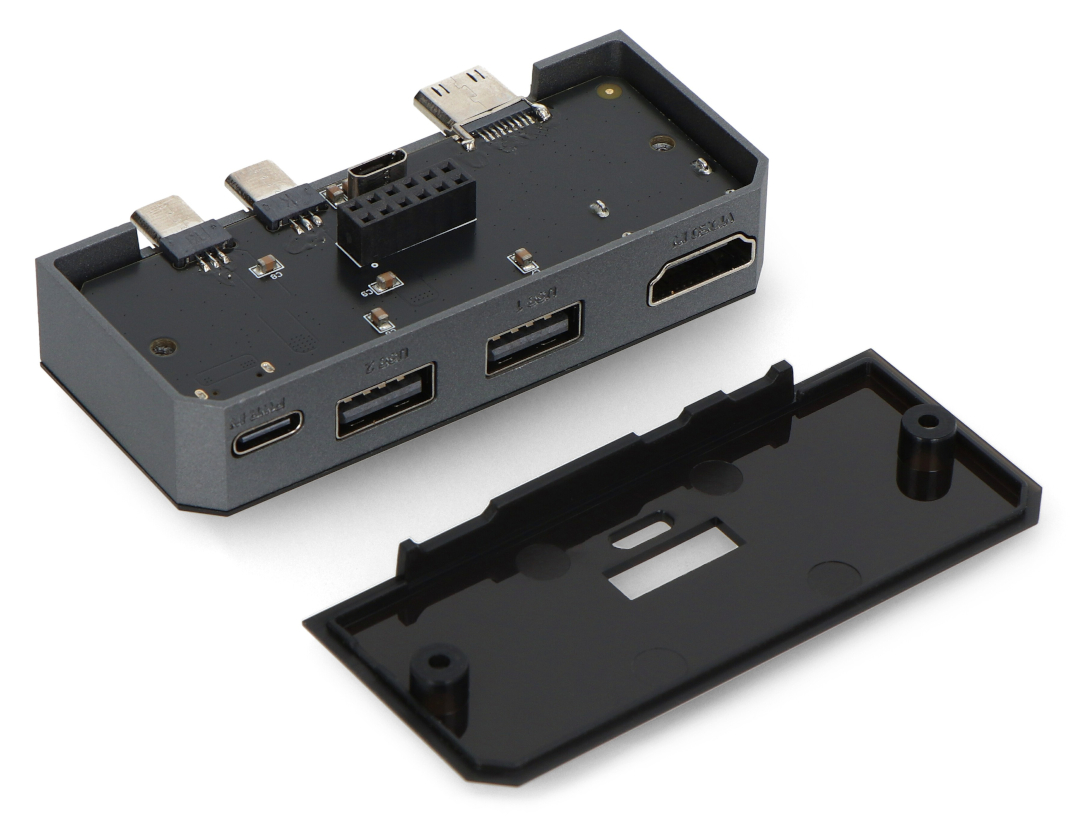

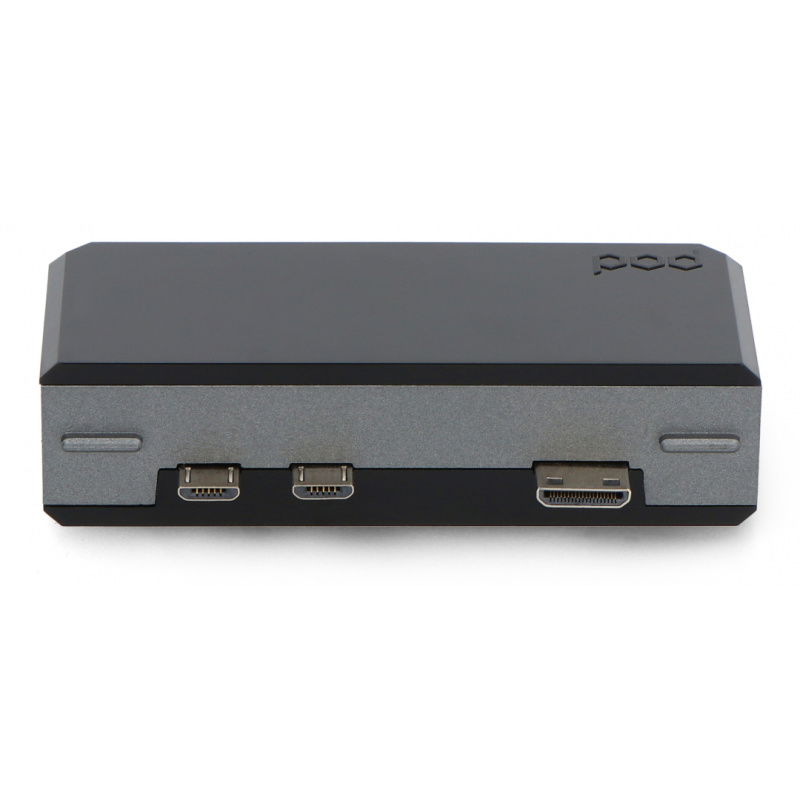

Argon POD HDMI-USB Hub Module Specifications
- Product model: A22-003 AR-POD-HDMI
- Ports:
- 2x microUSB connector
- 1x USB-C socket
- 1x miniHDMI connector
- 1x HDMI socket
- 2x USB Type A socket
- Power supply parameters: 5V/2.5A via USB C port
- Compatible with:
- Housing material: aluminum and ABS plastic
- Color: black and gray
- Module dimensions:
- length: 80 mm
- width: 40 mm
- height: 20 mm
- Diameter of mounting holes: 4.5 mm

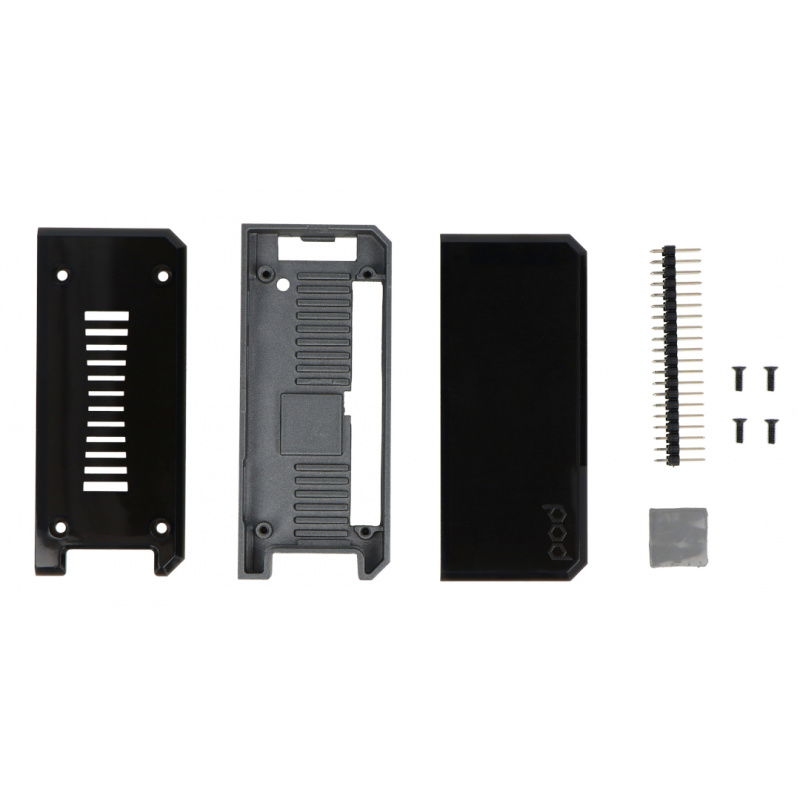

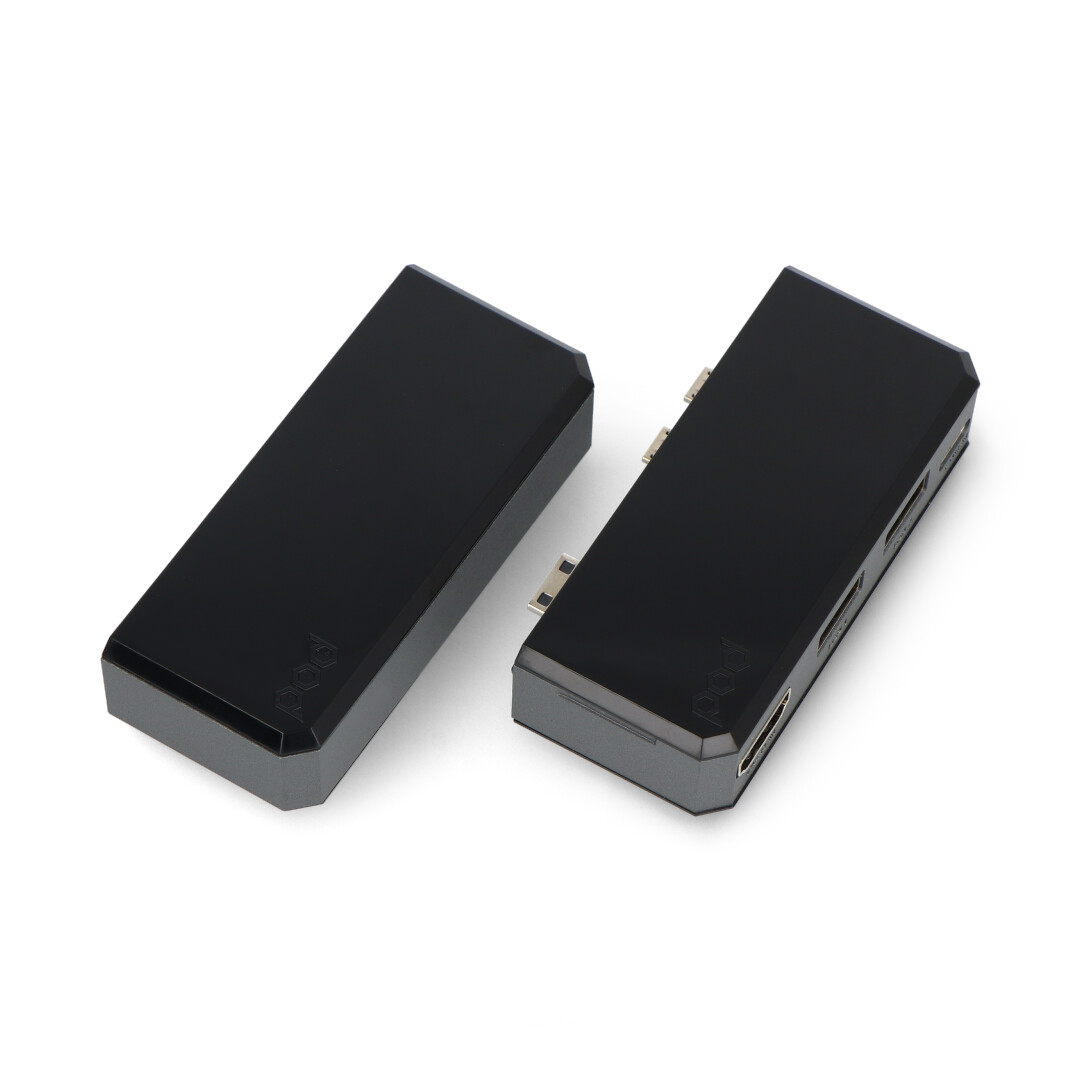

Contents of the set
- Argon POD Housing
- Argon POD HDMI USB Hub Module
- Set of screws and connectors
