Product description: reTerminal E1004 - color e-paper display E Ink Spectra 6 - 13.3'' 1200 x 1600 px - ESP32-S3 - Seeedstudio 100064156
Seeedstudio 's reTerminal E1004 is a ready-to-use, open-source HMI display with a large , 13.3-inch color e-paper screen and a resolution of 1200 x 1600 px . E Ink Spectra 6 technology provides a paper-like effect without traditional backlighting, making the image clear, aesthetically pleasing, and energy-efficient. The reTerminal E1004 is equipped with an ESP32-S3 chip with 8 MB of PSRAM , 2.4 GHz WiFi, Bluetooth 5.0 connectivity, temperature and humidity sensors, a buzzer, and a microSD card slot. A built-in 5000 mAh battery allows for long-term operation without a constant power supply, and the SenseCraft HMI platform enables quick dashboard creation without programming.

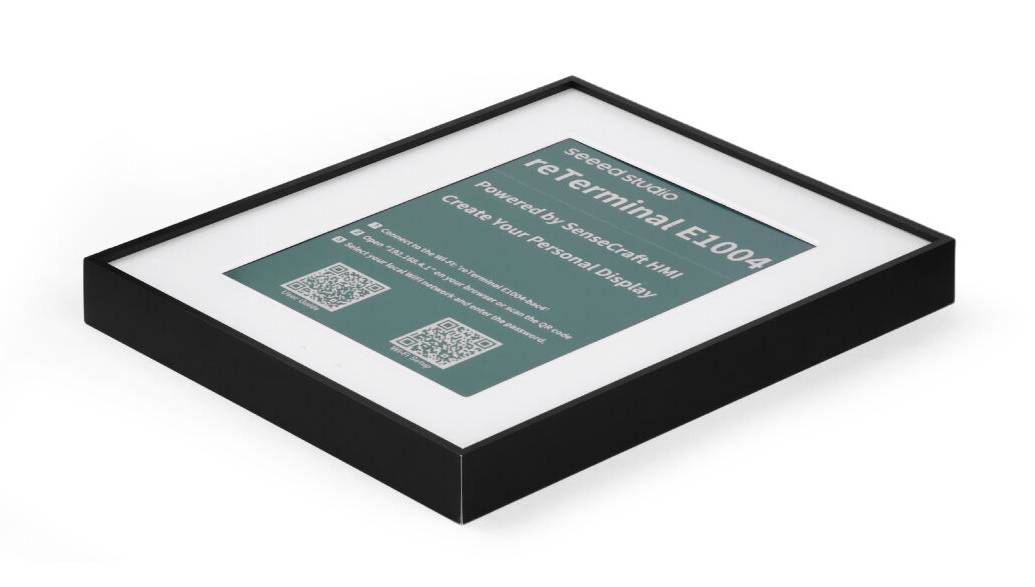

reTerminal E1004 - color e-paper display E Ink Spectra 6 - 13.3'' 1200 x 1600 px - ESP32-S3 - Seeedstudio 100064156.

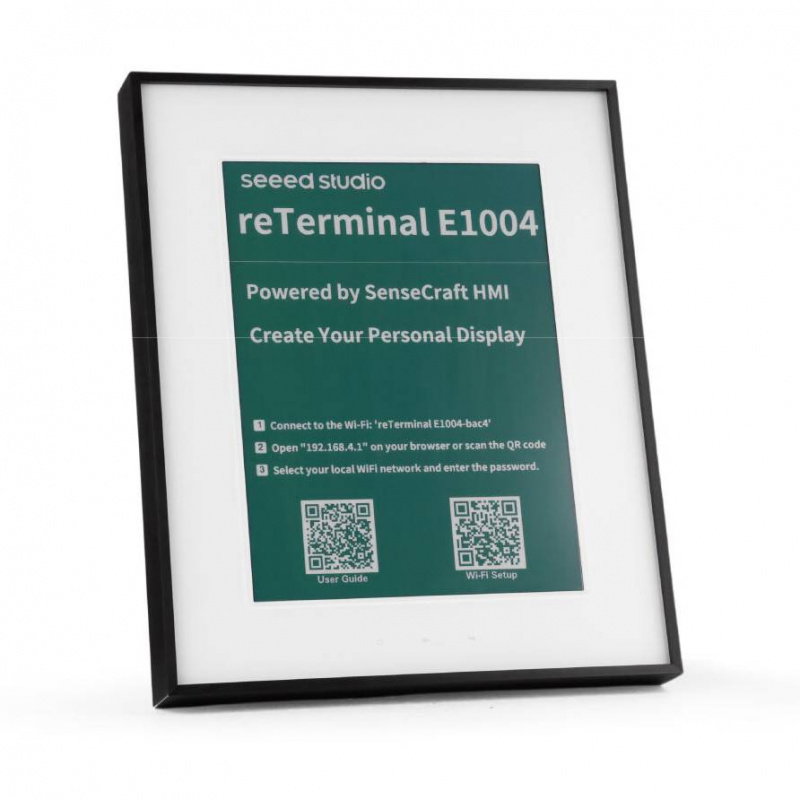

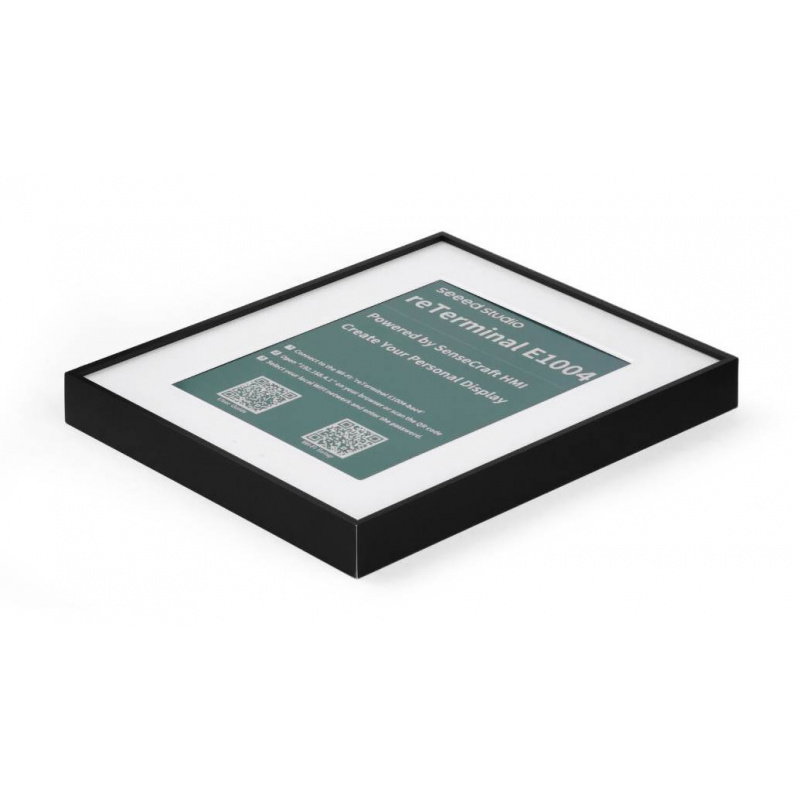

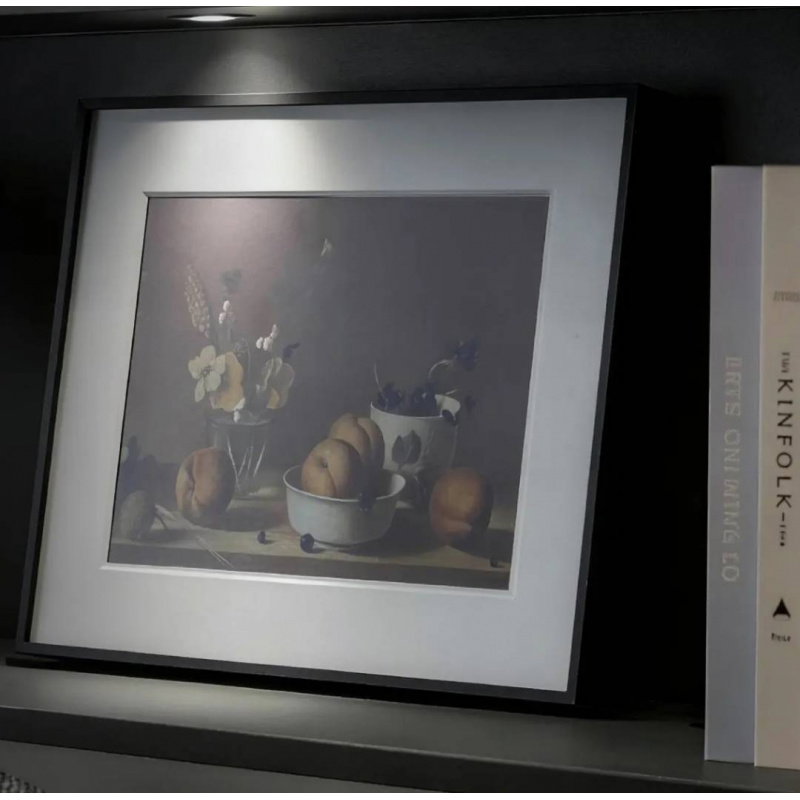

reTerminal E1004 has a color e-paper display and an aluminum frame.
Main features of reTerminal E1004
- 13.3" e-paper color screen : E Ink Spectra 6 Full Color display provides paper-like readability, vivid colors and low power consumption
- High resolution 1200 x 1600 px : large workspace allows you to present photos, graphics, calendars, data and information panels
- ESP32-S3 processor : a powerful chip with 8 MB of PSRAM enables interfaces, wireless communication and IoT applications
- SenseCraft HMI : a no-code platform that lets you create your own dashboards using drag and drop, without writing any code
- Long battery life : 5000 mAh capacity allows operation up to 6 months in low power mode with a refresh rate of every 6 hours
- Wireless connectivity : 2.4 GHz WiFi and Bluetooth 5.0 support for easy remote content updates and integration with online services
- Built-in sensors : temperature and humidity measurement allows you to create local environmental panels

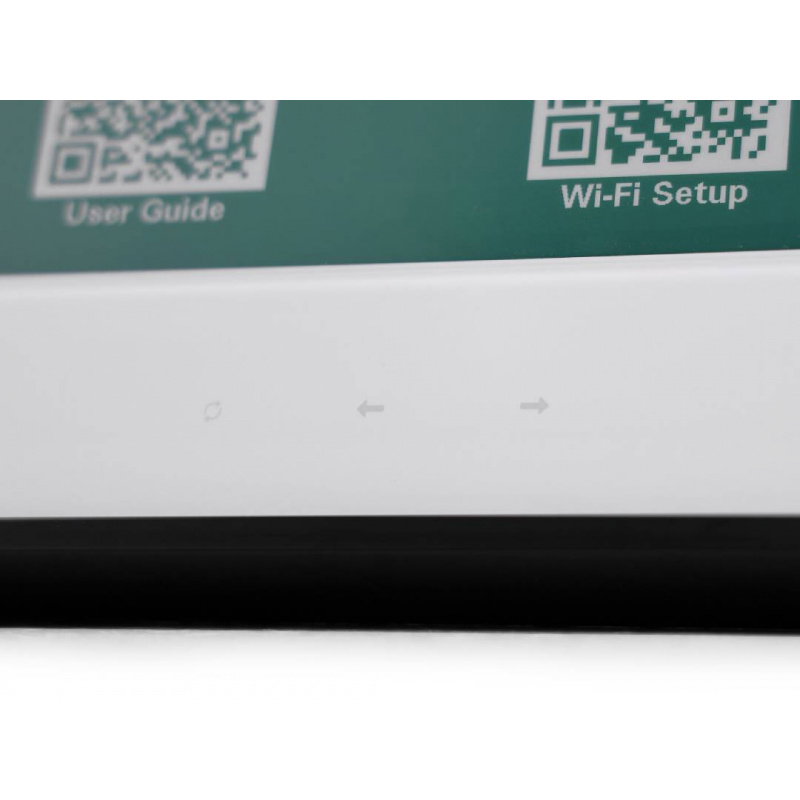

- Touch and physical buttons : allow you to refresh the screen and switch pages
- MicroSD slot : supports microSD cards in FAT32 format up to 32 GB, a 16 GB card is included
- Flexible mounting : the device can be placed on a desk or mounted on a wall in portrait or landscape orientation
- Open source design : support for Arduino IDE, ESP-IDF, Home Assistant and your own embedded projects
SenseCraft HMI - Design without Coding
SenseCraft HMI is a no-code platform designed to quickly create interfaces for reTerminal E Series displays . You can use ready-made templates, upload your own photos, add widgets, text, API data, weather information, calendars, or smart home elements. The entire design process is done in a browser, and the finished panel can be wirelessly deployed to the reTerminal E1004 in just a few steps . The platform also supports AI functions to help generate interface elements, but the manufacturer notes that SenseCraft HMI is currently in beta and features will be developed.

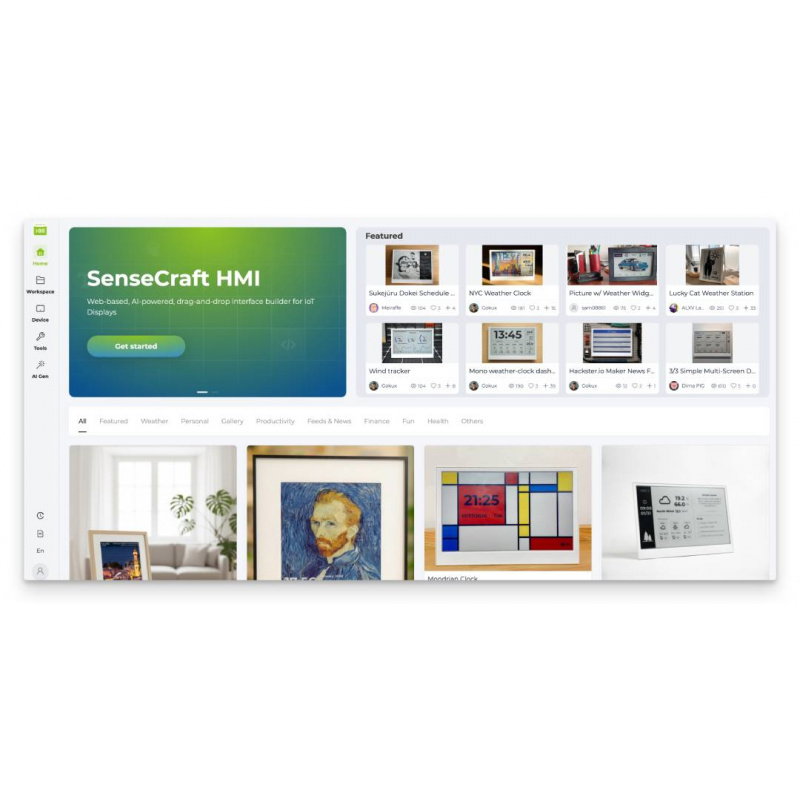

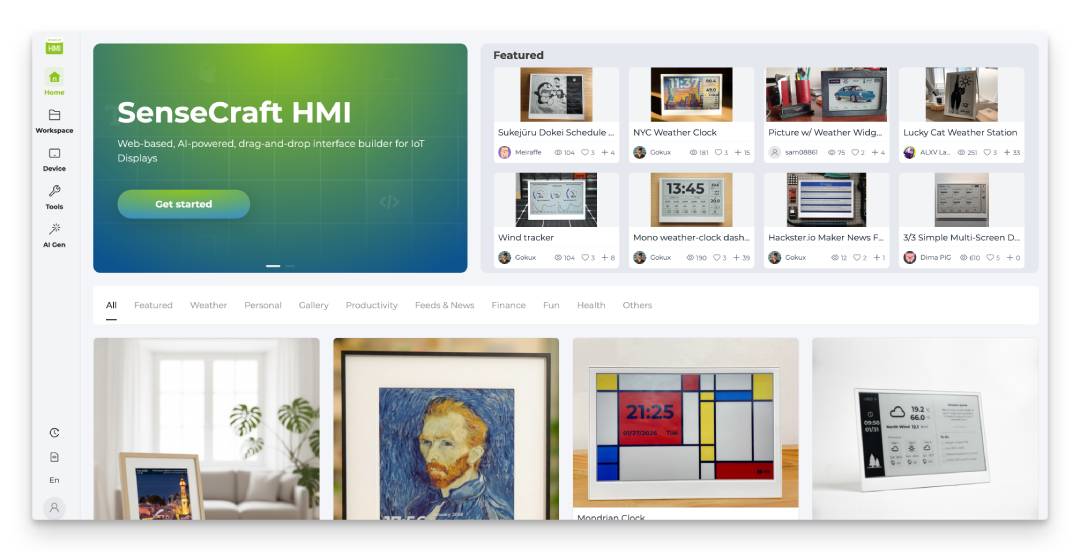

The SenseCraft HMI platform allows you to create your own user interface without coding.

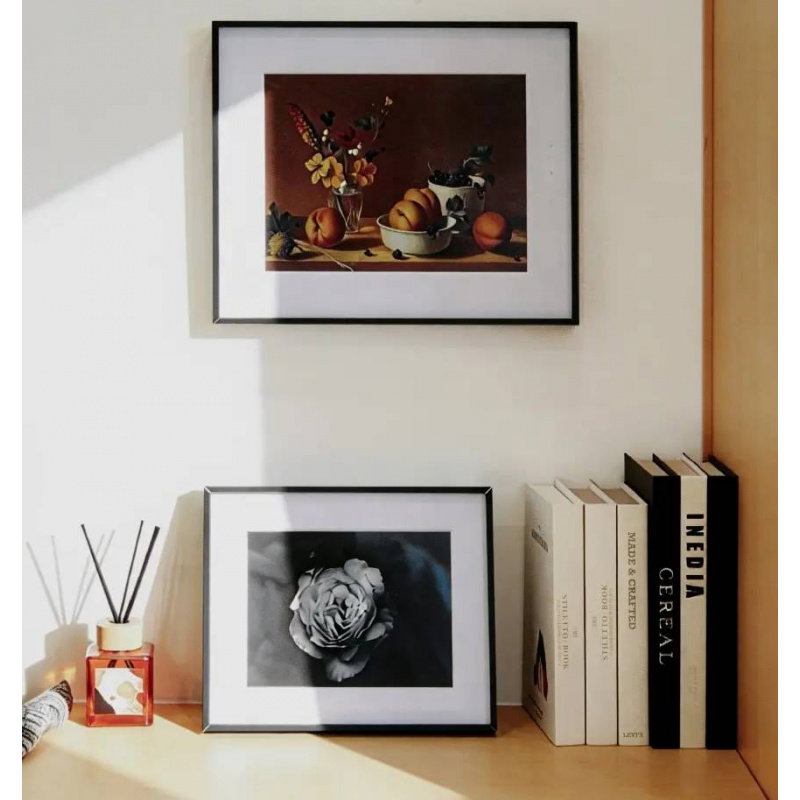

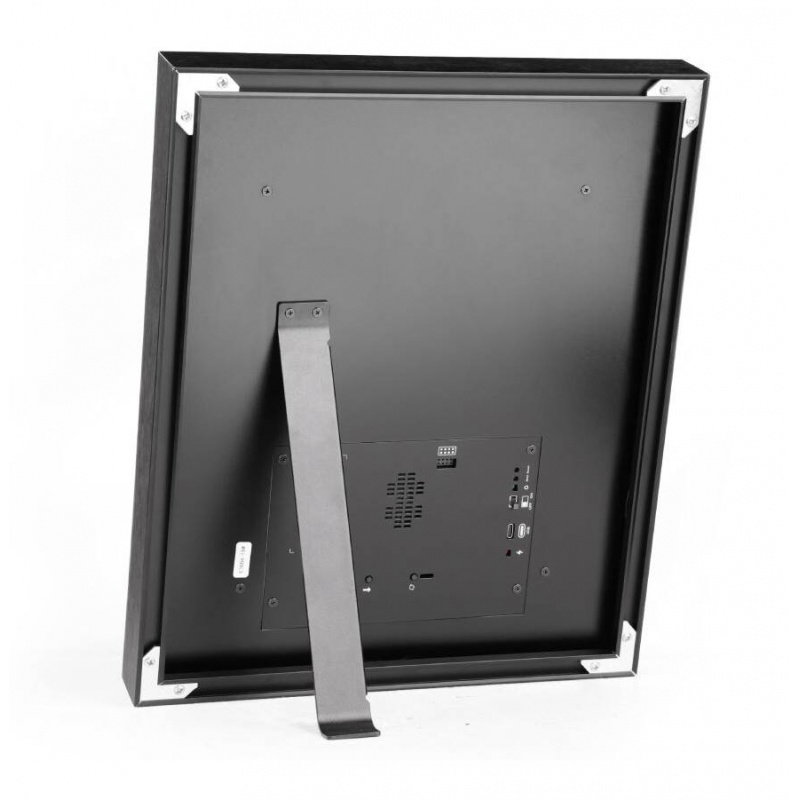

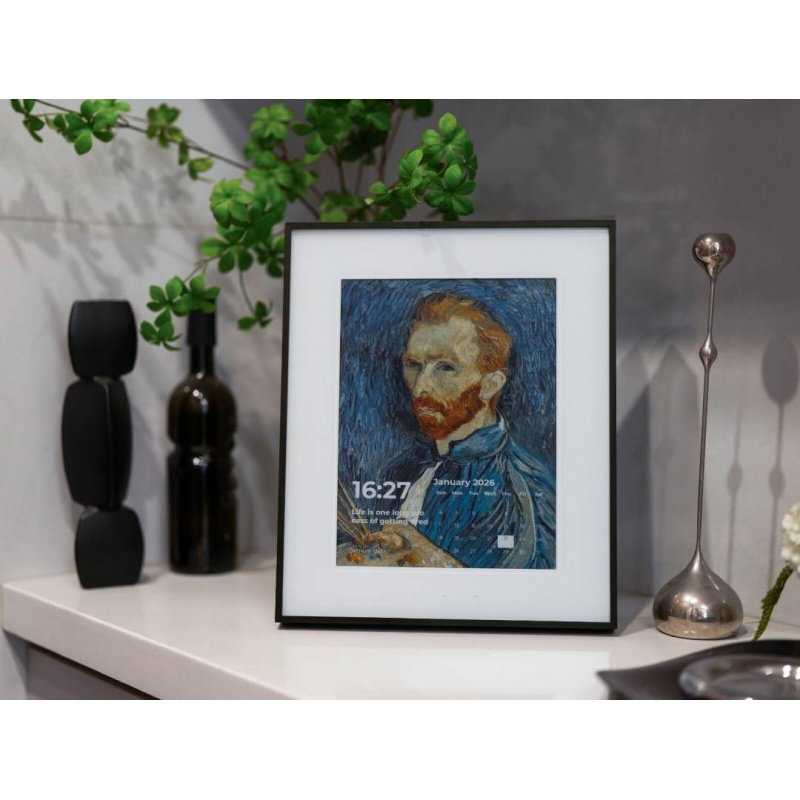

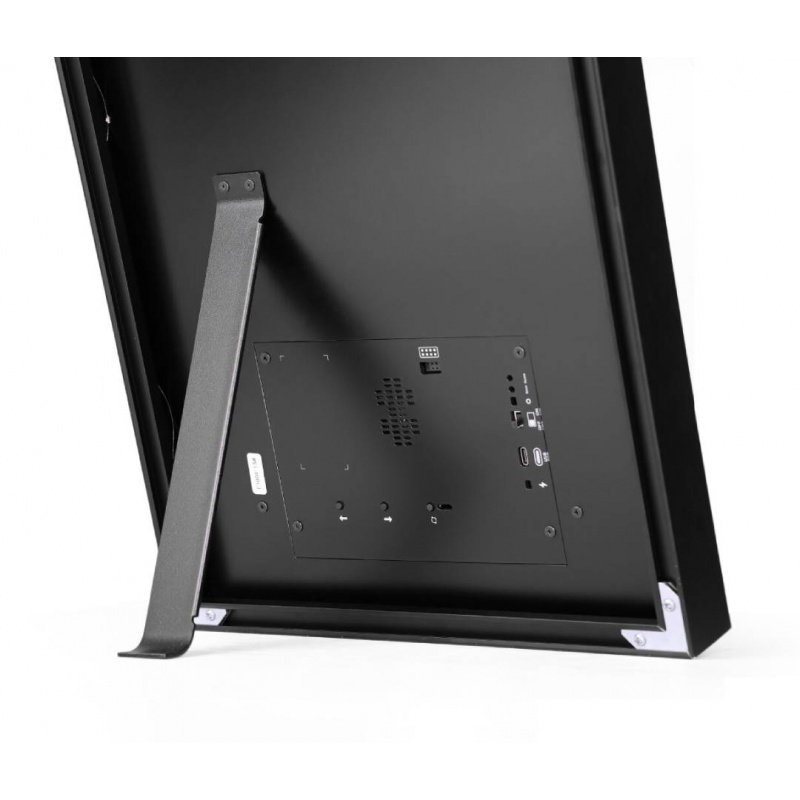

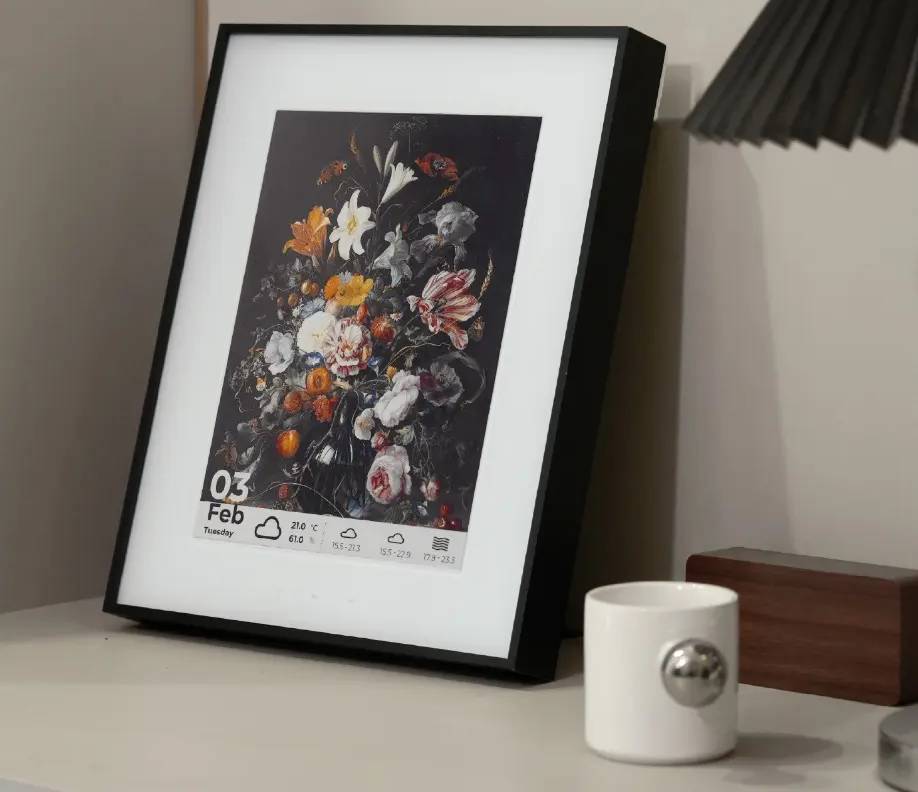

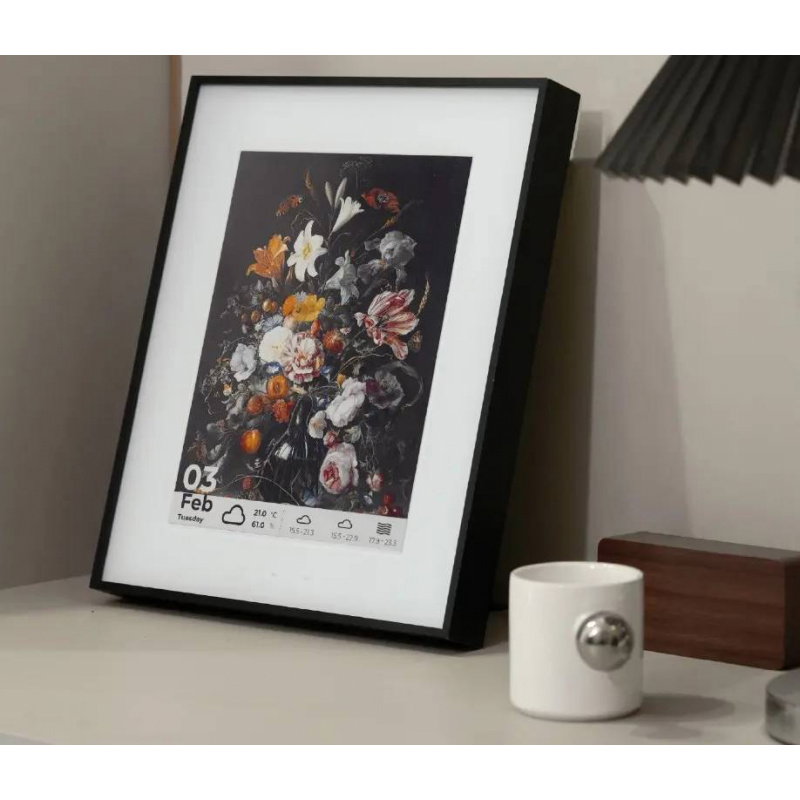

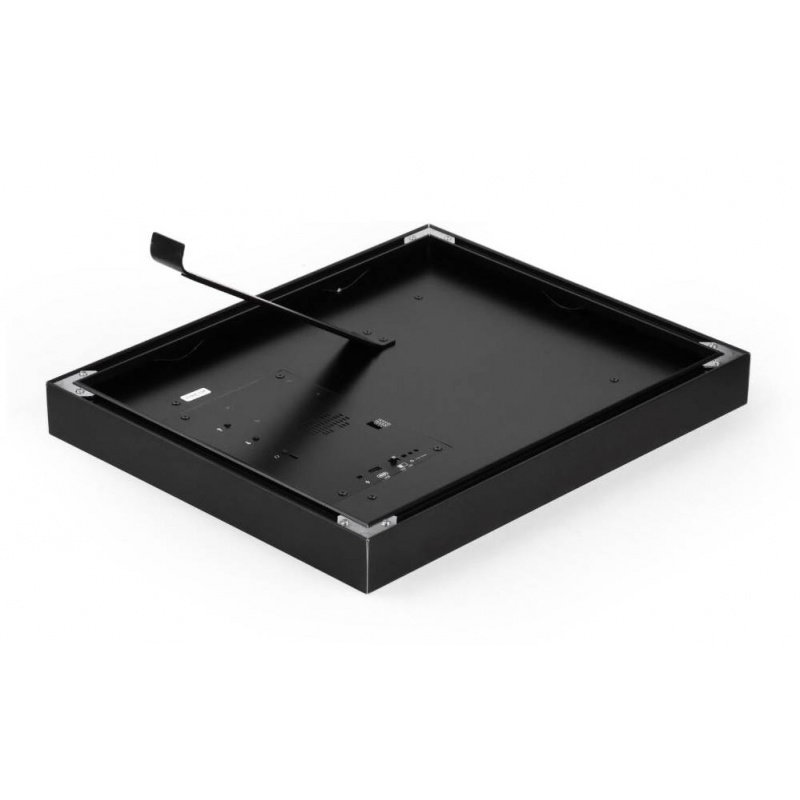

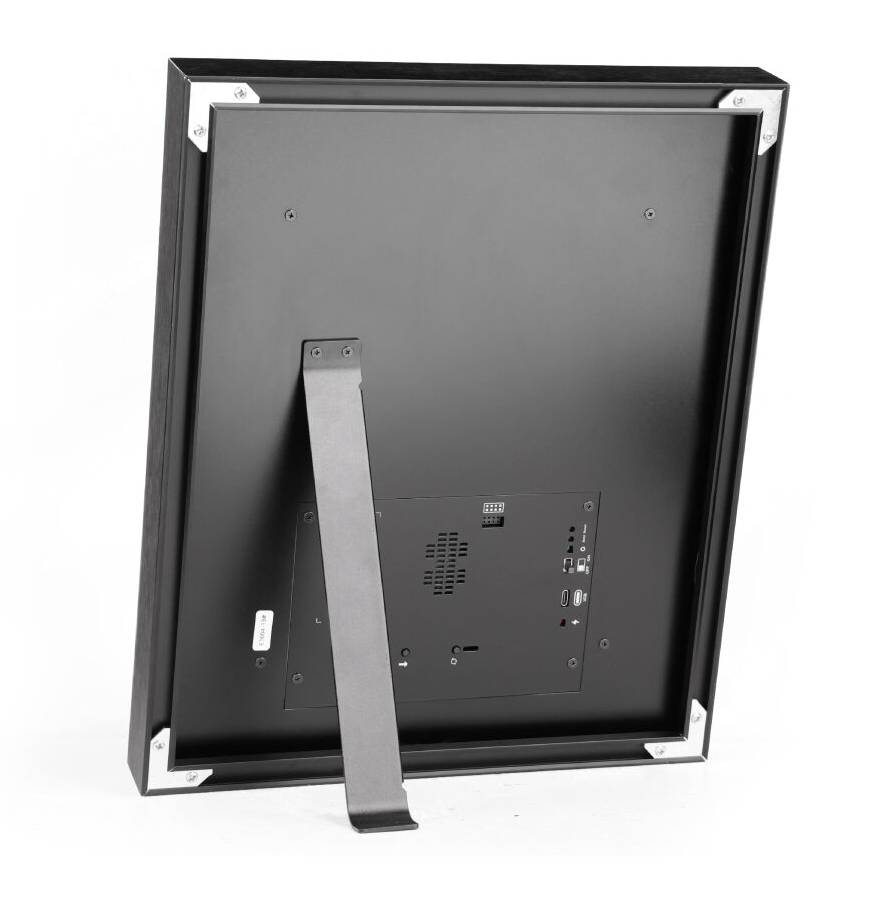

The reTerminal E1004 offers wall or desk mounting options and allows you to switch between portrait and landscape modes.
Technical specifications of the reTerminal E1004
- Display: 13.3'' E Ink Spectra 6
- Resolution: 1200 x 1600 px
- Processor: ESP32-S3
- PSRAM: 8MB
- Flash memory: 32 MB
- Memory card: microSD up to 32 GB, FAT32 format
- Card included: microSD 16 GB
- Wireless connectivity: 2.4 GHz 802.11 b/g/n WiFi, Bluetooth 5.0
- Software platform: SenseCraft HMI
- Supported environments: Home Assistant, Arduino IDE, ESP-IDF
- Sensors: temperature, humidity
- Interaction elements: touch buttons, physical buttons, buzzer
- USB connector: USB Type-C
- Power supply: 5V/1A
- Battery: 5000 mAh
- Operating time: up to 6 months in low power mode with a 6-hour refresh interval

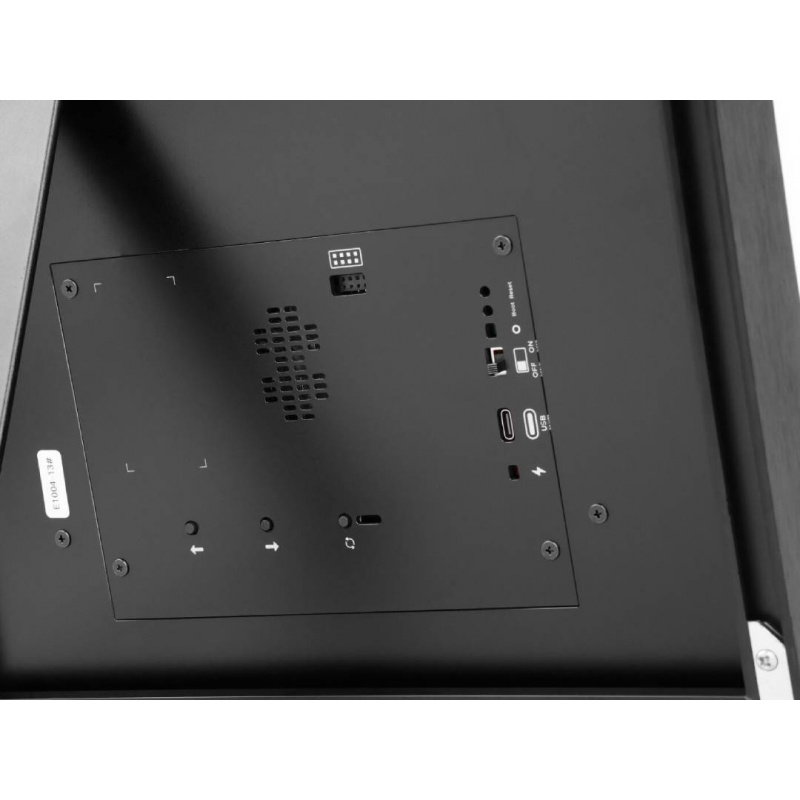

- Expansion slot: 2 x 4 pin, VDD, GND, UART, I2C, GPIO, ADC
- Supported networks: 2.4GHz WiFi, 5GHz not supported
- Operating temperature: 0°C to 40°C

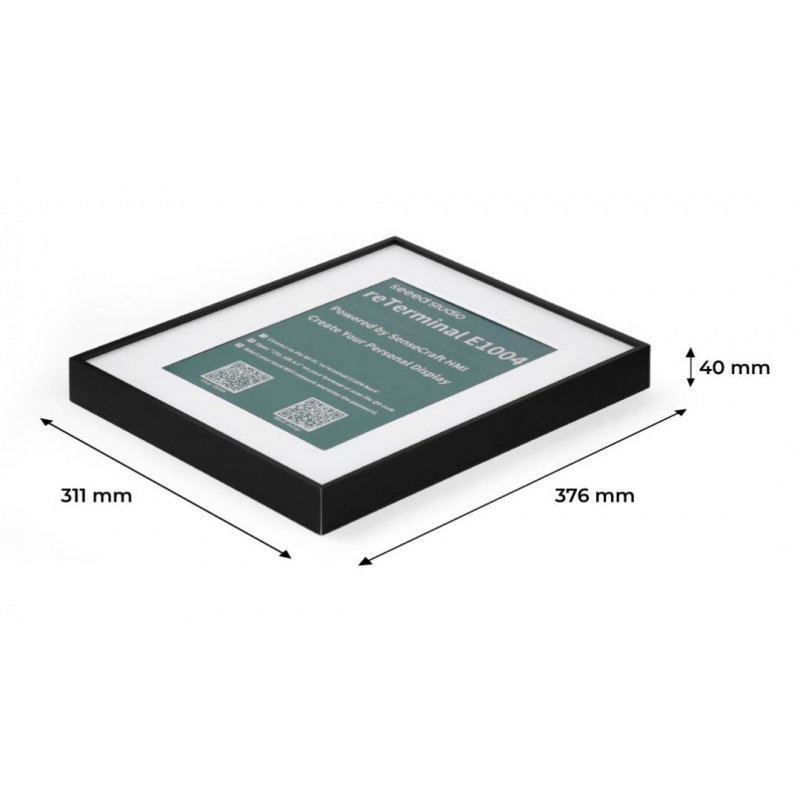

- Dimensions: 376 x 311 x 40 mm
Contents of the set
- 1x reTerminal E1004
- 1x USB Type-C cable
- 1x Stand with screw
- 1x Screwdriver
- 2x Frame hooks
- 1x 16GB microSD card
