Inkplate 6COLOR with enclosure and battery - e-paper display 5,85'' 600x448px - ESP32 - Arduino compatible - Soldered 333231
Inkplate 6COLOR is a module with a 5.85'' e-paper display , supporting 7 colors , which is ideal for DIY projects and professional solutions based on Arduino and ESP32 platforms. The version with a case and battery provides protection and mobility, making it a great solution for portable projects with minimal power consumption.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Soldered products. Soldered is a European maker of modern electronic modules, sensors and accessories for DIY projects, education and industrial use. Soldered products stand out for build quality, inventiveness and easy integration with popular platforms such as Arduino and Raspberry Pi. Botland carries a wide choice of original Soldered modules for hobby and professional electronics projects alike.
Product description: Inkplate 6COLOR with housing and battery - e-paper display 5.85'' 600 x 448 px - ESP32 - Arduino compatible - Soldered 333231
Inkplate 6COLOR is a modern module with a color e-paper display , offering excellent visibility in various lighting conditions and requiring exceptionally little energy . Thanks to e-paper technology, it consumes electricity only when changing the screen content, which allows you to work for many days, weeks or even months on a single charge. The version with a housing and battery provides additional protection and allows mobile use without the need to connect to a power supply . The module is based on the popular ESP32 microcontroller, which allows wireless communication via WiFi and Bluetooth. Inkplate 6COLOR supports both Arduino and MicroPython , making it an ideal choice for hobbyists and professionals. What's more, Inkplate 6COLOR uses recycled displays from e-readers, which makes it environmentally friendly.
In our offer you will also find other e-paper displays - we invite you to familiarize yourself with the available assortment!
Inkplate 6COLOR with housing and battery - e-paper display 5.85'' 600 x 448 px - ESP32 - Arduino compatible - Soldered 333231.

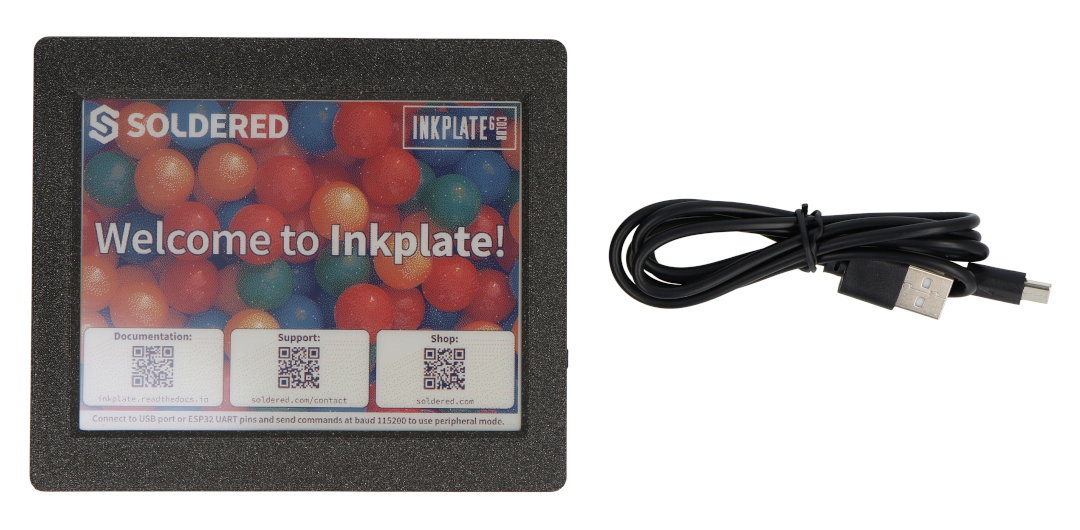

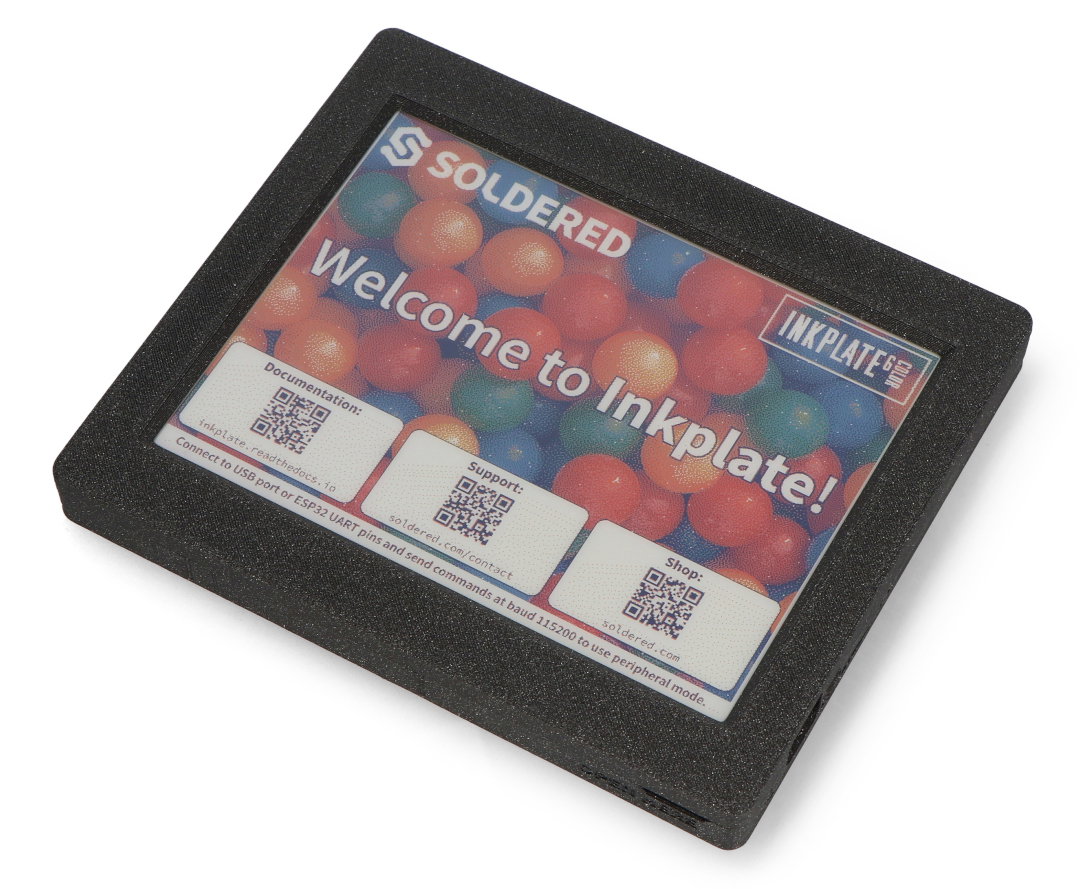

Module with display and battery in housing.
Main features of Inkplate 6COLOR
- 6-inch color e-paper display, perfect for displaying graphics, text and images
- ESP32 microcontroller with WiFi and Bluetooth 4.0 (BLE)
- Extremely low power consumption, allowing for weeks of operation on a single charge
- Arduino and MicroPython compatibility to get your projects started quickly
- Built-in microSD card reader
- 100% open-source hardware and software
- Real Time Clock with Battery Support
- Protective casing made using 3D printing technology and integrated 1200 mAh battery
Inkplate 6COLOR Programming
Inkplate 6COLOR is fully compatible with Arduino, offering the Adafruit GFX library, which allows rendering texts, graphics and images. In combination with ESP32, programming becomes fast and intuitive. The module also supports the possibility of programming in MicroPython .
easyC system in Soldered Inkplate 6COLOR
Inkplate 6COLOR supports the easyC system, which allows for easy connection of additional modules and peripherals. Thanks to the built-in Qwiic system, expanding the device's functions is simple and fast, and additional GPIO pins offer the possibility of integrating various components.
Examples of display applications
- Creating colorful e-readers
- Intelligent Information Displays
- Low Energy IoT Projects
- Advertising information boards
- DIY Apps That Require Color Image Display

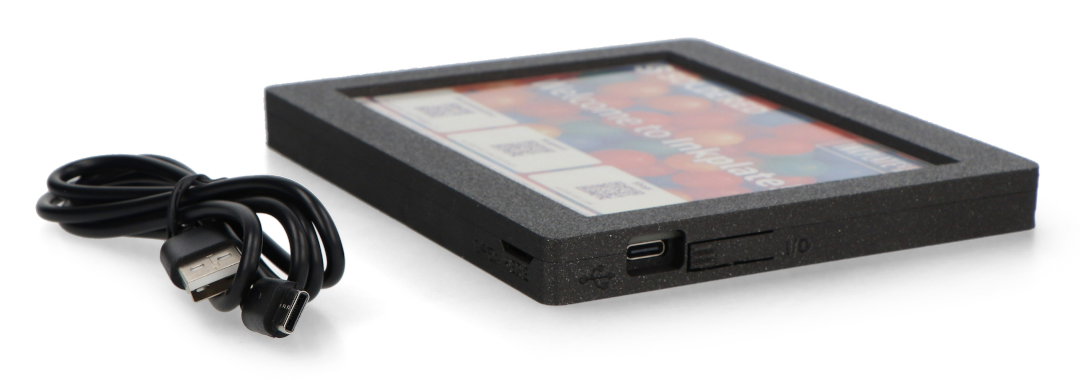

A USB cable is included in the set.

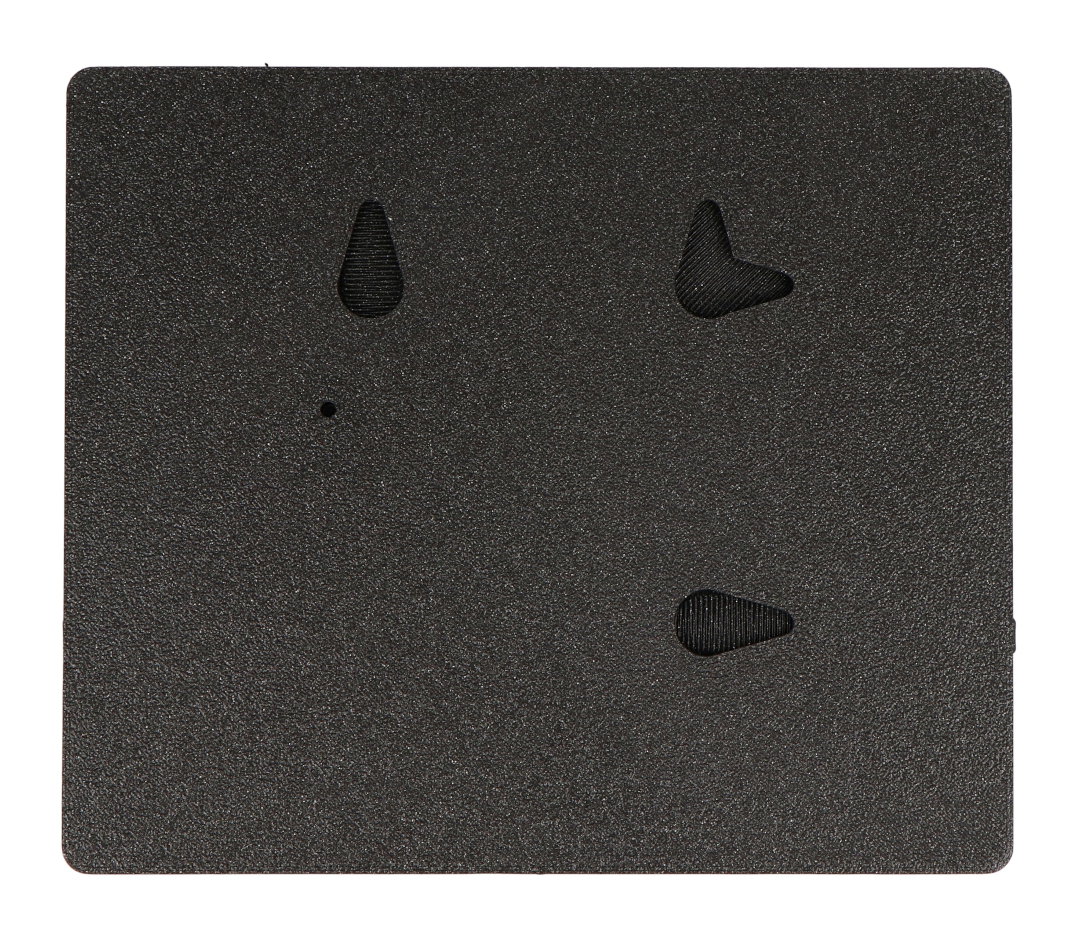

The housing made using 3D printing technology protects the module and the display.
Display Technical Specifications
- Display diagonal: 5.85"
- Display resolution: 600 x 448 px
- Display colors: black, white, red, yellow, blue, green and orange
- Microcontroller: ESP32
- Connectivity: WiFi, Bluetooth 4.0 (BLE)
- Screen refresh time: 12 sec
- Power consumption: 18 µA in sleep mode
- Built-in microSD card reader: yes
- Connectors: USB Type-C, easyC, GPIO, battery connector
- Communication: USB, I2C, SPI
- USB to UART Converter : CH340C
- Buttons: Three capacitive touchpads, power button and additional user button
- Programming: Arduino and MicroPython compatible
- Dimensions: 140 x 119.3 x 13.6 mm
Kit Contents
- 1x Arduino compatible board
- 1x e-paper display
- 1x Housing
- 1x Battery
- 1x USB cable
Useful links
| Name | Value |
|---|---|
| Screen - type | e-paper |
| Screen - diagonal | 5.85 '' |
| Screen - interface | SPI+I2C |
| Screen - touch | no |
| Screen - resolution | 600x448px |
| UC - Microcontroller | ESP32 |
| UC - Core | Tensilica Xtensa LX6 |
| UC - core | 2. Dual Core |
| UC - freq | 240 MHz |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - microSD | yes |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Width | 20.5 cm |
| Height | 15.5 cm |
| Depth | 6.3 cm |
| Weight | 0.252 kg |
