Product description: Inkplate 5 Gen2 - 5.2'' e-paper display 1280 x 720 px - ESP32 - Arduino compatible - Soldered 333333
Soldered Inkplate 5 is an advanced module that combines energy efficiency and performance. Equipped with a 5.2-inch e-ink (e-paper) display with a high resolution of 960 x 540 px , it provides excellent readability in all conditions, even in direct sunlight. Thanks to ESP32 , it offers WiFi and Bluetooth connectivity, enabling easy integration with IoT and wireless applications. The module consumes minimal power – in deep sleep mode, it consumes only 18 µA , allowing for months of operation on a single battery charge. It supports microSD cards , allowing you to store and display images directly from external memory. Additional GPIOs and compatibility with the easyC system enable simple integration with other modules and sensors.

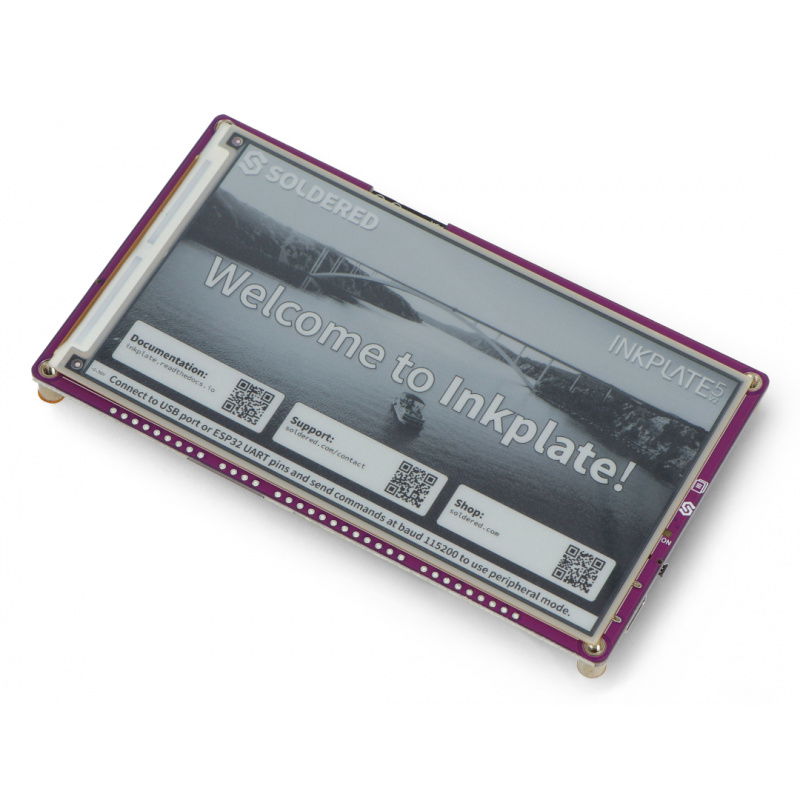

Inkplate 5 Gen2 - e-paper display 5.2'' 1280 x 720 px - ESP32 - Arduino compatible - Soldered 333333.
The screen resolution is 1280 x 720 px.
Main features of Inkplate 5 Gen2
- 5.2-inch e-paper screen : 1280 x 720 px resolution, 6-level grayscale support, and no power consumption between refreshes
- Fast refresh : full in 0.99 s and partial in 0.22 s (up to 5 fps)
- ESP32 on board : WiFi and Bluetooth 4.0 (BLE) connectivity
- Ultra-low power consumption : only 18 µA in deep sleep mode, built-in Li-Ion battery charging circuit
- MicroSD reader : allows you to store and quickly display images
- Support for I2C and SPI protocols : compatibility with many sensors and modules
- Expandability : GPIO available, easyC compatible for easy expansion
- Housing and battery (optional) : choose a version tailored to your needs
Inkplate 5 Gen2 Programming
Inkplate 5 Gen2 can be programmed in Arduino environments and MicroPython , ensuring a wide range of applications. The Arduino library is fully compatible with Adafruit GFX , making it easy to display text, images, and geometric shapes. MicroPython enables rapid prototyping and code testing. The display is operated via API commands , allowing for easy integration into IoT projects, information displays, and home automation.

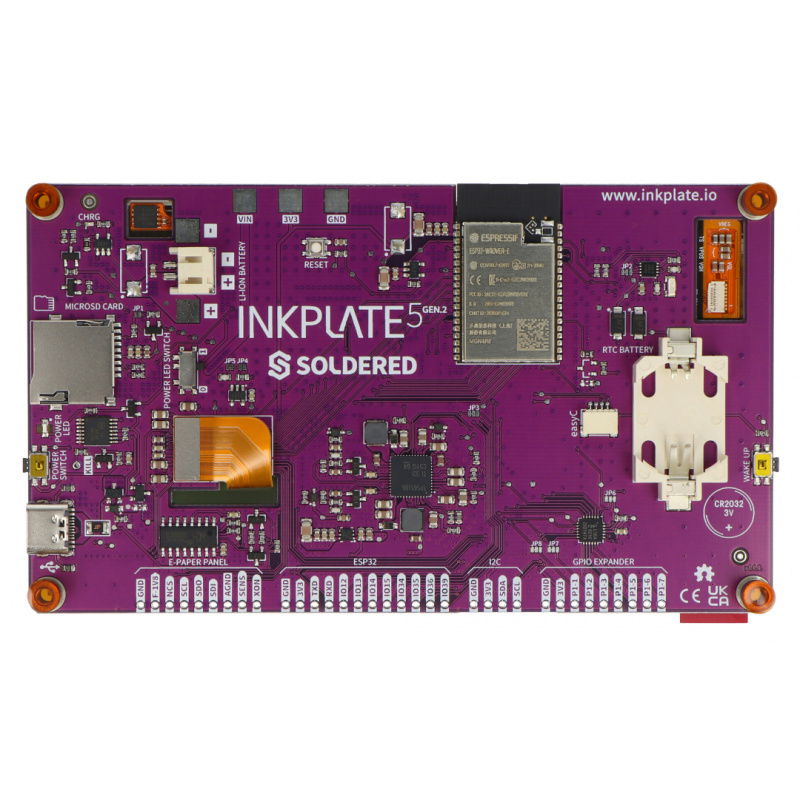

Inkplate 5 Gen2 is a plug-and-play module.
easyC system in Soldered Inkplate 5 Gen2
The Inkplate 5 Gen2 supports easyC, which simplifies connecting sensors and peripherals . This I2C-based solution allows for quick and error-free connection of components using dedicated wires. EasyC allows you to expand your projects with additional functionality without the need for soldering or complex wiring.
Examples of display applications
- E-book readers - thanks to e-paper technology, the screen does not tire the eyes and is readable even in full sunlight
- Information boards - can be used as an information panel displaying current news, weather forecast or calendar
- Clocks and schedules - the module allows you to program automatic content updates
- IoT Projects - Perfect for creating IoT devices with low power consumption and a clear display
- Smart Home Control - Thanks to built-in WiFi and Bluetooth, Inkplate 5 can act as an interface for managing Smart Home devices

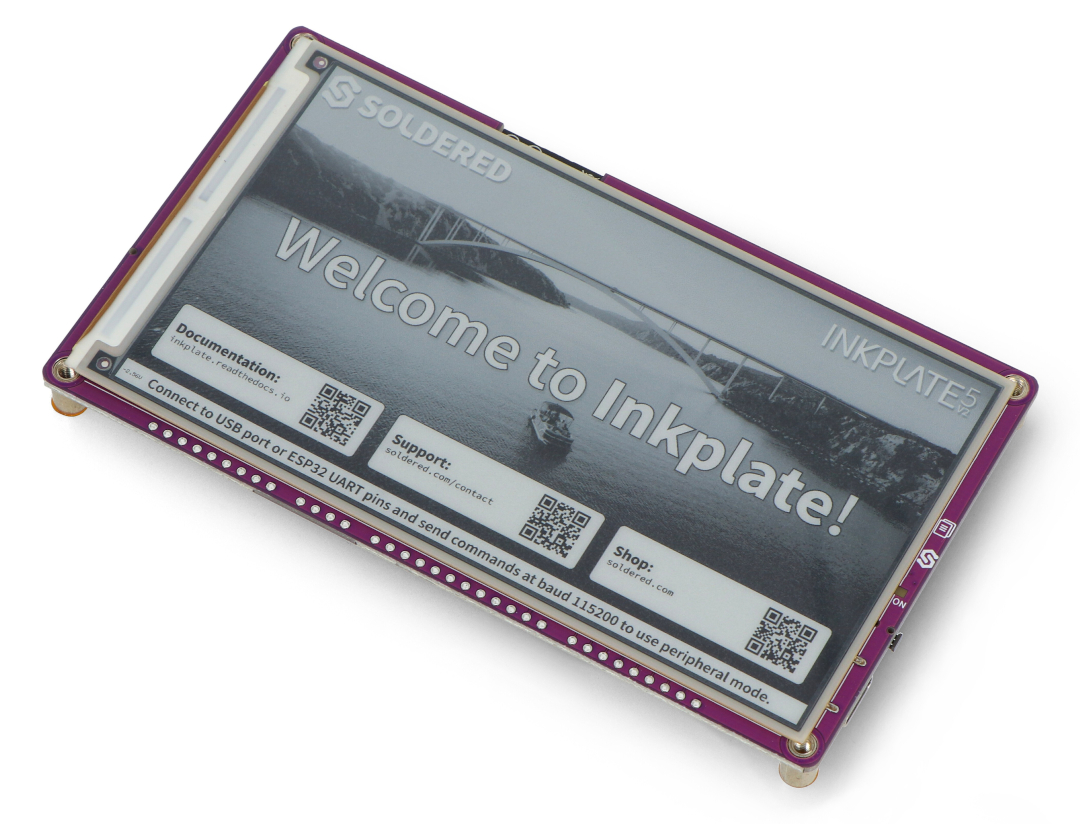

Provides a clear and readable image in all conditions, even in full sunlight.

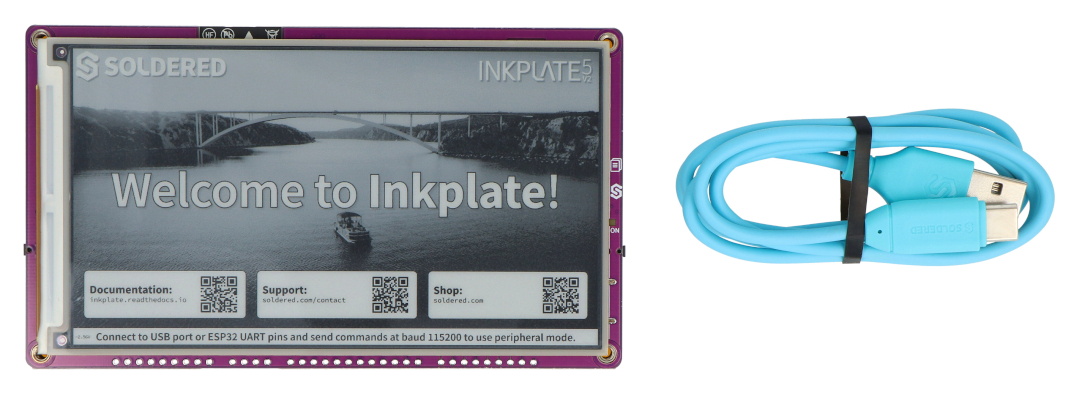

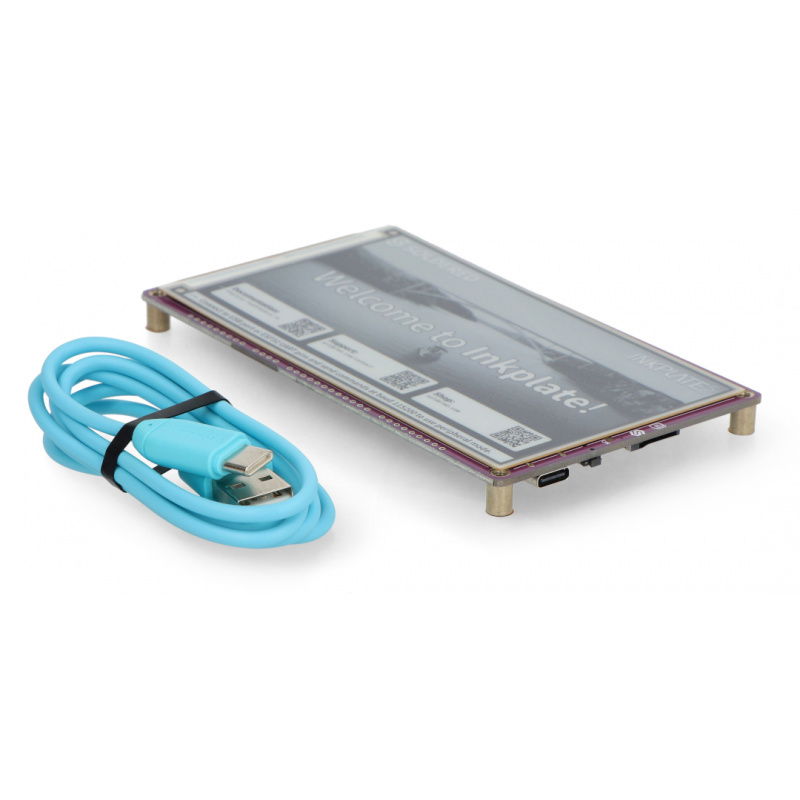

Elements included in the set.

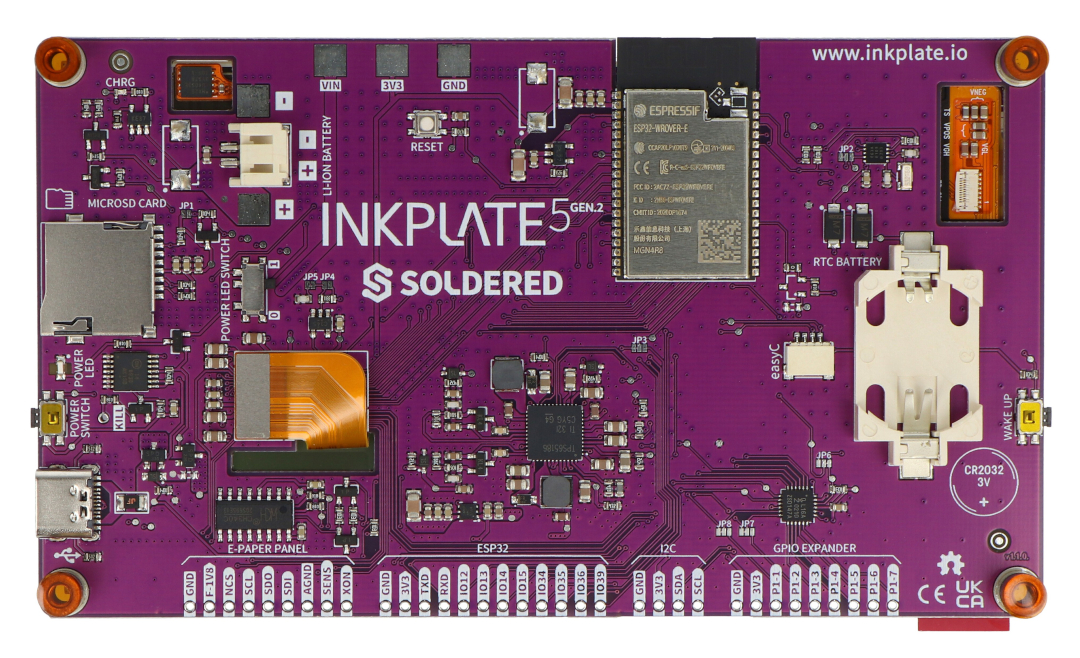

Technical specifications of the module
- Display diagonal: 5.2"
- Display resolution: 1280 x 720 px
- Display colors: black, white, 6 grayscale modes
- Microcontroller: ESP32
- Connectivity: WiFi, Bluetooth 4.0 (BLE)
- Refresh rate: 0.99 sec for full refresh and 0.22 sec for partial refresh
- Power consumption: 18 µA in deep sleep mode
- Built-in microSD card reader: yes
- Connectors: USB Type-C, easyC, GPIO, battery connector
- Communication: USB, I2C, SPI
- USB to UART Converter : CH340C
- Power supply: built-in MCP73831 charging system for Li-Ion batteries
- Buttons: power button, reset button
- Programming: Arduino and MicroPython compatible
- Dimensions: 130.6 x 75.2 x 9.3 mm

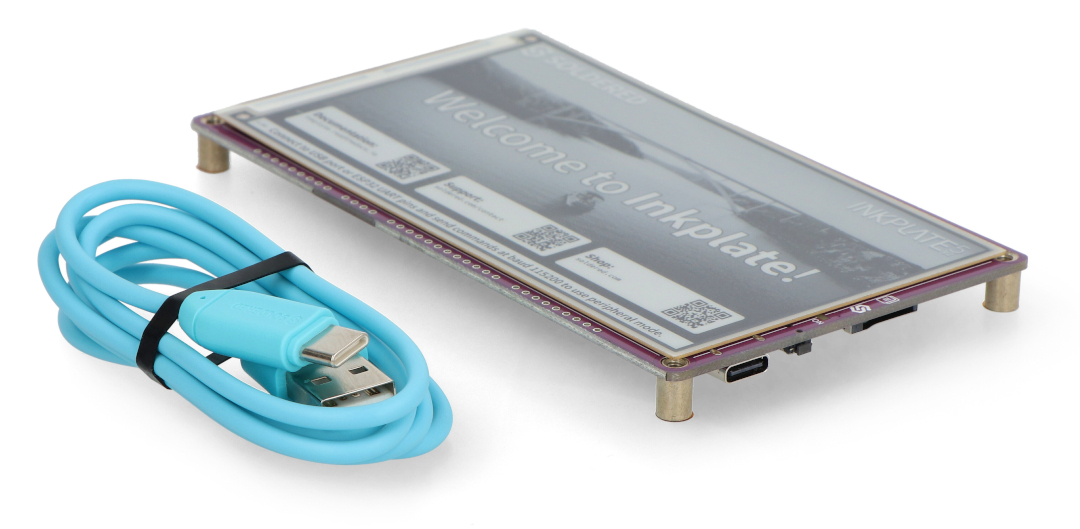

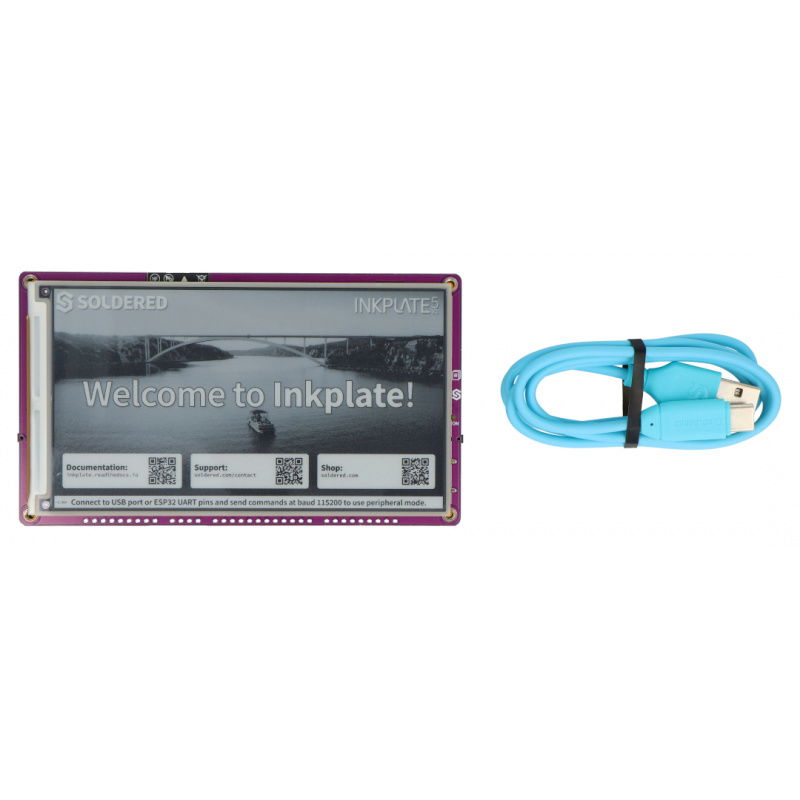

Contents of the set
- 1x Inkplate 5 Gen2 - e-paper display 5.2'' 1280 x 720 px - ESP32 - Arduino compatible - Soldered 333333
- 1x USB cable
