Product description: Korad KA3005DS 0-30V 5A laboratory power supply
A laboratory power supply , next to a digital multimeter and a soldering station, is one of the most necessary tools in an electronics workshop. Such a power supply supplies the voltage necessary to power electronic systems during their prototyping and servicing. KA3005DS is a stabilized laboratory power supply with programmable memory and smooth voltage regulation in the range from 0 V to 30 V and current up to 5 A. It has an accuracy of intensity indications up to 3 decimal places . The design of the power supply is based on a transformer, and a large, clear LED display provides current information about the current voltage and load.

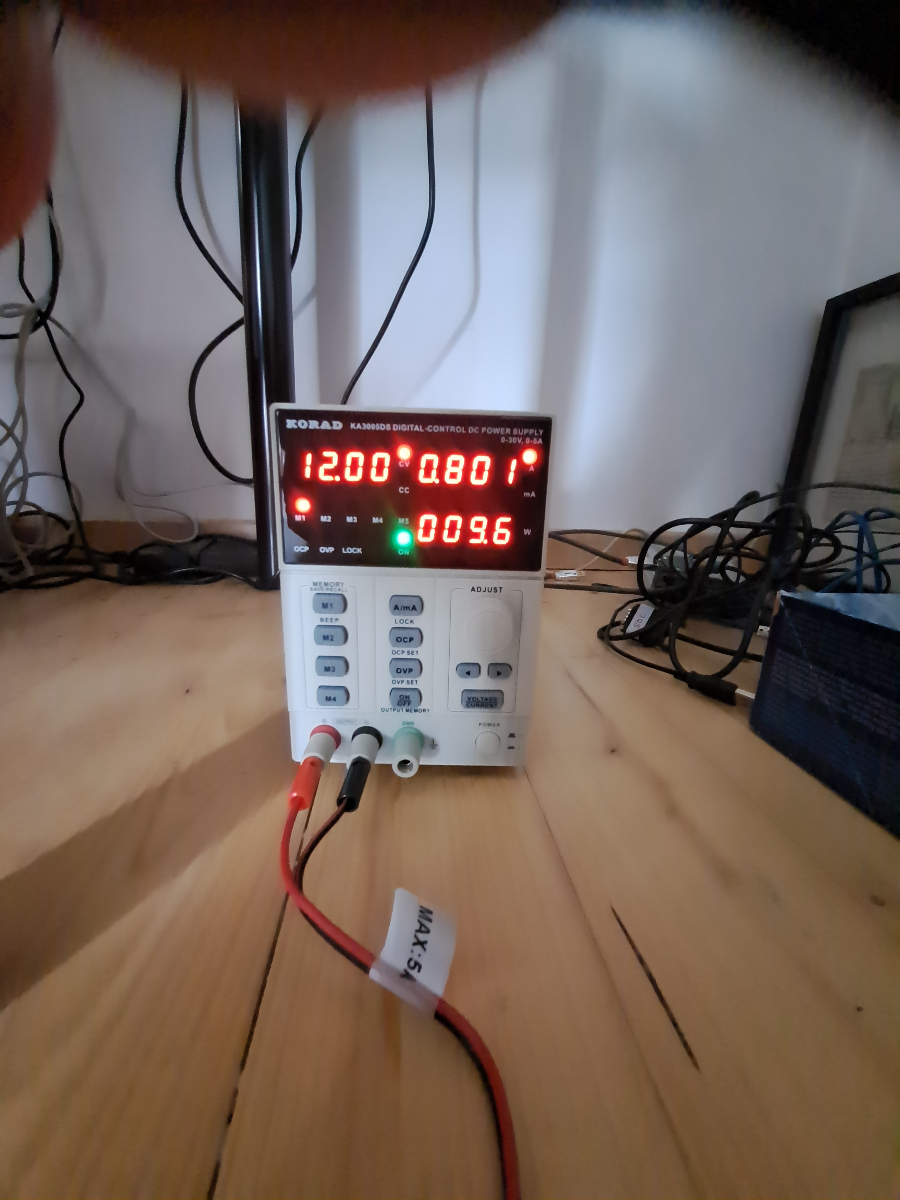

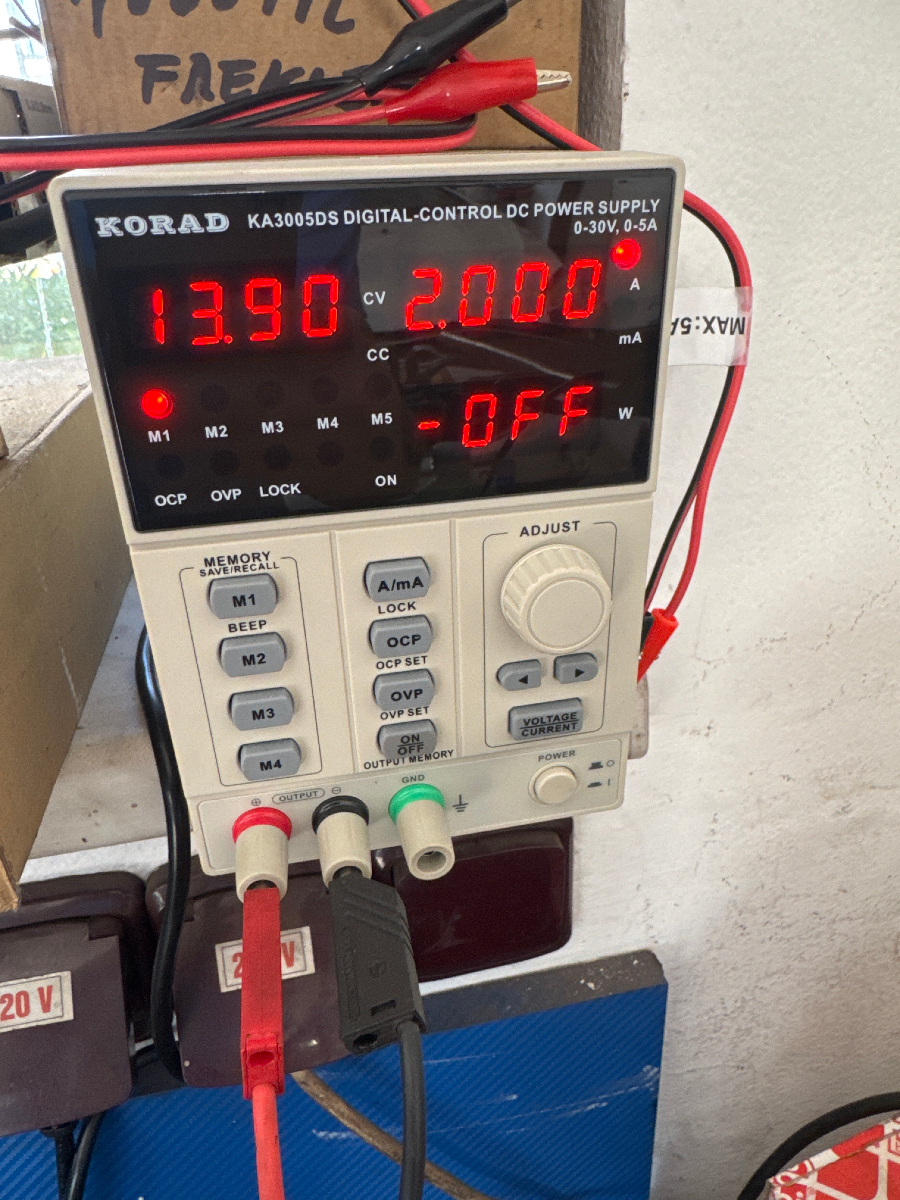

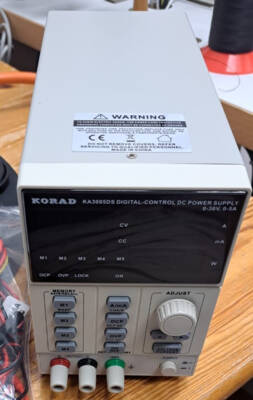

Korad KA3005DS laboratory power supply 0-30 V 5 A.
Main features of the laboratory power supply
- It has a clear LED display
- Equipped with a fan
- Low noise level
- It can work in two modes: CV - constant output voltage mode and CC - constant load current mode
- Measurement at 10 mV / 1 mA
- Possibility to program 5 different power supply settings thanks to the memory buttons
- Has high-reliability protection against too high current (OCP) and against too high output voltage (OVP)
- Equipped with an informative sound signal
Use of the power supply
- Industrial institutes
- Research institutes
- Laboratory equipment
- Electronics industry
- Education and schooling
- Hobbyist workshops
- Wherever precise power supply is required
Included in the set:
- Laboratory Power Supply KA3005DS Korad
- Banana-crocodile type test leads
- Power cord
- User manual
Technical specifications of the laboratory power supply
- Voltage range: 0V to 30V
- Current range: 0 V to 5 A
- Parameter adjustment
- Voltage: =< 0.01% +3 mV
- Current: =<0.1% +3 mA
- Parameter setting accuracy:
- Voltage: 10 mV
- Current: 1 mA
- Setting accuracy:
- Voltage: 0.5% +20 mV
- Current: 0.5% +5 mA
- Output voltage ripple:
- Voltage: +2mVrms
- Intensity: + 3 mArms
- Response time:
- Voltage rise: =< 100 ms (Rated load 10%)
- Voltage drop: =< 100ms (Rated load 10%)
- Dimensions: 262 x 110 x 160 mm
- Weight: 4.3 kg
