Laboratory power supply Korad KWR102 0-30V 0-30A
Single-channel laboratory power supply with full voltage regulation from 0 to 30 V and current from 0 to 30 A and a high resolution of 1 mV / 1 mA. The device has a programmable measurement memory.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Korad products. Korad is a respected maker of high quality laboratory power supplies known for precision, reliability and modern design. The company offers a wide range of adjustable supplies, ideal for electronics, automation and education. Korad products are valued by professionals and hobbyists for stable operating parameters and intuitive handling. Botland carries original Korad power supplies to give your projects a dependable source of power.
laboratory power supply KORAD KWR102 30 V 30 A
Single-channel laboratory power supply with full voltage regulation from0 to 30 Vand current from0 to 30 Aand a high resolution of 1 mV / 1 mA current measurement. It is characterized by maintaining a high power factor in the full range and the possibility of changing the voltage gradient increase.
Korad KWR102 - voltage rise characteristics over time.
CoradKWR102 - voltage variation characteristics over time, looped.
The device has a programmable measurement memory, which can be assigned to one of five buttons on the front of the device. KWR102 is small in size and generates little noise during operation.
Protection used in KWR102
- OVP - surge protection
- OCP - overload protection
- OVT - protection against excessive temperature
The power supply enables communication with other devices through interfaces
- LAN
- USB
- RS232

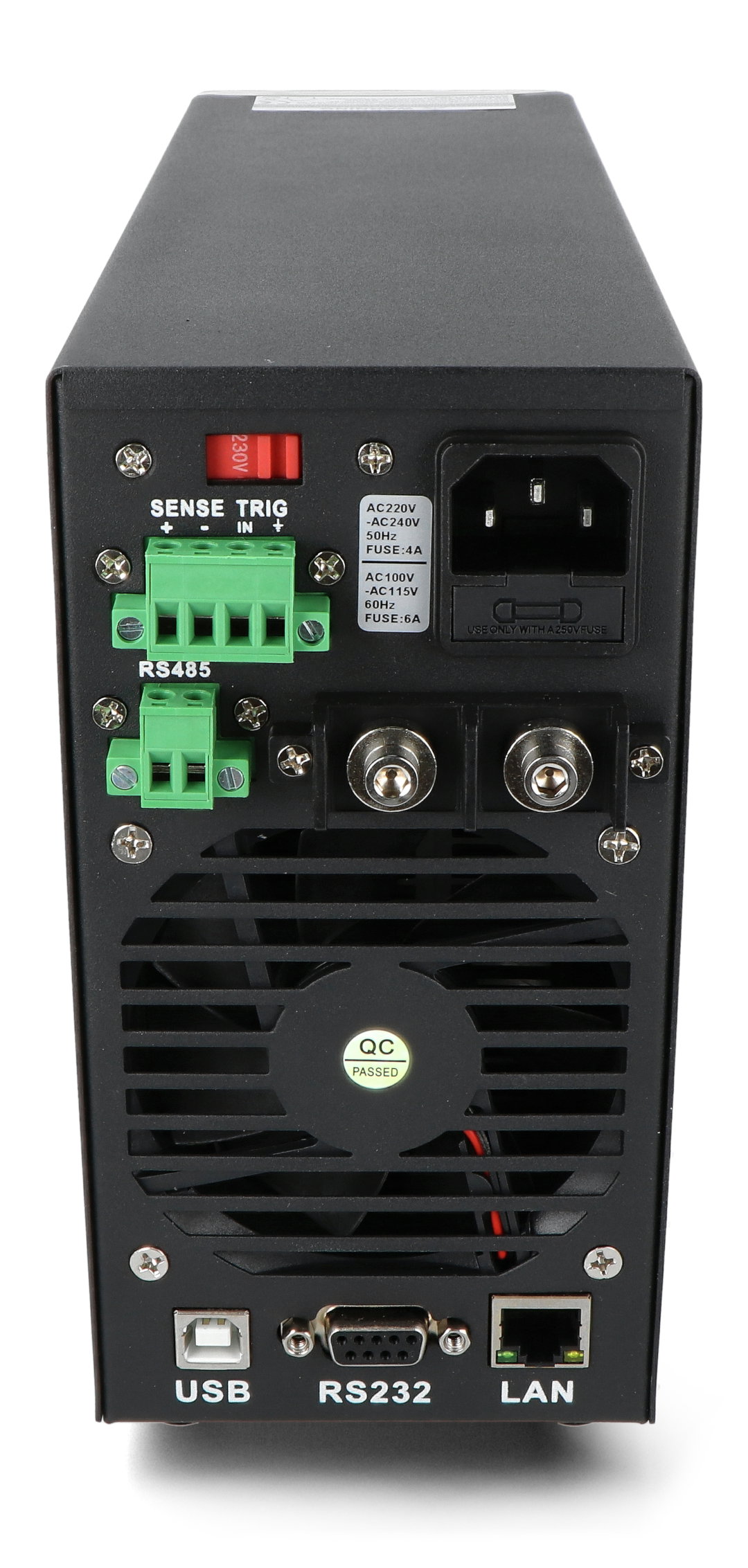

Communication connectors KORAD KWR102.
The power supply can be operated by means of LabVIEV.
Compatible with LabVIEV
The power supply works with LabVIEV software. The KWR102 can be controlled via the front panel of the device or through the software.
Specification of KWR102 Coradas
- Voltage range: 0 to 30 V
- Current range: 0 to 30 A
- Power: 300 W
- The modes of operation:
- C. V. - constant voltage at the output
- C. C. - constant load current
- Load adjustment:
- Voltage: < 0.01% + 1 mV
- The intensity: < 0.1% + 3 mA
- Line adjustment
- Tension: < 0.01% + 3 mV
- Intensity: < 0.1% + 3 mA
- Adjustment of settings:
- Voltage: 1 mV
- The intensity: 1 mA
- Read resolution:
- Voltage: 1 mV
- The intensity: 1 mA
- Working accuracy (at 25°C +/-5°C):
- Tensions: < 0.5% + 3 mV
- The intensity: < 0.5% + 3 mA
- Noise:
- Voltage: < 1 mVrms
- The intensity: < 5 mArms
- Time for the tension to build up:
- Tension build-up: < 50 ms
- Voltage drop: < 50 ms
- Weight: 2.2 kg
- Dimensions: 91,5 x 185 x 305 mm

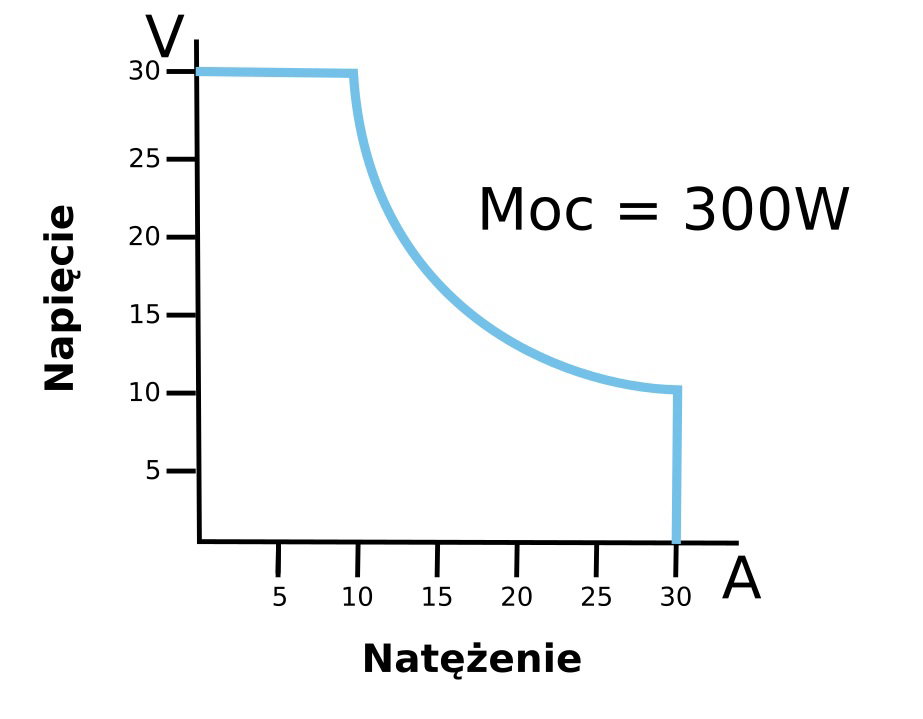

The operating range of the power supply.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 0 V |
| Output voltage to | 30.0 V |
| Nominal power | 300 W |
| Current | 30 A |
| Power supply - type | laboratory |
| Width | 40.5 cm |
| Height | 28.5 cm |
| Depth | 19.5 cm |
| Weight | 5.15 kg |
