Korad laboratory power supply KA3005PE 0-30V 5A

Index: KOR-25066 EAN: 5904422385965
The KA3005PE Korad laboratory power supply is an advanced and reliable device that provides precise power supply in various electronic applications . It allows voltage regulation from 0 V to 30 V and current up to 5 A. It works perfectly in laboratories, workshops and home electronic projects. Thanks to USB and RS232 ports, the power supply offers the possibility of remote control and convenient management of settings. The clear LED display provides information on the current voltage and current with precision up to 3 decimal places .
Korad laboratory power supply KA3005PE 0-30V 5A
€108.90
€88.54 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Korad

Product description: Korad KA3005PE 0-30 V 5 A laboratory power supply

The KA3005PE Korad laboratory power supply is an improved version of the KA3005P stabilized power supply designed for precise power supply in various electronic applications. It allows you to adjust the voltage in the range from 0 V to 30 V and current up to 5 A , providing stable and accurate power supply, ideal for laboratories, workshops and electronic projects at home. Equipped with USB and RS232 ports , it allows remote control and convenient management of settings. Additionally, it offers voltage compensation at the output terminals and precise indication of current intensity with an accuracy of 3 decimal places . The power supply is based on a transformer and has a large, legible LED display that constantly informs about the current voltage and load.

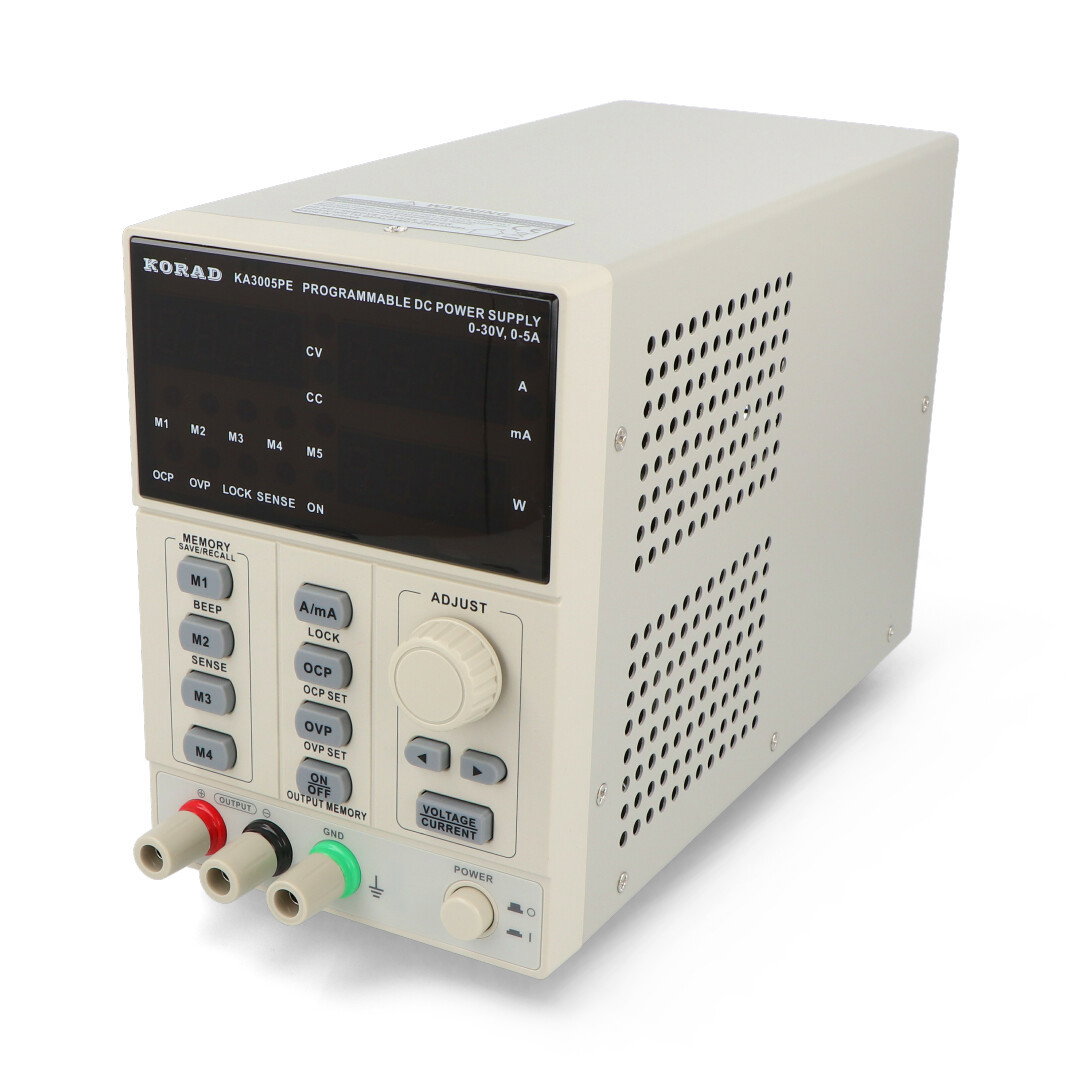

Korad KA3005PE Laboratory Power Supply Korad KA3005PE laboratory power supply 0 - 30 V 5 A.

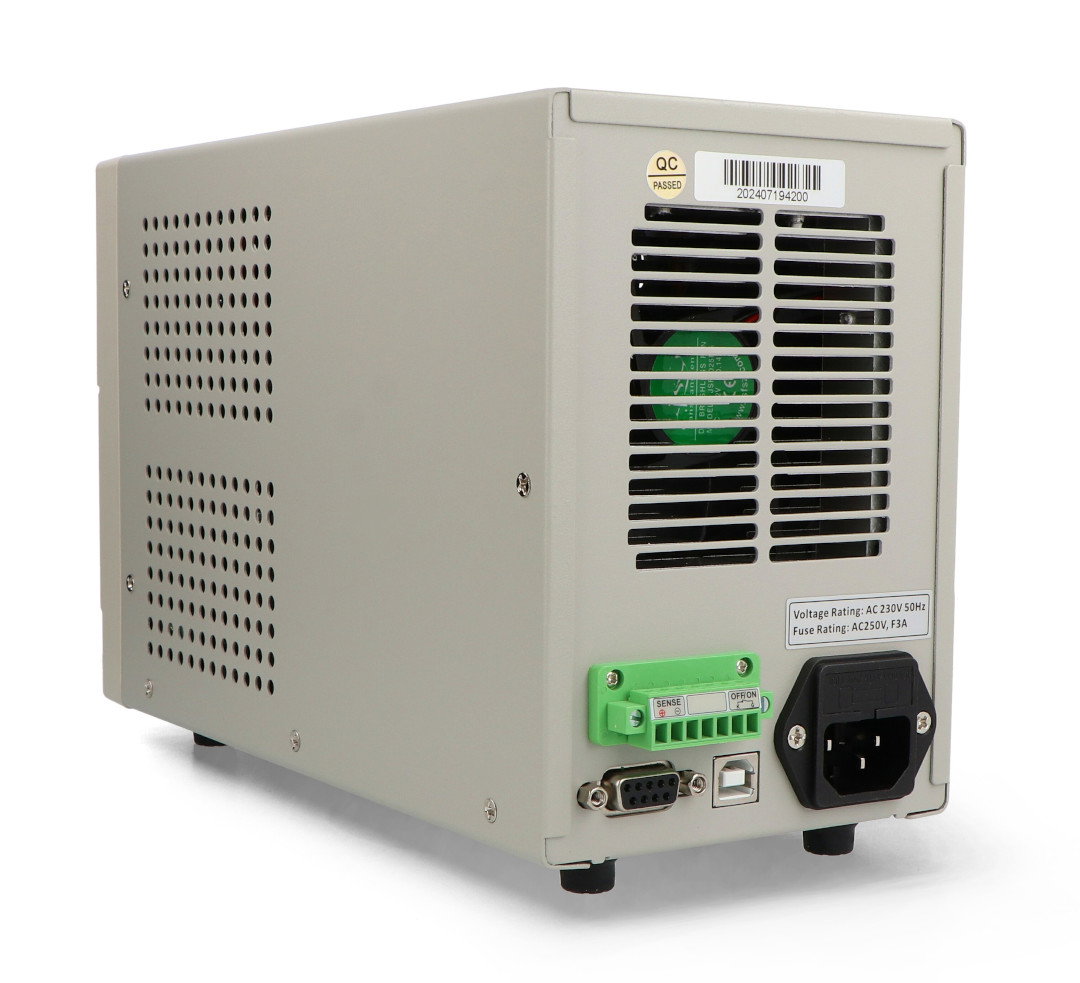

Korad KA3005PE Ports
The Korad KA3005PE power supply is equipped with RS232 and USB interfaces.

Key Features of the Korad KA3005PE Power Supply

  • Precision Output : Provides voltage regulation from 0 V to 30 V and current up to 5 A with a maximum current reading resolution of 0.1 mA, ensuring accuracy and stability.
  • Low noise : The cooling fan is temperature controlled, minimizing operating noise.
  • Digital control : enables intuitive operation via the digital panel and saving and recalling settings thanks to 4 pairs of memories.
  • Voltage compensation : The voltage compensation function at the output terminals provides additional precision in adjusting parameters.
  • Safety and protection : equipped with overvoltage and overcurrent protection with the possibility of setting parameters, protection against reverse polarity and short circuit.
  • Keypad lock : The keypad lock feature prevents accidental changes to settings.
  • Communication interfaces : enables remote control via USB and RS232 ports, which facilitates integration with computer systems.
  • Software calibration : allows you to precisely adjust and calibrate the device to your needs.

Power Supply Applications

The KA3005PE power supply is the perfect solution for:

  • Laboratories : testing and research of electronic components and systems.
  • Service workshops : diagnostics and repair of electronic equipment.
  • Hobby projects : powering and testing various electronic systems at home.

Kit Contents

  • KA3005PE Korad Laboratory Power Supply
  • USB cable
  • Power cord
  • User manual
Korad KA3005PE Laboratory power supply 0 - 30 V DC and 0 - 5 A.

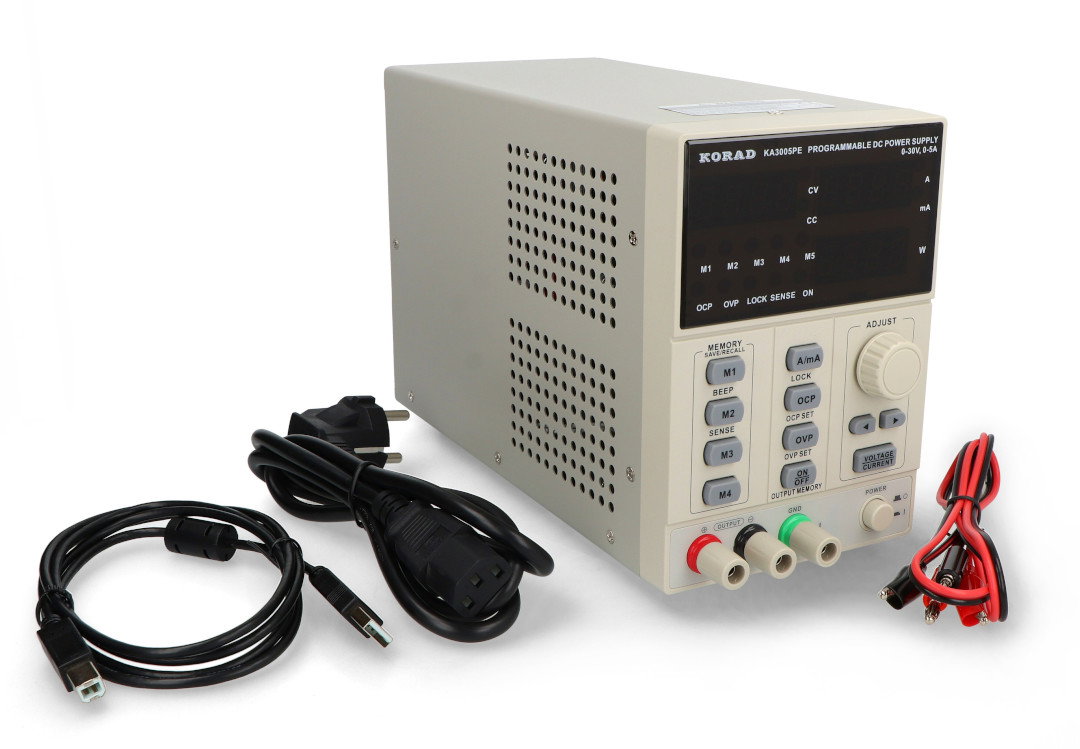

    Kit Contents Kit contents.

    Technical specifications of the laboratory power supply

    • Voltage range: 0V to 30V
    • Current range: 0 A to 5 A
    • RS-232 interface, USB interface
    • Load regulation
      • Voltage: =< 0.01% +2mV
      • Current: =< 0.1% +5 mA
    • Accuracy of parameter setting
      • Voltage: 10 mV
      • Current: 1 mA
    • Settings accuracy
      • Voltages: =< 0.5% +20 mV
      • Currents: =< 0.5% +5 mA
    • Output voltage ripple
      • Voltage: =< + 2mVrms
      • Intensity: =< + 3 mArms
    • Response time
      • Voltage rise: =< 100 mS (10% rated load)
      • Voltage drop: =< 100 mS (10% rated load)
    • Dimensions: 262 x 110 x 160 mm
    • Weight: 4.3 kg

    Voltage output from 0 V
    Output voltage to 30.0 V
    Current 5 A
    Power supply - type laboratory
    Package width 32 cm
    Package height 21 cm
    Package depth 25 cm
    Package weight 5.115 kg
