Description: Korad KWR103 60 V 15 A
Laboratory power supply unit allowing voltage regulation from 0 to60 V andcurrent from 0 to15 A.The single-channel KWR103 has a high current resolution factor: 1 mV / 1 mA and low ripple values at the output.

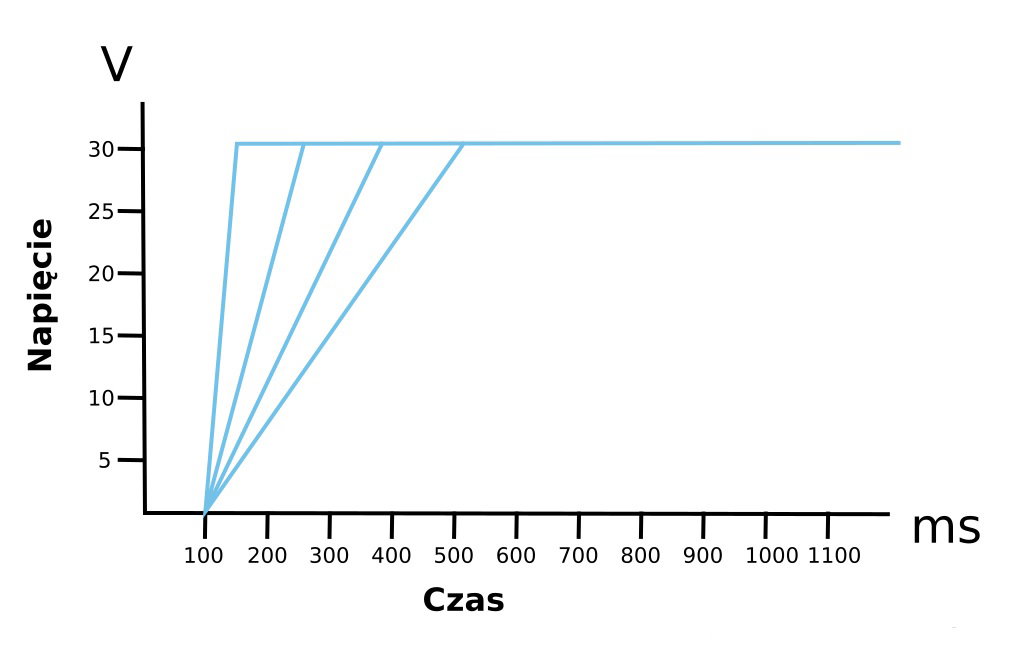

Korad KWR103 - voltage rise characteristics over time.

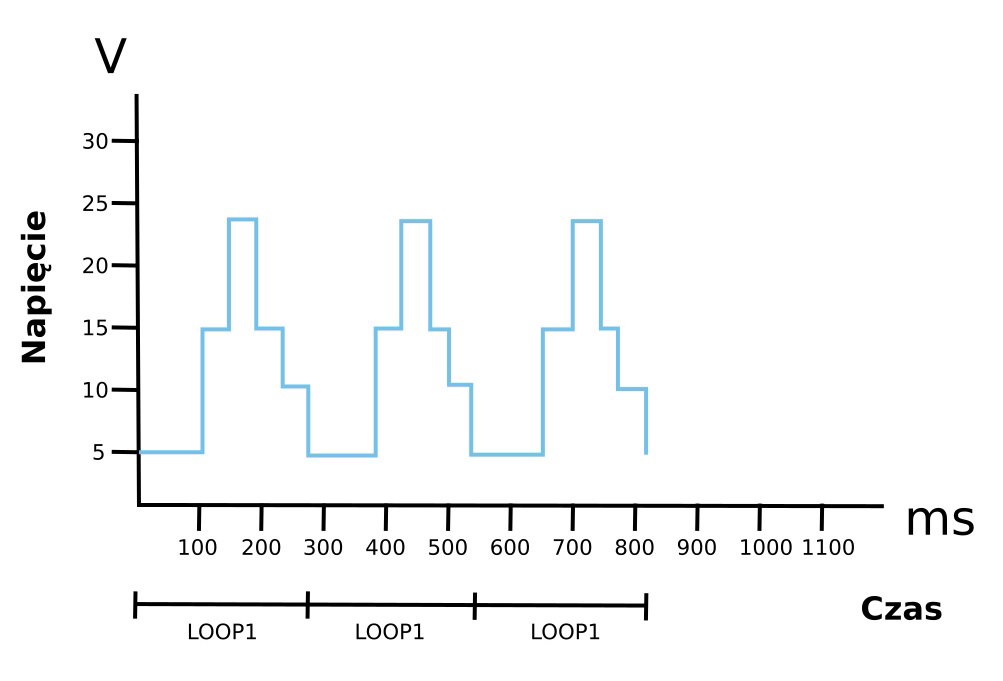

CoradKWR103 - characteristic of voltage changes over time,looped.
The device allows to store up to five operation settings, which can be assigned to one of the buttons on the front part of the housing. The power supply is small in size and does not produce excessive noise during operation.

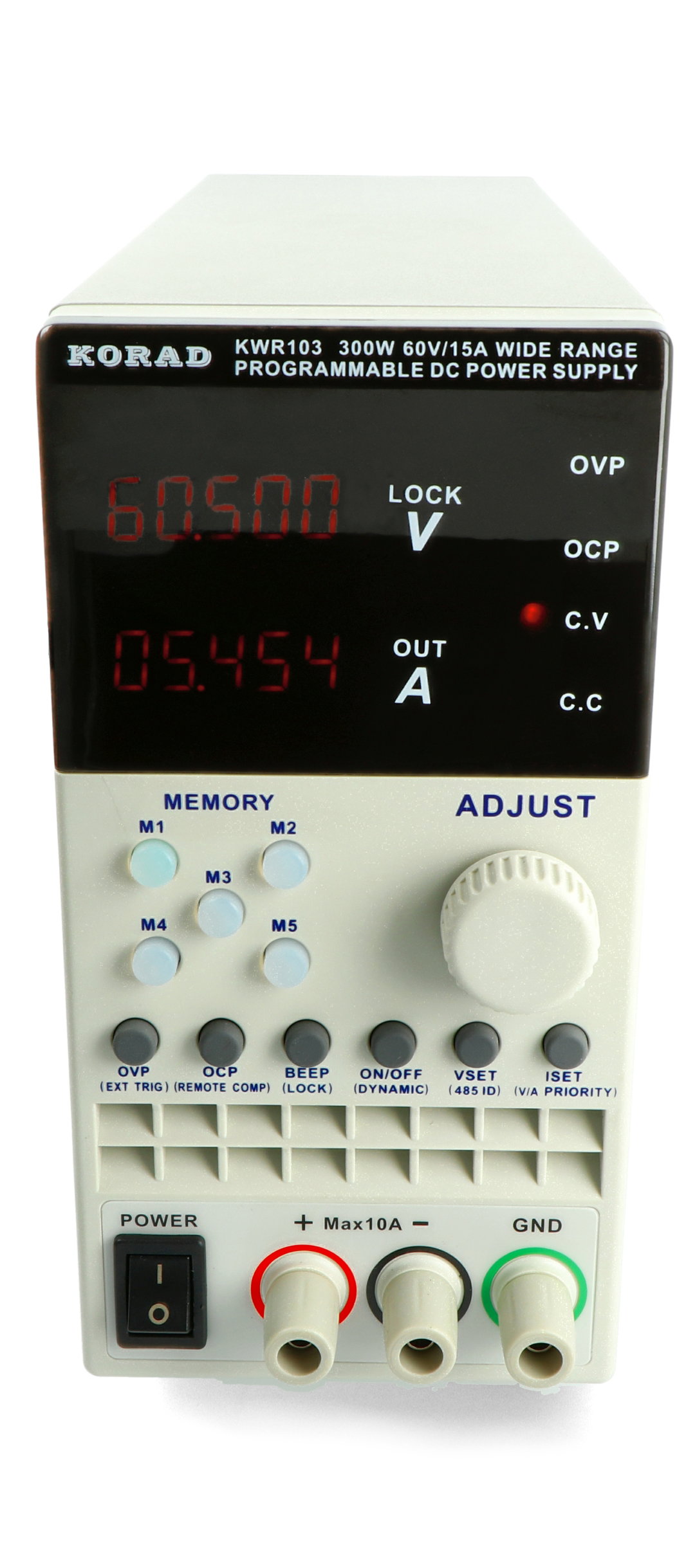

Korad KWR103. Otherlaboratorypower supplies are also available.
Protection used in KWR103:
- OVP - surge protection
- OCP - overload protection
- OVT - protection against excessive temperature
The power supply enables communication with other devices through interfaces
- LAN
- USB
- RS232

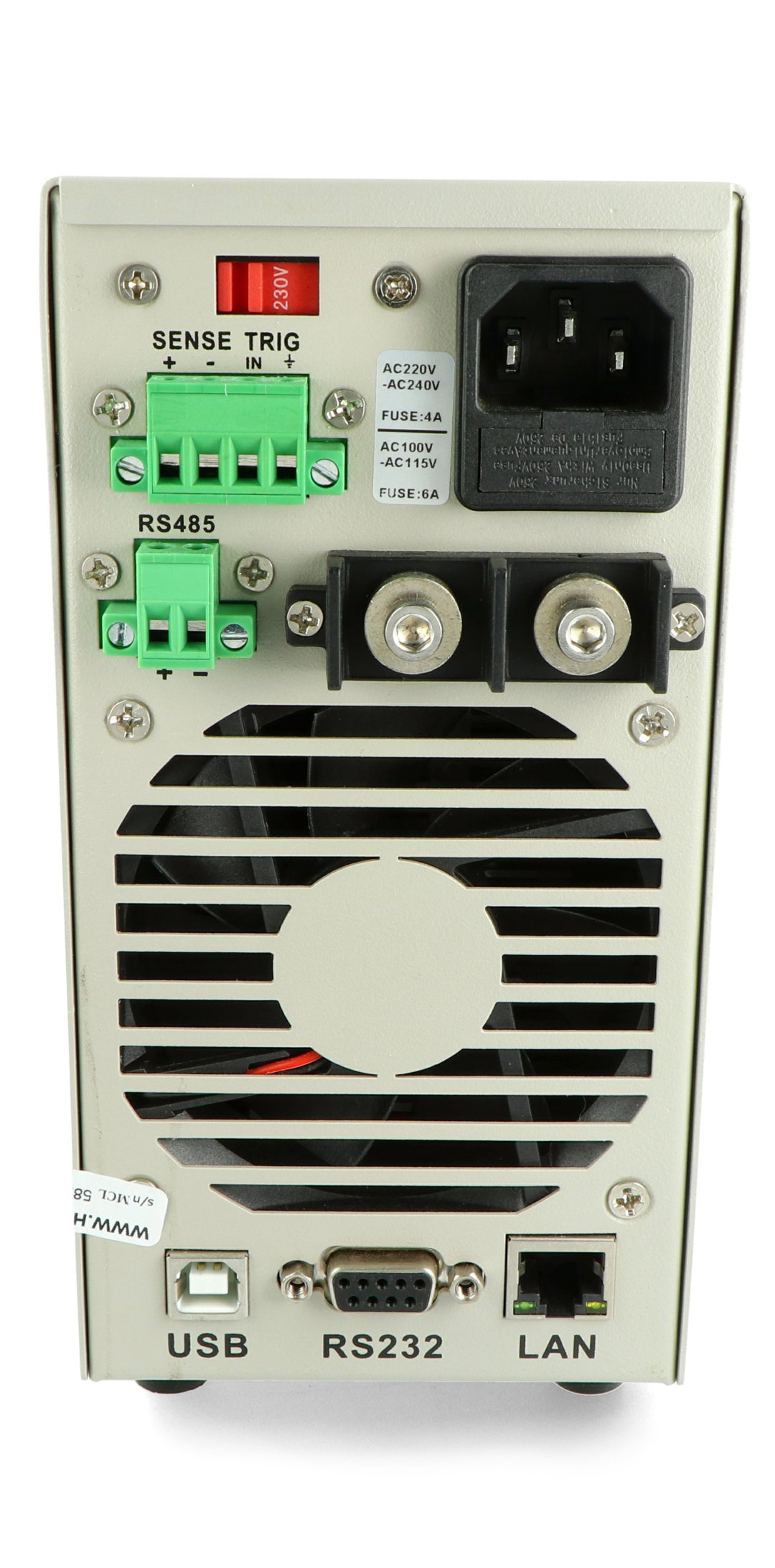

Korad communication connectors KWR103.
LabVIEV compatible
The power supply works with LabVIEV software. The KWR103 can be controlled via the front panel of the device or through the software.
The power supply is operated by LabVIEV.
Specification of KWR103 Coradas
- Voltage range: 0 to 60 V
- Current range: 0 to 15 A
- Power: 300 W
- The modes of operation:
- C. V. - constant voltage at the output
- C. C. - constant load current
- Load adjustment:
- Voltage: < 0.01% + 1 mV
- The intensity: < 0.1% + 3 mA
- Line adjustment
- Tension: < 0.01% + 3 mV
- Intensity: < 0.1% + 3 mA
- Adjustment of settings:
- Voltage: 1 mV
- The intensity: 1 mA
- Read resolution:
- Voltage: 1 mV
- The intensity: 1 mA
- Working accuracy (at 25°C +/-5° C):
- Tensions: < 0.5% + 5 mV
- The intensity: < 0.5% + 3 mA
- Noise:
- Voltage: < 1 mVrms
- The intensity: < 5 mArms
- Time for the tension to build up:
- Tension build-up: < 50 ms
- A drop in voltage: < 50 ms
- Weight: 2,2 kg
- Dimensions: 87 x 175 x 290 mm

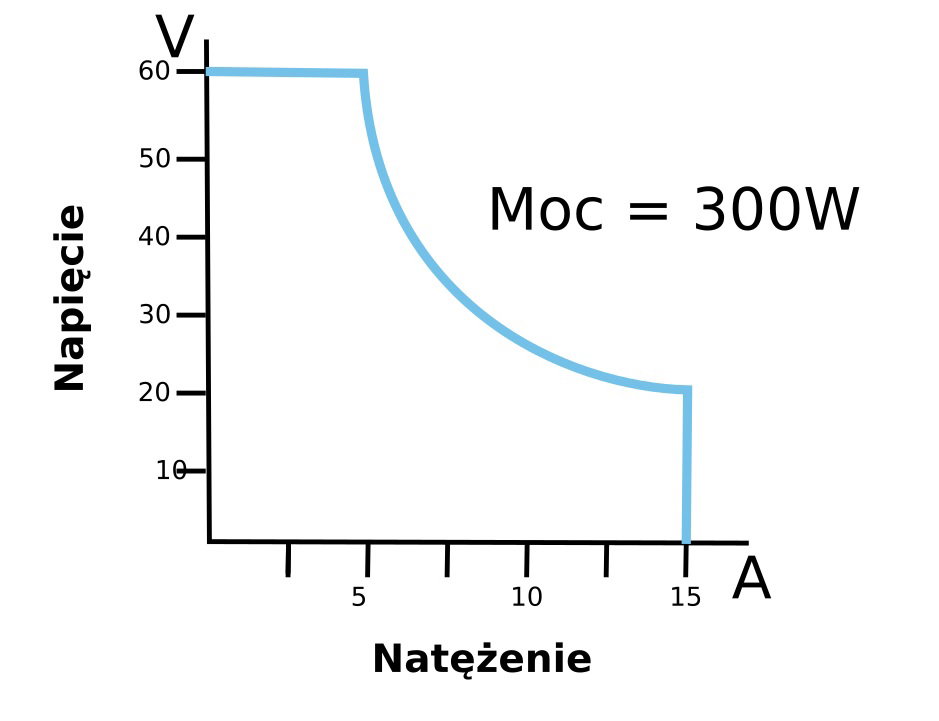

The operating range of the power supply.
Contents of the power supply kit
-
Korad KWR103
- Power cable
- USB cable
- RS232 cable
- Operating instructions

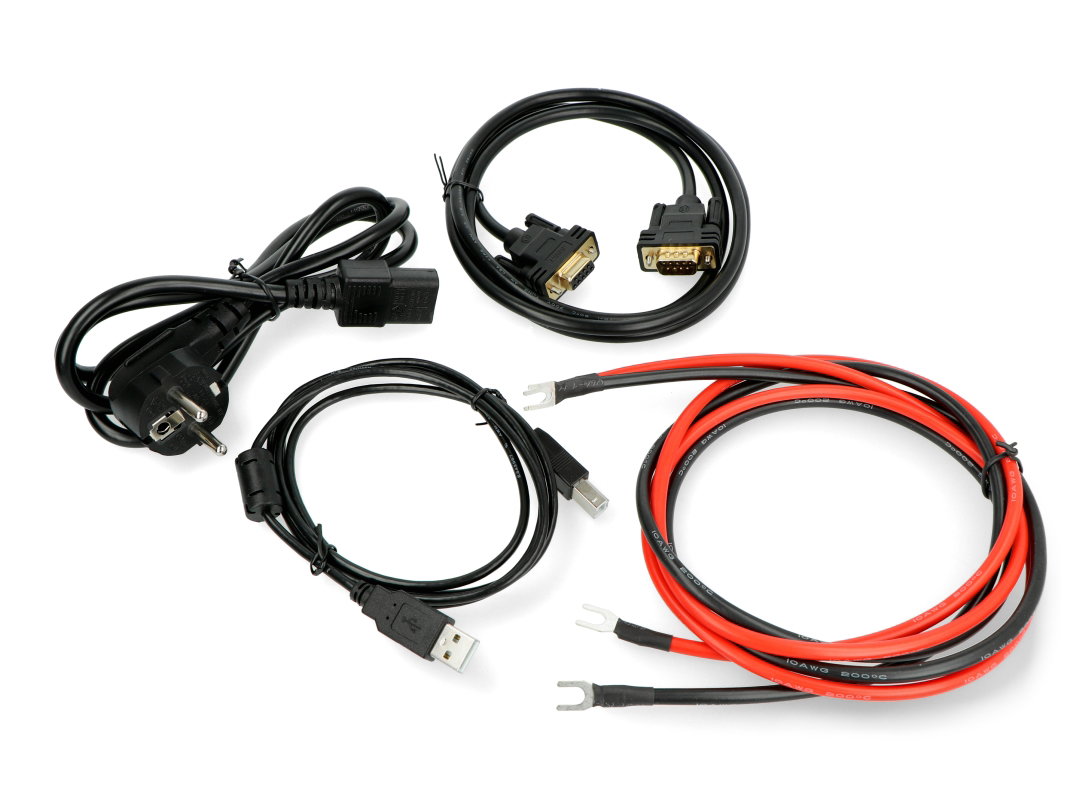

Cables included in the power supply kit.
