Product description: Grove - temperature and humidity sensor - SHT41 - Seeedstudio 101021033
The Grove SHT41 is a next-generation digital sensor based on Sensirion's industry-proven humidity and temperature sensors . It provides accurate measurements over a wide range and is characterized by high efficiency. The product is equipped with a new, optimized CMOSens chip. It provides lower power consumption and is powered by 3.3 V or 5 V. Its current consumption is 32 µA. The module has a Grove connector with an I2C interface, so it can be connected and work with most boards, such as Arduino and Raspberry Pi. The temperature measurement range is from -40°C to 125°C , with an accuracy of ±0.2°C, and humidity from 0% to 100% , with an accuracy of ±1.8%.

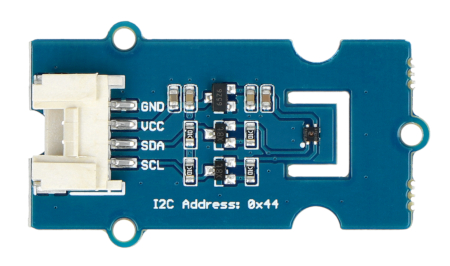

Grove - temperature and humidity sensor - SHT41 - Seeedstudio 101021033.

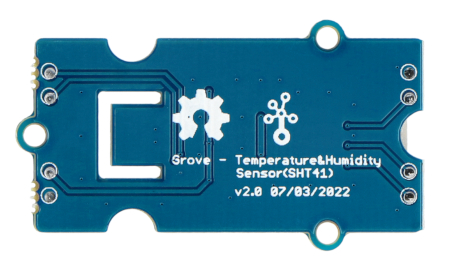

The sensor can be used to build intelligent thermostats.
Main features of the SHT41 sensor
- Humidity and temperature measurement
- Wide range of measurements
- High measurement accuracy
- Equipped with a new optimized CMOSens chip
- Based on Sensirion's SHT41 sensor
- Low energy consumption
- 4 pin interface
- Compatible with the Grove system - plug and play
The product is compatible with Arduino and Raspberry Pi
The manufacturer provides a user's guide that makes getting started with the sensor much easier.
Using the SHT41 sensor
- Weather stations
- Smart thermostats
- Air conditioning systems
- Automation of production processes
- Smart Home solutions
Kit contents
- Grove - temperature and humidity sensor - SHT41 - Seeedstudio 101021033
- Grove cord

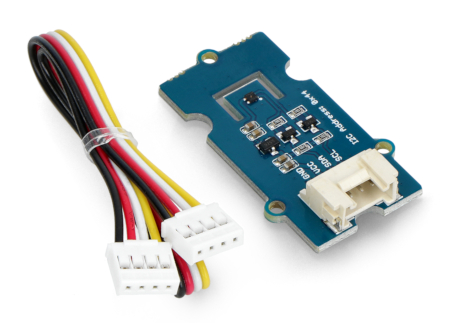

Components included in the set.
The module is equipped with a new, optimized CMOSens system.
Technical specification of the SHT41 sensor
- Layout: SHT41
- Operating voltage: 3.3 V or 5 V
- Interface: I2C
- I2C address: 0x44
- Temperature measurement:
- Range: -40°C to 125°C
- Accuracy: ±0.2°C
- Moisture measurement:
- Range: 0% to 100%
- Accuracy: ±1.8%
- Dimensions: 20x40mm
