Product description: E-paper E-Ink - SPI display module - 128 x 80 px 1,02'' - bicolor - Waveshare 17575
E-paper E-Ink display module manufactured by Waveshare. It has built-in controller which uses SPI bus to communicate with external controllers like Arduino or Raspberry Pi. The screen diagonal is 1.02" and the resolution is 128 x 80 px. The display presents the image in two colors - black and white. It is an ideal choice for applications such as shelf label or location identifier.

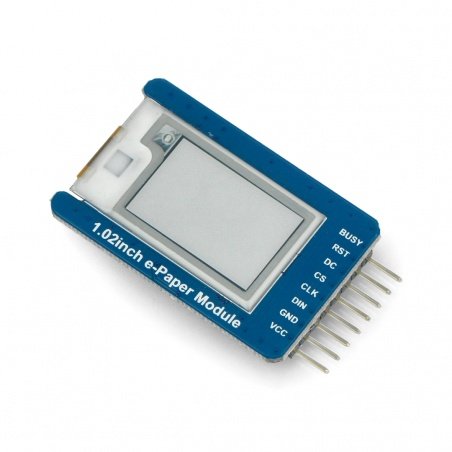

E-paper E-Ink - SPI display module from Waveshare.
The product is compatible with popular microcontrollers which include Arduino, Raspberry Pi, Jetson Nano or STM32 among others. The manufacturer also provides a Product Wiki Page that makes it much easier to get started with the component.

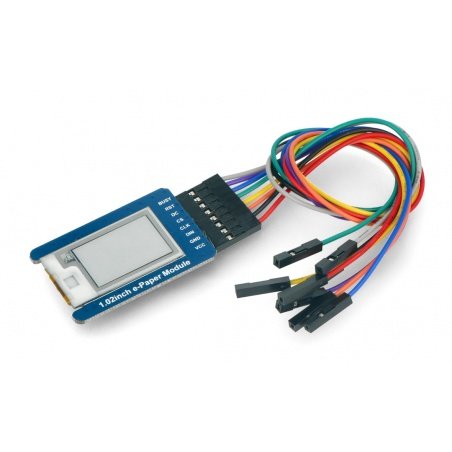

The kit includes a dedicated connection cable.Special features
- Made in E-paper E-Ink technology, displays an image in two colors
- The display has no additional backlight, and the last read value is presented for a long time after the power supply is disconnected
- The module is characterized by low power consumption
- Built-in voltage translator, compatible with 3.3V / 5V MCU

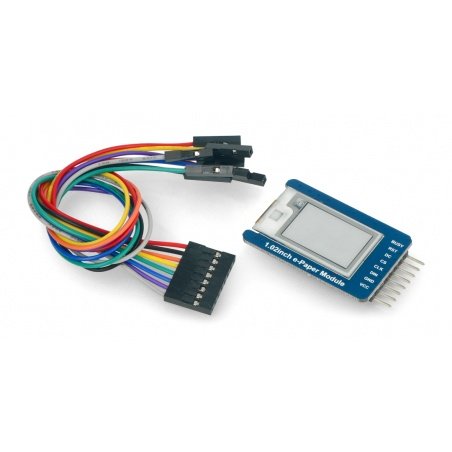

Contents of the kit
- E-paper E-Ink display module
- 8-pin connection cable

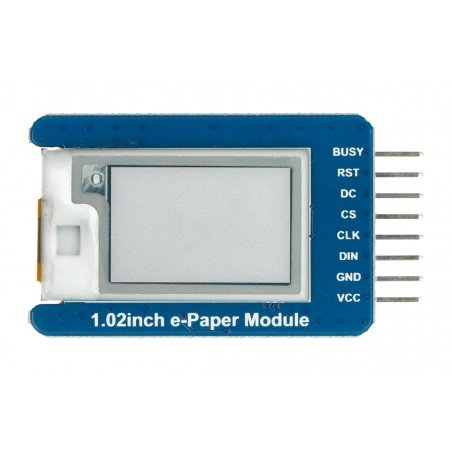

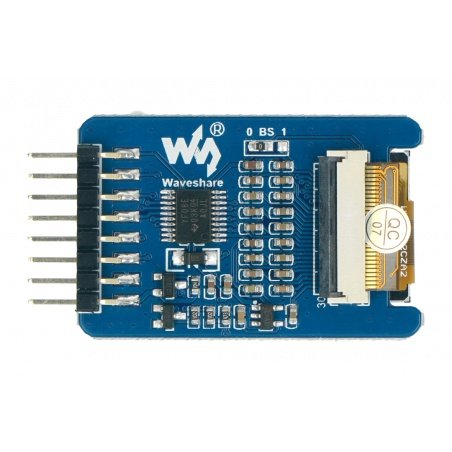

Pinout description
- BUSY - busy state output
- RST - external RESET pin
- DC - data / command select pin (data - high state; command - low state)
- CS - chip select SPI interface
- CLK - SPI bus clock pin
- DIN - SPI bus MOSI data pin
- GND - chip ground
- VCC - supply pin 3.3 V / 5 V
The module has pins with markings, which should be connected according to described dependencies.
Dimensions of the module are 42 x 27 mm.Technical specification of the module
- Type: SPI display
- Technology: E-paper E-Ink
- Supply voltage: 3.3 V / 5 V
- Communication interface: SPI 3-wire / SPI 4-wire
- Display resolution: 128 x 80 px
- Diagonal: 1.02"
- Pixel size" 0.175 x 0.17 mm
- Displayed colors: black and white
- Grayscale: 2
- Full refresh time: 2 s
- Refresh power: 26.4 mA
- Viewing angle: > 170°
- Display dimensions: 21.76 x 14 mm
- Module dimensions: 42 x 27 mm
