Product description: Two Trees TTC3018S CNC milling machine
The Two Trees TTC3018S CNC milling machine is a compact yet powerful tool for engraving and cutting materials such as wood , plastic, acrylic or PVC. The device supports 2.4 GHz WiFi technology, enables precise cutting with an accuracy of 0.1 mm and reaches an engraving speed of up to 1500 mm / min . The construction based on aluminum, bakelite and acrylic ensures stability, and the built-in TF card support and USB port guarantee convenience of use. Integrated safety features, such as an emergency stop switch and a motherboard cover , make the TTC3018S a reliable and safe tool for any workshop.

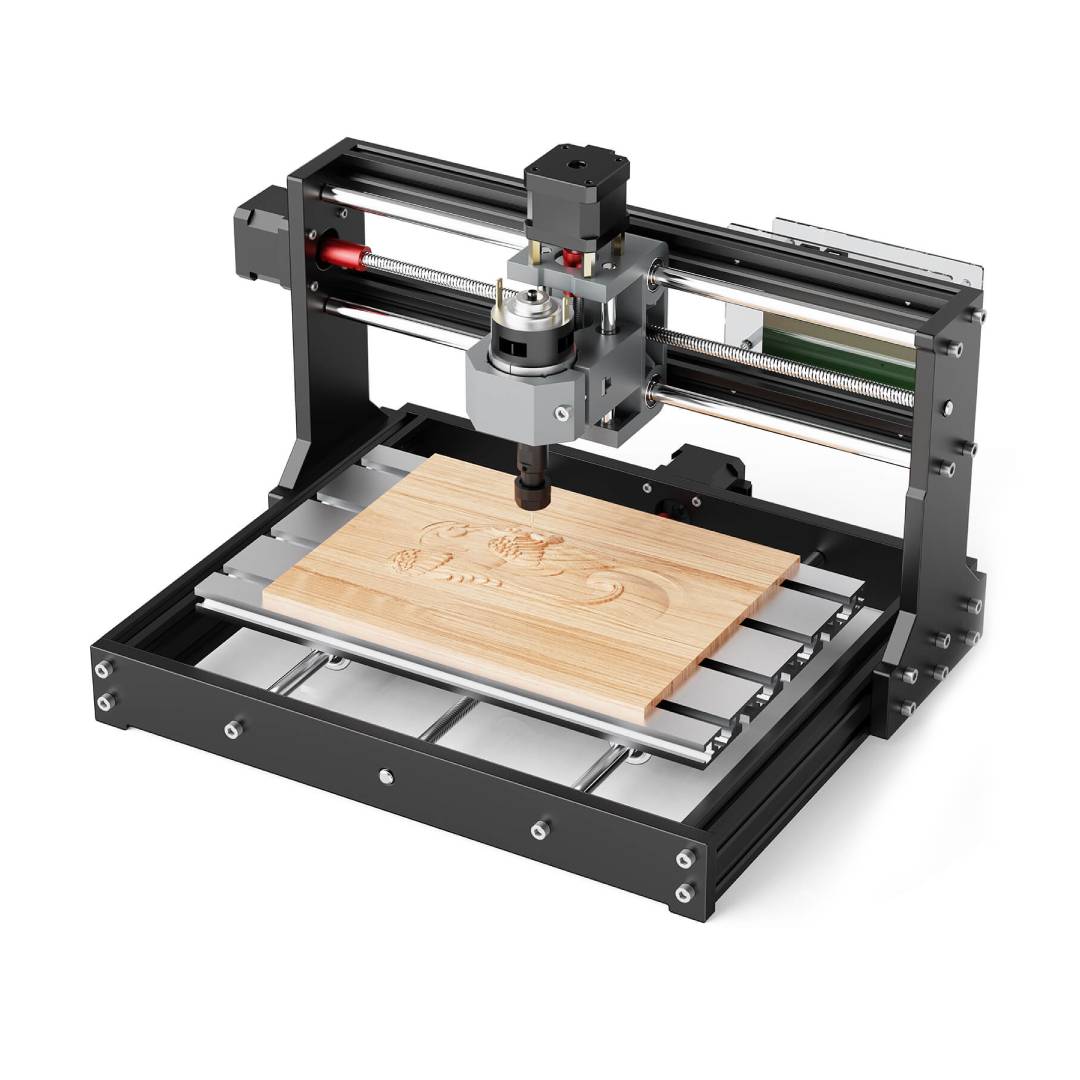

Two Trees TTC3018S CNC milling machine.

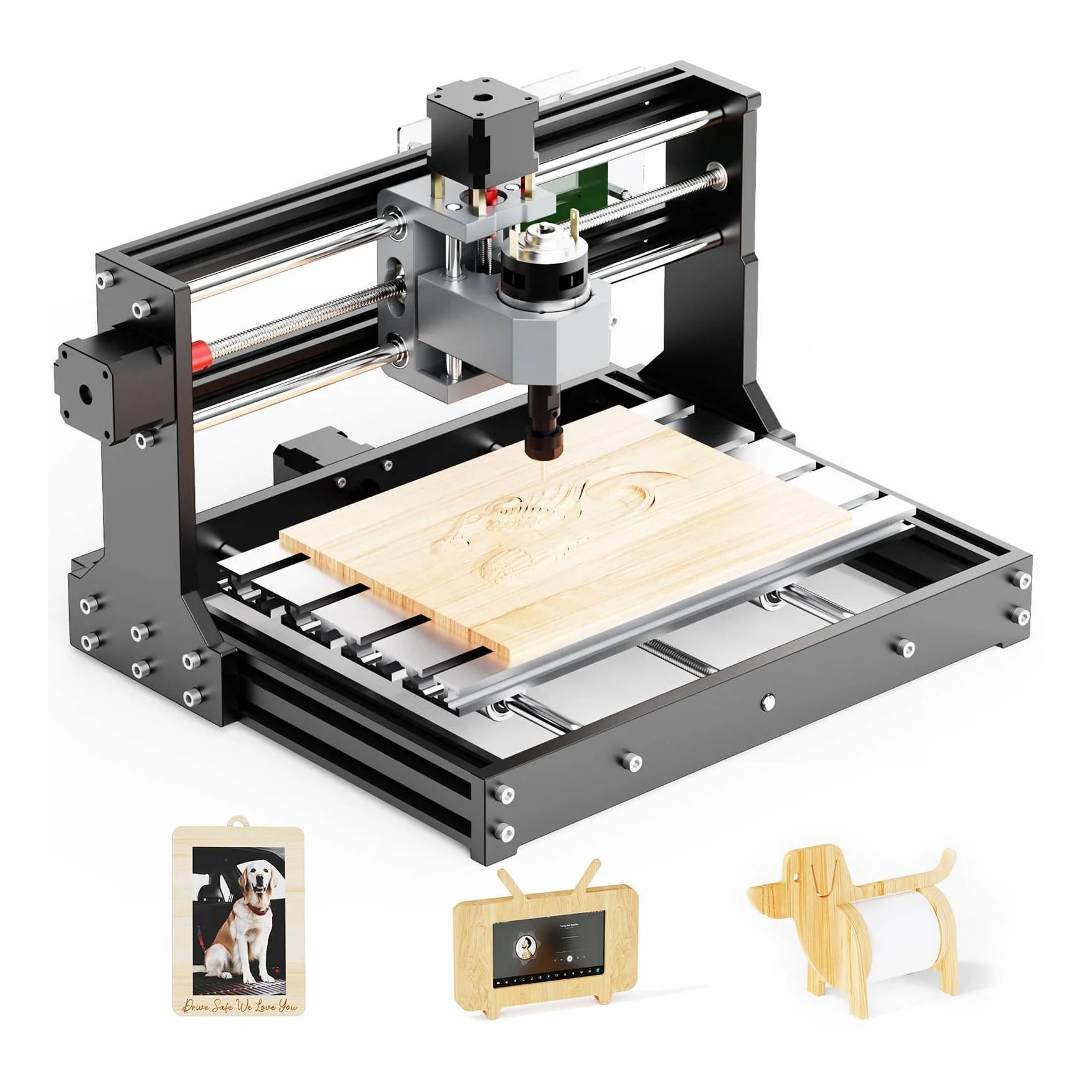

Supports engraving and cutting on various materials such as plastic, wood, acrylic, PVC, PCB and more.
Main features of the milling machine
- CNC and laser multifunctionality : enables engraving and cutting of soft materials
- Working area : 300 x 180 x 40 mm - ideal for most hobby and semi-professional projects
- Engraving precision : up to 0.1 mm - high accuracy of operation
- Stable construction : aluminum-acrylic frame with bakelite elements
- System support : Windows XP, 7, 8, 10
- Easy installation : threaded holes in the frame eliminate the need for T-nuts
- Safety : Built-in emergency stop switch and motherboard shield
- Communication : 2.4 GHz WiFi and USB port, and TF card support
Compact dimensions and solid construction
TwoTrees TTC3018S is a compact device with dimensions of 420 x 355 x 280 mm , which will easily fit even in a small workshop or office. Thanks to the use of durable materials - aluminum, bakelite and acrylic - the entire structure is not only lightweight ( 6.4 kg ), but also vibration-resistant , which translates into higher engraving quality.
Wide system compatibility
The milling machine is compatible with Windows (XP, 7, 8, 10) and Linux operating systems , making it a versatile tool for individual users and professionals. The TTC3018S supports popular software languages , including English, German, Spanish, Portuguese, French, Russian, Italian, Japanese, Chinese, Korean and Turkish.
The compact dimensions make it suitable for small workshops and home use.

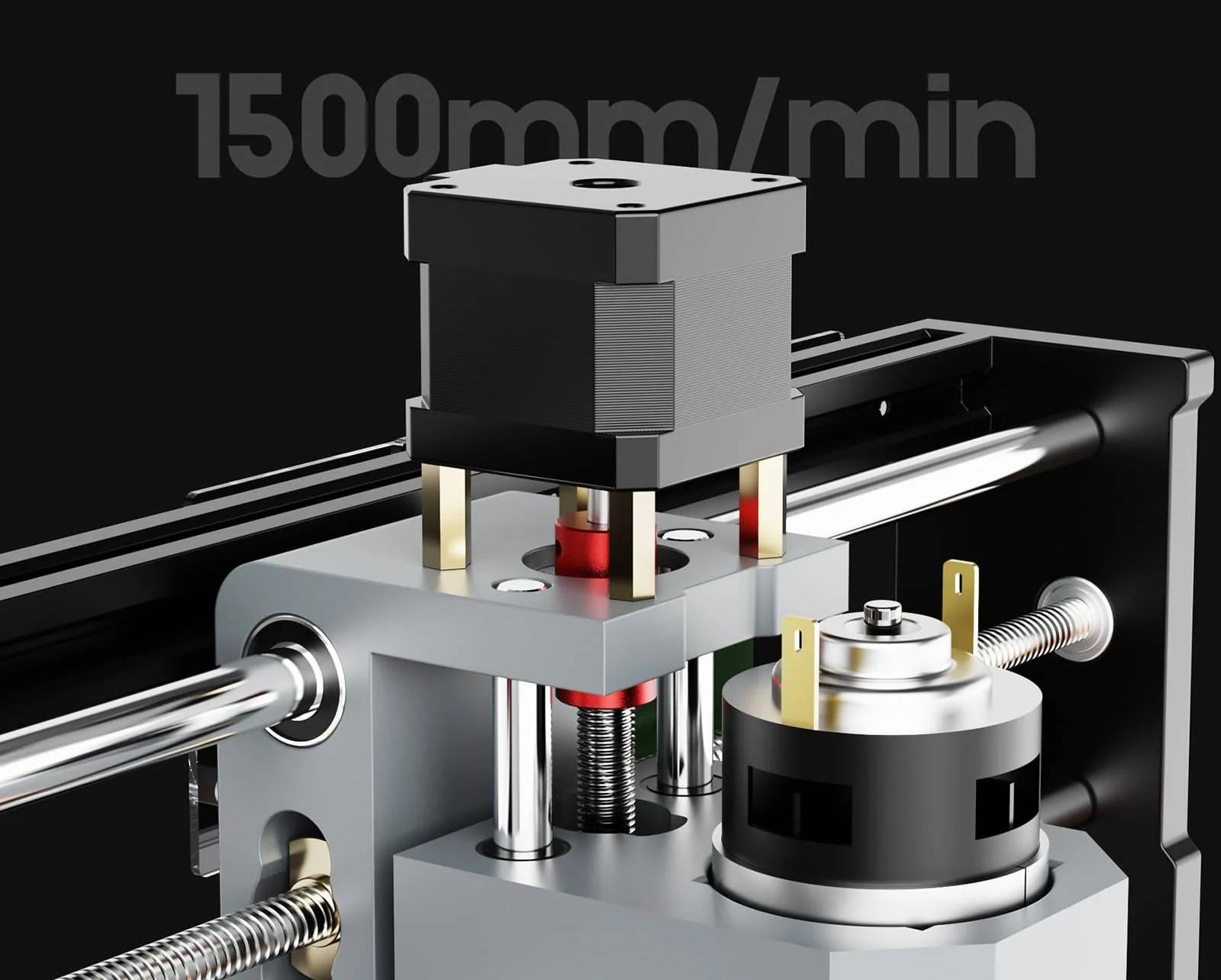

The use of advanced control systems guarantees high precision and perfect quality of each engraving.
| Technical specifications of the Two Trees TTC3018S CNC milling machine | |
|---|---|
| Model | TTC3018S |
| Work area | 300mm x 180mm x 40mm |
| Positioning accuracy | 0.1mm |
| Engraving accuracy | 0.1mm |
| Maximum engraving speed | 1500 mm/min |
| Maximum acceleration | 10mm/s² |
| Spindle type | 775 (12V to 24V), 7000 / 9000 rpm |
| Stepper motor torque | 1.3A / 0.25N m |
| Power supply | 24V 4A |
| Communication | WiFi 2.4GHz, USB, TF card |
| System Compatibility | Windows XP/7/8/10 Home version |
| Software languages | Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, Turkish |
| Supported software | Candle |
| Construction material | aluminum + bakelite + acrylic |
| Dimensions | 420mm x 355mm x 280mm |
| Mass | 6.4kg |
