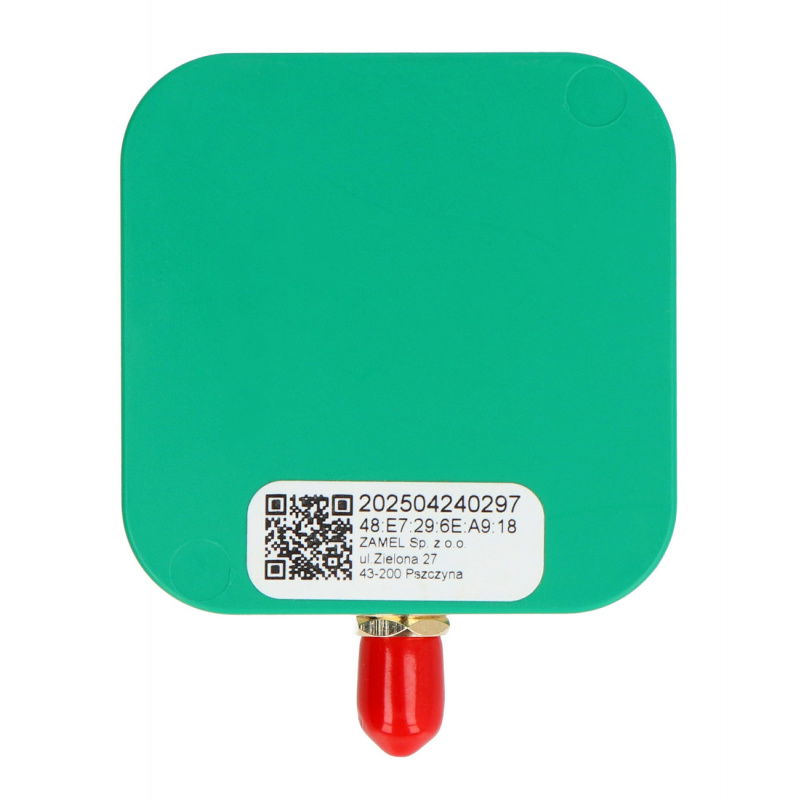

Product description: Zamel Supla SBW-02/ANT - 2-channel bi-directional 12V/24V WiFi gate controller with external antenna - Android/iOS application
The SBW-02/ANT gate controller fromZamel Supla is an advanced gate automation solution that connects to the Supla mobile app , enabling full control of your gate or wicket from anywhere. The device is compatible with any gate drive and can be mounted directly to the drive or in a 60mm diameter junction box. An external antenna is also included, providing improved signal range for devices located far from the router. With a universal power supply from 12V to 24V AC/DC , the SBW-02 is versatile and easy to integrate with various systems. The controller is equipped with two independent channels , allowing you to control two devices (e.g., a gate and a wicket) or two gates. By connecting signals from limit switches , you can monitor the gate's opening and closing status.
Zamel Supla SBW-02/ANT - 2-channel bi-directional 12V/24V WiFi gate controller with external antenna - Android/iOS application.
The SBW-02/ANT gate controller from Zamel Supla is an advanced solution for gate automation that connects to the Supla mobile application.
Special features
- Dual-channel control : allows independent control of two devices, such as a gate and a pedestrian gate
- Remote control : the device works with the Supla mobile application, which allows you to manage the gate from anywhere in the world - all you need is internet access
- WiFi 2.4 GHz : the controller uses the popular wireless network standard, so it does not require any additional devices or modules for communication
- External RP-SMA antenna : the use of an external antenna provides better WiFi signal range, which is especially important in places with limited coverage, such as garages or gates far from the router
- Universal power supply : the device supports voltage from 12 V to 24 V AC or DC, which makes it compatible with most gate operator installations available on the market
- Limit inputs : the possibility of connecting limit switches allows monitoring the gate status - the user receives information whether the gate is open, closed or in motion
- Installation in a Ø60 mm box : the compact dimensions of the housing enable easy installation of the device directly in a typical installation box
Technical specifications of the controller
- Power supply: from 12 V to 24 V AC/DC
- Power frequency: 50/60 Hz (for AC)
- Max power consumption: 0.6 W
- Transmission: WiFi 2.4 GHz, b/g/n standards
- Number of inputs: 2
- Number of relay outputs: 2 x NO (3 A / 24 V AC)
- Antenna connector type: RP-SMA (external antenna included)
- Number of terminals: 8 (wires up to 2.5 mm²)
- Operating temperature: -20°C to 55°C
- Degree of protection: IP20
- Dimensions: 59 x 47.5 x 20 mm
- Weight: 90 g

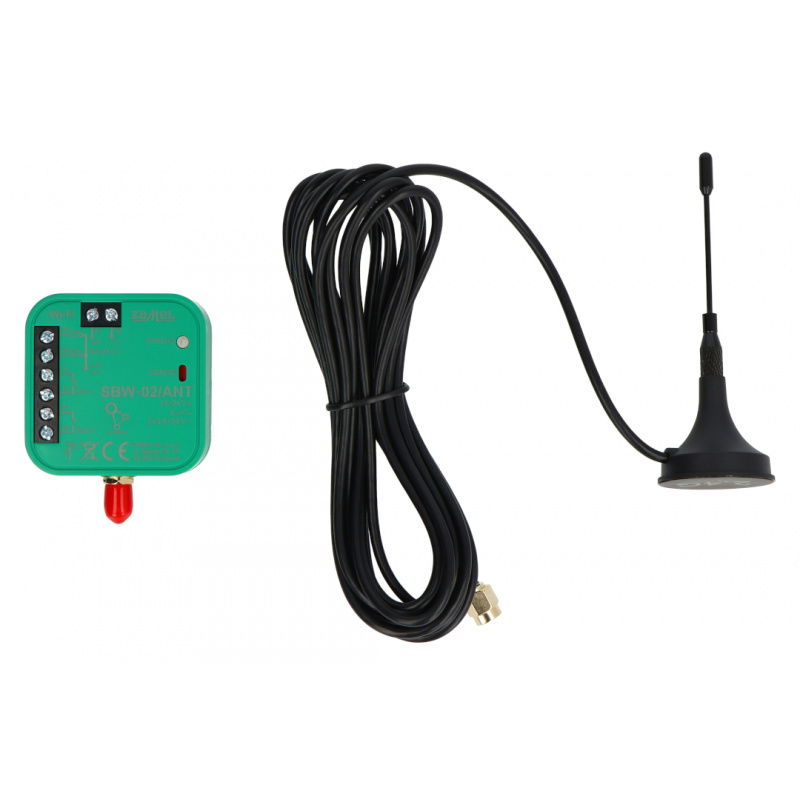

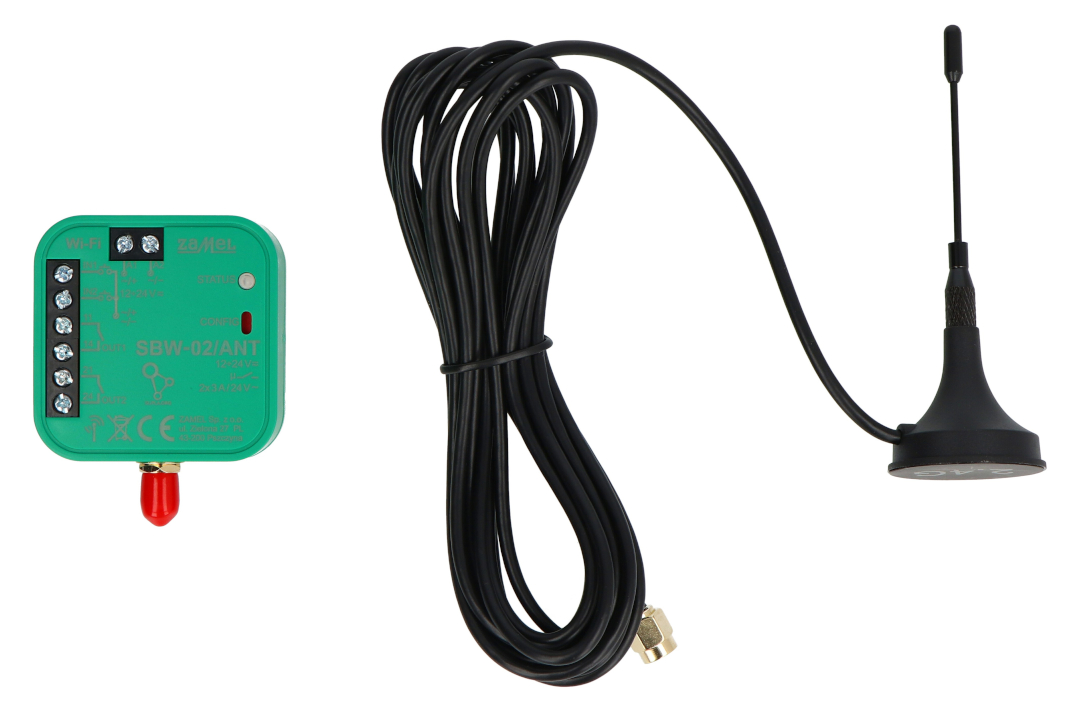

Contents of the set
- 2-channel WiFi controller SBW-02/ANT
- RP-SMA external antenna
Thanks to the possibility of connecting signals from limit switches, you can monitor the opening and closing status of the gate.
