Description

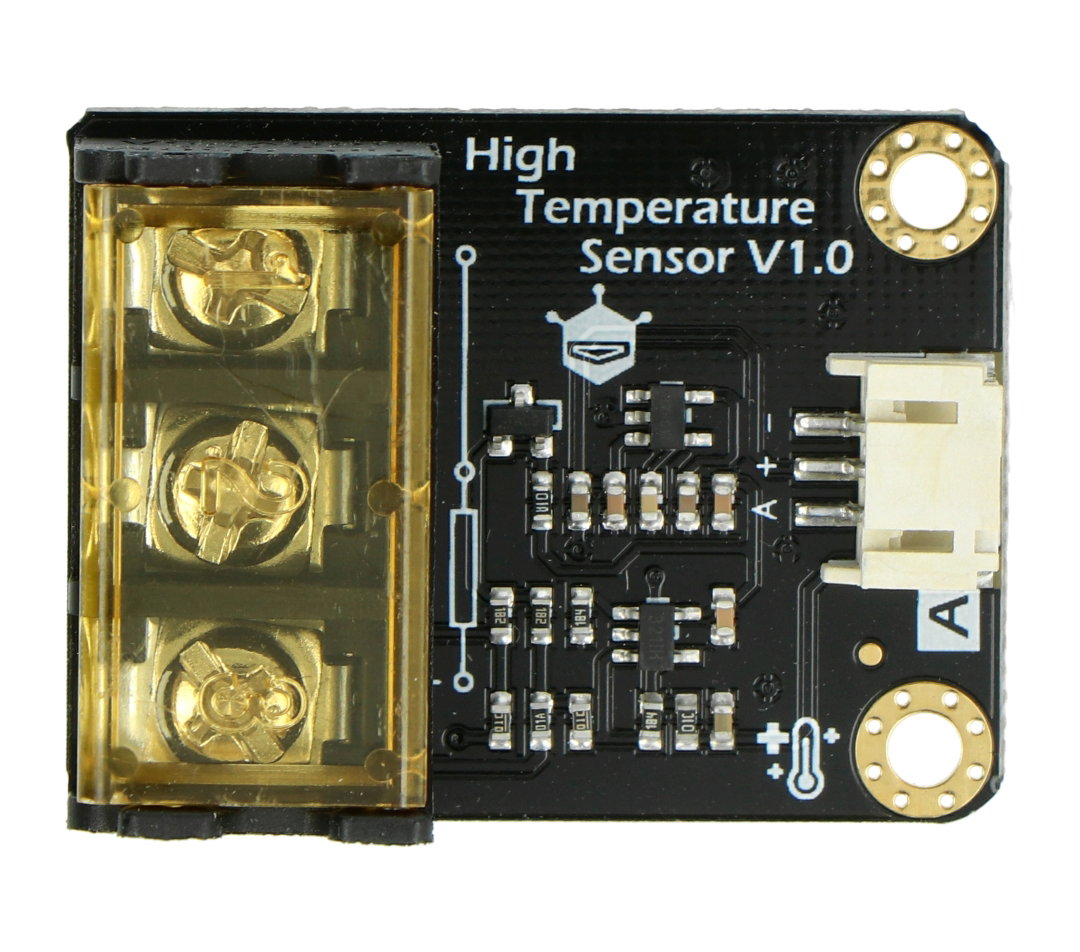

Analog sensor of the high temperature, operating in the range from 30°C to 350°C. It is powered with a voltage of 3.3 V to 5.5 V. The kit has a PT100 probe and cable adapted for the Gravity DFRobot IO Expansion Shield.
|
The product is compatible with Arduino Sample code and detailed information can be found inthe user guide. |
Connection
The output is an analog voltage signal proportional to the measured acceleration. The sensor can be controlled using any microcontroller with the analog-digital converter, for example, a set ofArduinoorSTM32Discovery.
Example of connecting the sensor withArduino.
Specification
- The main module
- Supply voltage: from 3.3 V to 5.5 V
- Analog voltage of the output: from 0.2 V to 2.8 V
- Working temperature: from 30°C to 350°C
- Waterproof: not
- Cable for connection toGravity DFRobot IO Expansion Shield
- Dimensions: 42 x 32 x 18 mm
- Probe PT100
- Operating temperature: -20°C to 400°C
- Accuracy: 0.5°C
- Cable length: 2 m
- Waterproof: Yes
Set includes:
- The main module
- Probe with the wire
- Connecting wire withGravity DFRobot IO Expansion Shield
