Magnetic sensor to open door/window - reed contact CMD19

Index: SES-03130 EAN: 5904422373627

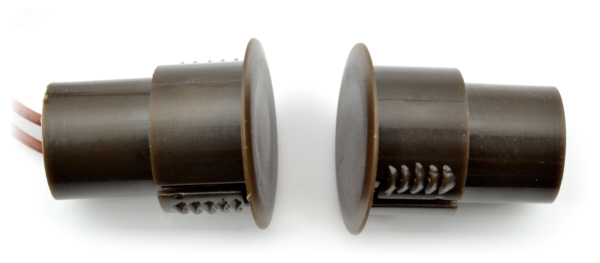

Wired proximity sensor activated magnetically. The device is used to determine the position of doors and windows. Case dimensions - 19 x 23 mm.

Magnetic sensor to open door/window - reed contact CMD19
€2.90
€2.36 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Description

Wired proximity sensor activated magnetically. The device is used to determine the position of doors and windows. The principle of operation is similar as in a traditional relay. The circuit is open by default, when approaching the magnet, circuit is being closed, which means that through the wires, the current begins to flow.

Czujnik magnetyczny otwarcia drzwi/okien - kontaktron CMD19

Connection

The sensor can be easily connected to any cip with a microcontroller, e.g. an Arduino. By attaching a pulling up resistor or by running an internal pull-up, the read can be implemented in digital form.

Communication with Arduino

To verify that the functionality of the sensor, use the attached to the Arduino program - DigitalInputPullup, which is in the menu: File -> Examples -> Digital. It is sufficient to connect one sensor's wire to ground GND, the other to the pin No. 2 of Arduino, and when bringing together both parts of the sensor, the built-in L led connected to pin 13, will light up.





Specification

  • Working voltage: up to 40 V
  • Maximum current: 0.1 A
  • Internal resistance: about 200 Ω
  • Range: up to 25 mm
  • Mode of operation: off by default
  • Colour: brown
  • Dimensions: 19 x 23 mm
  • Cable length: approx. 20 cm

Includes:

  • The sensor with wires
  • The magnetic element
  • Mounting screws
  • Self-adhesive tape





Package width 6 cm
Package height 8 cm
Package depth 1.8 cm
Package weight 0.026 kg
