Product description: Grove - Lightning Sensor - lightning sensor - AS3935 - Seeedstudio 101021072
The Grove Lightning Sensor is a very sensitive lightning detection sensor used to warn in the event of an approaching storm front. Built around the AS3935 IC, it is easy to use and offers advanced features that make it ideal for both home and professional use. The sensor has the ability to detect lightning both from the cloud to the ground and within the cloud, within a radius of up to 40 km . This allows you to be aware of an approaching storm and take appropriate precautions. It can be easily programmed and integrated with development boards such as Arduino , Seeeduino or Raspberry Pi . It can be powered by 3.3 V or 5 V.
Grove - Lightning Sensor - lightning sensor - AS3935 - Seeedstudio 101021072.
The sensor can detect lightning discharges both from the cloud to the ground and inside the cloud, within a radius of up to 40 km.
Special features of the sensor
- High sensitivity: the sensor reacts to even small electric fields in the air, so it is able to quickly detect an approaching thunderstorm front.
- Advanced algorithm: uses an internal algorithm to identify characteristic electrical waves, allowing you to accurately determine the presence of a storm.
- Simple operation: thanks to the I2C communication interface and Grove connector, the sensor is easy to use and can be quickly integrated into various development boards.
- Low Power Consumption: Has a sleep mode function that helps reduce power consumption and extend the life of batteries or other power sources.
- High Performance: With a maximum detection range of up to 40 km, the sensor can effectively warn of approaching storms, ensuring the safety of both people and electrical equipment.
How does a lightning sensor work?
The sensor's operation is based on the assessment of electric fields in the air and verification of the specific shape of electric waves typical of thunderstorm fronts , which allows for precise detection of lightning discharges. This sensor is extremely sensitive and reacts even to small changes in the electric field, which allows for quick detection of threats and taking appropriate precautions. Additionally, as part of the Grove ecosystem, the sensor is easy to connect and use, making it ideal for users who are just getting started with electronics. The sensor allows you to create a variety of applications , such as forecasting alerts about approaching thunderstorms, weather stations , or automated security systems that prevent damage to electrical equipment. It is an indispensable tool for everyone who is interested in monitoring weather and atmospheric phenomena, both at home and in the workplace.

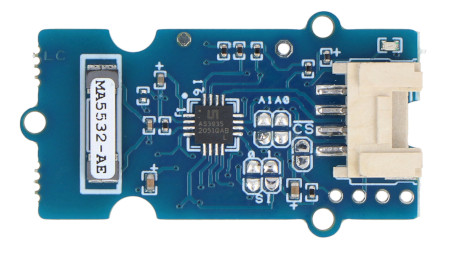

Lightning detection sensor.

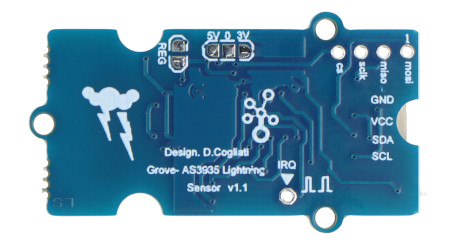

Sensor pins.
Pinout description
- GND - system ground
- VCC - input voltage in the range from 3.3 V to 5 V
- SDA - data transmission pin on the I2C or SPI bus (according to the setting)
- SCL - pin of the clock signal synchronizing data transmission via the I2C or SPI bus (according to the setting)
Suggested use
- Weather station (storm detection)
- Wearable devices (storm early warning)
- Photographing lightning
- Home automation
Technical specifications of the Grove - Lightning Sensor module
- Sensor type: lightning sensor
- Built-in chip: AS3935
- Input voltage: 3.3V to 5V
- Maximum detection range: 40 km
- Interface: I2C, SPI
- Connector: Grove
- Frequency: 500 kHz
- Dimensions: 40 x 20 x 7 mm

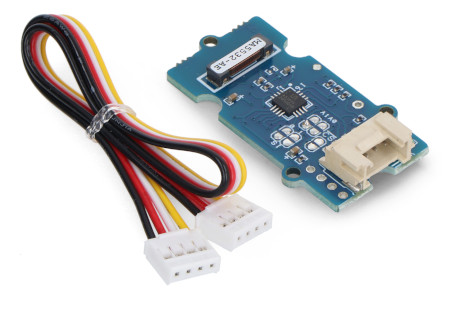

Set contents
- 1x Grove - Lightning Sensor - lightning sensor - AS3935 - Seeedstudio 101021072
- 1x Connection cable with Grove connector
Thanks to the I2C interface and Grove connector, the sensor can be easily and quickly integrated into various development boards.
