Description
Digital sensor of tracking the line, reflective for Arduino, it can detect the white and black lines. Separate signals provides a stable output signal TTL, so it looks for more accurate and more stable line. The sensor is powered with the voltage from 3.3 V to 5 V. The best distance between the sensor and the surface is 1-2 cm.

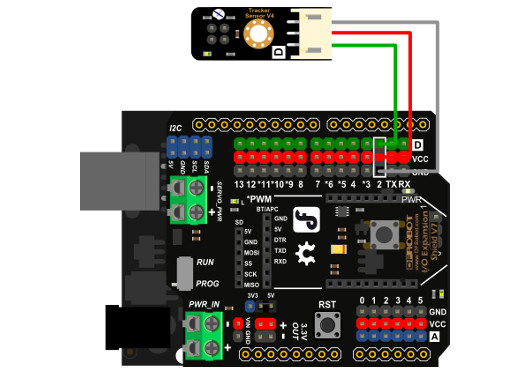

Connection example
The sensor is compatible with Arduino, it is connected via 3-pin Gravity connector. Supply voltage is from 3.3 V to 5 V. On the manufacturer's Wiki website, you can find sample code for Arduino.
Specification
- Supply voltage: from 3.3 V to 5 V
- Detection range: 1 - 2cm
- Operating current: up to 10 mA
- Operating temperature: 0 °C to 50 °C
- Interface: digital - Gravity 3-pin
- Output level: TTL (low performance - black line, high performance - white line)
- Dimensions: 10 x 28 mm
- Weight: approx. 10 g
