Description
The sensor is used to detect fire. It is powered with the voltage from 3.3 V to 5.3 V. The range of the sensed wave: from 760 nm to 1100 nm. The output is an analog voltage. The device operates in temperatures from -25 °C to 85 °C. The indications depend on the intensity and position of the flame (angle and distance).
| Despite the fact that the module detects a fire, it has not the fire protection. Therefore, the distance from the fire should be preserved to prevent damaging of the board. |

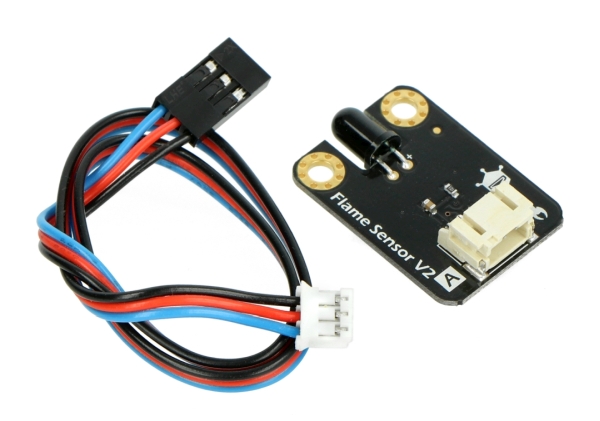

To module, attached is the connecting cable with the female tips.
Sensor's maintenance
The sensor has an analog output that should be connected to the pin of the A/D converter (analog input in Arduino).
|
The product is compatible with Arduino Sample code and detailed information can be found in the user's guide |
Specification
-
Supply voltage: from 3.3 V to 5 V
- Range of the detected wave: from 760 to 1100 nm
- Detection angle: 0 to 60 °
- Operating temperature: -25 to 85 °C
- Interface: analog
- Module dimensions: 22 x 30 mm
