SparkFun 6DoF IMU Breakout - BMI270 - 3-osiowy akcelerometr i żyroskop - Qwiic - SparkFun SEN-22397
SparkFun 6DoF IMU Breakout is an inertial sensor module with the BMI270 chip. It has a 3-axis accelerometer and gyroscope that enable precise tracking of movement and orientation. Thanks to the Qwiic system, this module easily integrates with other components without the need for soldering.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SparkFun 6DoF IMU Breakout - BMI270 - 3-axis accelerometer and gyroscope - Qwiic - SparkFun SEN-22397
SparkFun 6DoF IMU Breakout with BMI270 sensor is an electronic module designed for precise positioning and motion analysis . The small module uses a built-in 3-axis accelerometer and gyroscope . These two sensors allow for very accurate tracking in six degrees of freedom - three axes of linear acceleration and three axes of rotation. Available Qwiic connectors eliminate the need for soldering , allowing you to quickly and easily connect various modules and sensors into a coherent system. The module is ideal for use in all types of projects that require precise movement tracking and orientation.
The manufacturer has provided a user guide that makes it easier to start working with the module.

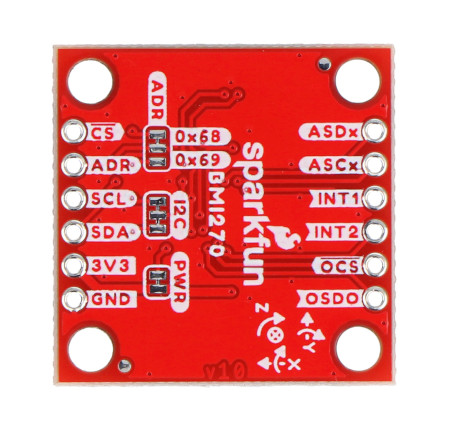

SparkFun 6DoF IMU Breakout - BMI270 - 3-axis accelerometer and gyroscope - Qwiic - SparkFun SEN-22397.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.

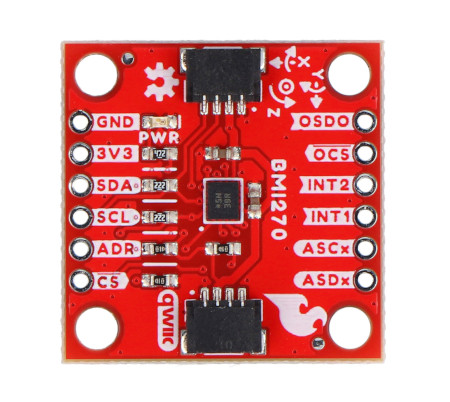

The module has an accelerometer and gyroscope to detect motion.
Main features of the module
- Provides precise motion and orientation tracking in 6 degrees of freedom with a 3-axis accelerometer and gyroscope
- Easy integration with the Qwiic system, eliminating the need for soldering when connecting to other modules
- Perfect for use in robotics projects, drones and motion tracking systems
Our offer also includes the SparkFun Micro 6DoF IMU Breakout BMI270 version. Check!
Technical specifications of the module
- Built-in chip: BMI270
- Module type: IMU sensor
- Degrees of freedom: 6 (3 axes of acceleration, 3 axes of angular velocity)
- Sensor: 3-axis digital accelerometer and gyroscope
- Communication interface: I2C bus
- I2C address: default 0x68, configurable 0x69
- Acceleration measurement range: ±2 / ±4 / ±8 / ±16 g
- Angular velocity measurement range: ±125 / ±250 / ±500 / ±1000 / ±2000 dps
- Supply voltage: 1.8V and 3.3V
- Step counter: yes
- Pinouts: soldering pads, Qwiic 2x connectors
- Dimensions: 25.4 x 25.4 mm
The sensor allows you to track movement in 6 degrees of freedom.
Useful links
| Name | Value |
|---|---|
| Sensor - type |
|
| Width | 5 cm |
| Height | 10 cm |
| Depth | 0.5 cm |
| Weight | 0.003 kg |
