Product description: Rigol DHO804 70 MHz oscilloscope, 4 channels
The Rigol DHO804 oscilloscope is an advanced measurement tool designed for demanding users seeking high quality in a compact package. It offers a 70 MHz bandwidth, 12-bit resolution, a sampling rate of up to 1.25 GSa/s, and a memory depth of 25 Mpts . Its modern design and USB Type-C power supply make it an ideal choice for laboratory and mobile applications.

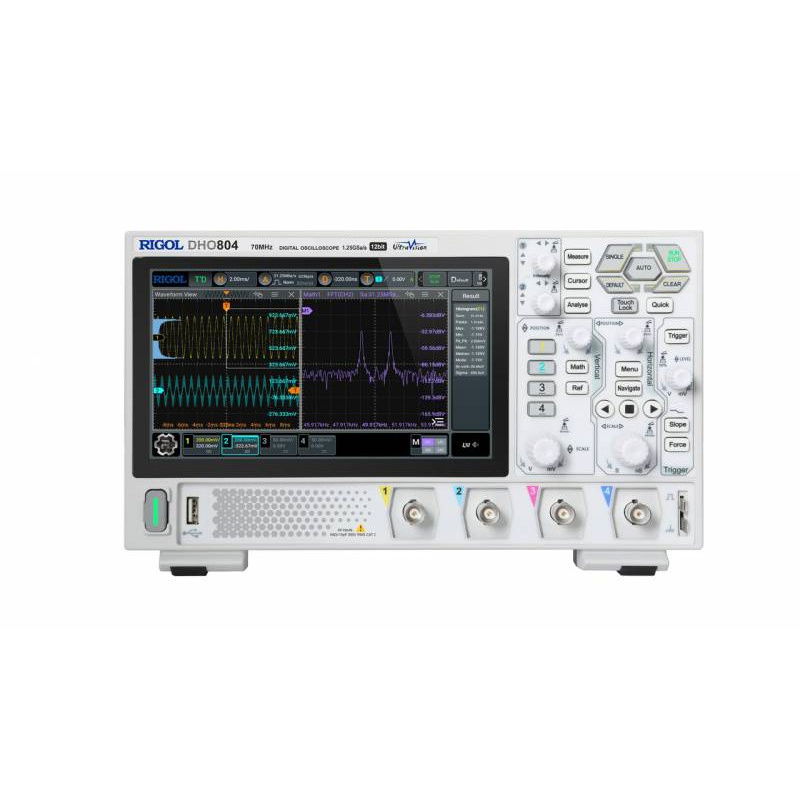

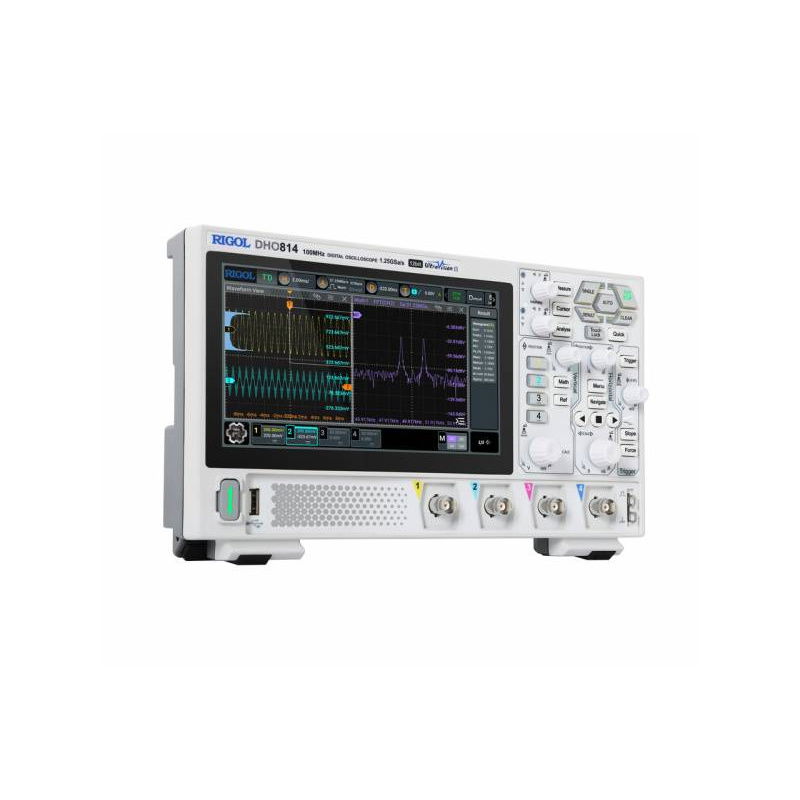

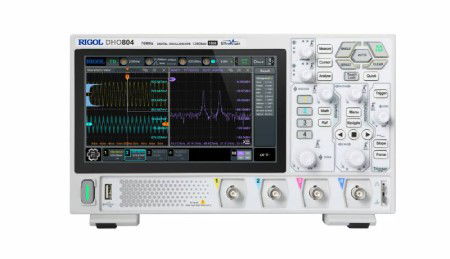

Rigol DHO804 70 MHz oscilloscope 4 channels.
The oscilloscope can be mounted on a standard monitor mount, reducing the space taken up on your desk.
Main features of the Rigol DHO804 oscilloscope
- 12-bit resolution : 16 times more quantization levels than classic 8-bit oscilloscopes
- 70 MHz analog bandwidth : precise analysis of mid-frequency signals
- 1.25 GSa/s sampling : accurate representation of dynamic signals
- 4 analog channels : simultaneous analysis of multiple signals
- 25 Mpts of acquisition memory : deep waveform recording
- Maximum capture rate of 1,000,000 wfms/s : captures even occasional interference
- 7'' 1024 x 600 px touchscreen : convenient and intuitive operation
- USB, LAN, HDMI interfaces : real-time connectivity and data presentation
- Powered by USB Type-C : ideal for field use
12-bit high resolution and USB Type-C power
With 12-bit resolution , the Rigol DHO804 provides exceptionally precise sampling with 4096 quantization levels , which is 16 times more accurate than 8-bit oscilloscopes. This allows analysis of even very small signals. Support for USB Type-C power supply allows operation via a power bank, making it an excellent tool for mobile testing.

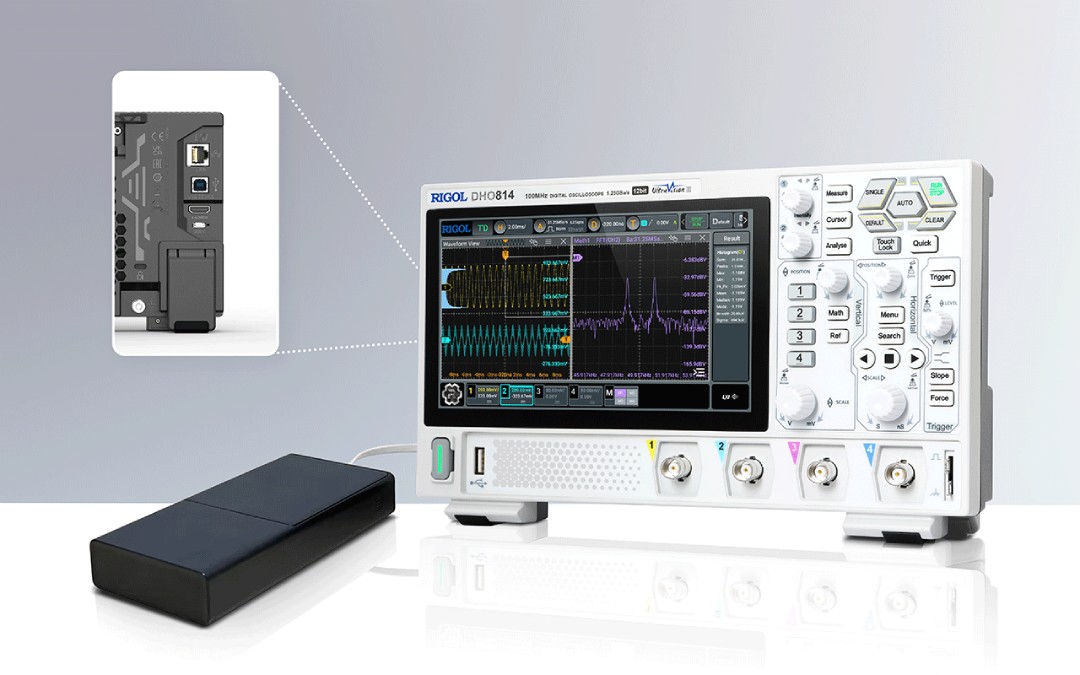

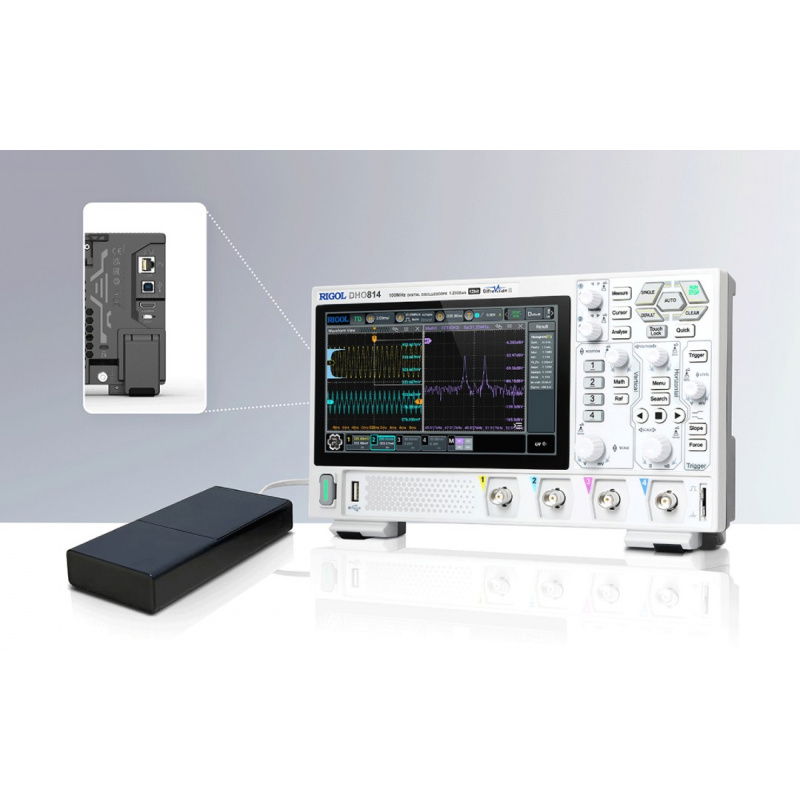

Powered via USB Type-C for field testing.

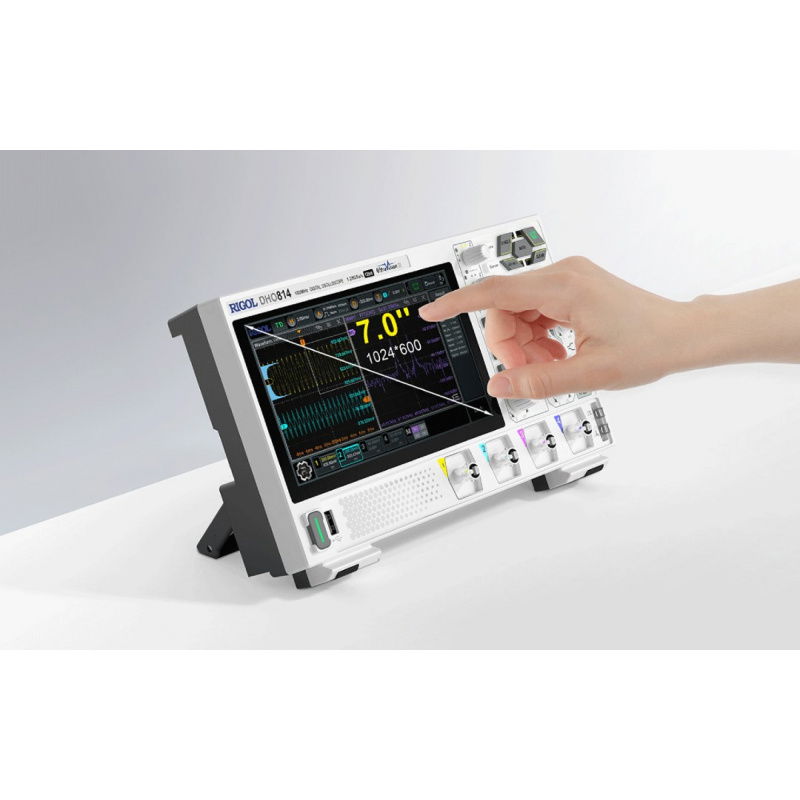

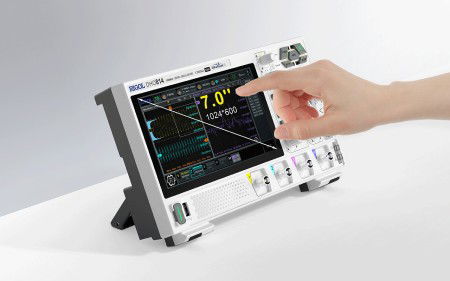

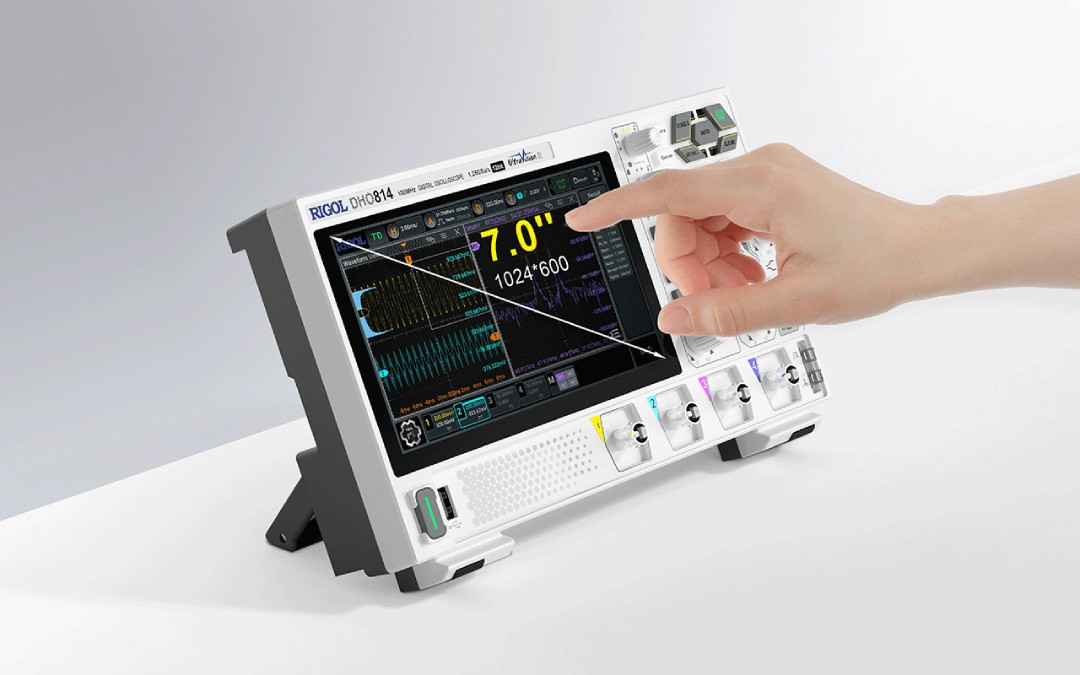

The oscilloscope has a 7-inch high-resolution touchscreen.
Compact design, touchscreen and modern interfaces
The DHO800 series features a compact, lightweight design that saves space on your workstation. It features a high-resolution 7-inch touchscreen . (1024 x 600 px) facilitates interaction and control of measurement parameters. Built-in USB, LAN, and HDMI interfaces enable remote control, result sharing, and data presentation on a large screen.
Technical specifications of the DHO804 oscilloscope
- Analog bandwidth: 70 MHz
- Vertical resolution: 12 bits
- Sampling rate: up to 1.25 GSa/s
- Acquisition memory: up to 25 Mpts
- Channels: 4 analog
- Sensitivity range: 500 μV/div to 10 V/div
- Refresh rate: up to 1,000,000 wfms/s (UltraAcquire)
- Display: 7'' touchscreen, 1024 x 600 px
- Interfaces: USB Host & Device, LAN, HDMI
- Power supply: USB Type-C
- Dimensions: 265.35 x 161.75 x 77.38 mm
Contents of the set
- 1x Rigol DHO804 Oscilloscope
- 1x Power Supply
- 1x Banana wire for grounding
- 4x PVP3150 passive probe (150 MHz)

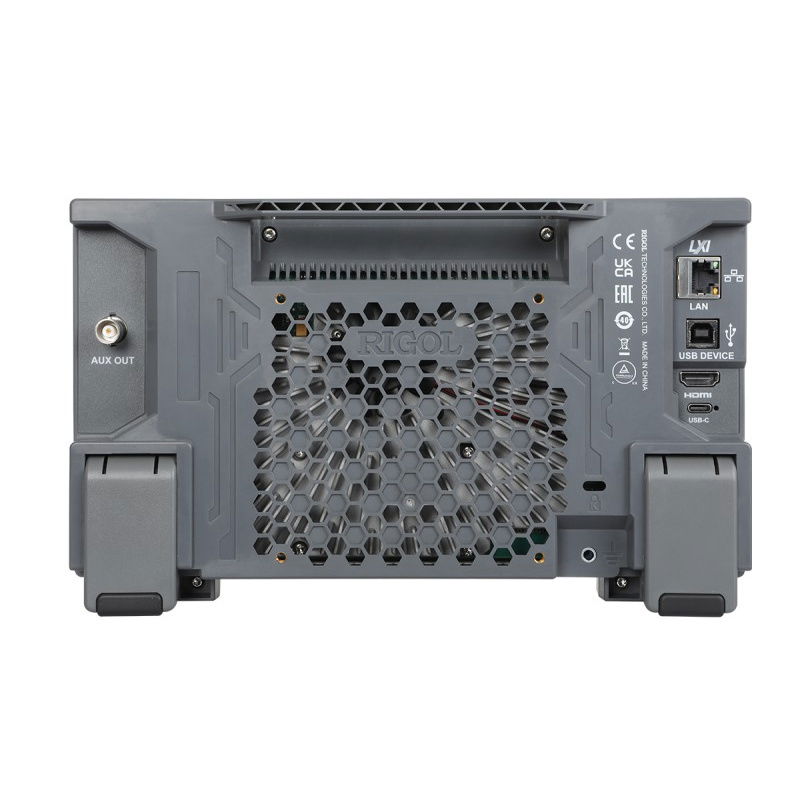

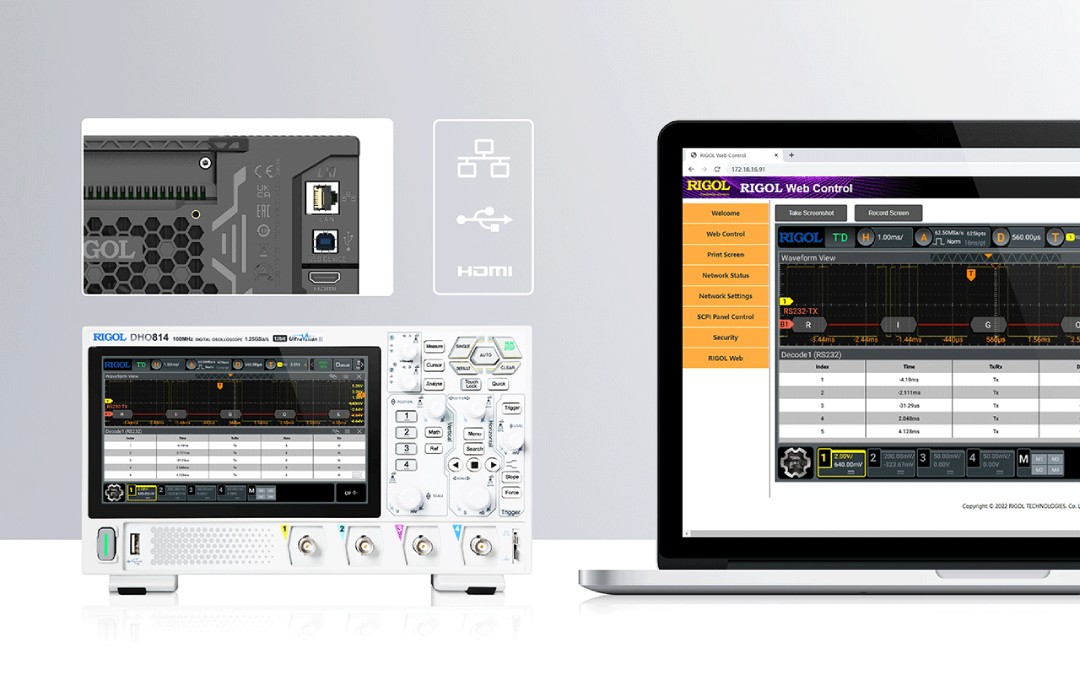

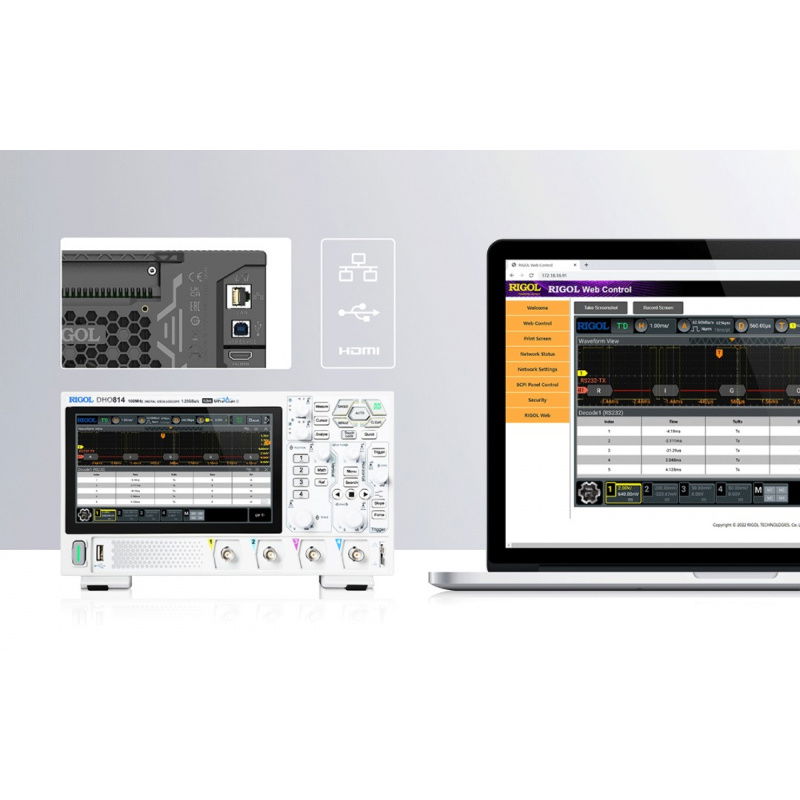

Rigol DHO804 is equipped with USB, LAN and HDMI output interfaces.
