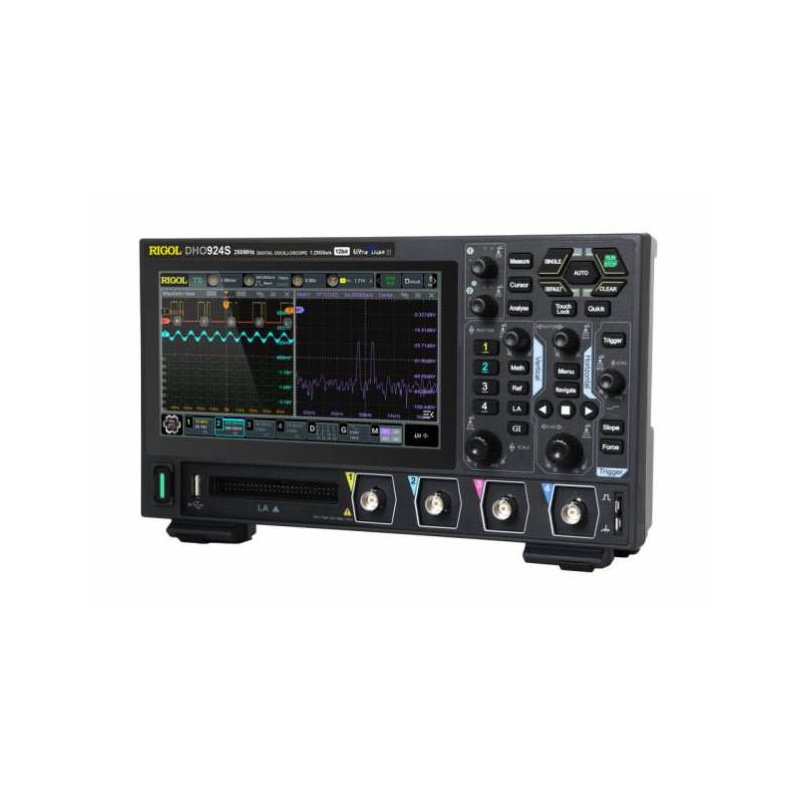

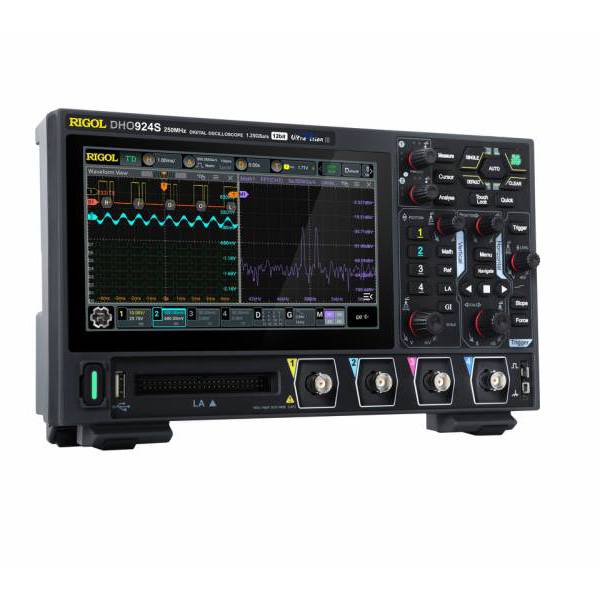

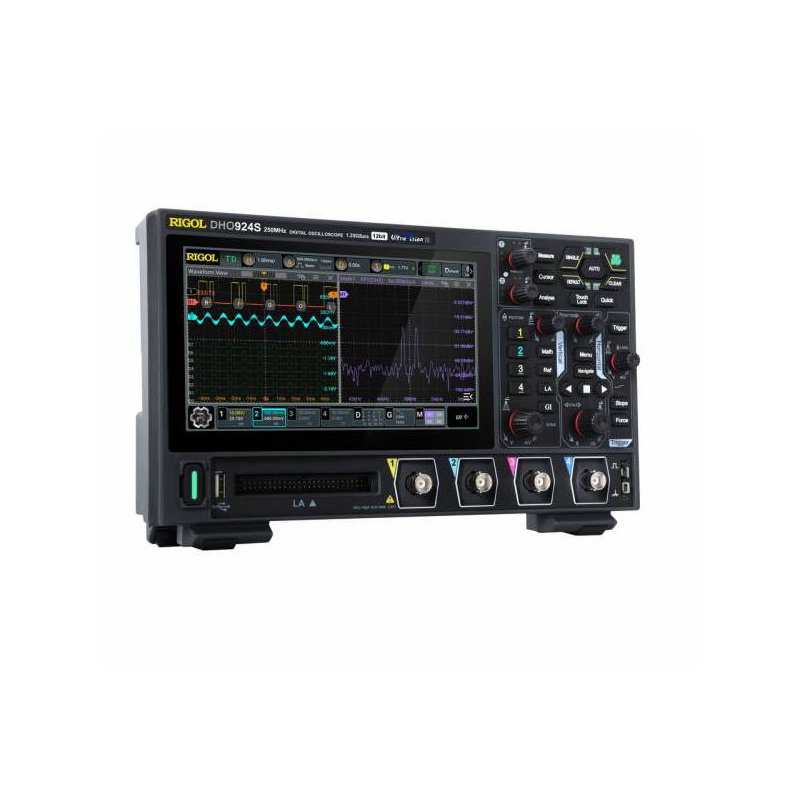

Product description: Rigol DHO914S 125 MHz oscilloscope 4 channels + AWG 25 MHz
The Rigol DHO914S is an advanced, next-generation digital oscilloscope that combines high performance with a compact design. Equipped with 4 analog channels and support for 16 digital channels , it enables comprehensive signal analysis in modern electronic systems. Its 12-bit resolution provides a much more accurate signal image than standard 8-bit oscilloscopes. The device offers fast waveform capture up to 1,000,000 wfms/s and advanced analytical functions such as bus decoding and Bode plot analysis. A built-in 25 MHz AWG generator enhances the device's functionality. A 7-inch touchscreen and a Polish-language menu ensure intuitive operation, while the ability to power a power bank via USB Type-C ensures the oscilloscope is ready for operation in any environment.

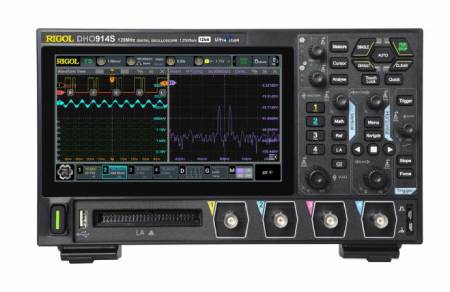

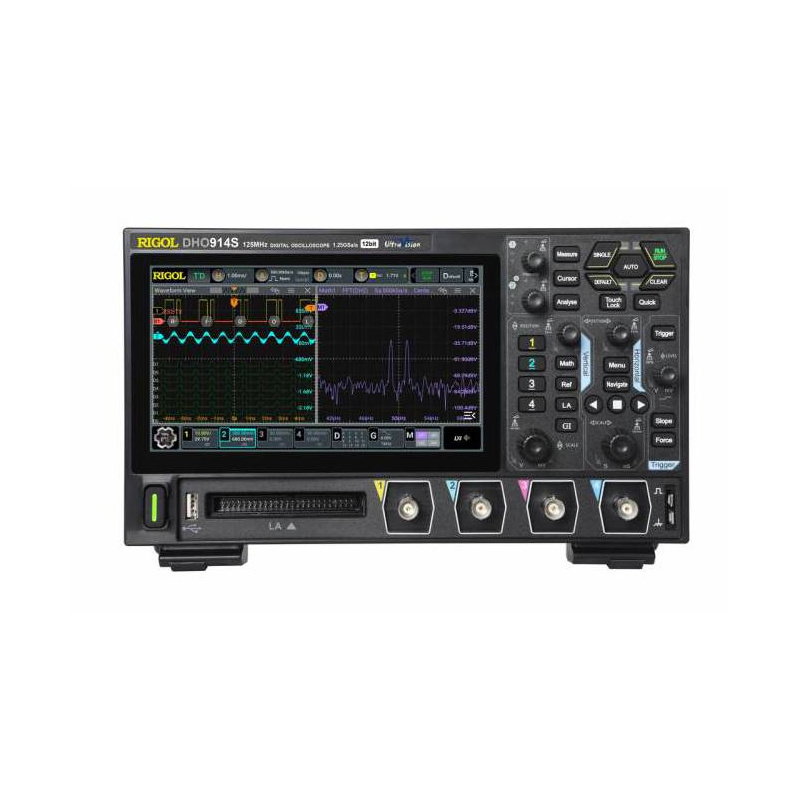

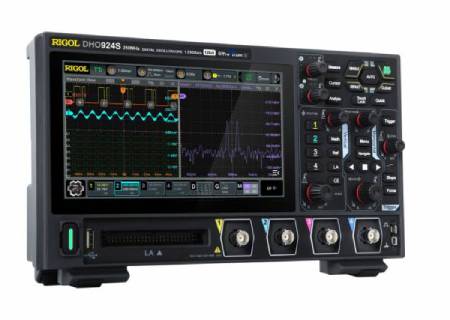

Rigol DHO914S oscilloscope 125 MHz 4 channels + AWG 25 MHz.

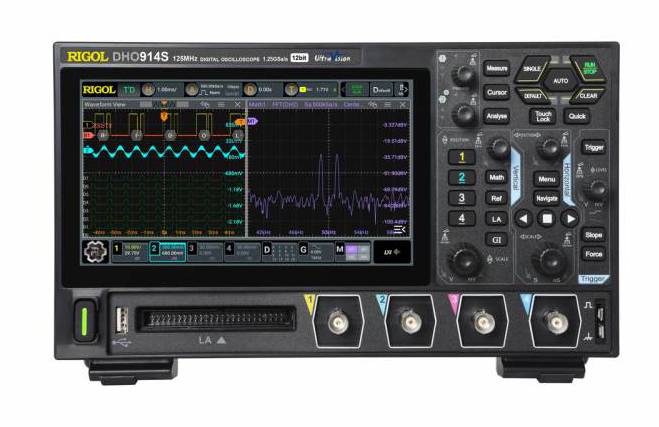

The DHO914S oscilloscope is equipped with 4 analog channels, 16 digital channels (MSO) and an integrated AWG function generator.
Main features of the oscilloscope
- 125 MHz band : precise analysis of high-frequency signals
- 12-bit resolution : 4096 quantization levels ensure accurate signal reproduction
- 4 analog channels : simultaneous analysis of multiple signals
- Sampling rate 1.25 GSa/s : high measurement accuracy
- 50 Mpts memory : long waveform analysis
- AWG 25 MHz : built-in waveform generator
- 16 digital channels : logic signal analysis
- UltraAcquire : up to 1,000,000 wfms/s
- 7'' screen : touchscreen, intuitive operation
- Bus decoding : I2C, SPI, UART, CAN, LIN
- Mobility and convenience : powered by Type-C interface and compact design that saves space on your desk
- Extensive communication options : standard USB Device & Host ports, LAN and HDMI output
Advanced signal analysis and high 12-bit resolution
The Rigol DHO914S oscilloscope features 12-bit signal processing , which translates into significantly higher measurement accuracy. This enables precise analysis of even very small signals and noise reduction. This allows you to analyze complex waveforms with high accuracy. High capture speed and large memory allow for the recording of rare events and long waveforms without data loss, which is crucial for research and diagnostic work.
Built-in AWG generator and analysis capabilities
The built-in 25 MHz AWG waveform generator allows you to generate test signals without additional hardware. It's ideal for testing analog and digital systems. Additionally, the oscilloscope offers features such as Bode plot analysis, histograms, and bus decoding . making it a versatile measurement tool.

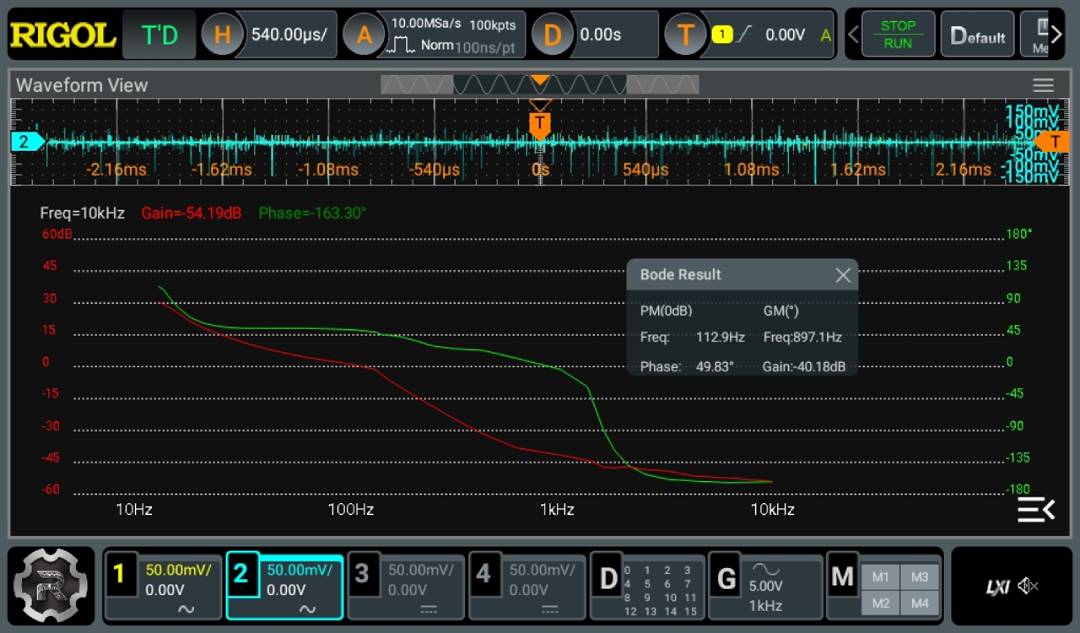

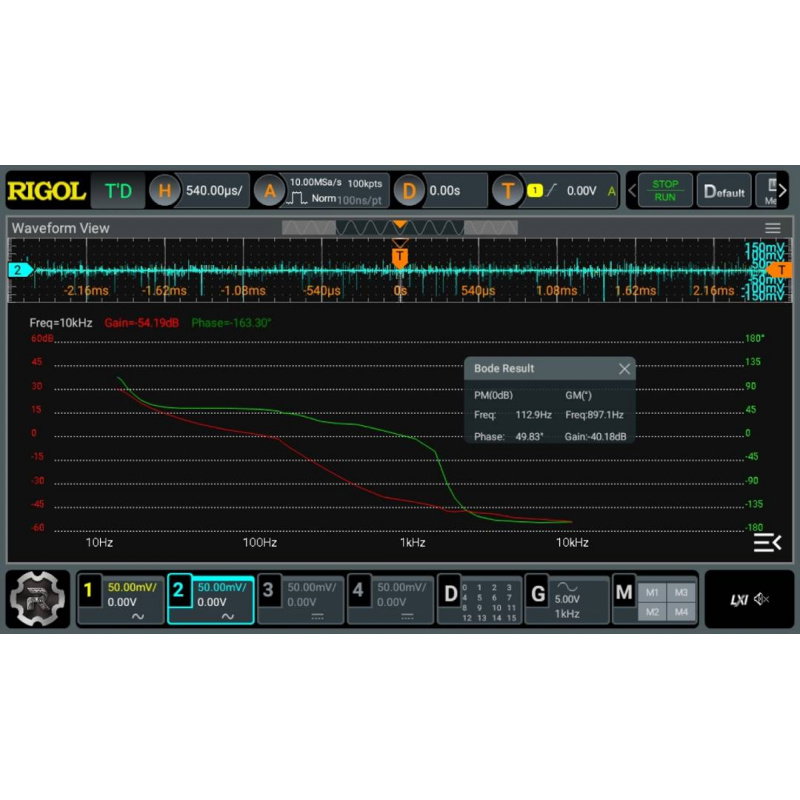

The DHO914S is equipped with an advanced Bode plot analysis function, which is crucial when designing and testing the stability of switching power supplies and audio systems.

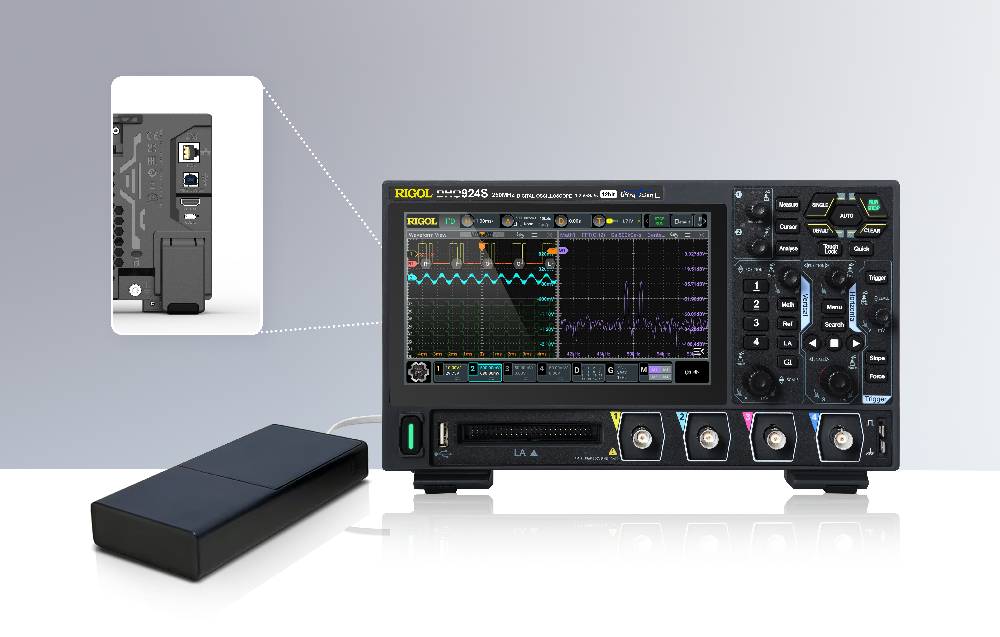

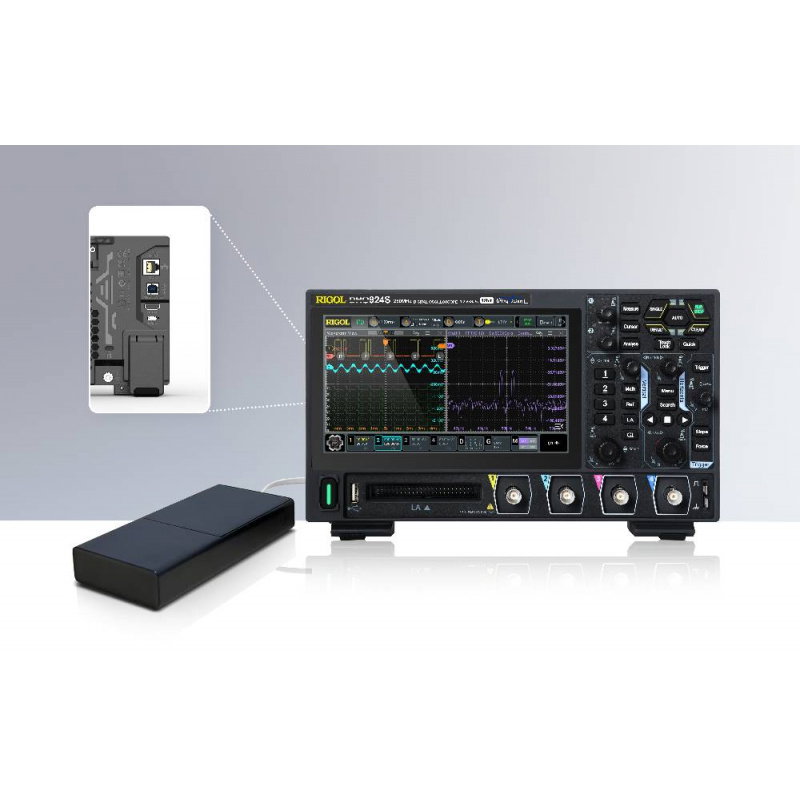

Powered via Type-C interface and compact design to save space on your desk.
Technical specifications of the Rigol DHO914S oscilloscope
- Frequency response: 125 MHz
- Channels: 4 analog + 16 digital
- Sampling: 1.25 GSa/s
- Memory: from 10 Mpts (all channels) to 50 Mpts (one channel)
- Resolution: 12 bit
- Refresh rate: up to 1,000,000 wfms/s
- Range: 200 μV/div to 10 V/div
- AWG: 1 channel, 25 MHz bandwidth
- Display: 7'' 1024 x 600

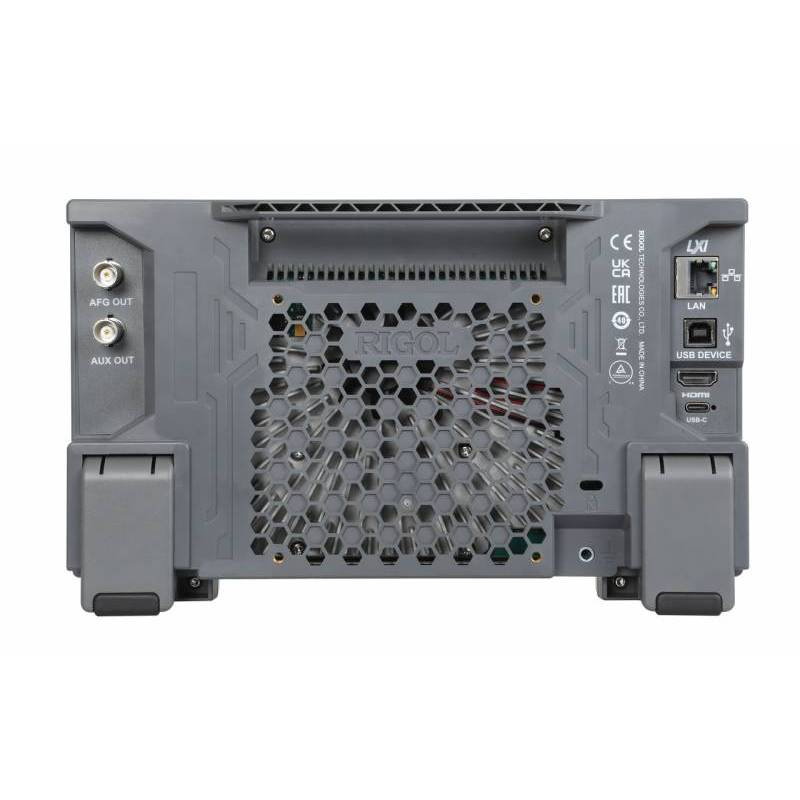

- Interfaces: USB Device, USB Host, LAN, HDMI
- Dimensions: 265.35 x 161.75 x 77.38 mm
- Weight: 1.78 kg
Contents of the set
- Rigol DHO914S Oscilloscope
- Charger
- Grounding wire
- PVP3150 probe x4
